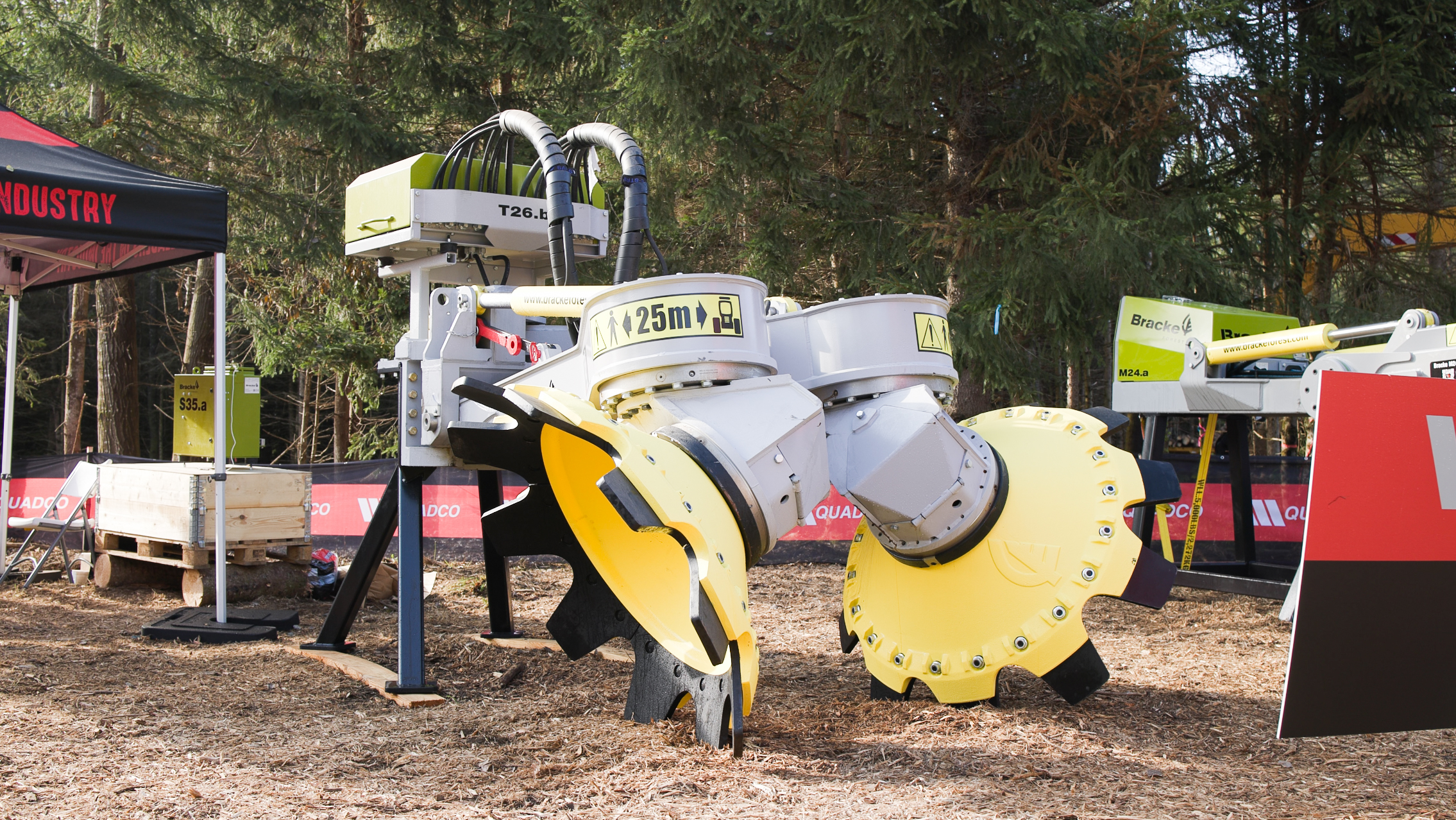

T26.b

2-Row Disc Trencher

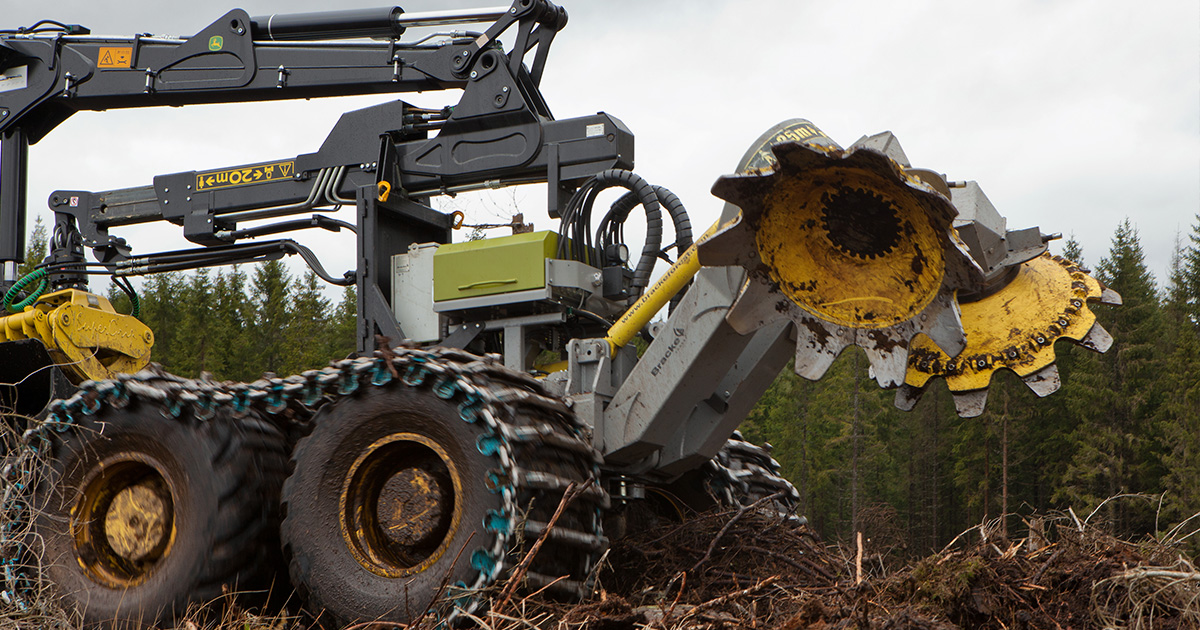

The Bracke T26.b is our most powerful disc trencher, able to handle the most troublesome terrain littered with stones and slash. The T26.b attaches to a large base machine. Scarification with the T26.b gives plants and seeds the best possible start for growth and survival, whatever the terrain.

T26.b

Design

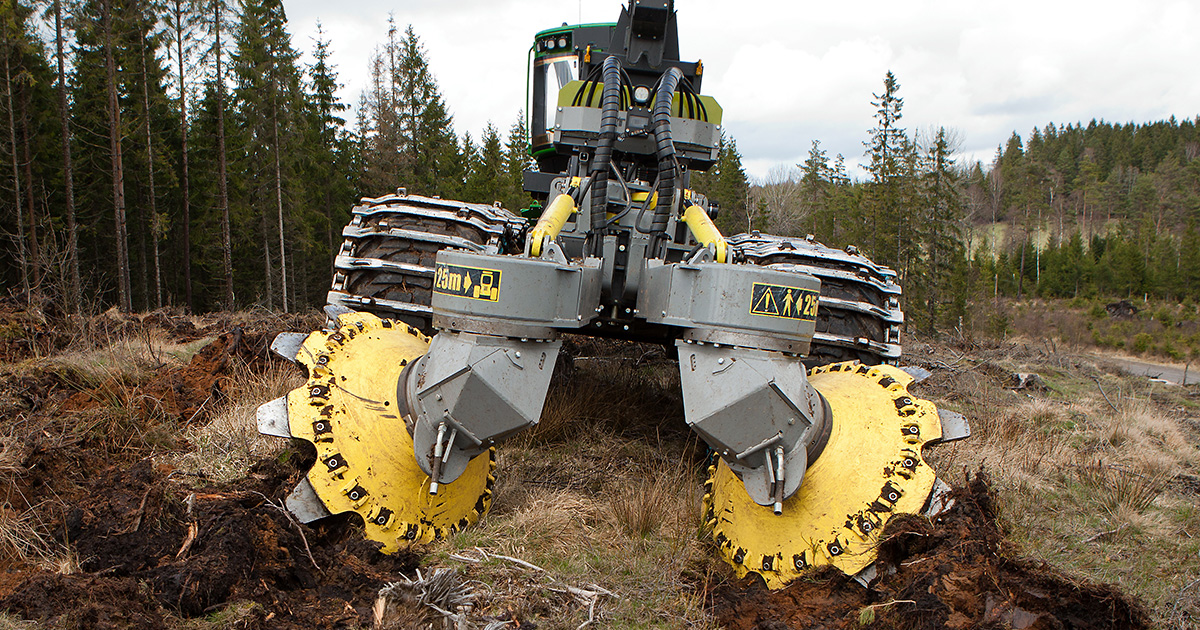

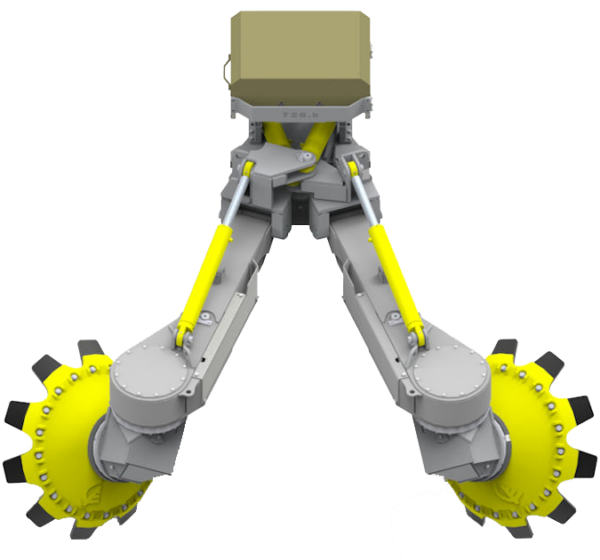

The Bracke T26.b is designed to enable it to closely follow uneven terrain. The machine’s hydraulics allow sideways arm movements and the disc to turn about its vertical axis if overloaded. The hydraulics are load-sensing and are connected to the base machine.

Machine control

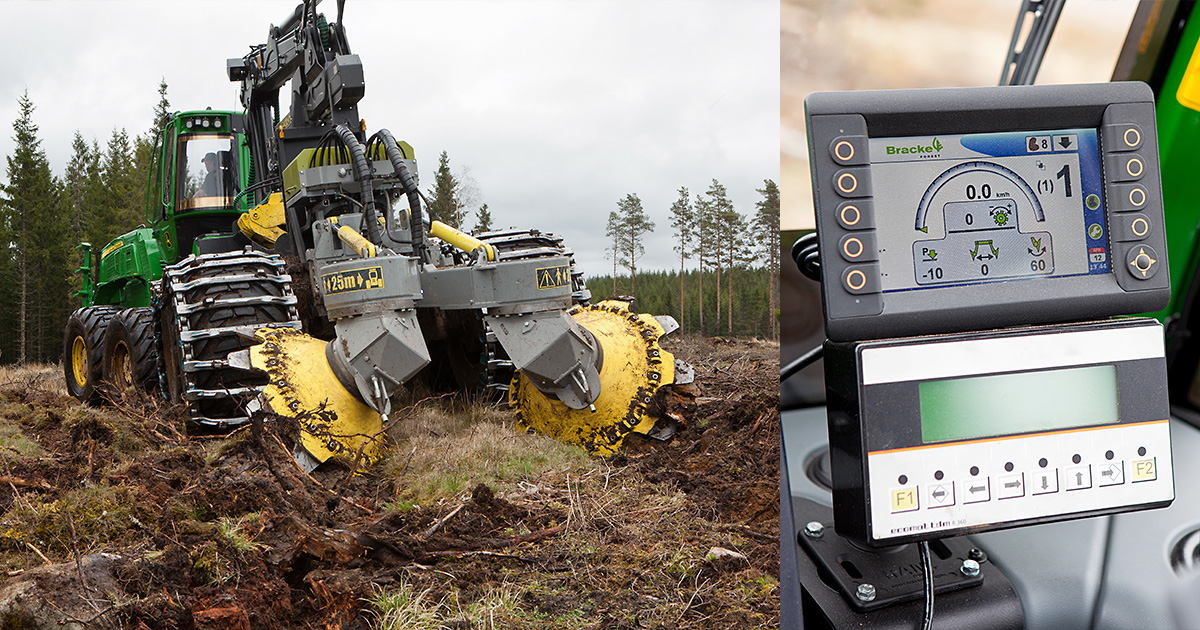

The control system is based on a PLC platform and communicates over a CAN bus. The control system is very user-friendly. The disc trencher is fitted with sensors that send information to the control system about, for example, the base machine’s speed, the angle of the discs, and the position of the arms. The control system has eight programmable operating programs chosen from the controls in the cab. The display is used to make settings in the control system and read information from the scarifier. The control system keeps track of the scarified area and the distance covered, for both individual sites and in total, as well as the number of hours worked.

Technical specifications
Base machine	Forwarder / Skidder 16 – 20 metric tons
Weight	3600 kg

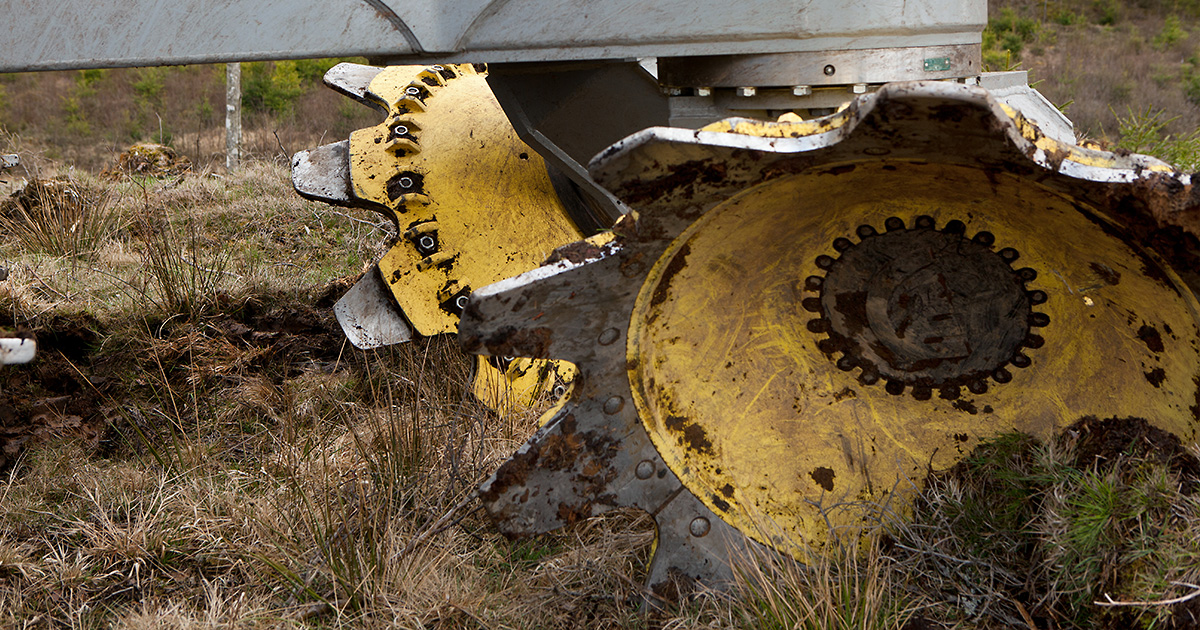

Disc diameter	1000 mm, 1400 mm incl. teeth

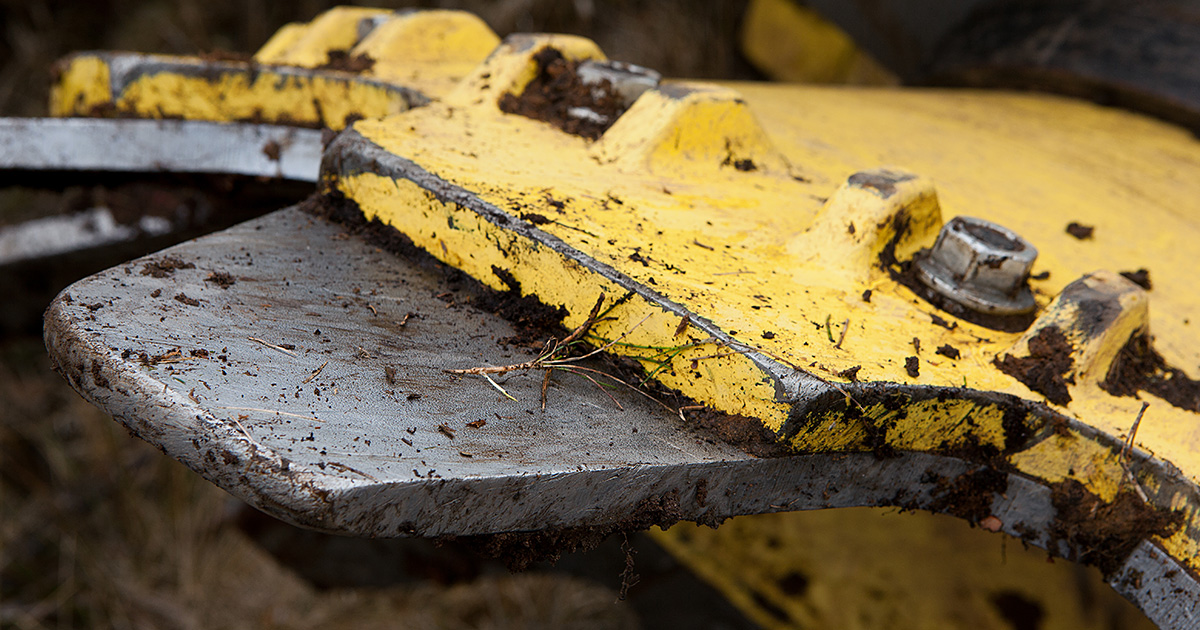

	Replaceable teeth
Hydraulic requirements
Pressure	140 bar
Flow	100 l / min
Electrical system
Power	24 V
Control system	PCL based
Accessories	Seeder: Bracke S35.a
	Extra oil cooler

Scarification

The operator controls the Bracke T26.b from the cab. Depending on changes in the site conditions, one of the eight preset programs are chosen. The control system gives the operator variation possibilities to set arms and discs on different widths and angles. It is also possible to vary ground and lifting pressure or operate with a float mode. The Bracke T26.b can be set to work continuously or intermittently.
