FELLING HEAD

2450 kg | 5400 lbs

Weight (Without Rotator, Link, or Multi-Tree Handling)

300 bar | 4350 psi

Rotator Pressure

870 mm | 34"

Cutting Capacity

1100 mm | 43.3"

Maximum Opening Diameter

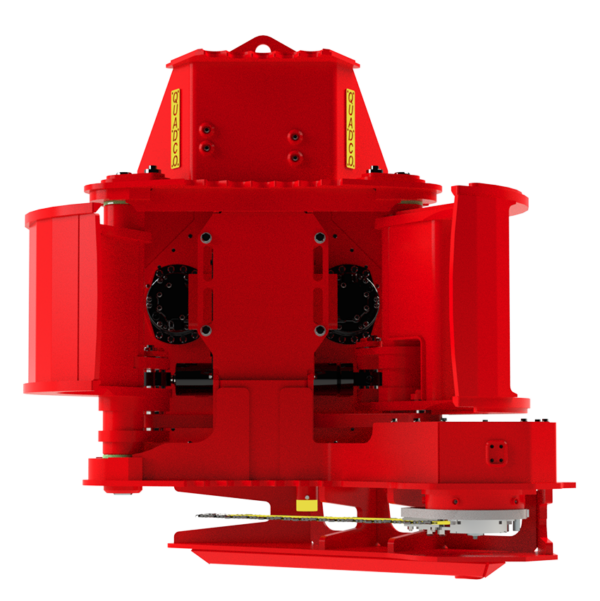

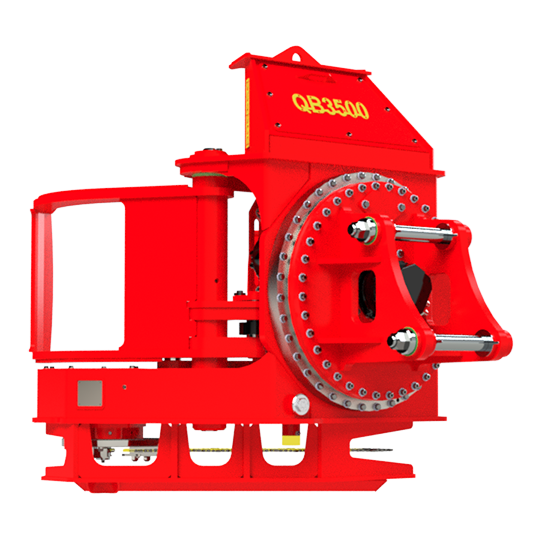

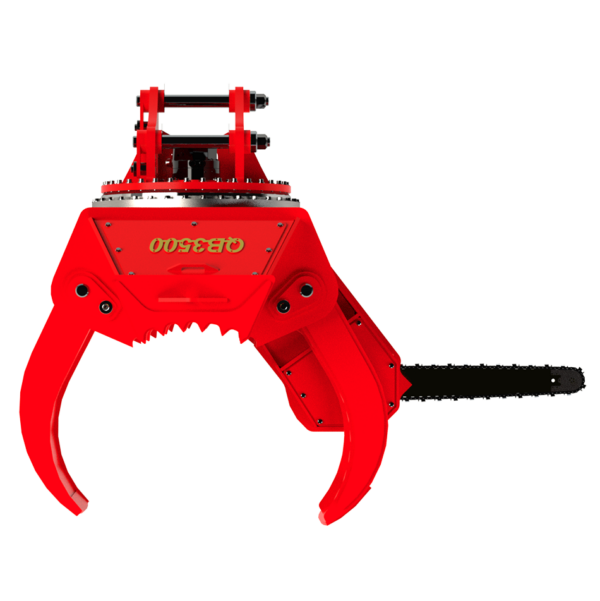

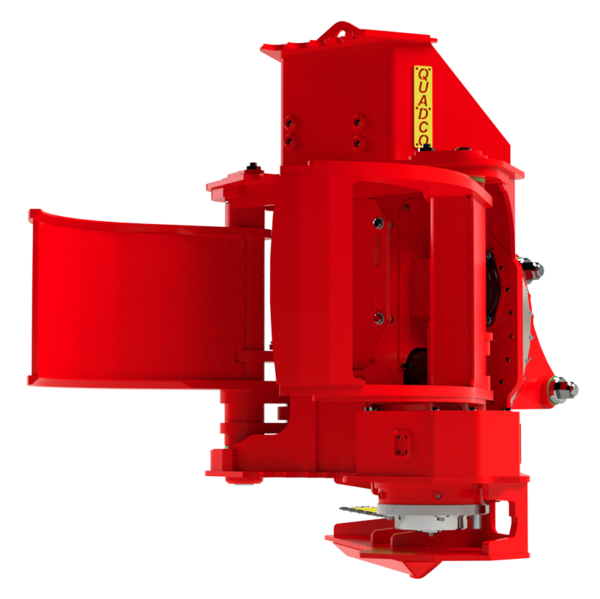

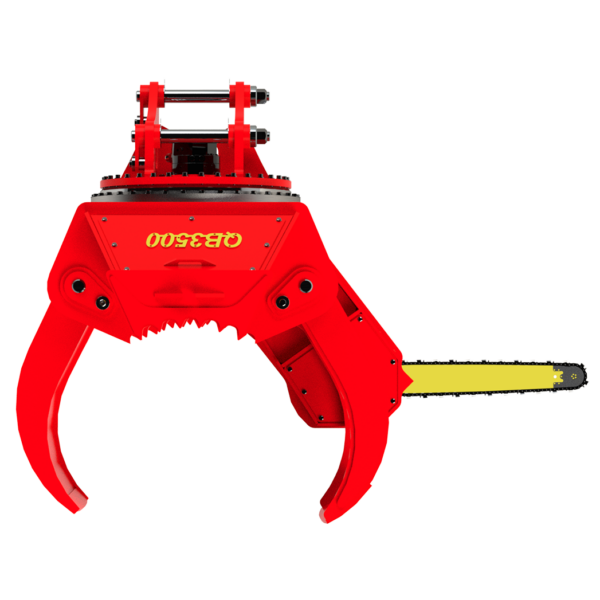

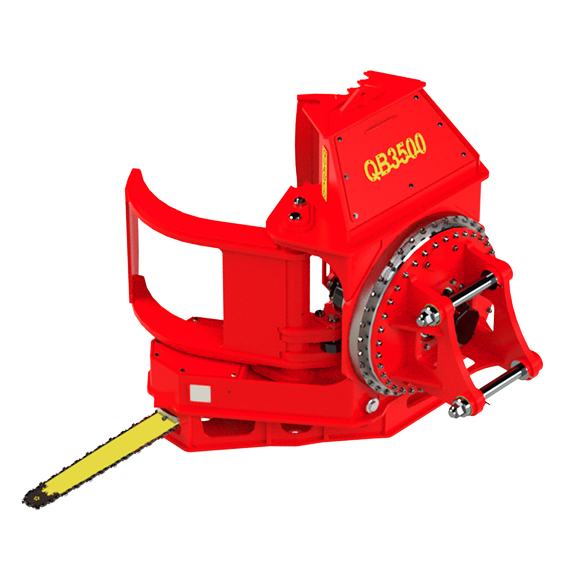

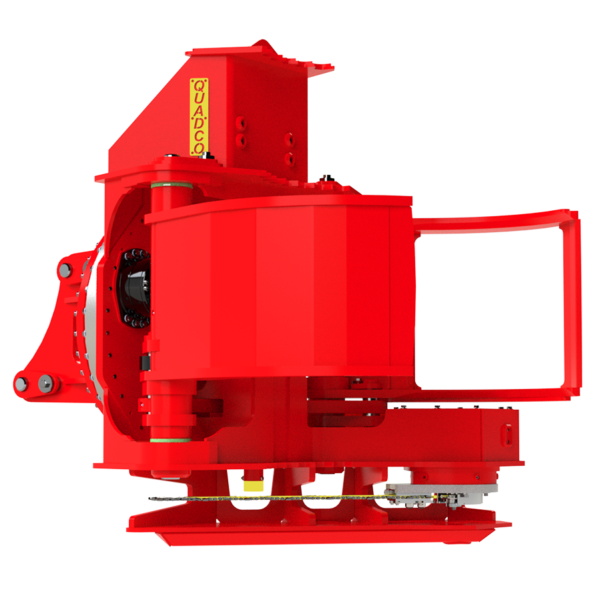

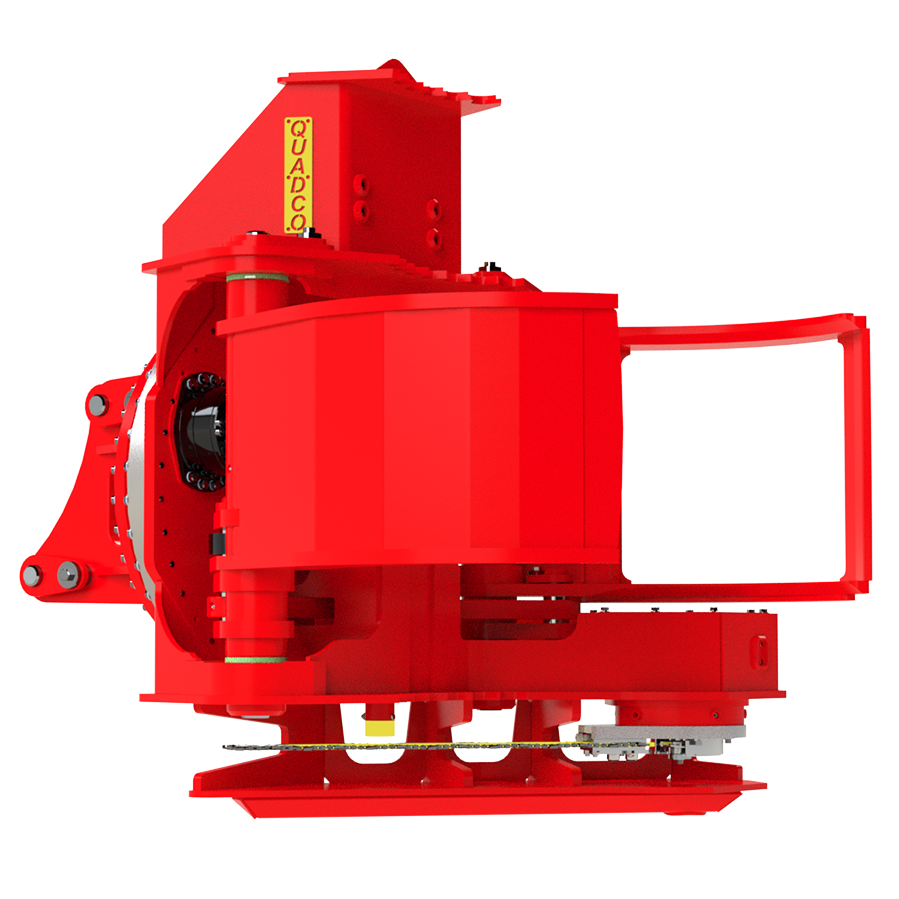

The QB3500 Fixed Felling Head is a multi-functional felling attachment designed to fell, bunch, shovel, and load. Its high-torque continuous rotation system and grapple-type arm design fundamentals allow for highly controlled felling of large, high-value hard and softwood, providing increased value recovery.

QB3500

Standard Configuration
Metric
Imperial

Rotation 40°
Weight 2,450 kg 5,400 lbs
Height 2,150 mm 85″
Depth 1,962 mm 77″
Width (Arms Closed) 1,422 mm 56″
Width (Arms Open) 1,856 mm 73″
Rotate Motors 2 x MCR05
Degree of Rotation Continuous 360°

Minimum Closing Diameter 140 mm 5.5″
Maxiumum Opening Diameter 1,100 mm 43.3″

Cutting Capacity 870 mm 34″
Bar Length 1,092 mm 43″
Saw Motor F12-60
Motor Size 60 cc 3.66 in3
Chain Size 19.05 mm 3/4″
Saw Bar Rotation 225°

Pressure 300 bar 4,350 psi
Maximum Flow 250 lpm 66 gpm
Valve Bank M4-15

Carrier Size 24 – 28 ton
Weight 3300 kg
Dimensions 30 × 30 × 40 cm

it’s all in the details

As a true visionary and pioneer in the forestry industry, we embrace quality craftsmanship.

bar saw models

With the ability to handle up to 32” in a single cut, Quadco Bar Saws are ready to tackle your large timber with finesse.

“Stop and go” versatility means the bar saw is retracted after the cut, safely readying the head for your delimbing, topping, and trimming needs.

Our Bar Saw’s arms are extremely durable, feature one cylinder per arm, and are made of cast-iron steel for easy grabbing and accumulating.

bar saw models qb2500 qb3200 qb3500 qb4400
Cutting Capacity 25″ 32″ 34″ 39″
