SKU: 24CP.
Categories: , .

High Speed Saw

2972 mm | 117"

Height

1549 mm | 61"

Tip-to-Tip Diameter

610 mm | 24"

Cutting Capacity

1321 mm | 52"

Maximum Throat Opening

C Models enable better leverage when handling tall timber with extended tower and faster accumulation. They feature stronger, more durable cast arms contoured for maximum support when accumulating as well as an ultra-reliable disc drive with easily adjustable bearings.

24CP

$159.00

Standard Configuration
Metric
Imperial

Weight 3,300 kg 6,820 lbs
Height 2,692 mm 106″
Depth 2,478 mm 97″
Width (Arms Closed) 2,045 mm 80″
Width (Arms Open) 2,191 mm 86″
Rotate Motors 3 x MCR05
Degree of Rotation Continuous 360°

Minimum Closing Diameter 170 mm 6.6″
Maxiumum Opening Diameter 1,400 mm 55″

Cutting Capacity 1,000 mm 39″
Bar Length 1,270 mm 50″
Saw Motor F12-60 F12-60
Motor Size 60 cc 3.66 in3
Chain Size 19.05 mm 3/4″
Saw Bar Rotation 225° 225°

Pressure 300 bar 4,350 psi
Maximum Flow 250 lpm 66 gpm
Valve Bank M4-15 M4-15

Carrier Size
30 – 35 ton
Weight 3300 kg
Dimensions 30 × 30 × 40 cm

Reviews

There are no reviews yet.

Add a review

it’s all in the details

As a true visionary and pioneer in the forestry industry, we embrace quality craftsmanship.

High Speed Saw

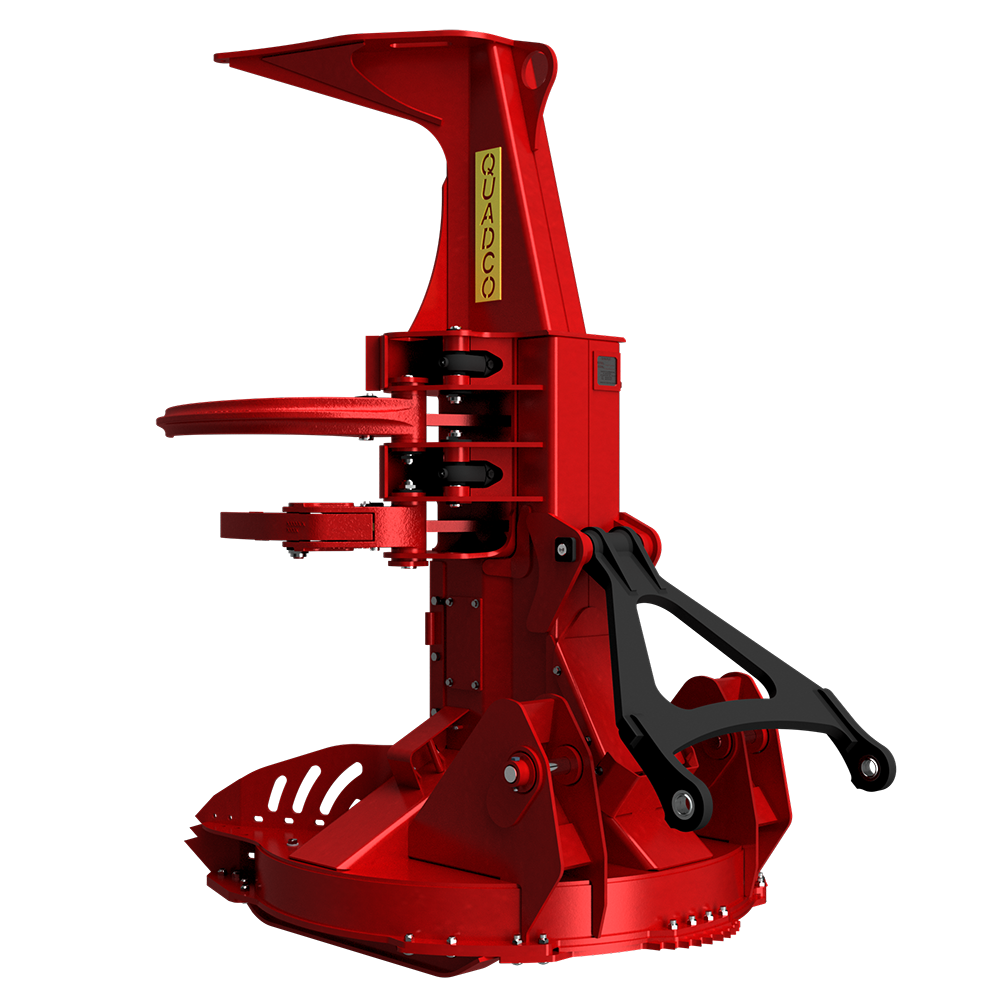

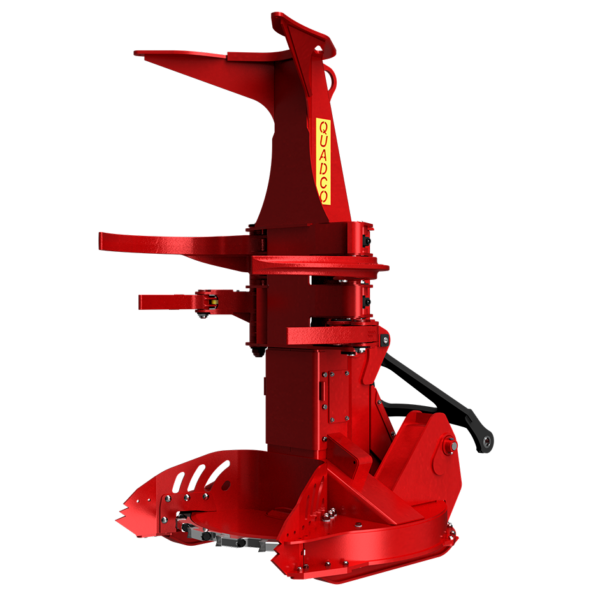

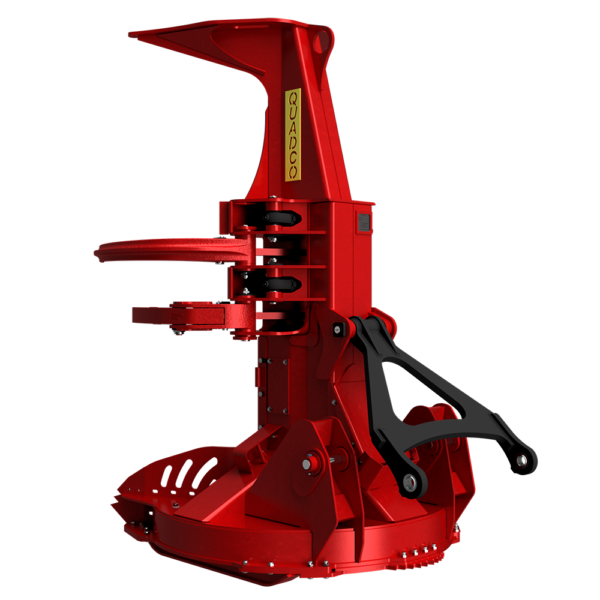

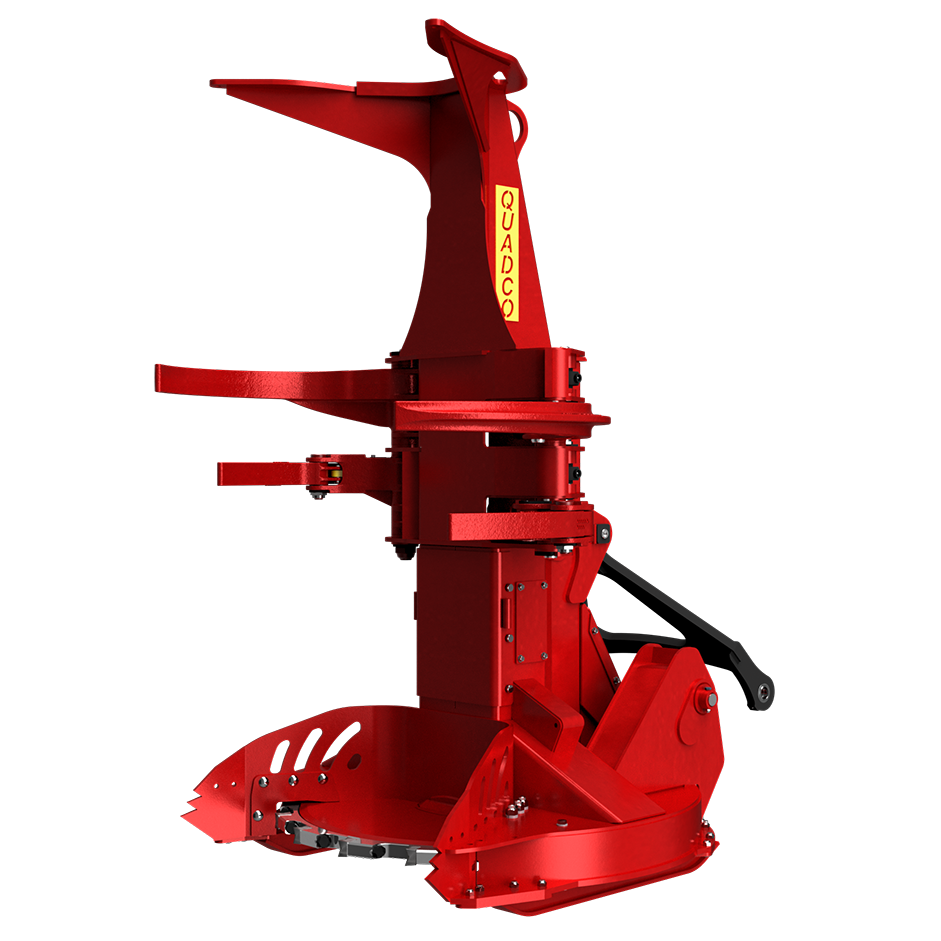

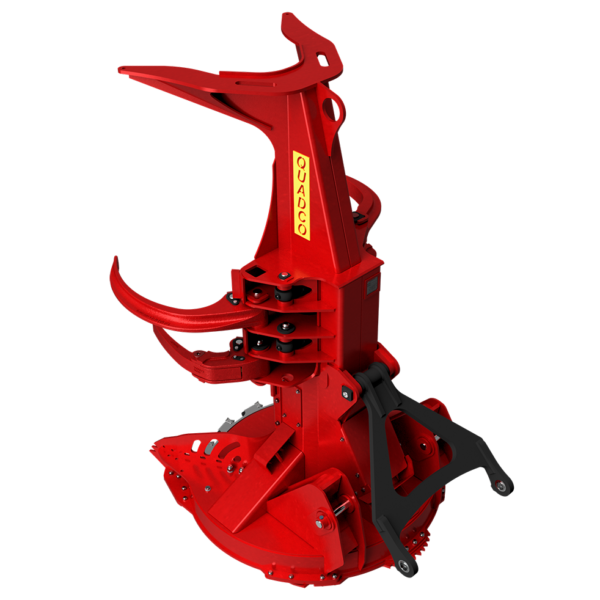

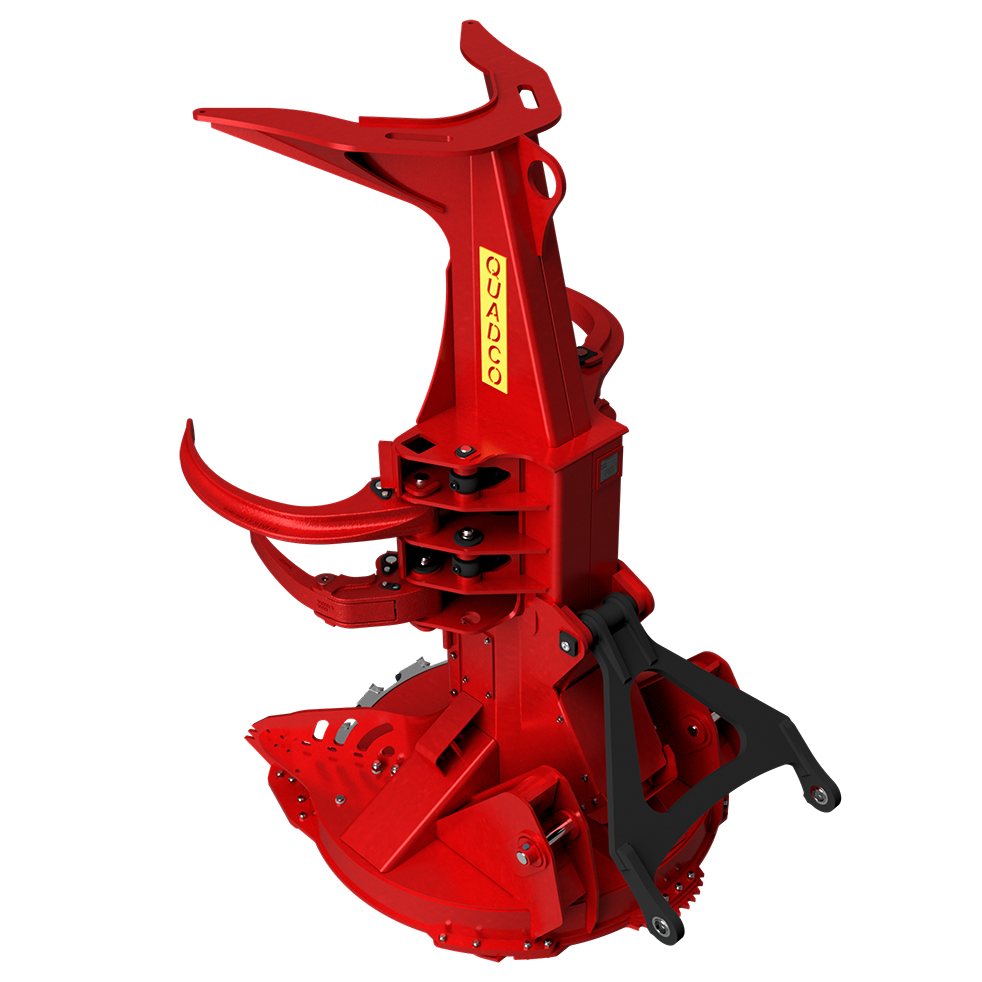

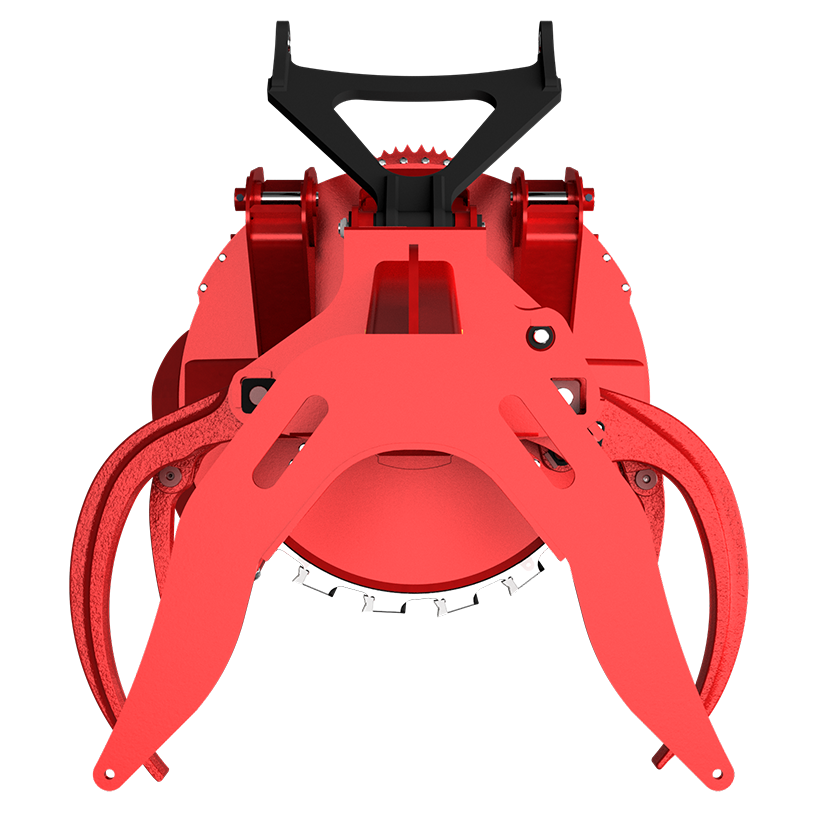

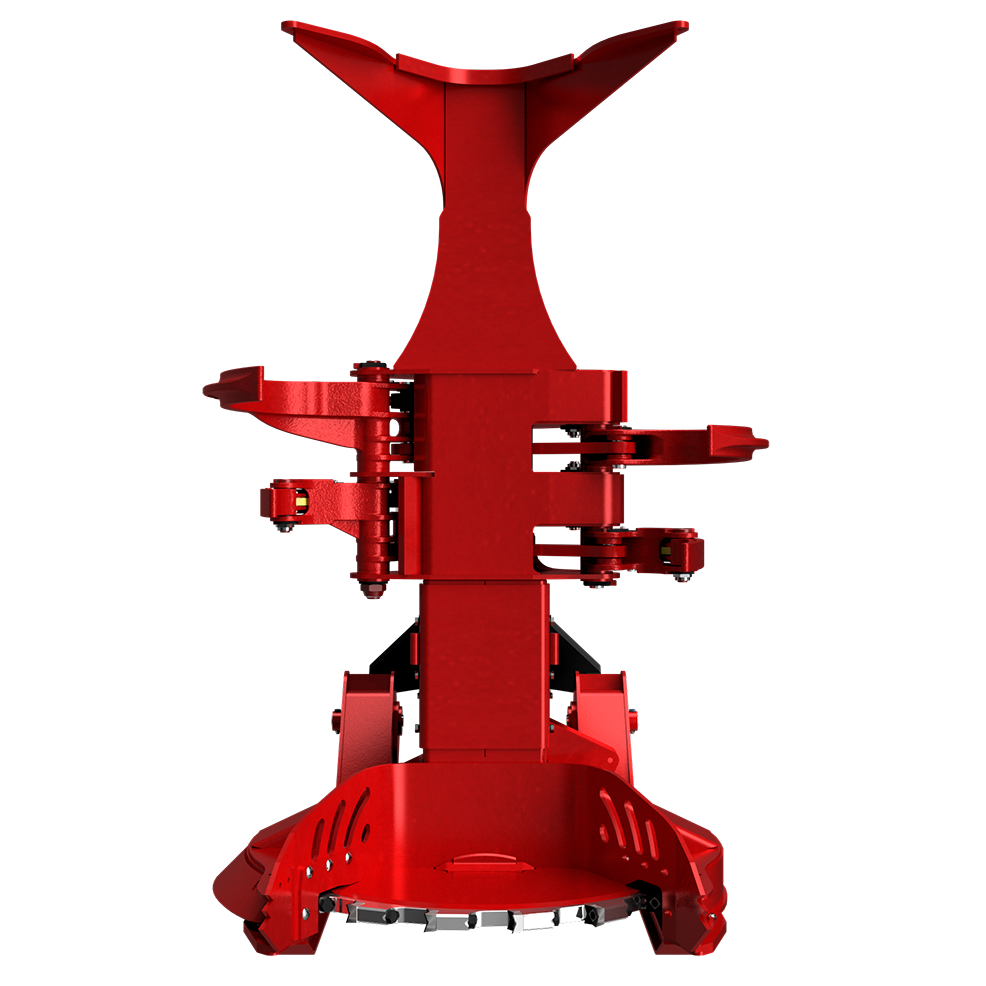

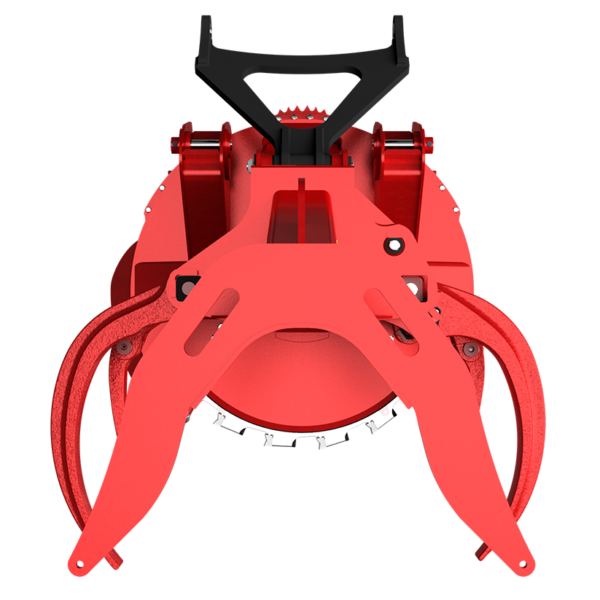

CP Models feature durable cast arms, a “Four Arms Up” design, and a single cylinder and heavy-duty timing bar per set of arms.

With either a one-piece or segmented disc, improved saw housing, and a wear-resistant steel skirt plate, CP Models are designed for durability.

For decreased downtime, hydraulic lines are routed through a centralized location for extra protection.

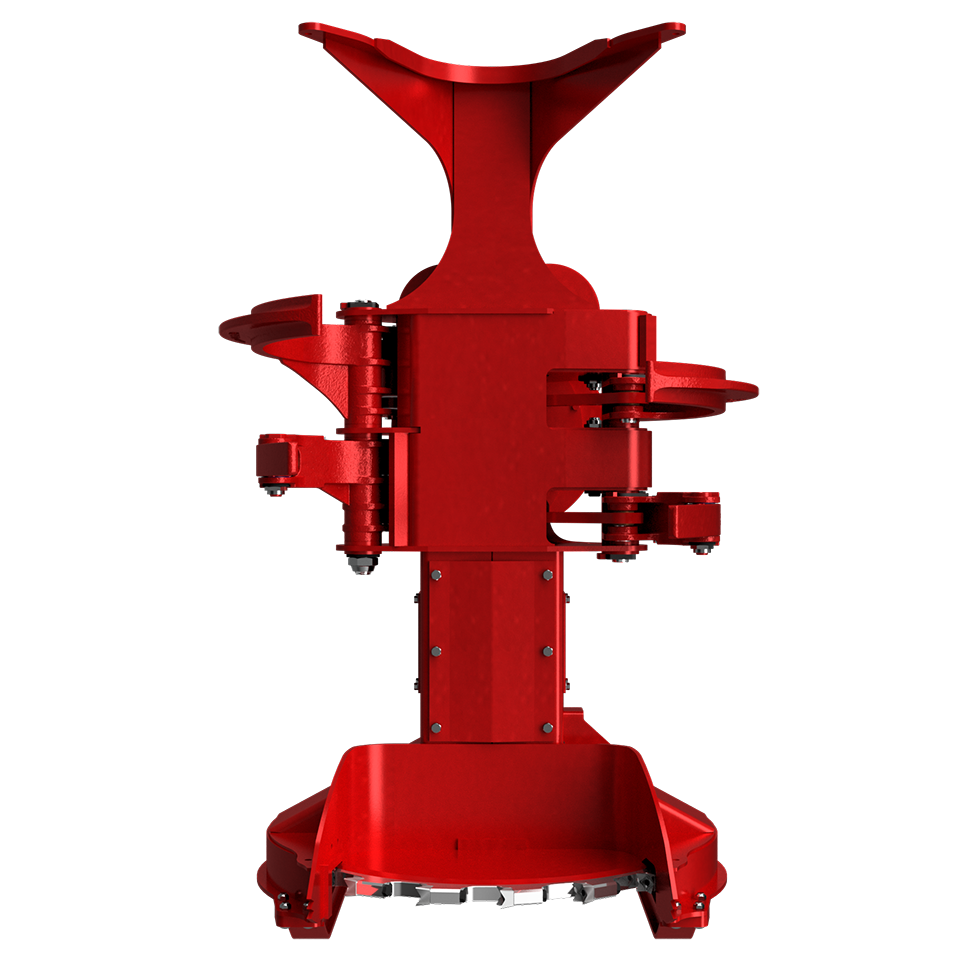

C MODELS 18C 20SC 22C 22CP 22SC 24C 24CP 27SC
Cutting Capacity 18″ 20″ 22″ 22″ 22.7″ 24″ 24″ 27″
