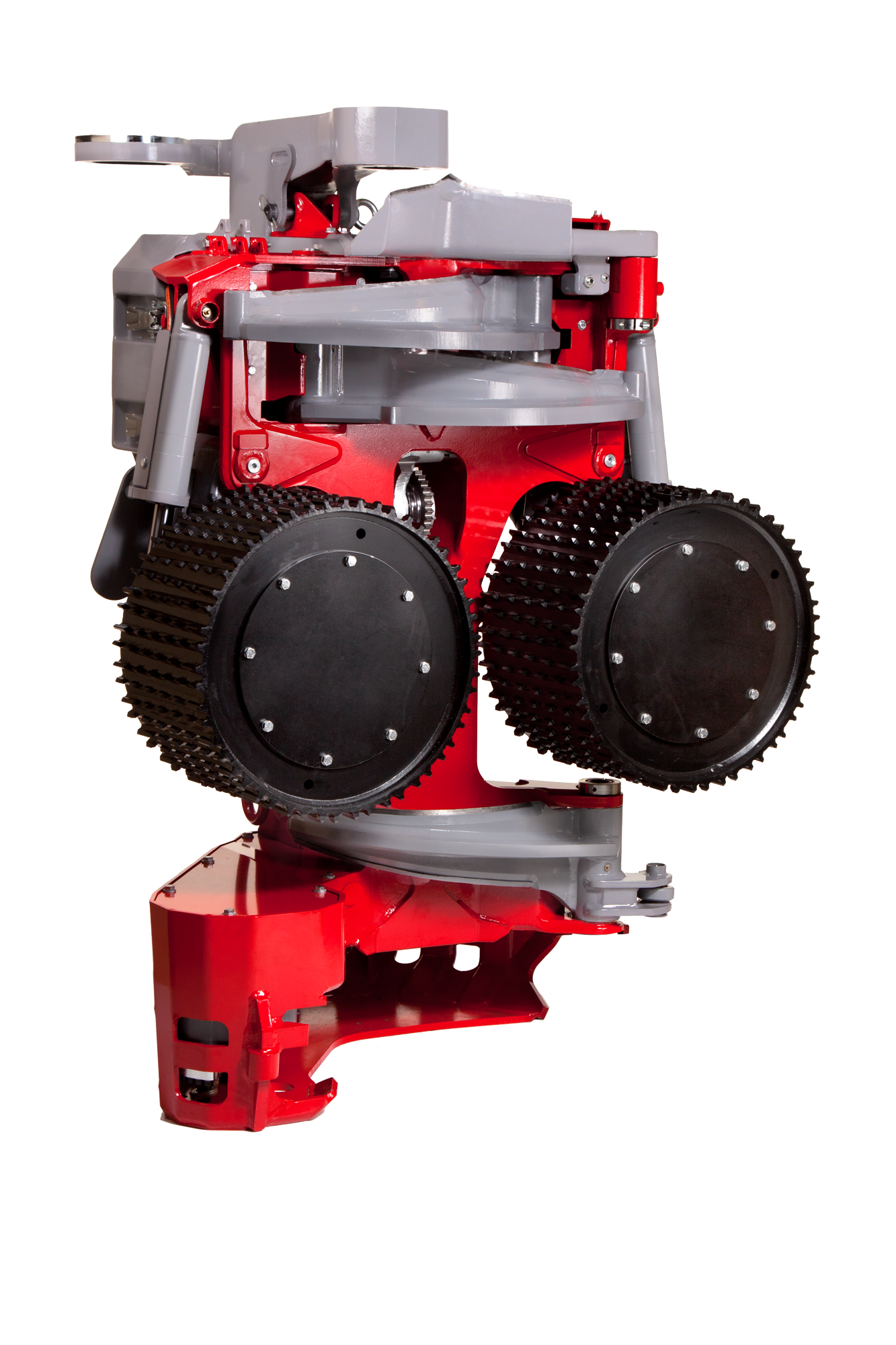

With its large, high-torque feed motors, the 7000XT gives you up to 45kN / 11,600-lb. of feed force and delimbing power. High-flow hydraulics provide increased performance in any application and the toughest conditions.
|
|
|
Standard Configuration |
Metric |
Imperial |
|
|---|---|---|---|
|
|
|||
| Weights & Dims. | Weight | N/A | N/A |
| Height (In Harvesting Position) | 2,174 mm | 85.6" | |
| Height (Without Rotator & Link) | 217.6 cm | 57.5" | |
| Maximum Width (With Head Open) | 193.7 cm | 51.2" | |
| Maximum Width (With Head Closed) | 132.9 cm | 35.1" | |
| Degree of Rotation | Optional Continuous 360° | ||
|
|
|||
| Drive Section | Number of Drive Rollers | 2 | |
| Motor Size (Drive Arm) | 1,259 cc | 76.83 in3 | |
| Motor Size (Variable Displacement) | 660 – 1,320 cc | 40.2 – 80.55 in3 | |
| Motor Size (Fixed Center Drive) | N/A | N/A | |
| Maximum Drive Roller Opening (Diameter) | 713 mm | 28.07" | |
| Maximum Drive Roller Closing (Diameter) | 13 mm | 0.5" | |
| Feed Speed | 5.2 mps | 17 fps | |
|
|
|||
| Delimb | Number of Delimb Arms | 3 | |
| Maximum Delimb Opening | 772 mm | 30.4" | |
| Maximum Delimb Full Coverage | 560 mm | 22" | |
| Minimum Delimb Closing (Diameter) | 40 mm | 1.6" | |
|
|
|||
| Butt Saw | Saw Type | 418H | |
| Maximum Cut (Diameter) | 65 cm | 72.5 cm | 80 cm | 25.6" | 28.5" | 31.5" | |
| Bar Size | 75 cm | 82.5 cm | 90 cm | 29.5" | 32.5" | 35.5" | |
| Chain Pitch | 0.404 mm | ||
| Motor Size | 30 cc | 1.83 in3 | |
| Chain Auto Tension | No | ||
| Oil Tank Capacity | 36 L | 9.5 gal | |
|
|
|||

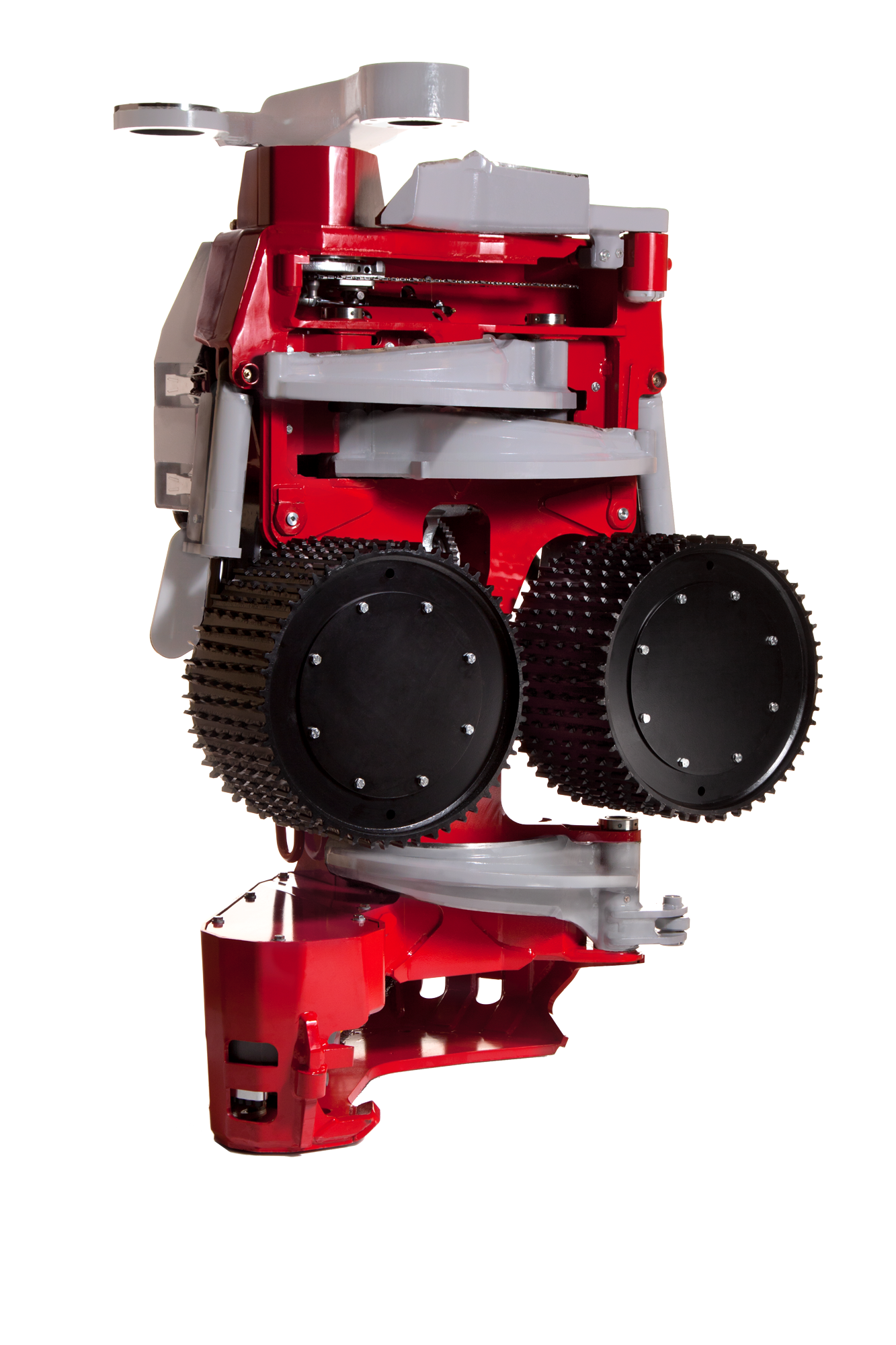

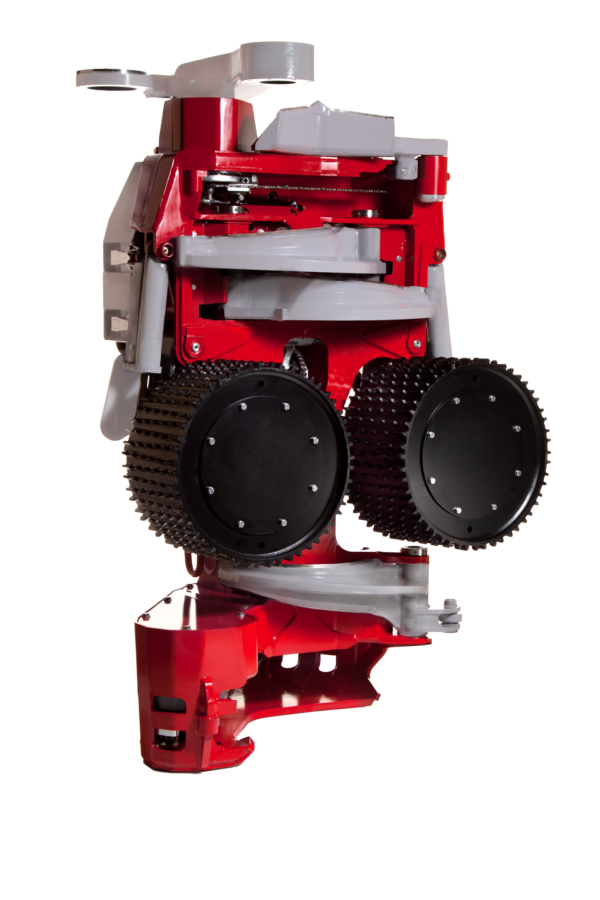

| Top Saw | Saw Type | Top Saw | |
| Maximum Cut (Diameter) | 48 cm | 18.9" | |
| Bar Size | 64 cm | 25.2" | |
| Chain Pitch | 0.404 mm | ||
| Motor Size | 19 cc | 1.16 in3 | |
|
|
|||
| Carrier Reqs. | Carrier Size (Tracked) | 25 – 35 ton | |
| Carrier Size (Wheeled) | N/A | ||
| Maximum Pressure | 300 bar | 4,351 psi | |
|
|
|||
 |
Model | Log Mate 510 | |
| Optional Additions | Yes | ||
| Full Optimization | Optional | ||
| Electronic Calipers (For Electronic Calibrations) | Optional | ||
| Degree of Rotation | Continuous 360° | ||
