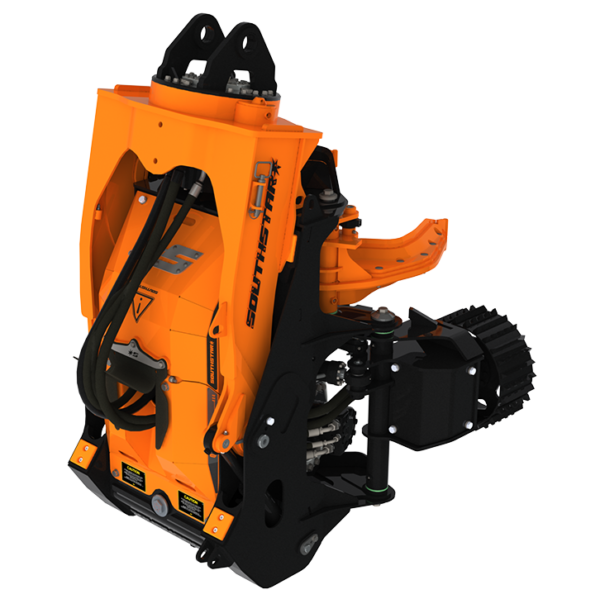

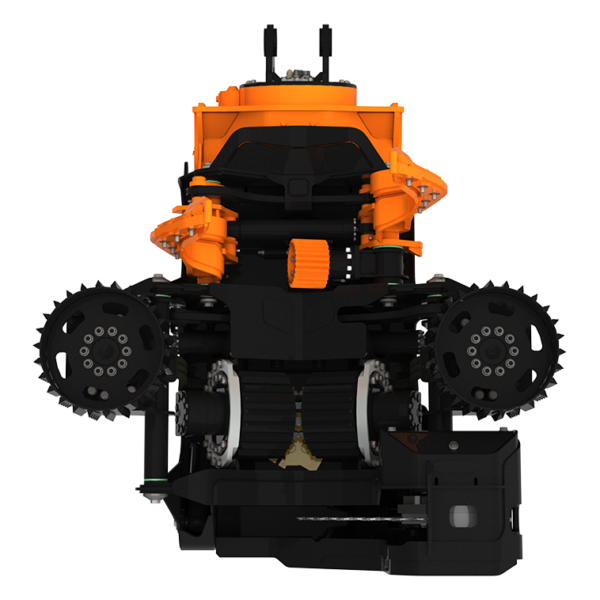

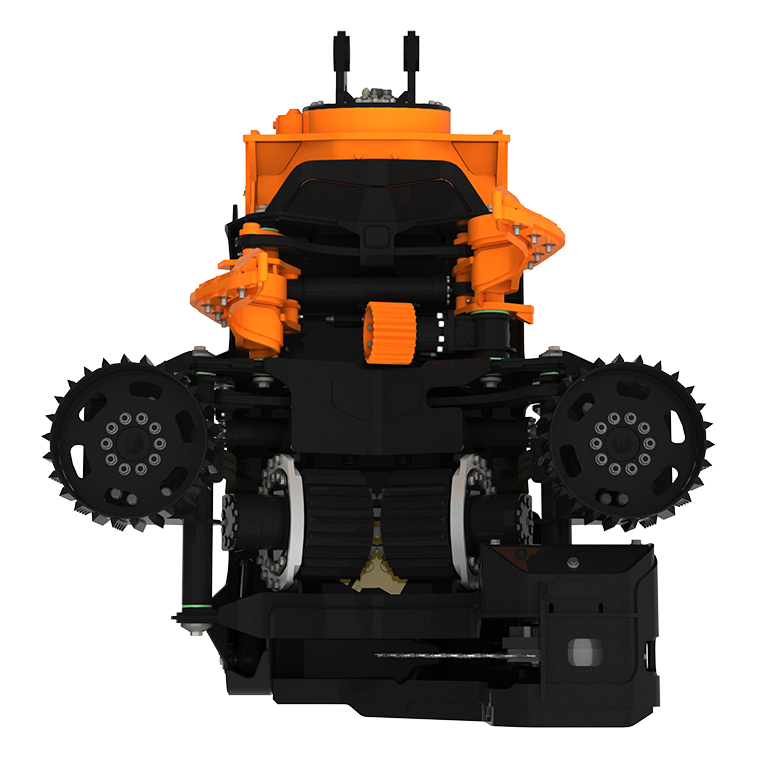

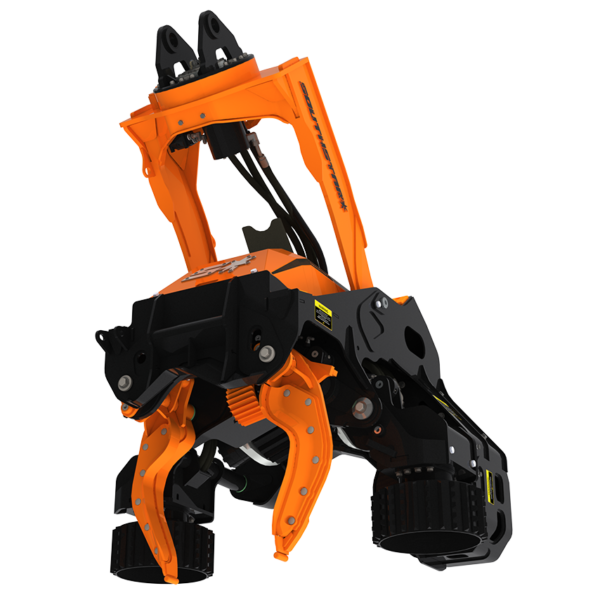

The QS450 is designed for small sized wood with an optimum operating size of 14 – 18″ in diameter. This multi-tree processor is packed full of design features that set it apart from the competition.
|
|
|
|
Standard Configuration |
Metric |
Imperial |
|
|---|---|---|---|
|
|
|||
| Weights & Dims. | Weight (Including Rotator Top & Link) | 2,086 kg | 4,600 lbs |
| Height (In Harvesting Position) | 2,280 mm | 89" | |
| Maximum Width (With Head Open) | 1,731 mm | 68" | |
| Degree of Rotation | Continuous 360° | ||
|
|
|||
| Drive Section | Number of Drive Rollers | 4 | |
| Motor Size (Drive Arm) | 560 cc | ||
| Motor Size (Fixed Center Drive) | 400 cc | ||
| Maximum Drive Roller Opening (Diameter) | 815 mm | 32" | |
| Maximum Drive Roller Closing (Diameter) | 75 mm | 3" | |
| Feed Speed | 5.5 – 7.6 mps | 18 – 25 fps | |
|
|
|||
| Delimb | Maximum Delimb Opening (Diameter) | 575 mm | 22.6" |
| Minimum Delimb Closing (Diameter) | 75 mm | 3" | |
| 2 Stem Processing +/- 1" Accuracy | 230 mm | 9" | |
| 3 Stem Processing +/- 1" Accuracy | 150 mm | 6" | |
|
|
|||
| Butt Saw | Saw Type | SS 3/4 | SS 3/4 |
| Bar Size | 813 mm | 32" | |
| Chain Pitch | 19.05 mm | 3/4" | |
| Chain Auto Tension | Standard | ||
| Laser Find End | |||
|
|
|||
| Top Saw | Bar Size | ||
| Chain Pitch | |||
|
|
|||
| Carrier Reqs. | Carrier Size (Tracked) | 20,000 – 22,000 kg | 20 – 22 ton |
| Maximum Pressure | 35 mpa | 5,076 psi | |
| Optimum Flow @ Pressure | 300 – 320 lpm @ 15 mpa | 79 – 85 gpm @ 2,175 psi | |
