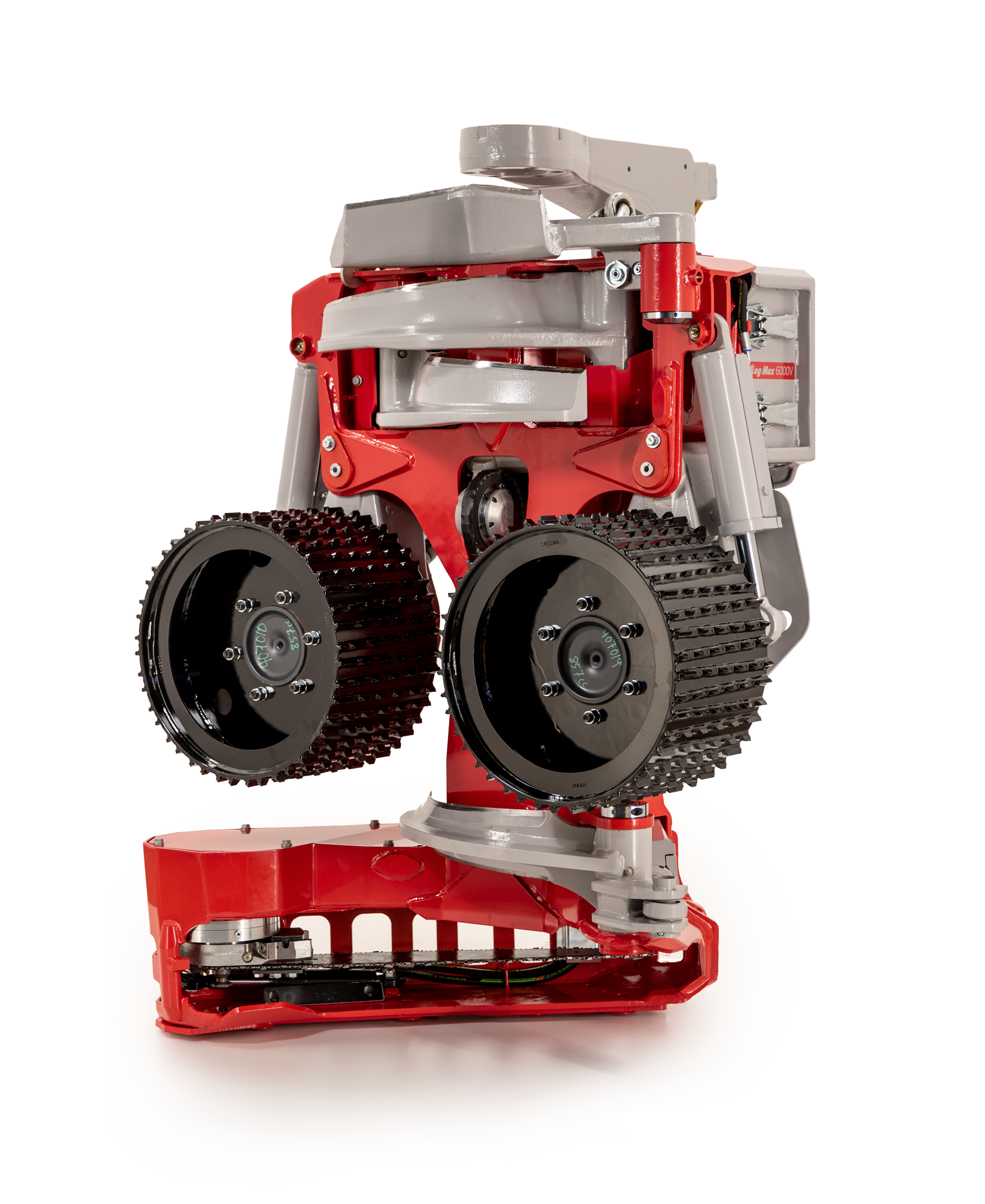

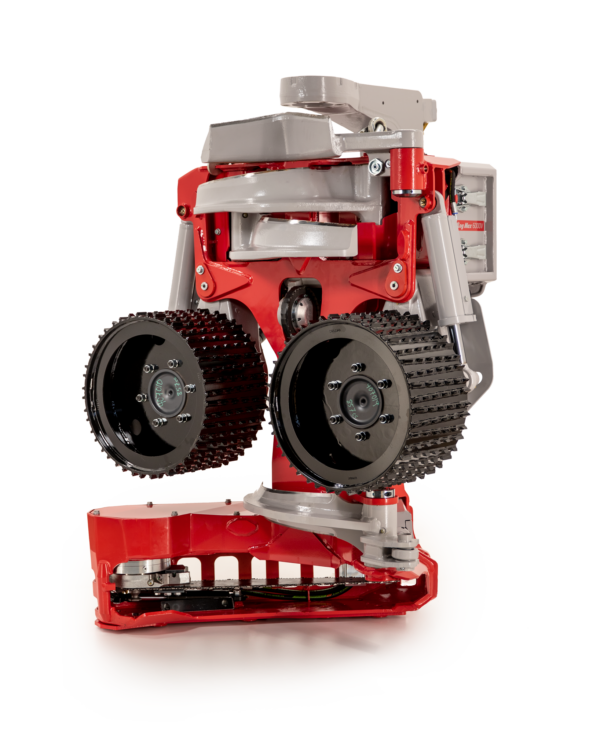

6000V is a versatile head that has a wide range of applications, mainly focused on final felling. This unit is a further development of our best seller 6000B with improvements and updates to work even better in today’s modern forestry.
|
|
|
|
Standard Configuration |
Metric |
Imperial |
|
|---|---|---|---|
|
|
|||
| Weights & Dims. | Weight | 1,342 kg | 2,959 lbs |
| Height to Felling Link | 1,682 mm | 66.2" | |
| Maximum Width (With Arms Open) | 1,235 mm | 48.6" | |
| Maximum Width (With Arms Closed) | 1,682 mm | 66.2" | |
|
|
|||
| Drive Section | Number of Drive Rollers | 2 | |
| Motor Size (Drive Arm) | 857 cc | 52.3 in3 | |
| Maximum Drive Roller Opening (Diameter) | 525 mm | 20.7" | |
| Maximum Drive Roller Closing (Diameter) | 12 mm | 0.5" | |
| Feed Speed | 4.6 mps | 15.1 fps | |
|
|
|||
| Delimb | Number of Delimb Arms | 3 | |
| Maximum Delimb Opening | 641 mm | 25.2" | |
| Maximum Delimb Full Coverage | 500 mm | 19.6" | |
| Minimum Delimb Closing (Diameter) | 15 mm | 0.59" | |
|
|
|||
| Butt Saw | Saw Type | TBD | |
| Maximum Cut (Diameter) | 65 cm | 71 cm | 26" | 28" | |
| Bar Size | 75 cm | 82 cm | 30" | 32" | |
| Chain Pitch | 0.404 pitch | ||
| Motor Size | 19 cc | 1.2 in3 | |
|
|
|||
