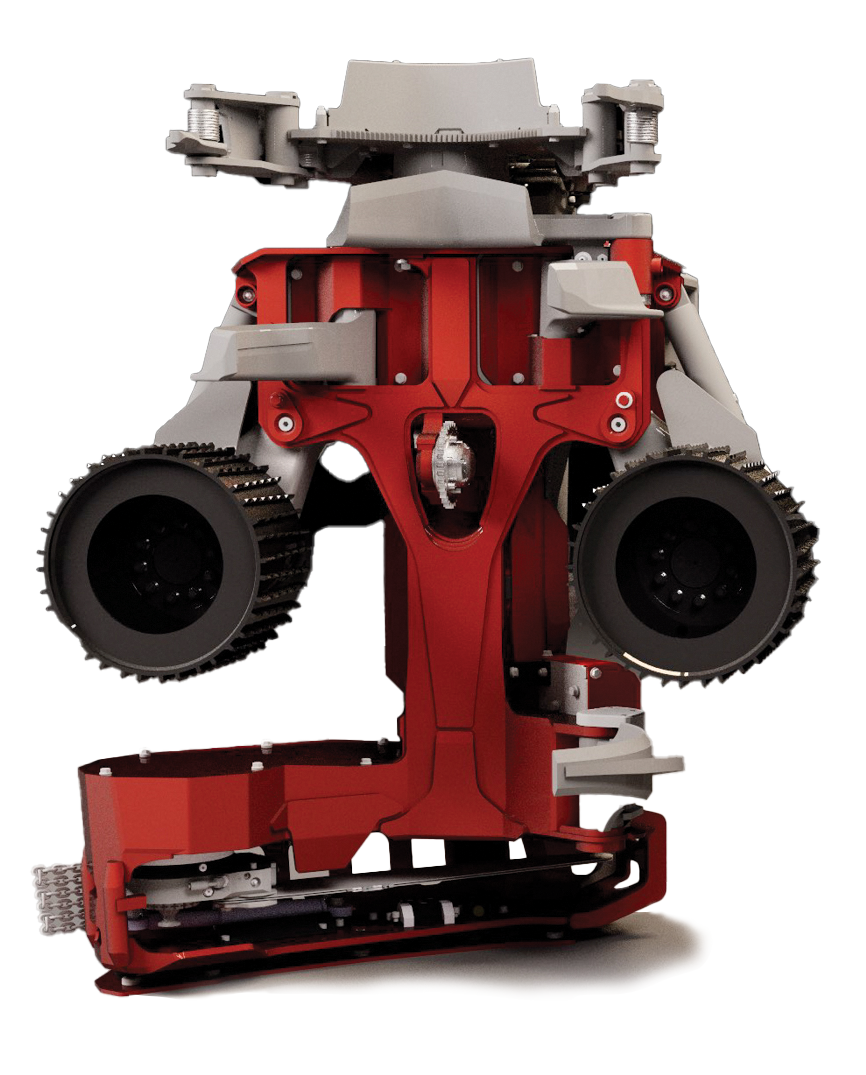

Log Max 5000V is a versatile Harvesting Head, and is suitable for a wide selection of carriers and for many types of felling. This is a head for those who want the ultimate balance between flexibility, capacity and durability.
|
|
|
|
Standard Configuration |
Metric |
Imperial |
|
|---|---|---|---|
|
|
|||
| Weights & Dims. | Weight | 950 kg | 2,094 lbs |
| Height | 1,541 mm | 60.6" | |
| Width Roller Arms Open | 1,382 mm | 54.4" | |
| Width Roller Arms Closed | 1,105 mm | 43.5" | |
|
|
|||
| Drive Section | Optional Saw Models | True-Cut 318 - 19cc, Saw 318 - 30cc | |
| Optional Saw Tensioner | Automatic | ||
| Saw Oil Capacity | 20 liters | 5.3 gal | |
| Max Saw Bar Length | 820 mm | 32.3" | |
| Max Cut Capacity | 740 mm | 29.1" | |
|
|
|||
| Delimb | Number of Delimb Arms | 4 | |
| Max Delimb Knife Opening | 535 mm | 21.0" | |
| Max Delimbing Full Coverage | 398 mm | 15.6" | |
|
|
|||
 |
Max Feed Force | 26.2kN | 5,889.76 lbf |
| Max Feed Speed | 5 m/s | 11.18 mph | |
| Max Feed Roller Opening | 530 mm | 20.8" | |
| Min Feed Roller Opening | 12 mm | 0.47" | |
|
|
|||
 |
Max Pressure | 280 bar | 4,061 psi |
| Min Pressure | 250 bar | 3,625.94 psi | |
| Max Flow | 330 l/min | 87.17 gpm | |
| Min Flow | 200 l/min | 52.83 gpm | |
|
|
|||
