High Speed Saw

2946 mm | 116"

Height

1372 mm | 54"

Tip-to-Tip Diameter

546 mm | 22.7"

Cutting Capacity

1181 mm | 46.5"

Maximum Throat Opening

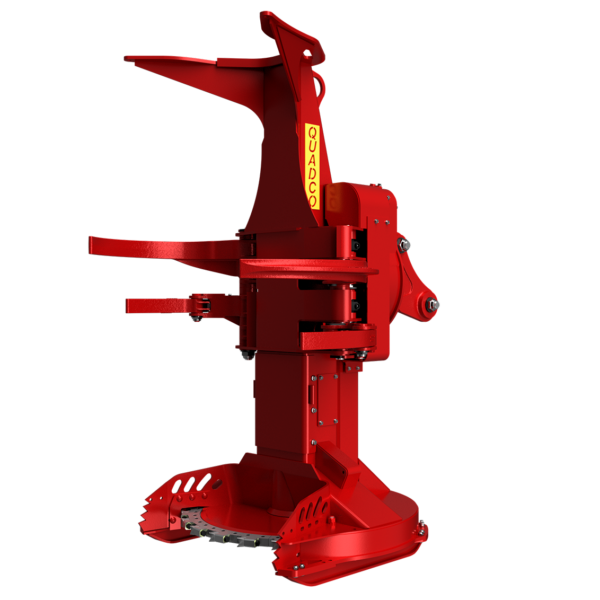

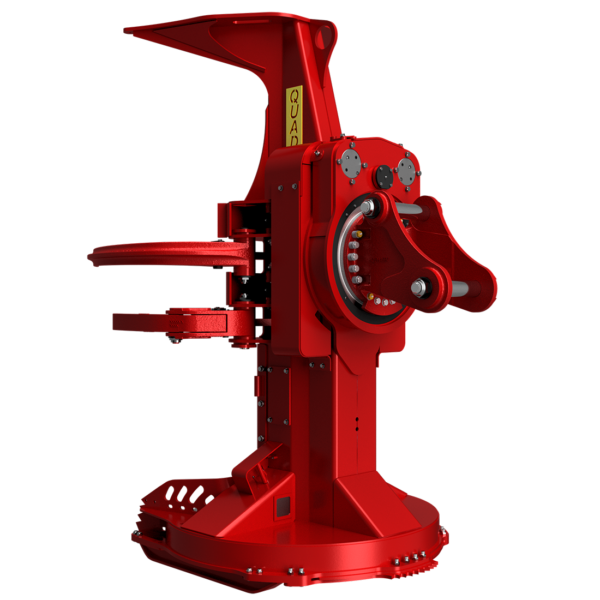

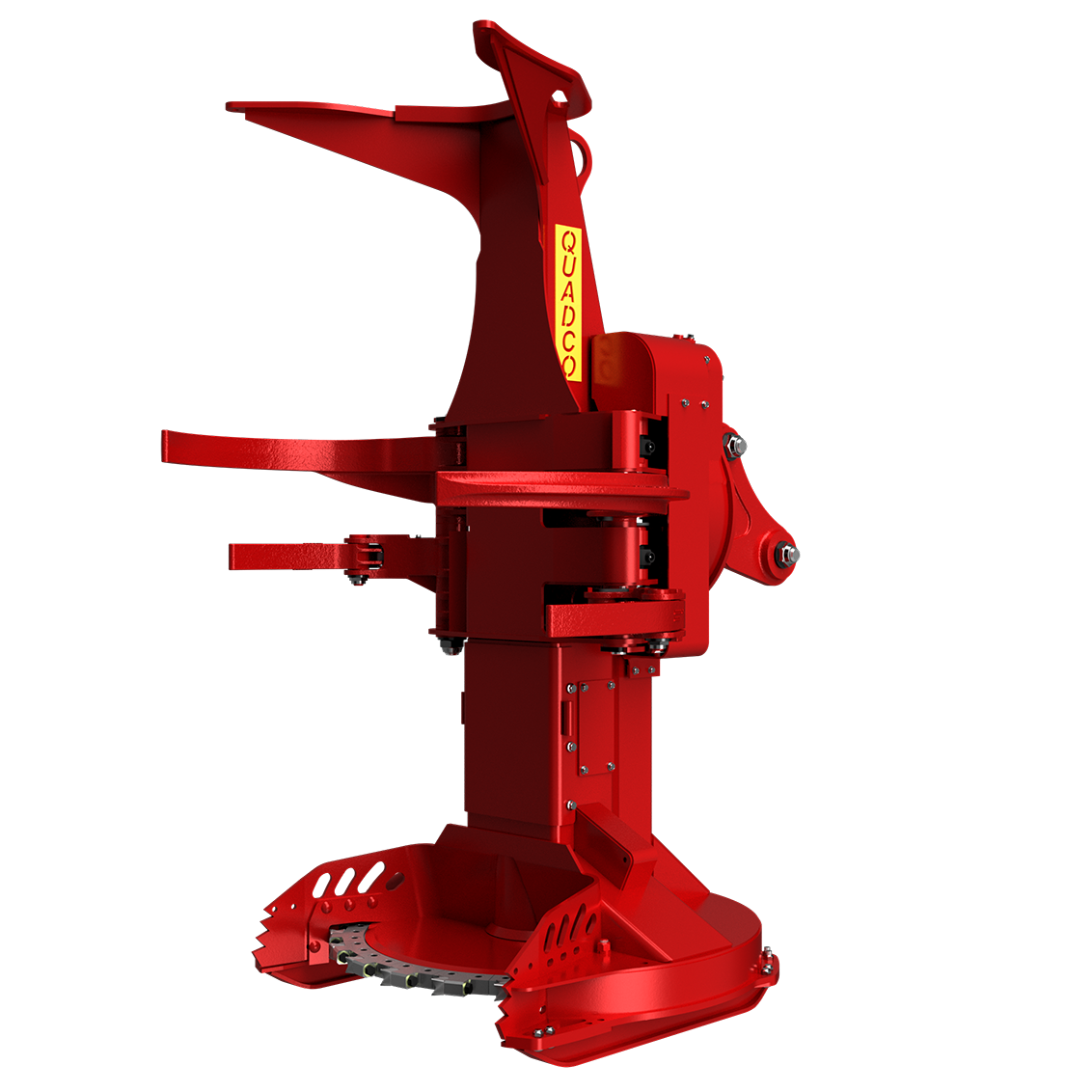

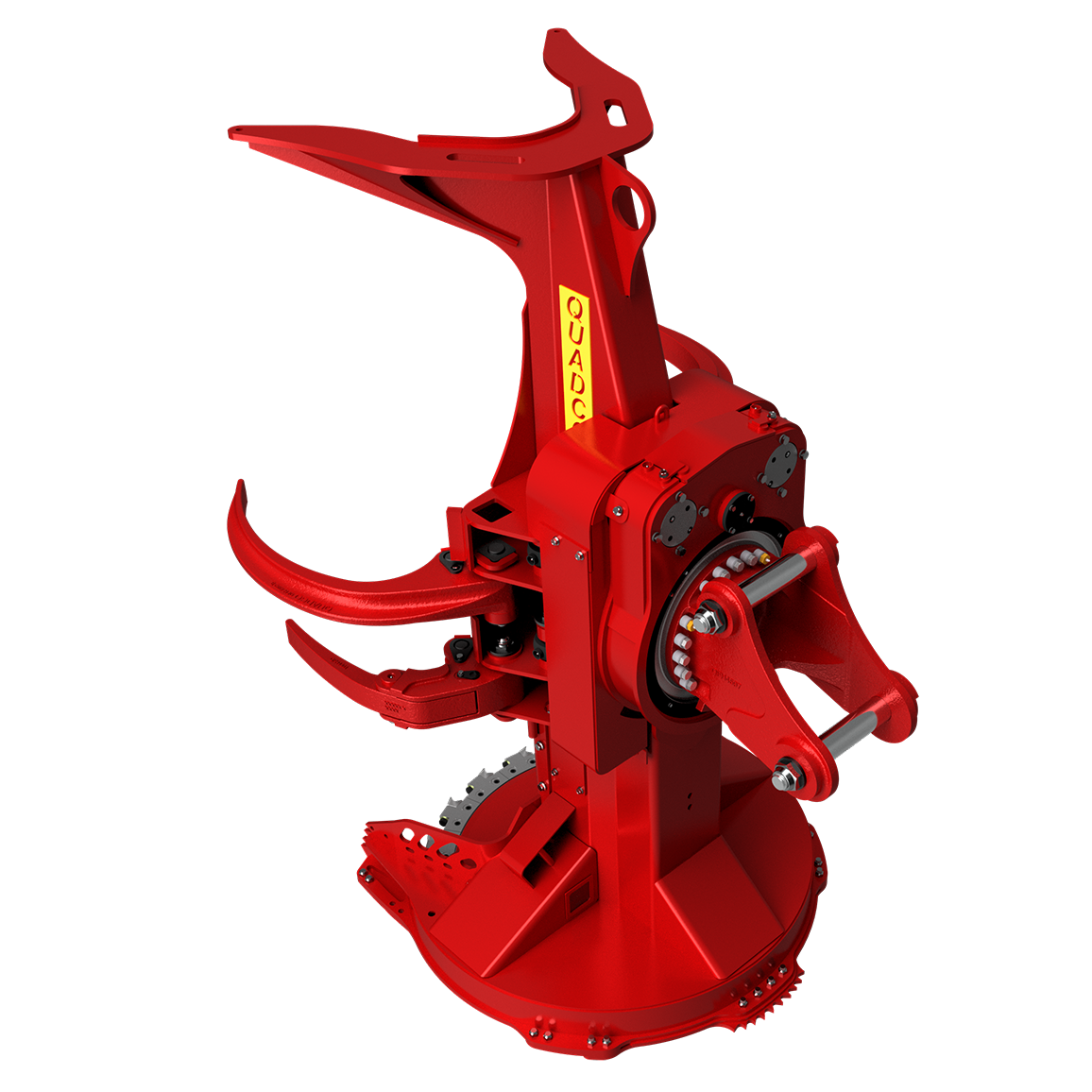

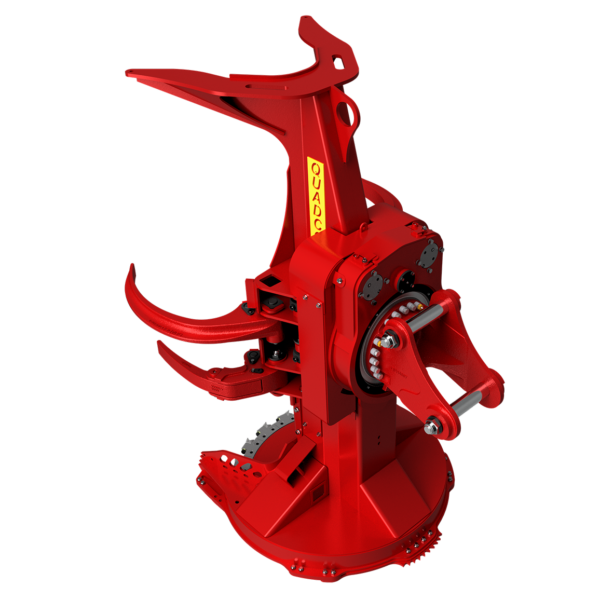

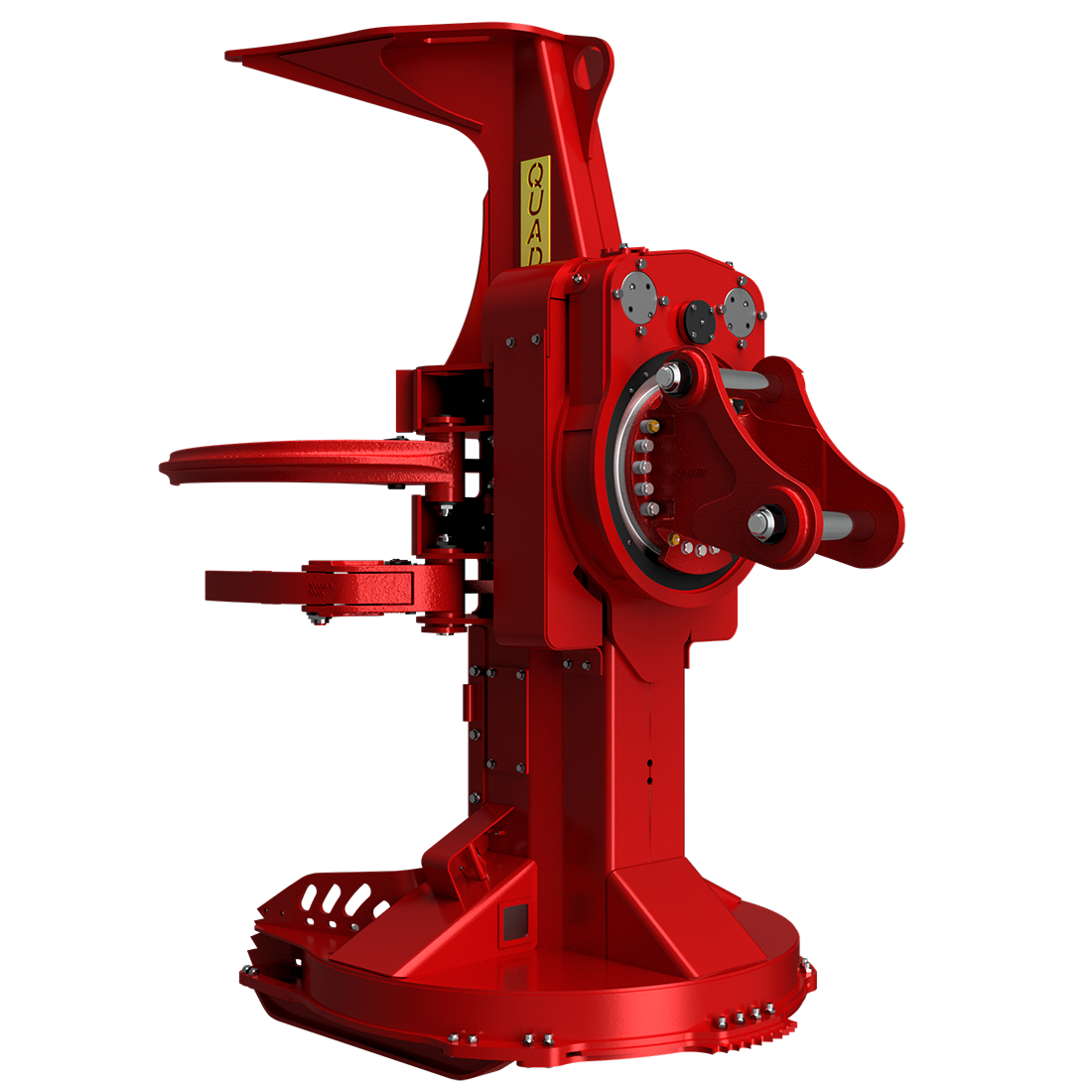

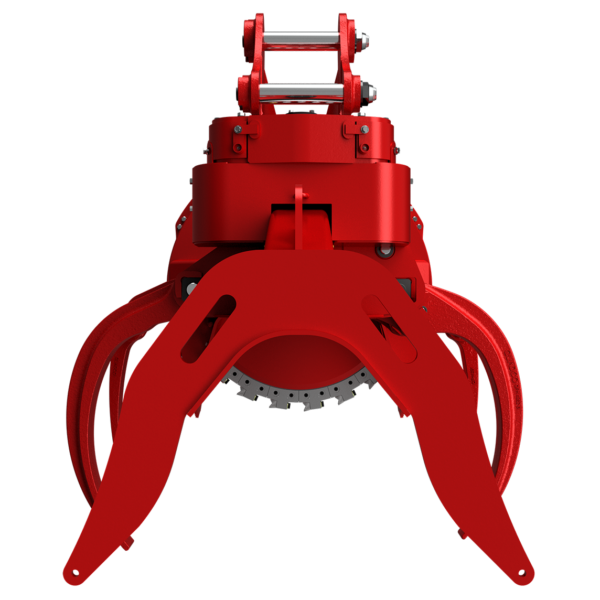

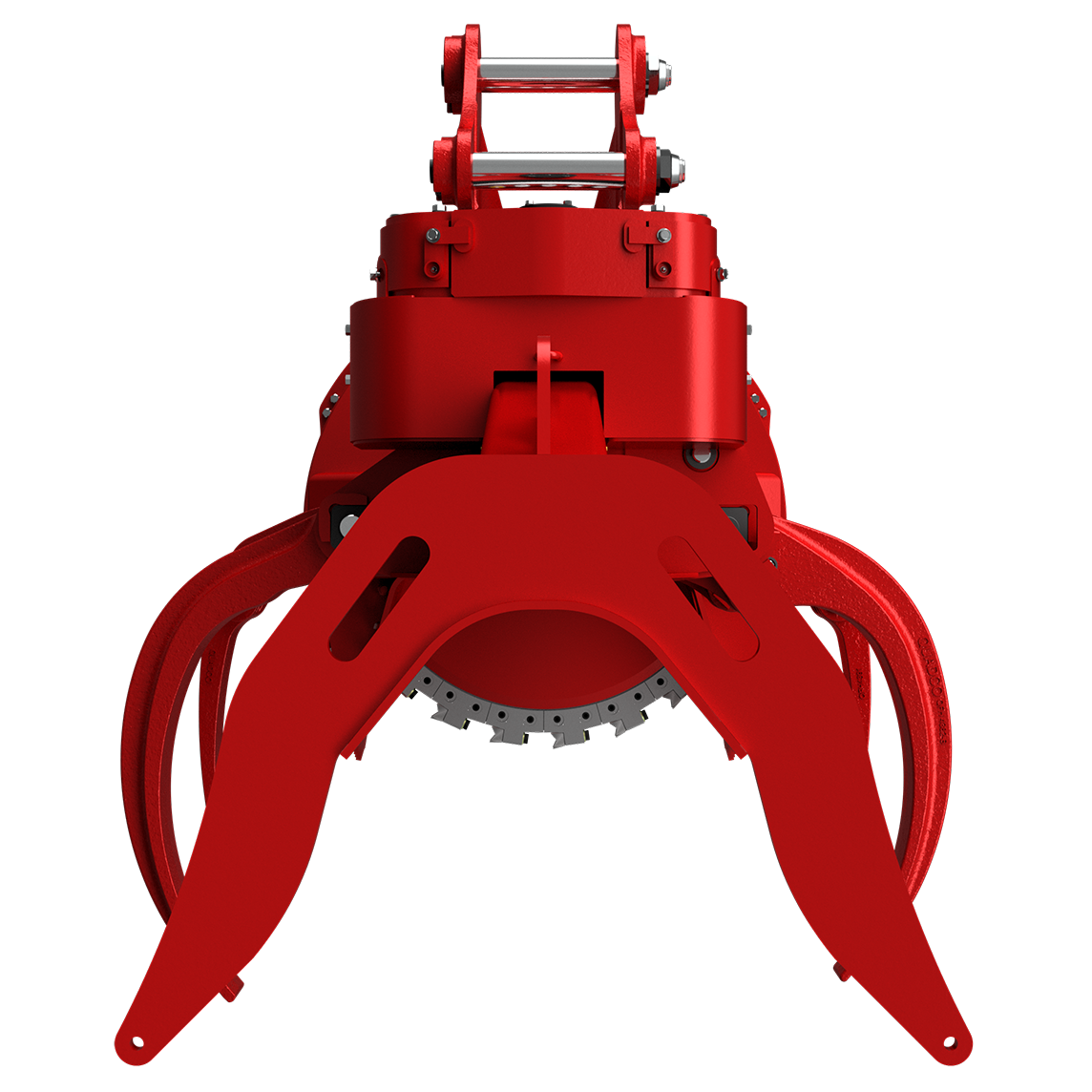

Quadco’s SC Models are designed with timber variety in mind. The 22SC’s high accumulation capacity is perfect for eastern logs. The SC Models are made for efficient accumulation with the “Four Arms Up” design and extended tower for superior leverage when handling tall timber. Faster accumulation is easy with one cylinder per set of arms and a heavy-duty timing bar.

22SC

Standard Configuration
Metric
Imperial

Rotation 40° (Medium Torque)
Rotation 40° (High Torque) 2,783 kg 6,135 Ibs
Rotation 360° (Medium Torque)
Rotation 360°(High Torque) 3,019 kg 6,820 Ibs
Rotation 360°(Quadco High Torque 2 @ 60,000 lbs x ft)
Number of Motors (360)
Height 2,946 mm 116″
Width 1,562 mm 61.5″
Depth 1,607 mm 63.25″
Maximum Throat Opening 1,181 mm 46.5″
Maximum Throat Opening @ Teeth 1,067 mm 42″
Accumulation Area (Over Blade) 0.51 m2 5.5 ft2
Accumulation Area (Over Tree Support Plate Only)
Bunching Trees (15 cm | 6″)

Cutting Capacity 546 mm 22.7″
Tip-to-Tip Diameter 1,372 mm 54″
Rated Saw Speed 1,200 rpm
Number of Teeth 22
Saw Kerf 51 mm 2″
Weight (Holders & Teeth | Varies Depending on Disc) 293 kg 645 Ibs
Style (One Piece or Segmented) Both

Motor Rexroth
Motor Size 170 cc

Cylinders (Diameter)
Grab Arms 1 Cylinder
Accumulating Arms 1 Cylinder

Carrier Size
PSI Working Pressure
Low Flow Valves for Arms & Rotator
Weight 3300 kg
Dimensions 30 × 30 × 40 cm

it’s all in the details

As a true visionary and pioneer in the forestry industry, we embrace quality craftsmanship

SC Models

Quadco’s SC Models are designed with timber variety in mind. While the twin pinion design of the 20SC is made to tackle West Coast timber, the 22SC’s high accumulation capacity is perfect for eastern logs.

The SC Models are made for efficient accumulation with the “Four Arms Up” design and extended tower for superior leverage when handling tall timber. Faster accumulation is easy with one cylinder per set of arms and a heavy-duty timing bar.

C MODELS 18C 20SC 22C 22CP 22SC 24C 24CP 27SC
Cutting Capacity 18″ 20″ 22″ 22″ 22.7″ 24″ 24″ 27″
