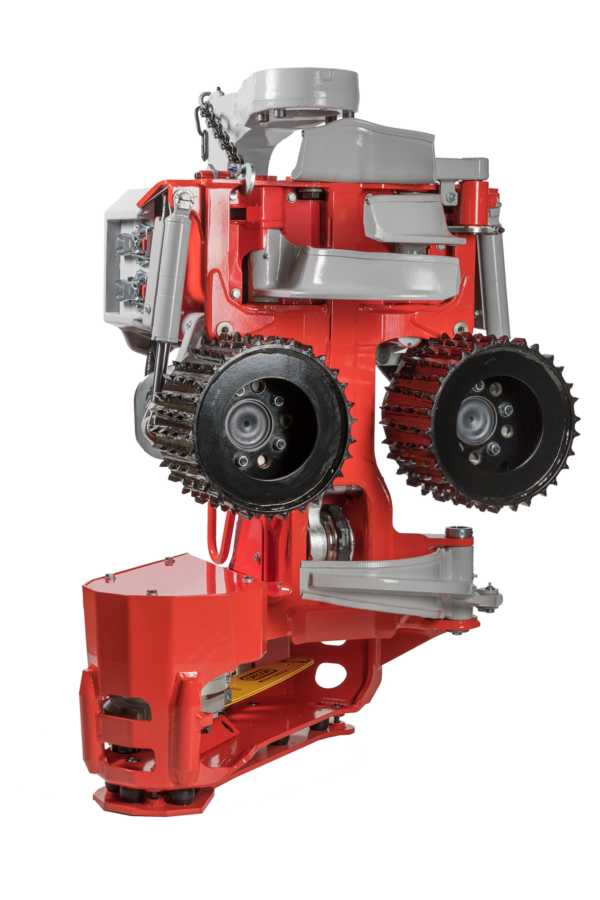

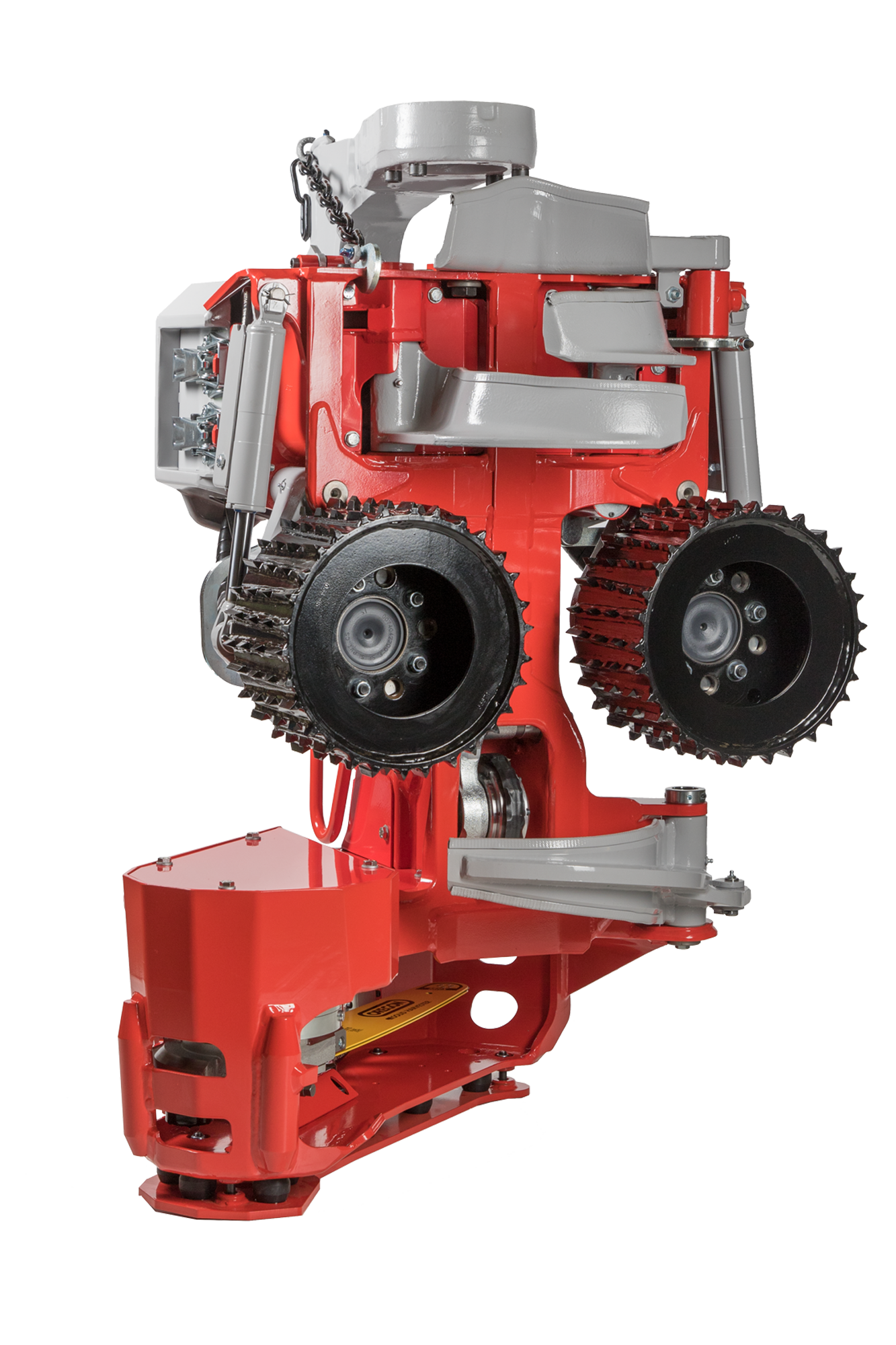

Log Max 3000T is a new generation thinning head best suited for long reach booms. This head features a new frame geometry, bringing forward the top part of the frame to bark from clogging the measuring wheel.
|
|
|
|
Standard Configuration |
Metric |
Imperial |
|
|---|---|---|---|
|
|
|||
| Weights & Dims. | Weight | 623 kg | 1,374 lbs |
| Height | 132.5 cm | 52.2" | |
| Maximum Width (With Head Open) | 112.9 cm | 44.5" | |
| Maximum Width (With Head Closed) | 94.4 cm | 37.2" | |
| Degree of Rotation | N/A | ||
|
|
|||
| Drive Section | Number of Drive Rollers | 2 | |
| Motor Size (Drive Arm) | 398 cc | 364 cc | 24.3 in3 | 22.2 in3 | |
| Motor Size (Variable Displacement) | N/A | N/A | |
| Motor Size (Fixed Center Drive) | N/A | N/A | |
| Maximum Drive Roller Opening (Diameter) | 394 mm | 15.5" | |
| Maximum Drive Roller Closing (Diameter) | 12 mm | 0.5" | |
| Feed Speed | 4.2 mps | 4.6 mps | 13.8 fps | 15.1 fps | |
|
|
|||
| Delimb | Number of Delimb Arms | N/A | |
| Maximum Delimb Opening | 408 mm | 16.1" | |
| Maximum Delimb Full Coverage | 300 mm | 11.8" | |
| Minimum Delimb Closing (Diameter) | 12 mm | 0.5" | |
|
|
|||
| Butt Saw | Saw Type | 218 | |
| Maximum Cut (Diameter) | 51.6 cm | 20.3" | |
| Bar Size | 60 cm | 23.6" | |
| Chain Pitch | 0.404 mm | ||
| Motor Size | 19 cc | 1.16 in3 | |
| Chain Auto Tension | No | ||
| Oil Tank Capacity | 4 L | 1.1 gal | |
|
|
|||
| Carrier Reqs. | Carrier Size (Tracked) | N/A | |
| Carrier Size (Wheeled) | N/A | ||
| Maximum Pressure | 250 bar | 3,626 psi | |
|
|
|||
 |
Model | Log Mate 510 | |
| Optional Additions | Yes | ||
| Full Optimization | Optional | ||
| Electronic Calipers (For Electronic Calibrations) | Optional | ||
| Degree of Rotation | N/A | ||
