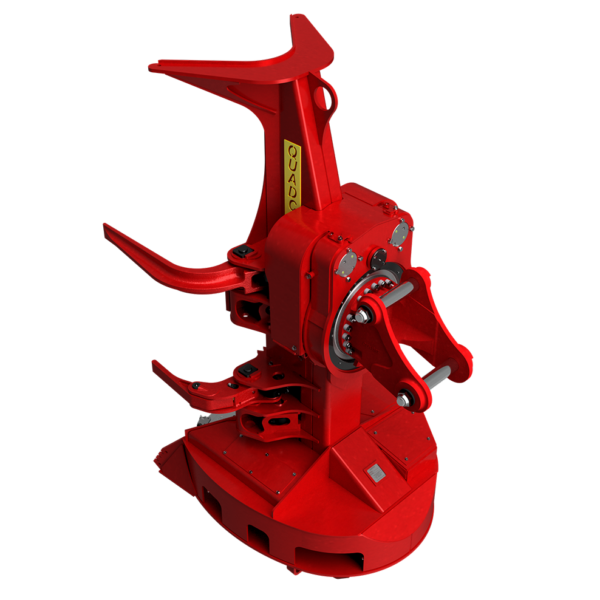

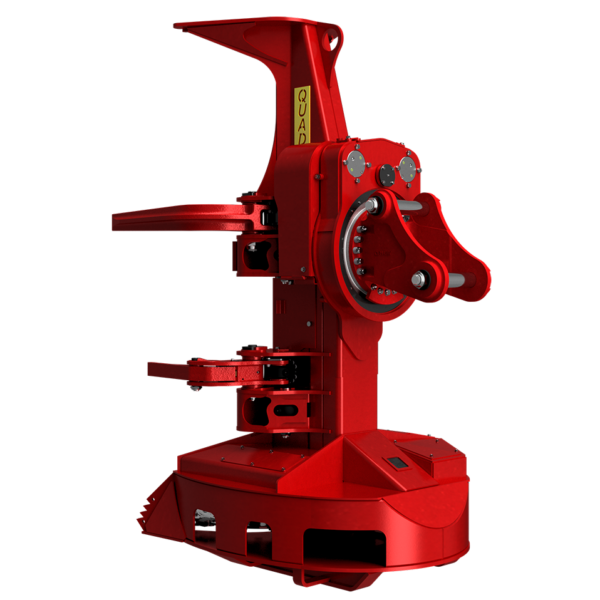

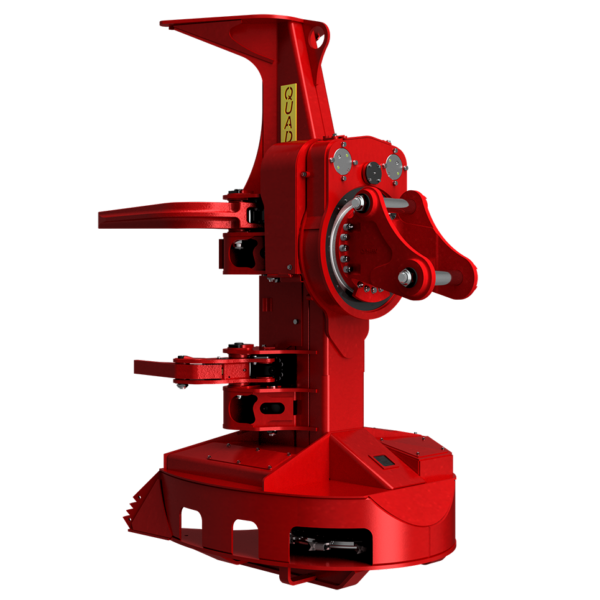

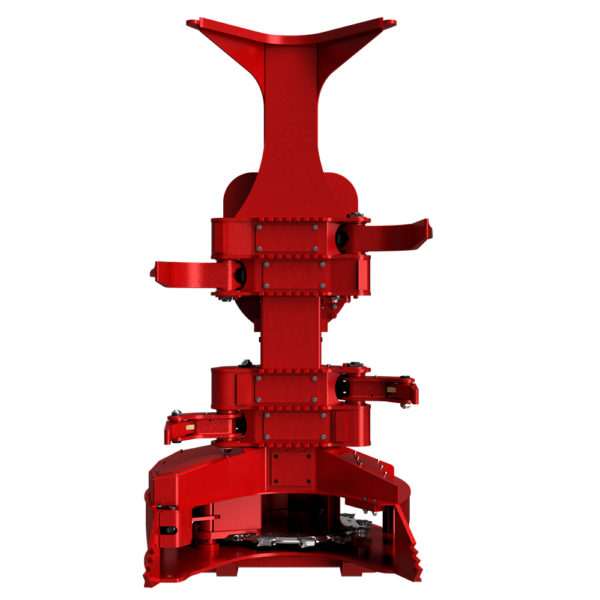

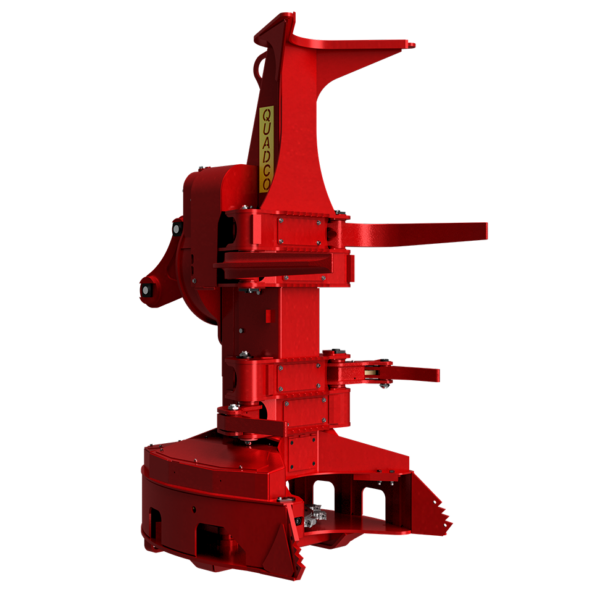

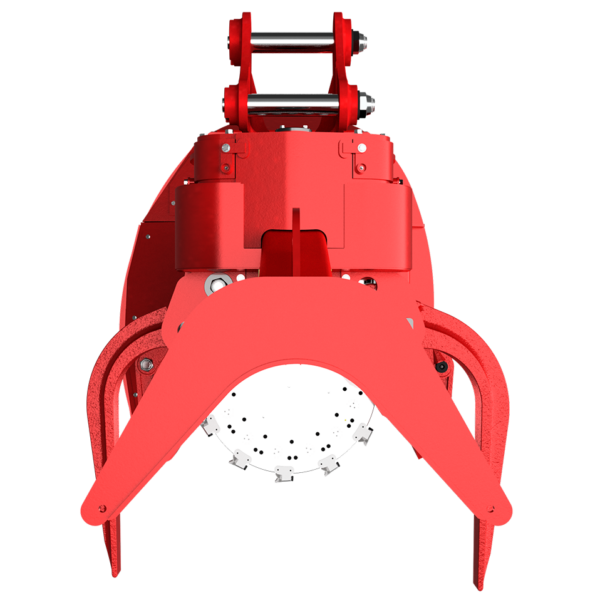

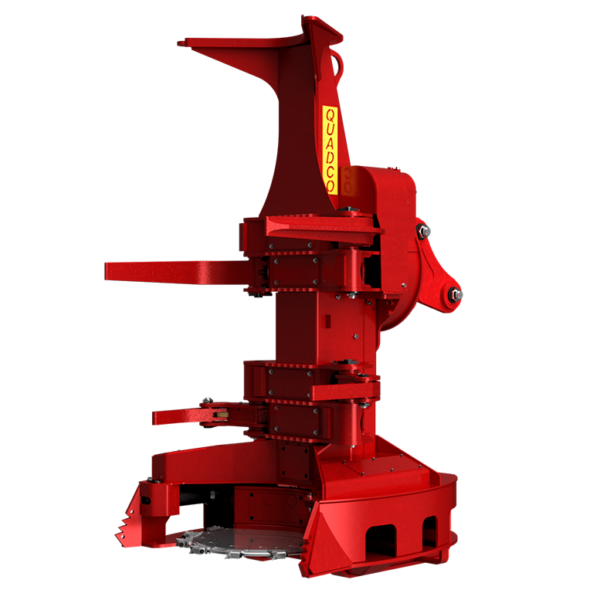

Intermittent models are capable of shoveling wood, cutting individual large limbs, and topping large trees. They have an optional locking arms safety feature available for projects involving electrical wires. These heads are ideal for blow-down and right of way clearing due to their hold and cut tree control.
|
|
|
|
| STANDARD CONFIGURATION | METRIC | IMPERIAL |
|---|---|---|
WEIGHTS & DIMENSIONS | ||
Fixed Rotation | 2,948 kg | 6,500 Ibs |
Rotation 40° (High Torque) | 2,971 kg | 6,550 Ibs |
Rotation 360° (High Torque) | 3,152 kg | 6,950 Ibs |
Height | 3,048 mm | 120"" |
Width | 1,346 mm | 53"" |
Depth | 1,651 mm | 65"" |
DISC | ||
Cutting Capacity | 737 mm | 29"" |
Rated Saw Speed | 700 rpm | |
Number of Teeth | 12 | |
Saw Kerf | 44 mm | 1 3/4"" |
SAW DRIVE | ||
Motors | Two 30cc Piston Type | |
Pinion | ||
Rated Saw Speed | 120 fps | |
CARRIER REQUIREMENTS | ||
Carrier Size | 25 ton & plus | |
PSI Working Pressure | 248 – 276 bars | 3,600 – 4,000 psi |
Valve Section Saw Circuit | 284 lpm | 75 gpm |
Low Flow Valves for Arms & Rotator | Yes |
