FELLING HEAD

2450 kg | 5400 lbs

Weight (Without Rotator, Link, or Multi-Tree Handling)

813 mm | 32"

Cutting Capacity

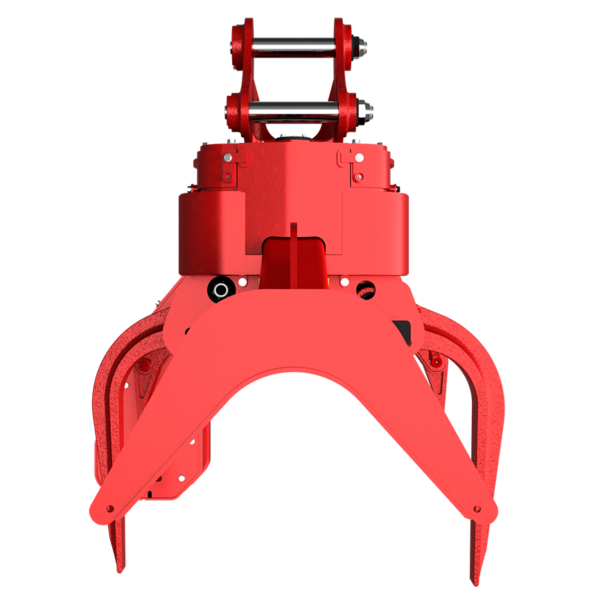

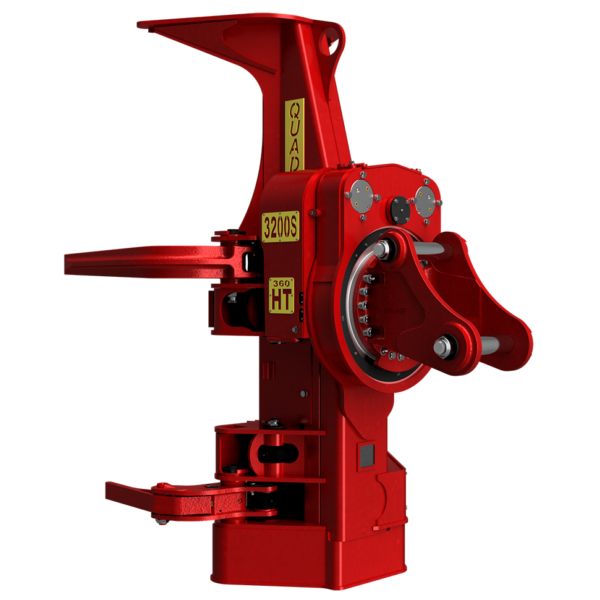

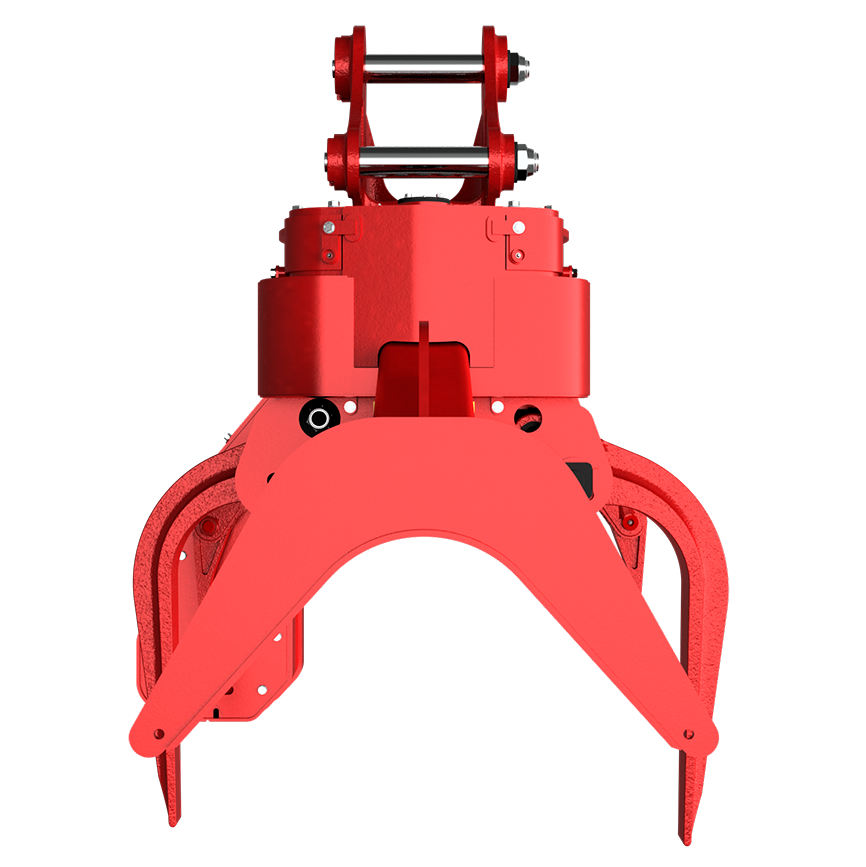

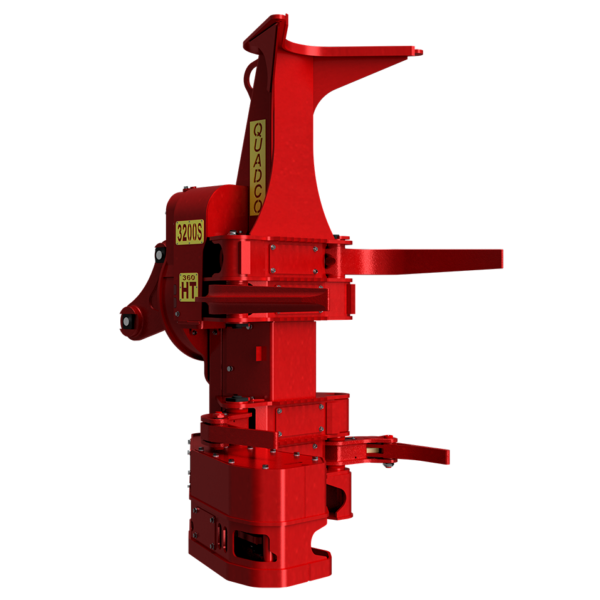

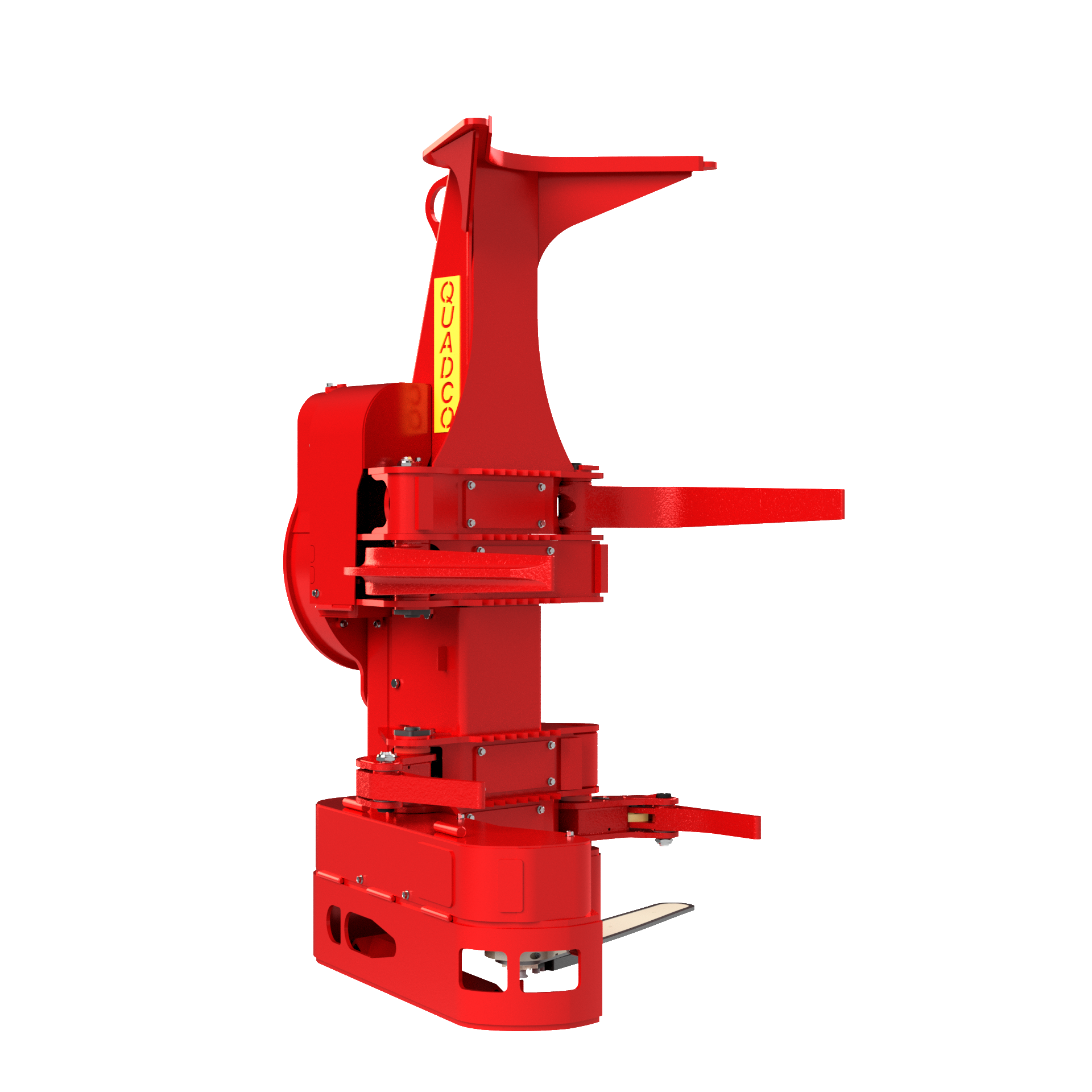

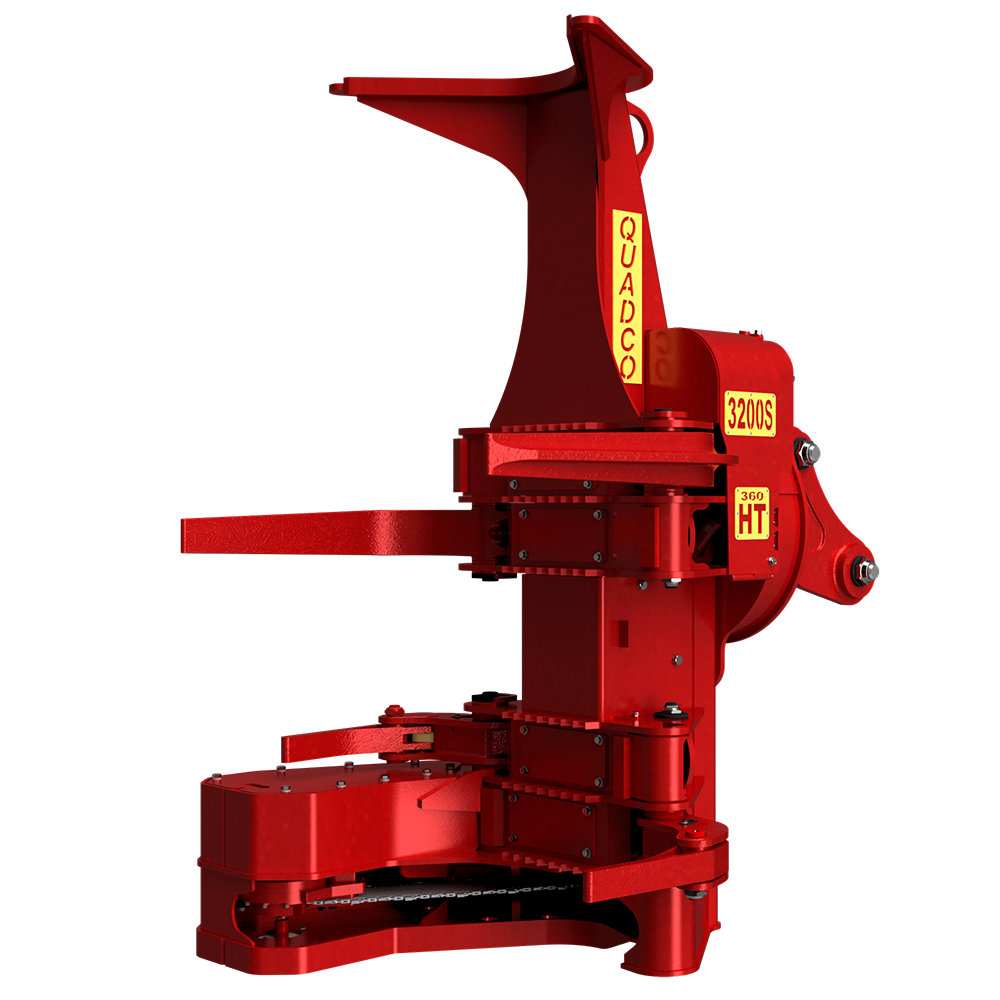

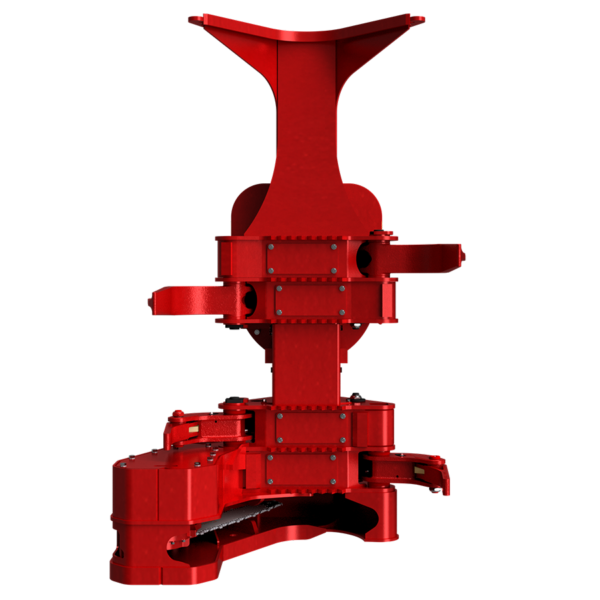

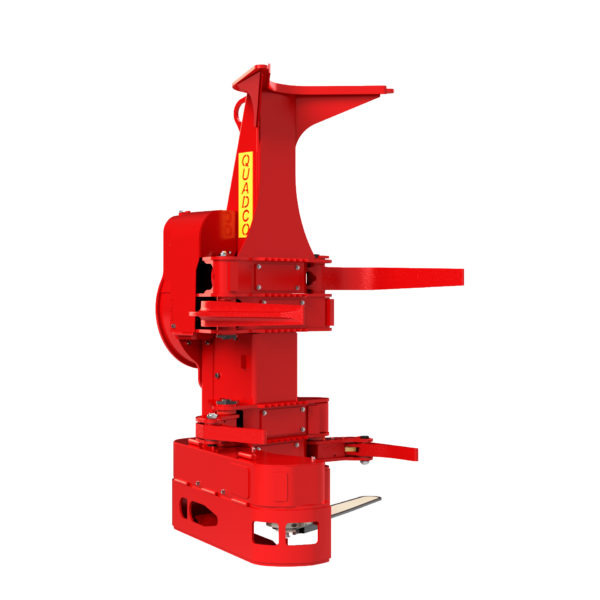

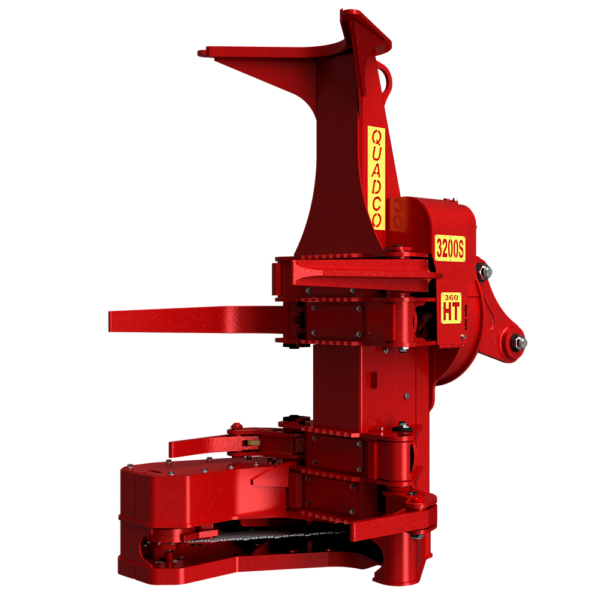

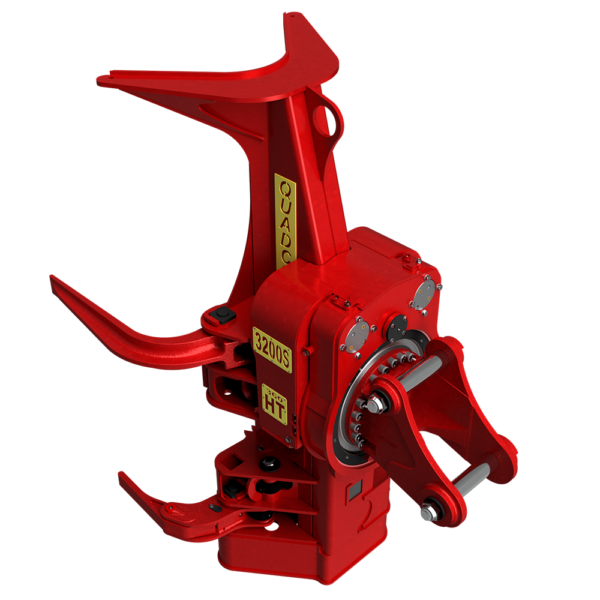

The QB3200 Fixed Felling Head is a multi-functional felling attachment designed to fell, bunch, shovel, and load. Its high-torque continuous rotation system and grapple-type arm design fundamentals allow for highly controlled felling of large, high-value hard and softwood, providing increased value recovery.

QB3200

Standard Configuration
Metric
Imperial

Rotation 40° 2,166 kg 4,775 lbs
Weight 2,450 kg 5,400 lbs
Height 2,692 mm 106″
Depth 1,422 mm 56″
Width (Arms Closed) 1,422 mm 56″
Width (Arms Open)
Rotate Motors
Degree of Rotation

Minimum Closing Diameter
Maxiumum Opening Diameter

Cutting Capacity 813 mm 32″
Bar Length 1,003 mm 39.5″
Saw Motor F12-40
Motor Size
Chain Size 19.05 mm 3/4″
Saw Bar Rotation

Pressure
Maximum Flow
Valve Bank

Carrier Size 25 ton
Weight 3300 kg
Dimensions 30 × 30 × 40 cm

it’s all in the details

As a true visionary and pioneer in the forestry industry, we embrace quality craftsmanship.

bar saw models

With the ability to handle up to 32” in a single cut, Quadco Bar Saws are ready to tackle your large timber with finesse.

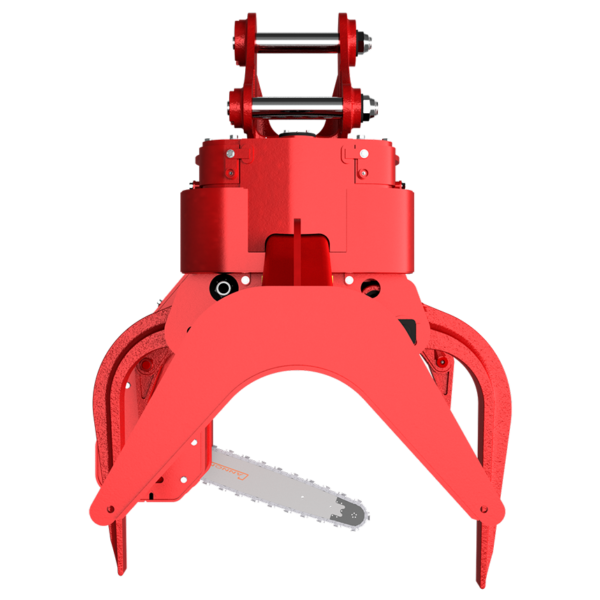

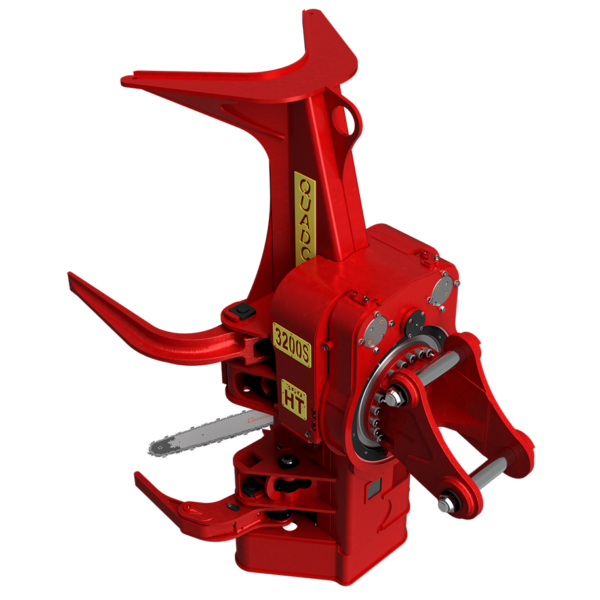

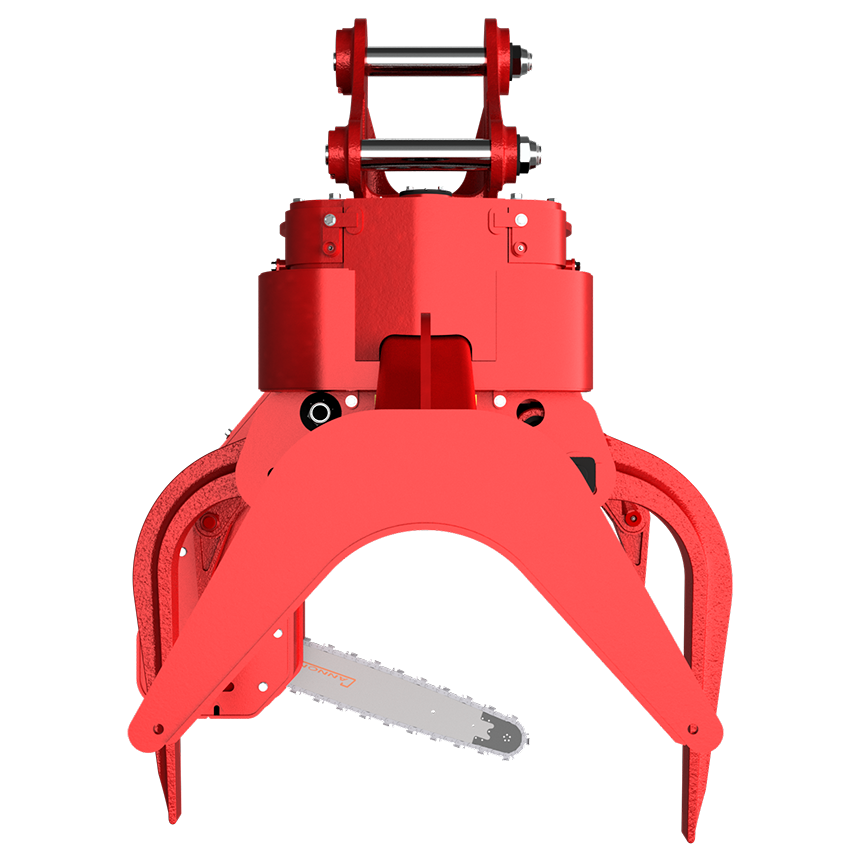

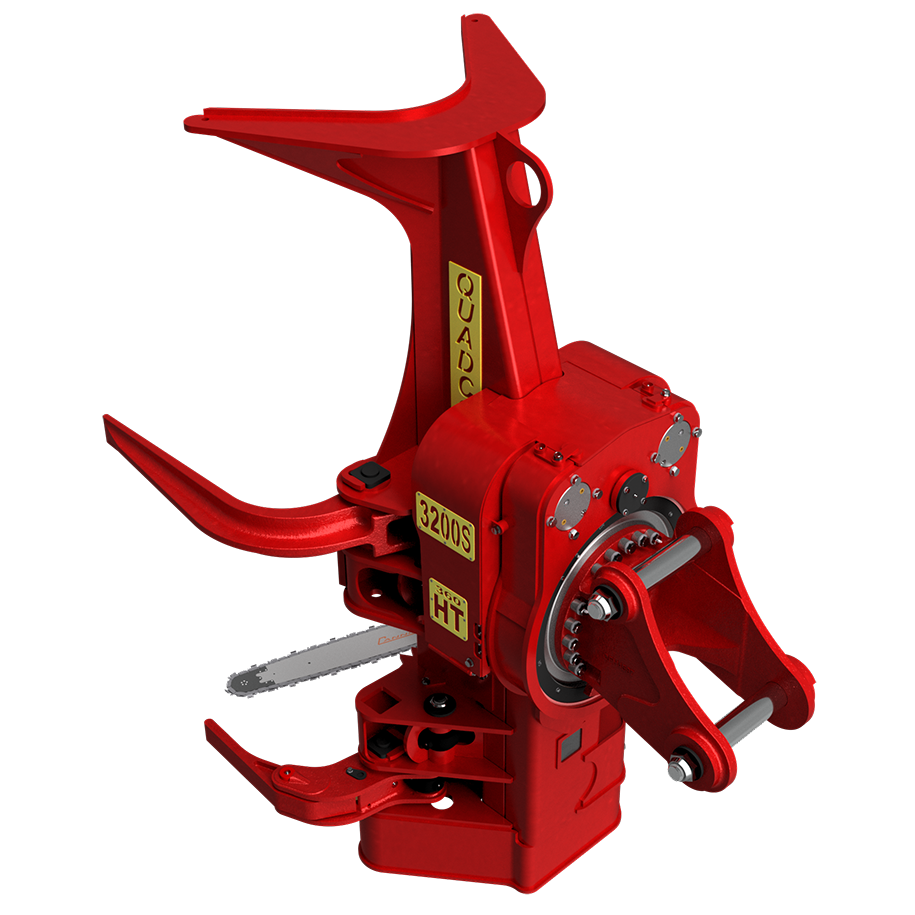

“Stop and go” versatility means the bar saw is retracted after the cut, safely readying the head for your delimbing, topping, and trimming needs.

Our Bar Saw’s arms are extremely durable, feature one cylinder per arm, and are made of cast-iron steel for easy grabbing and accumulating.

bar saw models qb2500 qb3200 qb3500 qb4400
Cutting Capacity 25″ 32″ 34″ 39″
