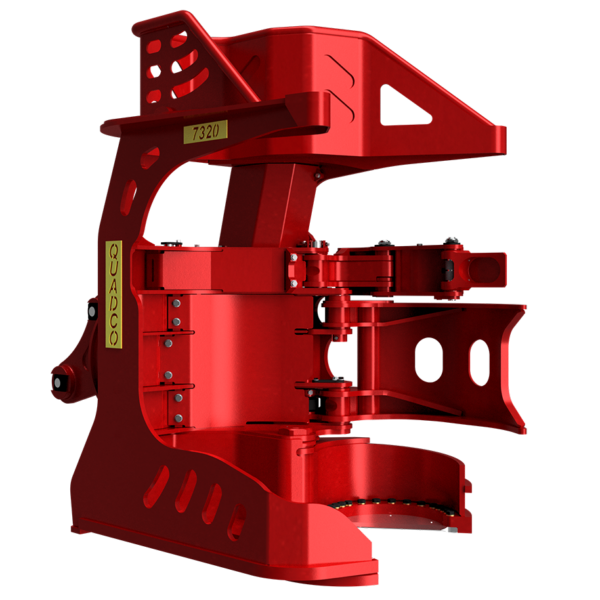

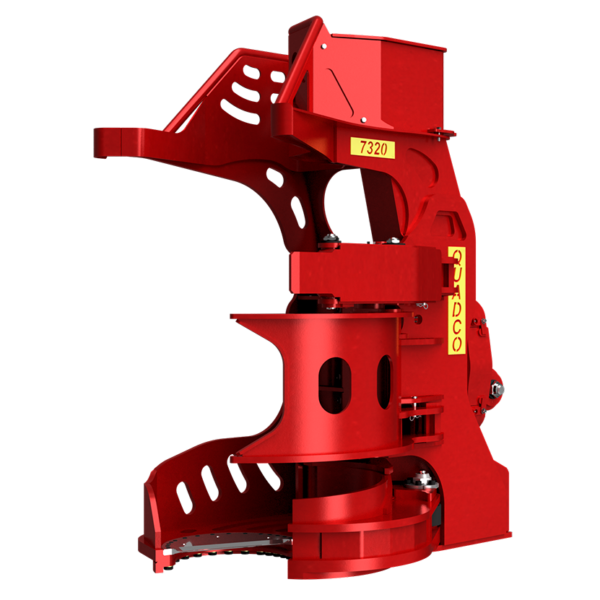

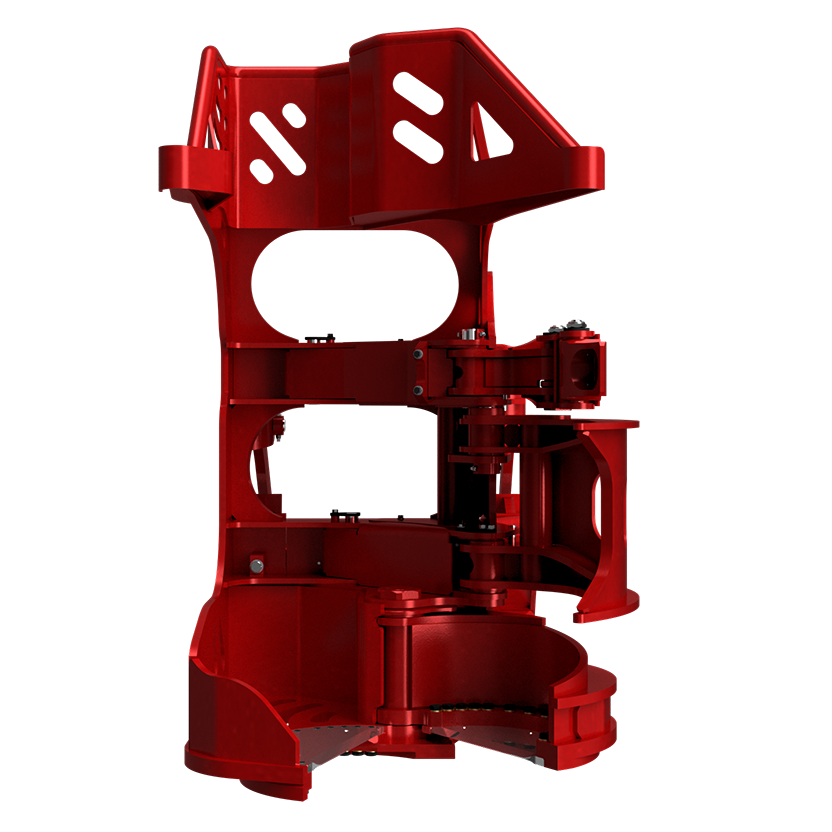

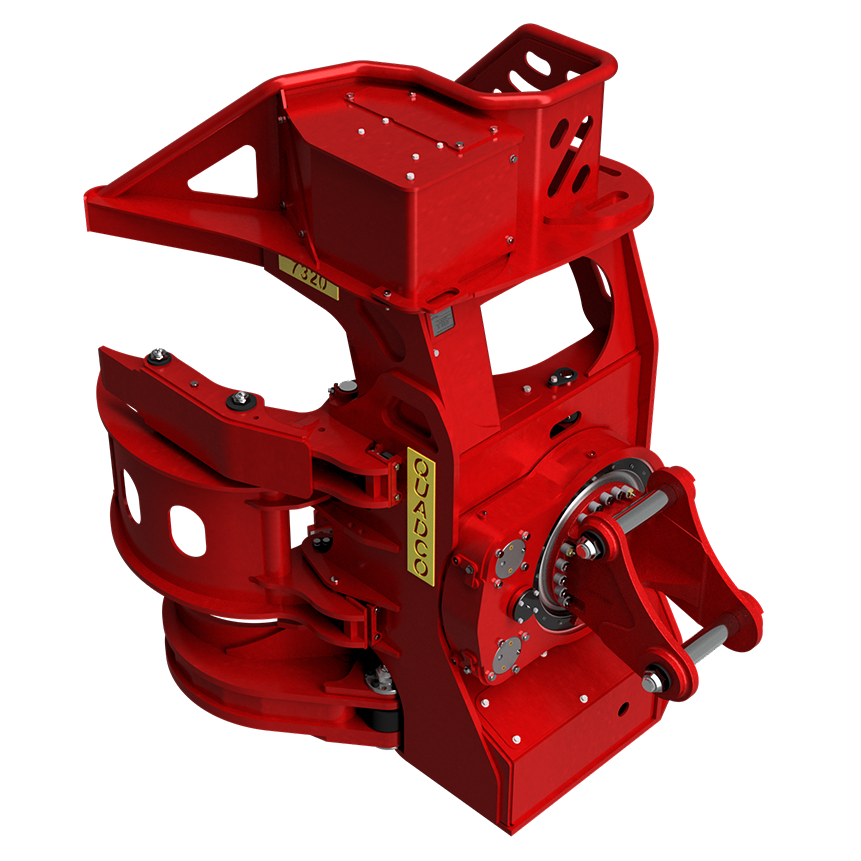

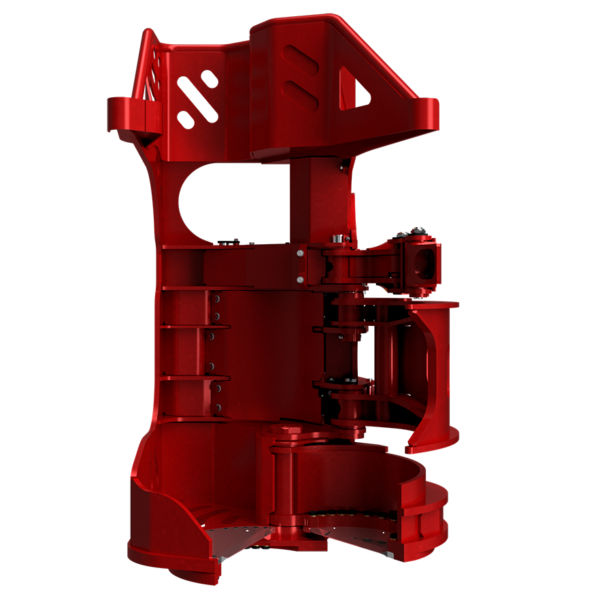

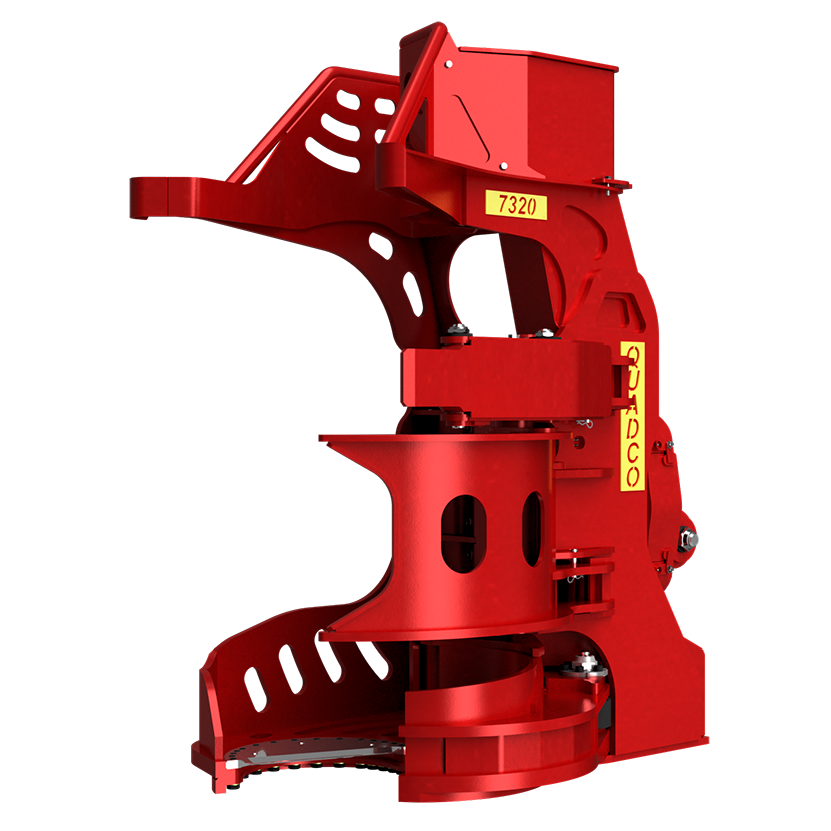

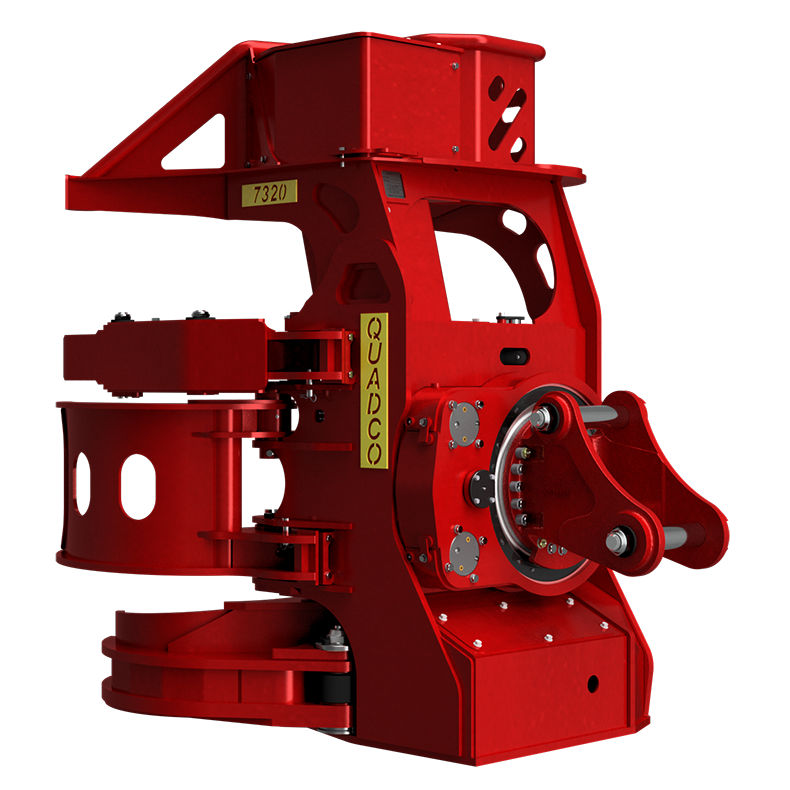

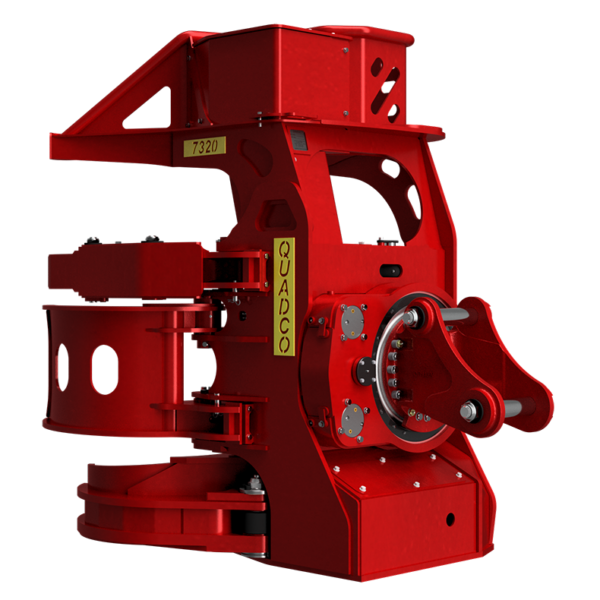

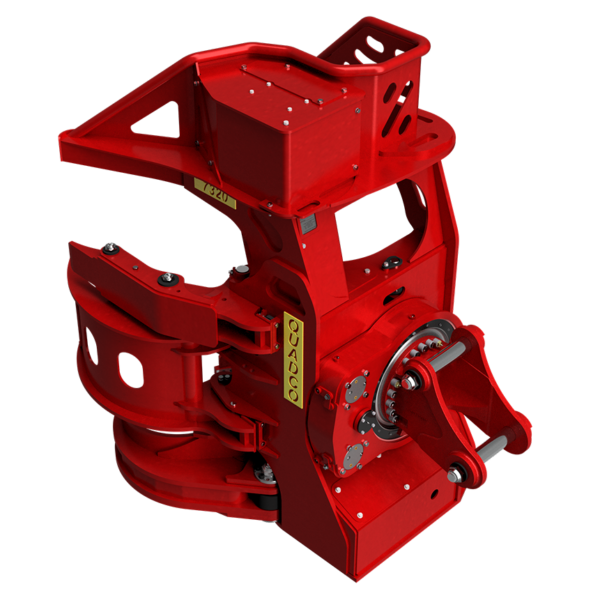

The Quadco 7320 High Capacity Shear Head will optimize your operation with an innovative design that boasts features like patent-pending multi-junction accumulating arms and customizable knife thickness. A compact build makes for better maneuverability while a centered bundle load greatly reduces twisting stress. With 20” soft wood cuts and 16” hard wood cuts, this redesigned model is made for smooth operating.
|
|
|
|
| STANDARD CONFIGURATION | METRIC | IMPERIAL |
|---|---|---|
WEIGHTS & DIMENSIONS | ||
Height | 2,489 mm | 98"" |
Depth (Closed | Main Frame) | 1,308 mm |
Depth (Open | Outside Guard) | 1,499 mm |
Boom Mount Model | 1,803 mm | 71"" |
Accumulation Area | 0.68 m² | 7.3 ft² |
Shear Knives Thickness | 25 mm | 1"" |
Shear / Sweep Arm Closing Time | 76 mm | 3"" |
HYDRAULICS | ||
Hydraulic Flow | 303 lpm | 80 gpm |
Arm Cylinders | 303 lpm | 80 gpm |
Rotor 360 Degree | 57 – 67 lpm | 15 – 20 gpm |
Hydraulic Pressure Recommended | 252 bar | 3,650 psi |
CUTTING CAPACITY | ||
Optional 40-deg | 3,628.74 kg | 8,000 lbs |
Optional 360-deg | 3,633 kg | 8,009 lbs |
Drive-to-Tree (DT) | 227 kg | 500 lbs |
