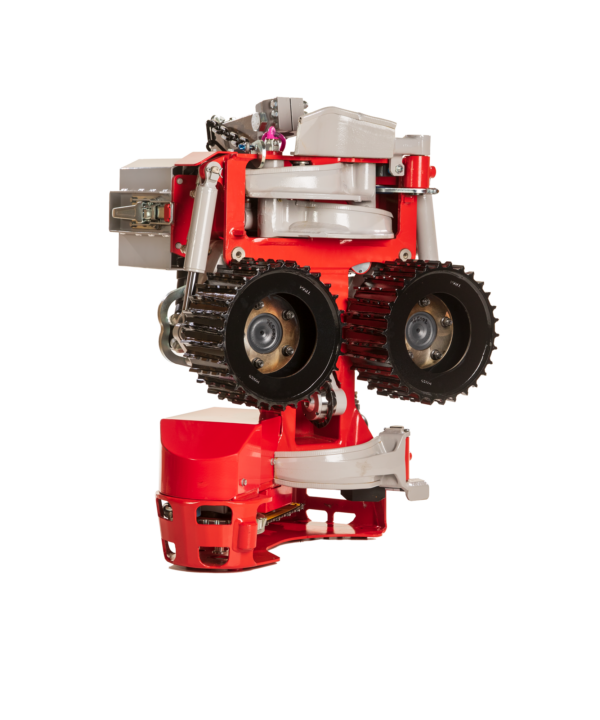

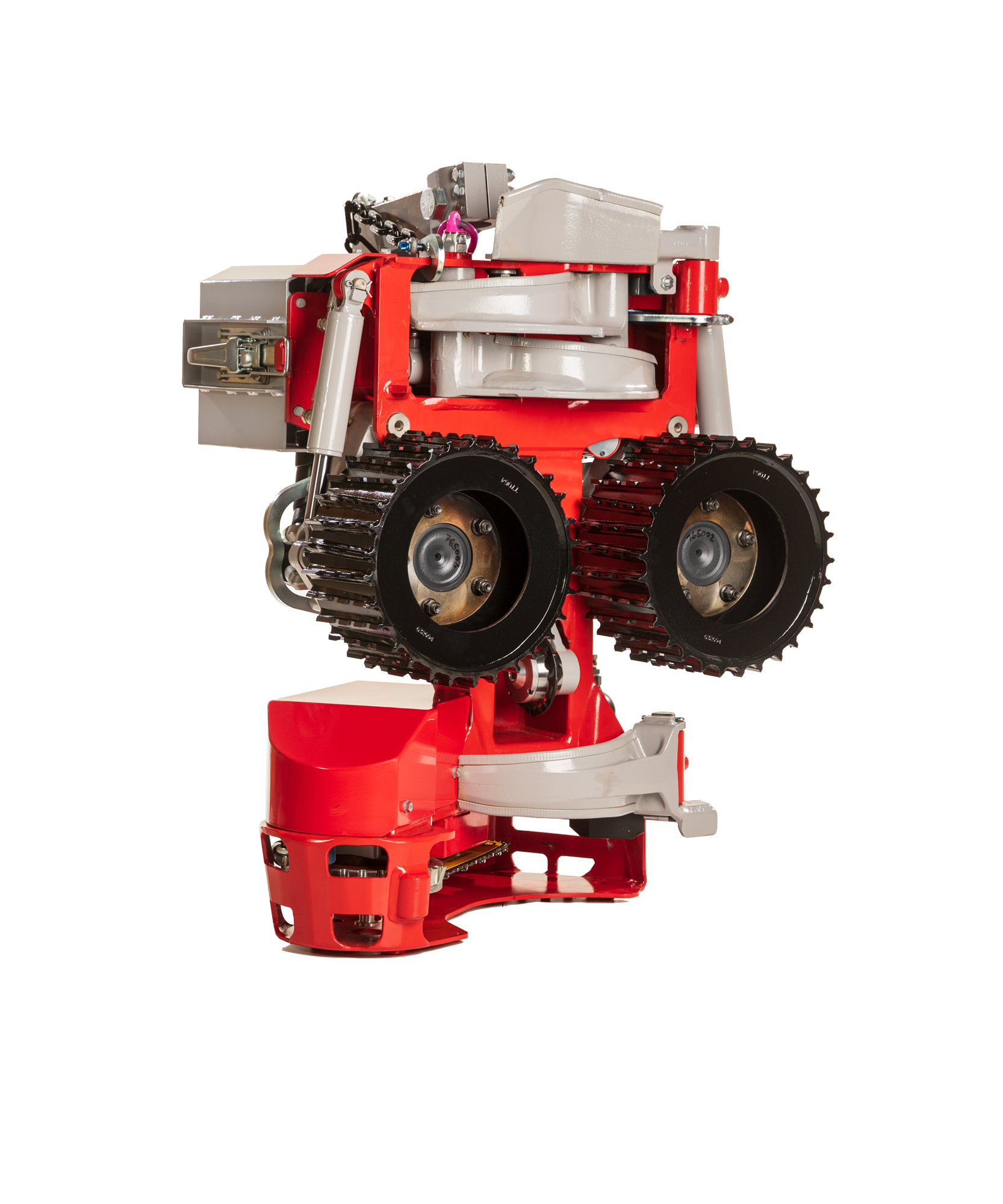

The all new Log Max 2000T, following the success of the 6000T, is a new heavy-duty head specifically engineered for low branched trees.
|
|
|
|
Standard Configuration |
Metric |
Imperial |
|||
|---|---|---|---|---|---|
|
|
|||||
| Weights & Dims
<!-- |
Weight | 420 kg | 925.94 lbs | ||
| Height | 108 cm | 42.48" | |||
| Width (With Roller Arms Open) | 100.5 cm | 39.6" | |||
| Width (With Roller Arms Closed) | 81.8 cm | 32.16" | |||
|
|
|||||
Felling & Cutting
<!--  |
-->
Optional Saw Models | Easy Cut | |||
| Optional Saw Tensioner | Manual | ||||
| Saw Oil Capacity | 4.5 liters | 1.19 gal | |||
| Maximum Saw Bar Length | 480 mm | 18.90" | |||
| Maximum Cut Capacity | 410 mm | 16.14" | |||
|
|
|||||
<!--  |
-->
Delimbing
Number of Delimbing Knives | 4 | |||
| Maximum Delimbing Knife Opening | 358 mm | 14.09" | |||
| Maximum Delimbing Full Coverage | 268 mm | 10.55" | |||
|
|
|||||
<!--  -->
Feeding |
Feed Roller Models | V-Steel Soft Grip, V-Steel Hard Grip | |||
| Feed Roller Motors | 364cc, 280cc | ||||
| Max Feed Force | 14.8 kN | ||||
| Max Feed Speed | 4.0 m/s | 13.12 ft/s | |||
| Maximum Feed Roller Opening (Diameter) | 329 mm | 12.95" | |||
| Minimum Feed Roller Opening | 11 mm | 0.43" | |||
|
|
|||||
Hydraulics
<!--  |
-->
Maximum pressure | 280 bar | 4061.06 Psi | ||
| Minimum Pressure | 255 bar | 3698.46 Psi | |||
| Maximum Flow | 140 l/min | 36.98 gal/min | |||
| Minimum Flow | 90 l/min | 23.78 gal/min | |||
|
|
|||||
| Rotators | Rotators | Indexator GV4, Indexator AV4EI | |||
|
|
|||||
| Base Machine | Excavator Maximum Weight | 12 ton | 26455.44 lbs | ||
| Excavator Minimum Weight | 7 ton | 15432.34 lbs | |||
| Wheeled Harvester Maximum Weight | 12 ton | 26455.44 lbs | |||
| Wheeled Harvester Minimum Weight | 5.5 ton | 12125.41 lbs | |||
| Tractor | 6.5 ton | 14330.03 lbs | |||
| Crane Requirements Maximum | 60 kNm | 44253.72 lb/ft | |||
| Crane Requirements Minimum | 40 kNm | 29502.48 lb/ft | |||
