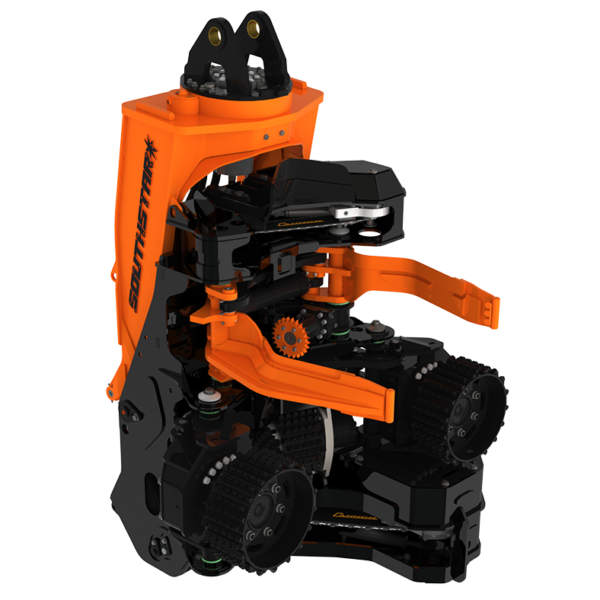

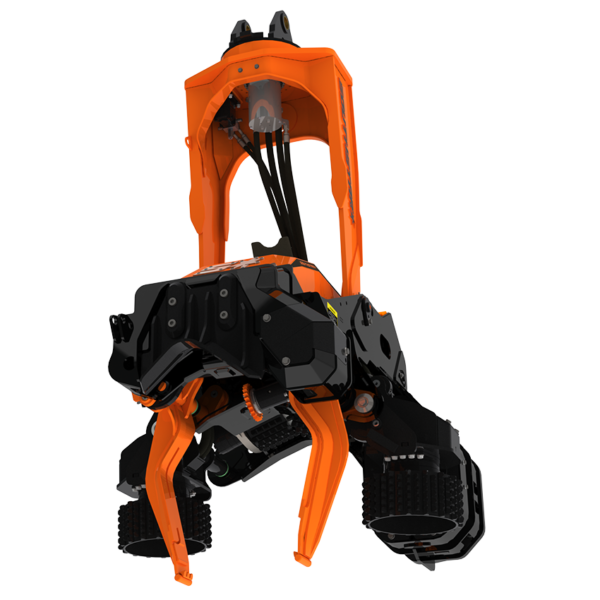

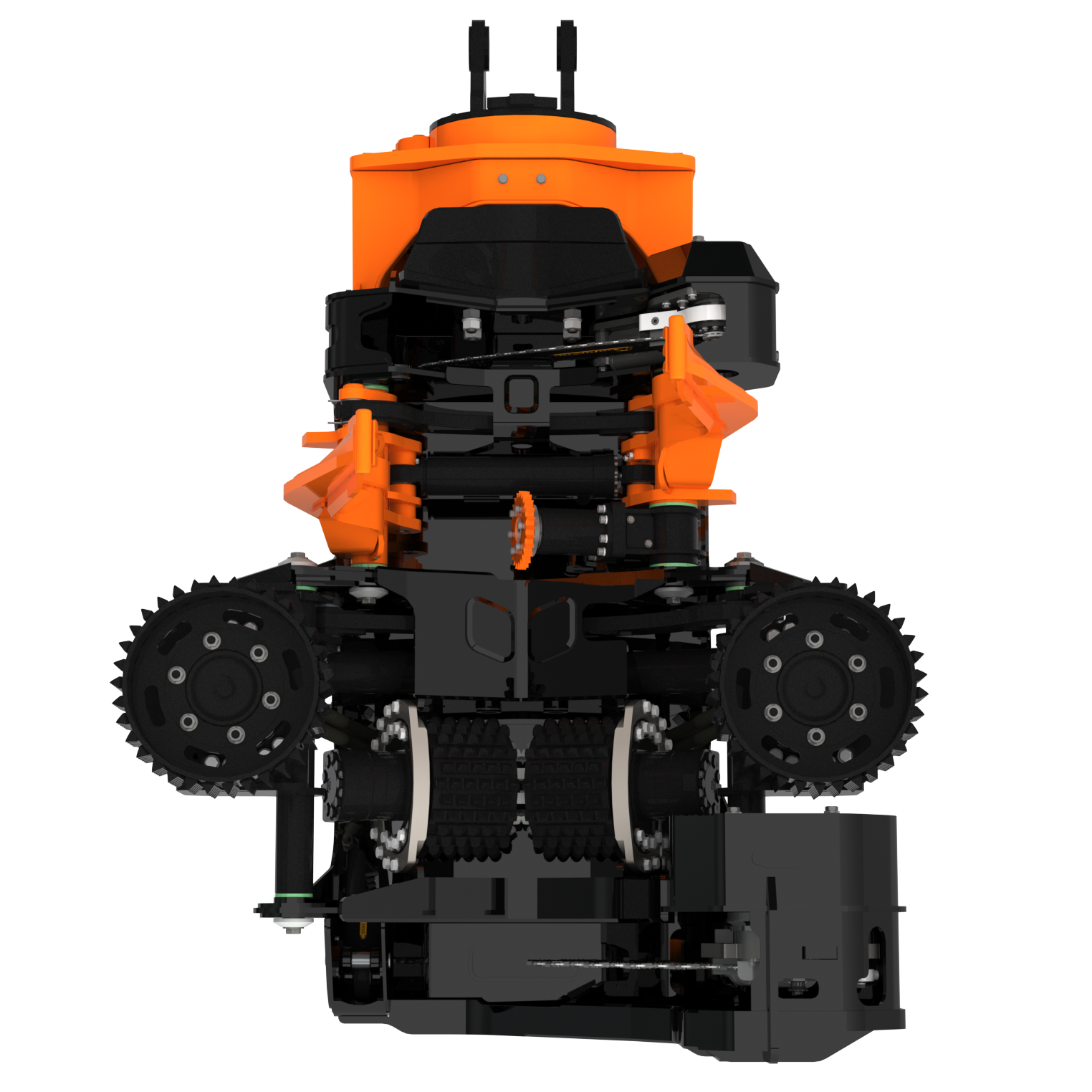

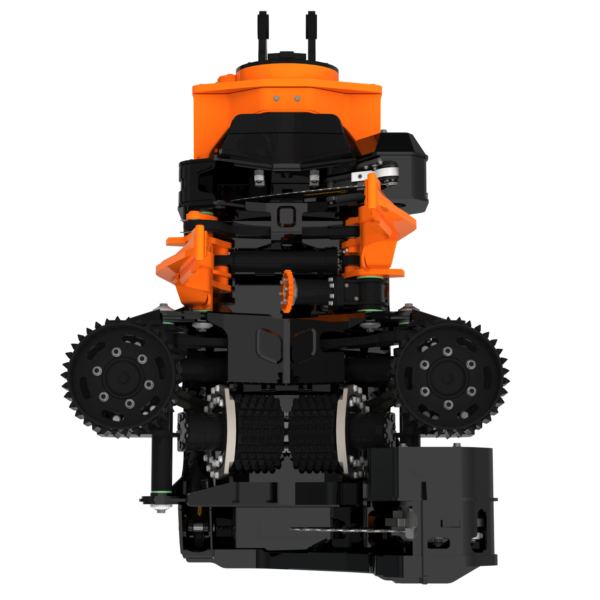

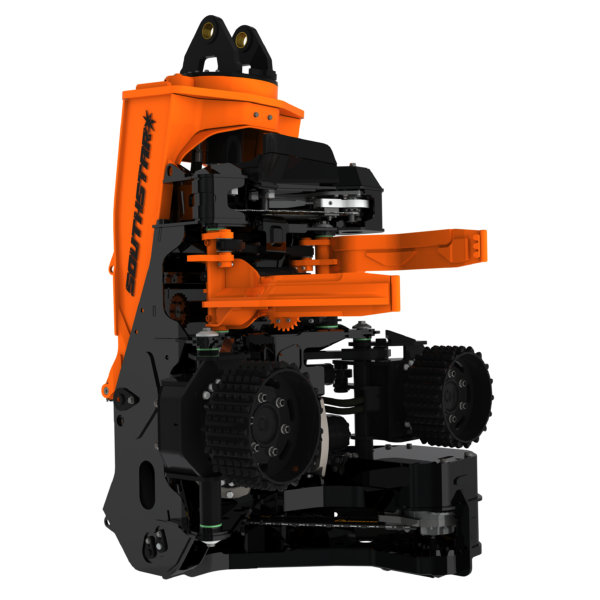

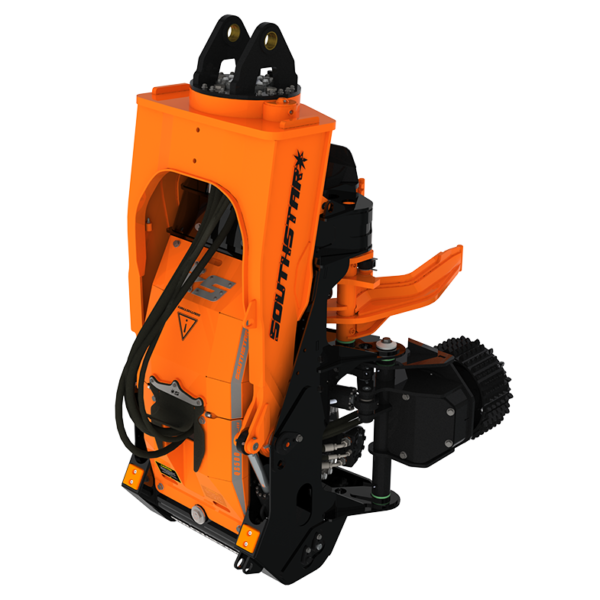

The QS500 is designed for small to medium sized wood with an optimum operating size of 18 – 24″ in diameter. This original multi-tree processor is packed full of design features that set it apart from the competition.
|
|
|
|
| STANDARD CONFIGURATION | METRIC | IMPERIAL |
|---|---|---|
WEIGHTS & DIMENSIONS | ||
Weight (Including Rotator Top & Link) | 2,686 kg | 5,921 lbs |
Height (In Harvesting Position) | 2,720 mm | 107"" |
Maximum Width (With Head Open) | 1,731 mm | 68"" |
Degree of Rotation | Continuous 360° | |
DRIVE SECTION | ||
Number of Drive Rollers | 4 | |
Motor Size (Drive Arm) | 630 cc | |
Motor Size (Fixed Center Drive) | 400 cc | |
Maximum Drive Roller Opening (Diameter) | 815 mm | 32"" |
Maximum Drive Roller Closing (Diameter) | 75 mm | 3"" |
Feed Speed | 5.5 – 7.6 mps | 18 – 25 fps |
DELIMB SECTION | ||
Maximum Delimb Opening (Diameter) | 710 mm | 27.5"" |
Minimum Delimb Closing (Diameter) | 75 mm | 3"" |
2 Stem Processing +/- 1"" Accuracy | 250 mm | 9.8"" |
3 Stem Processing +/- 1"" Accuracy | 180 mm | 7"" |
BUTT SAW | ||
Saw Type | SS 3/4 | SS 3/4 |
Bar Size | 863.6 mm | 34"" |
Chain Pitch | 19.05 mm | 3/4"" |
Chain Auto Tension | Standard | |
Laser Find End | Standard | |
TOP SAW | ||
Bar Size | 710 mm | 28"" |
Chain Pitch | 10.26 mm | 0.404"" |
CARRIER REQUIREMENTS | ||
Carrier Size (Tracked) | 20,000 – 25,000 kg | 20 – 22 ton |
Maximum Pressure | 35 mpa | 5,076 psi |
Optimum Flow @ Pressure | 300 – 320 lpm @ 15 mpa | 79 – 85 gpm @ 2,175 psi |
CONTROL SYSTEM | ||
Full Optimization | Optional | |
Electronic Calipers (For Electronic Calibrations) | Optional | |
CONFIGURATIONS | ||
Butt Saw Chain Grease System | Optional | |
Continuous 360 Rotation | Standard | |
Startrax (Satellite Communication System) | Optional |
