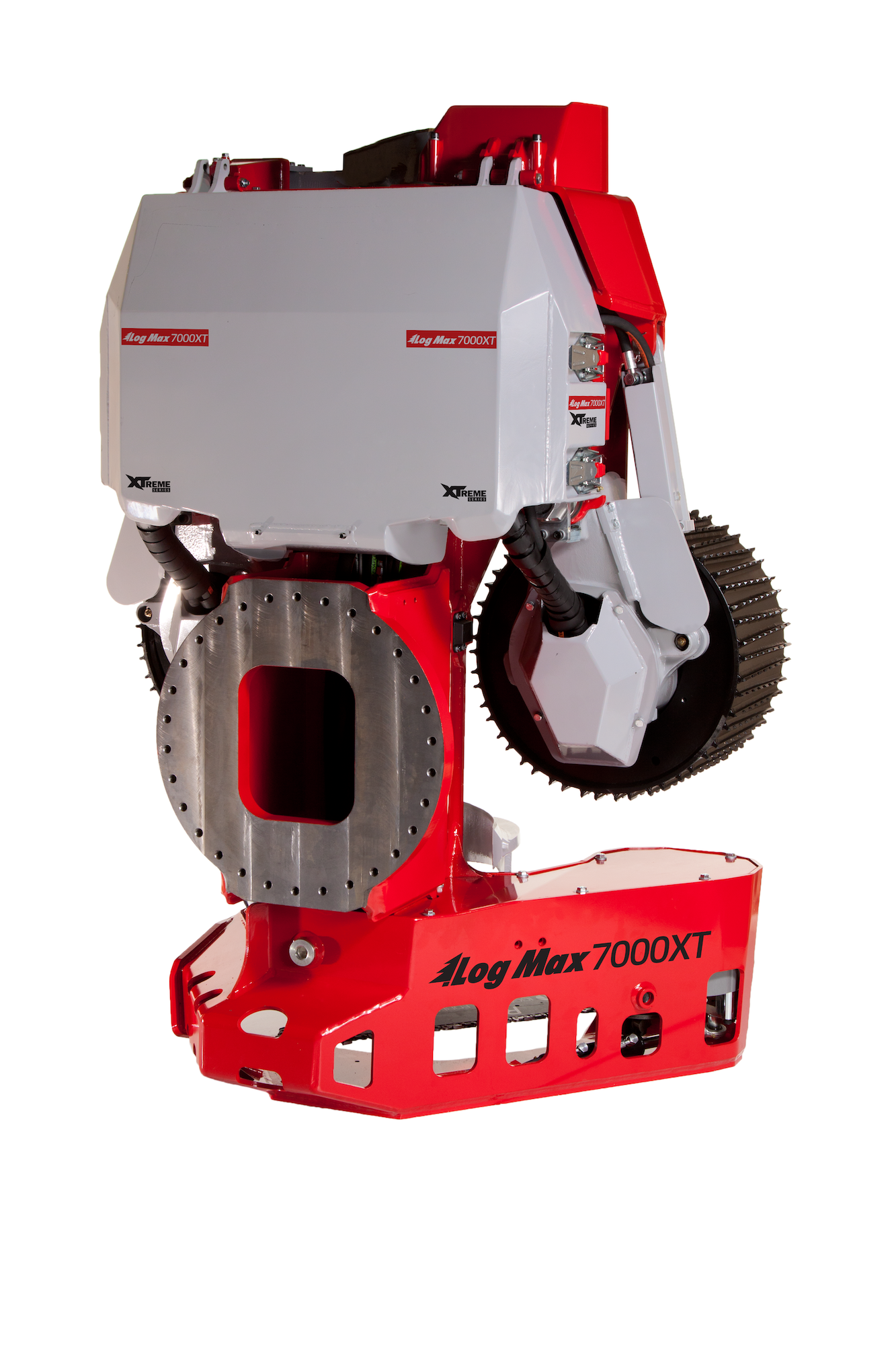

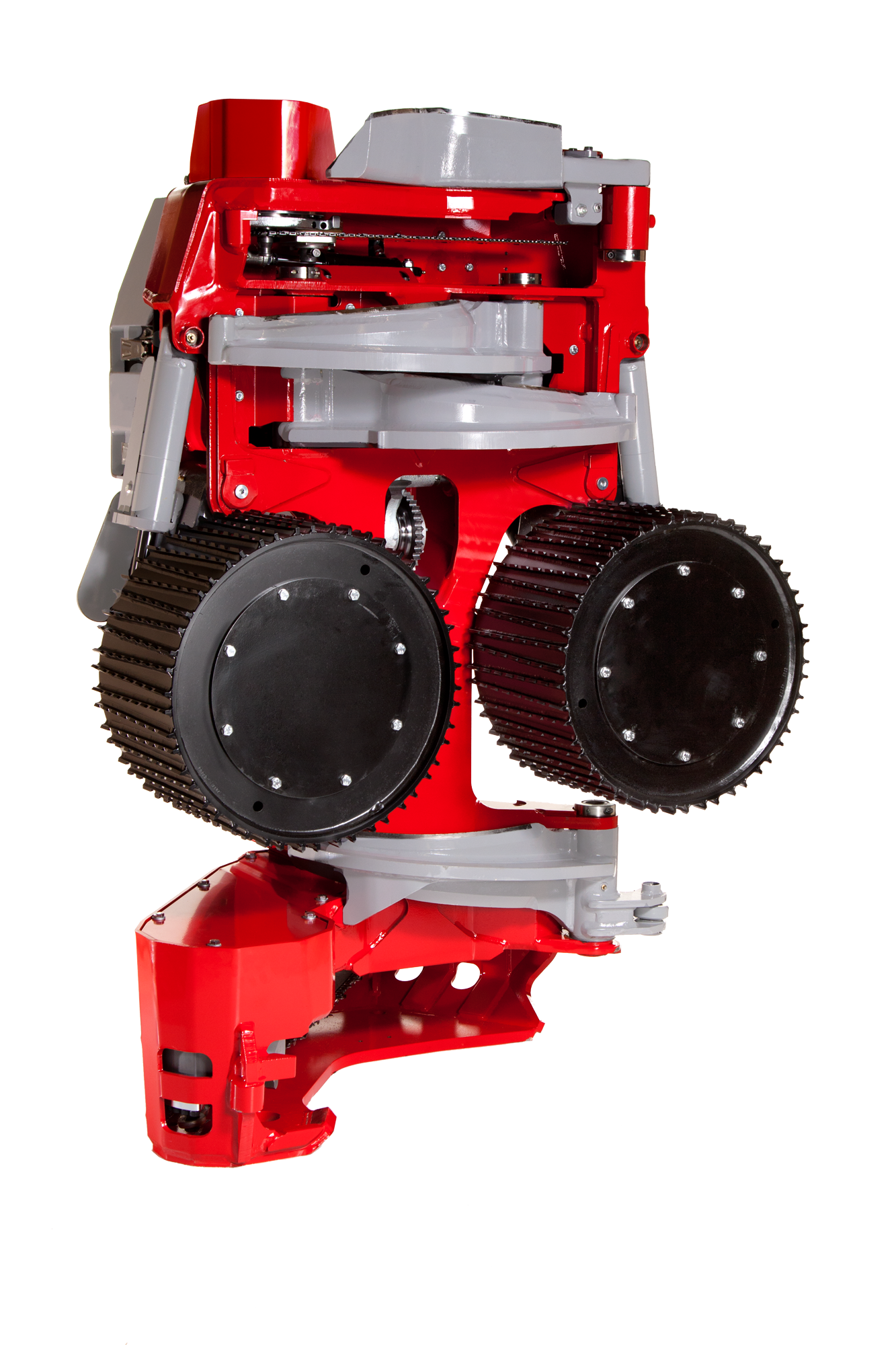

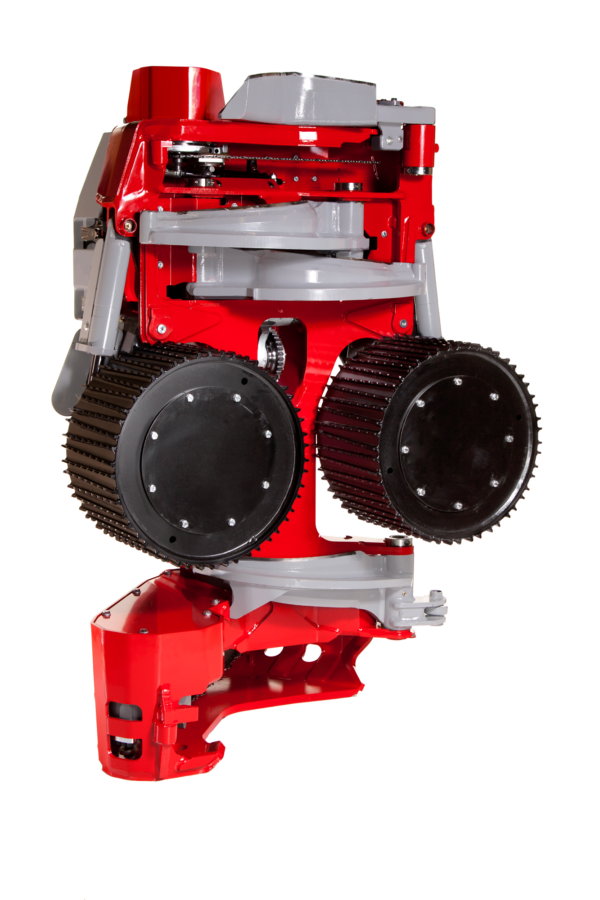

Log Max 7000XT Fixed Head is designed to be mounted directly on a rotation unit, which gives the operator total control over the head’s movements. A great advantage when working in sensitive environments: among power lines or in densely populated areas, or when processing hardwood with heavily branched crowns.
|
|
|
|
Standard Configuration |
Metric |
Imperial |
|
|---|---|---|---|
|
|
|||
| Weights & Dims. | Max Width (Arms Open) | 1950 mm | 77" |
| Min Width (Arms Closed) | 1328 mm | 52" | |
| Height (to center of rotation unit) | 795 mm | 31" | |
| Standard Configuration | 2,078 kg/ 2,058 kg | 4,581 lbs / 4,537 lbs | |
|
|
|||
 |
Saw Type | 418H | 418H |
| Saw Motor | 30 cc | 30 cc | |
| Saw Chain | 0.404 pitch | 0.404 pitch | |
| Bar Length | 75/82/90 cm | 29.5/32.3/35.4 in | |
| Maximum Cutting Capacity | 65/72.5/80 cm | 25.6/28.5/31.5 in | |
|
|
|||
 |
Feed Roller Diameter, V-Steel | 612 mm | 24 in |
| Feed Roller Diameter, V-Steel Aggressive | 612 mm | 24 in | |
| Feed roller diameter, Eucalyptus | 616 mm | 24.3 in | |
| Calculated Feed Force | 45 kN/42,1 kN | ||
| Calculated Feed Speed | 5.2/4.2 m/sec | 11.6/9.4 mph | |
| Maximum Roller Opening | 713 mm | 28.1 in | |
| Minimum Roller Opening | 13 mm/td> | 0.5 in | |
|
|
|||
 |
Max delimbing knife opening | 772 mm | 30.4 in |
| Max Full Coverage Delimbimg Diameter | 560 mm | 22.1 in | |
| Min Full Coverage Delimbing Diameter | 40 mm | 1.6 in | |
|
|
|||
| Hyd. | Maximum Pressure | 320 bar | 4641 PSI |
| Maximum Flow | 350 l/min | 350 l/min | |
