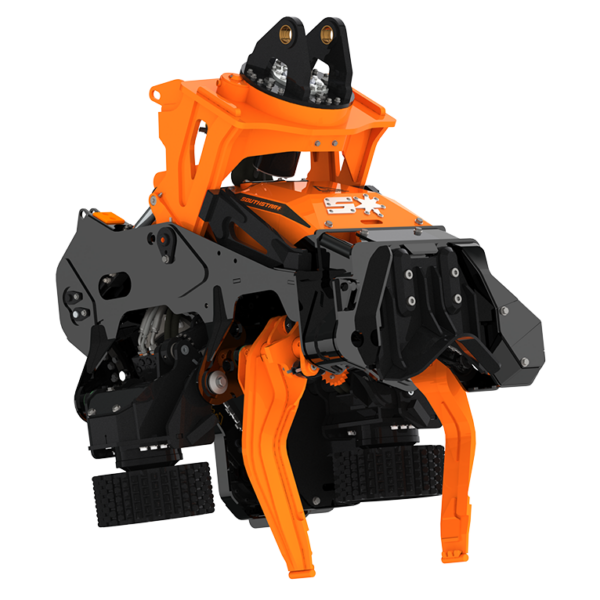

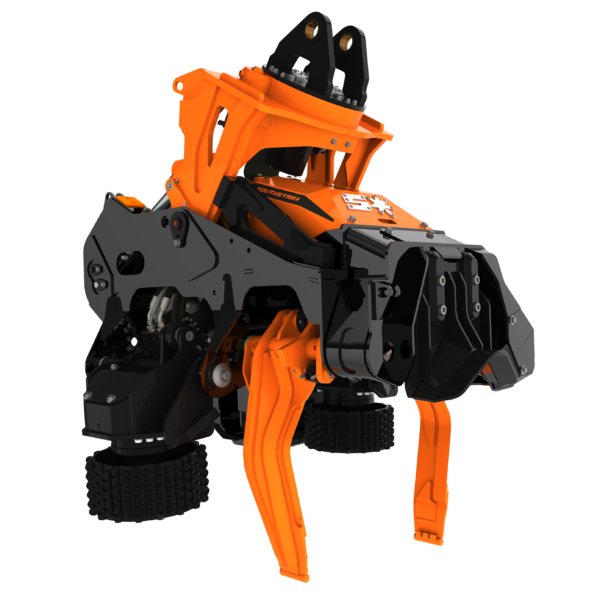

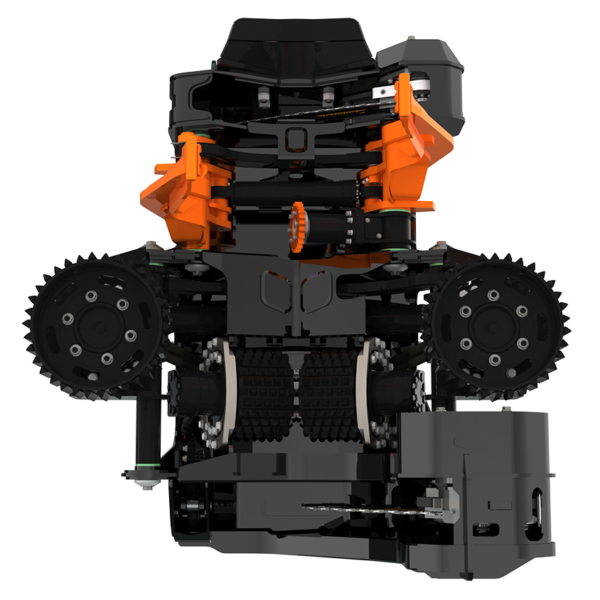

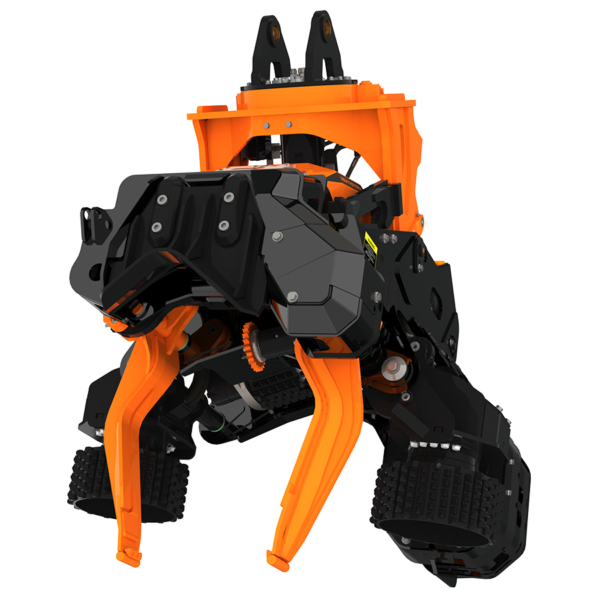

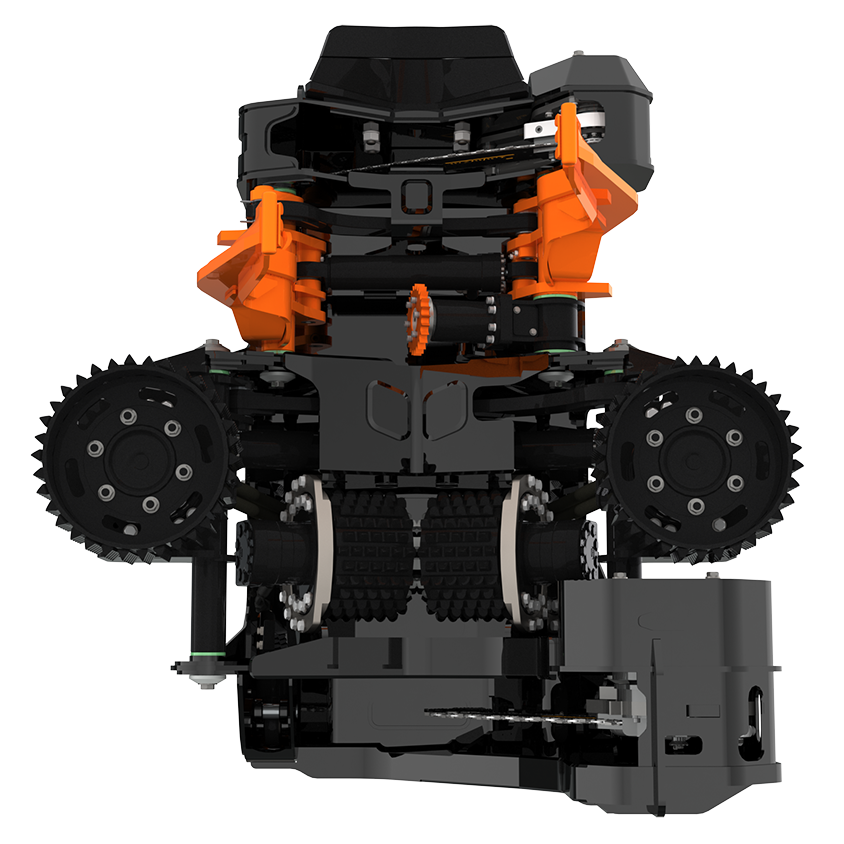

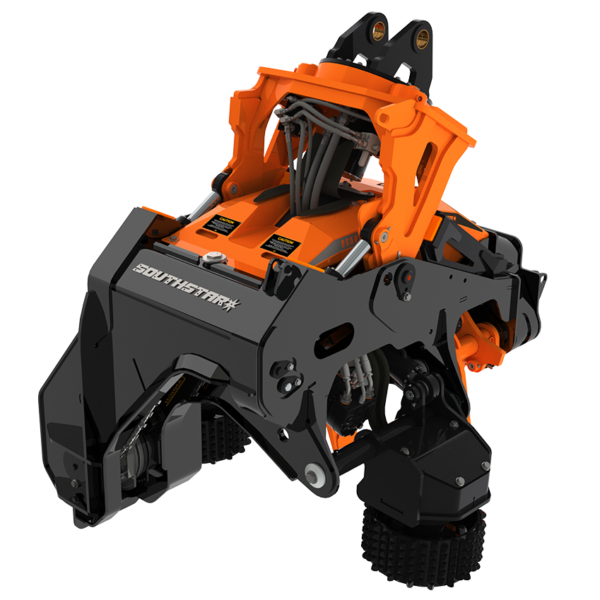

The QS505 grapple processor is designed to be able to sort, shovel and load like a grapple and process and measure and cut with all the advantages of a Southstar processor. Combine your loading and processing into one effective machine. The QS505 is designed for small to medium sized wood with an optimum operating size of 18 – 24″ in diameter. This large multi-tree grapple processor is packed full of design features that set it apart from the competition.
|
|
|
|
Standard Configuration |
Metric |
Imperial |
|
|---|---|---|---|
|
|
|||
| Weights & Dims. | Weight (Including Rotator Top & Link) | 2,686 kg | 5,921 lbs |
| Height (In Harvesting Position) | 2,720 mm | 107" | |
| Maximum Width (With Head Open) | 1,731 mm | 68" | |
| Degree of Rotation | Continuous 360° | ||
|
|
|||
| Drive Section | Number of Drive Rollers | 4 | |
| Motor Size (Drive Arm) | 630 cc | ||
| Motor Size (Fixed Center Drive) | 400 cc | ||
| Maximum Drive Roller Opening (Diameter) | 815 mm | 32" | |
| Maximum Drive Roller Closing (Diameter) | 75 mm | 3" | |
| Feed Speed | 5.5 – 7.6 mps | 18 – 25 fps | |
|
|
|||
| Delimb | Maximum Delimb Opening (Diameter) | 710 mm | 27.5" |
| Minimum Delimb Closing (Diameter) | 75 mm | 3" | |
| 2 Stem Processing +/- 1" Accuracy | 250 mm | 9.8" | |
| 3 Stem Processing +/- 1" Accuracy | 180 mm | 7" | |
|
|
|||
| Butt Saw | Saw Type | SS 3/4 | SS 3/4 |
| Bar Size | 863.6 mm | 34" | |
| Chain Pitch | 19.05 mm | 3/4" | |
| Chain Auto Tension | Standard | ||
| Laser Find End | Standard | ||
|
|
|||
| Top Saw | Bar Size | 810 mm | 32" |
| Chain Pitch | 19.05 mm | 3/4" | |
|
|
|||
| Carrier Reqs. | Carrier Size (Tracked) | 20,000 – 25,000 kg | 20 – 22 ton |
| Maximum Pressure | 35 mpa | 5,076 psi | |
| Optimum Flow @ Pressure | 300 – 320 lpm @ 15 mpa | 79 – 85 gpm @ 2,175 psi | |
Our Grapple Processor Heads are multifunctional powerhouses, allowing you to combine your loading and processing into one durable, efficient machine.
Sort, shovel and load like a grapple and process; measure and cut like a multi-stem processor. Powerful twin rotating motors make precision control of logs on uneven terrain easy. Plenty of innovative features keep uptime high.

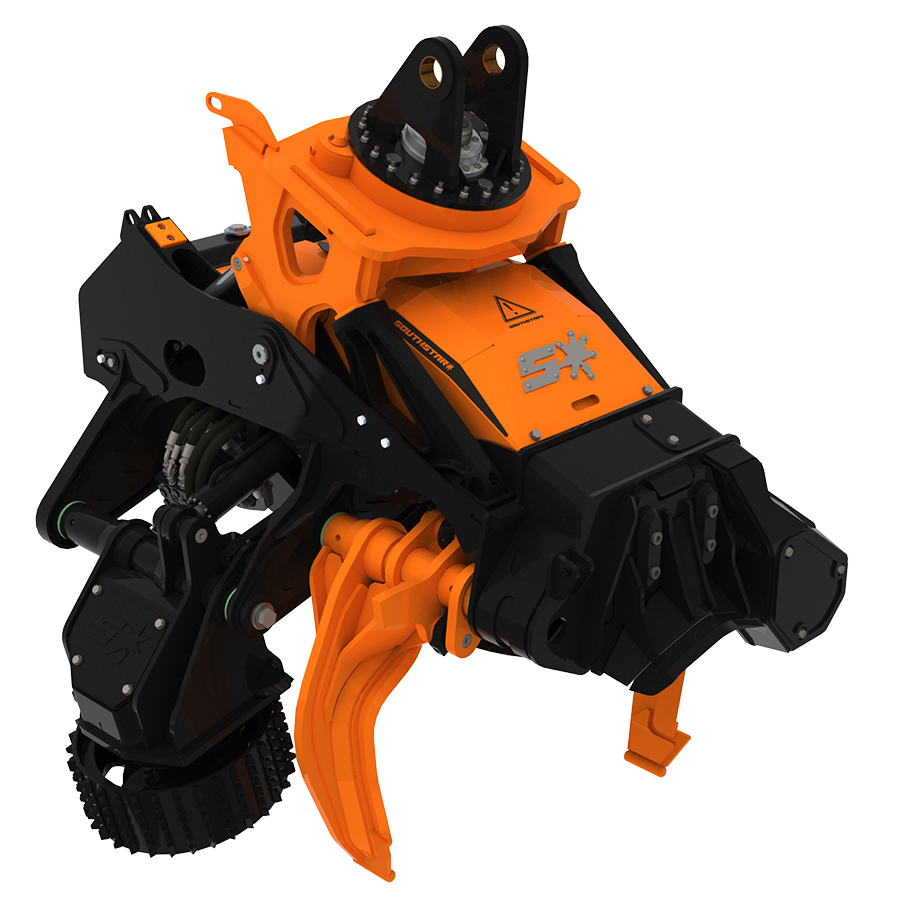

Ideal for harvesting, processing, thinning, debarking, and more, the Quadco Quadstar Harvesting Processor heads feature a 4×4 engine for maximum traction, torque, and delimbing force.
Our wide range of options are ready to meet your environmental and job site needs. All heads feature a Dasa5 standard control system. Plenty of innovative features, such as touch-less encoders and side stepping drive, make our Harvesting Processor Heads the right choice.
