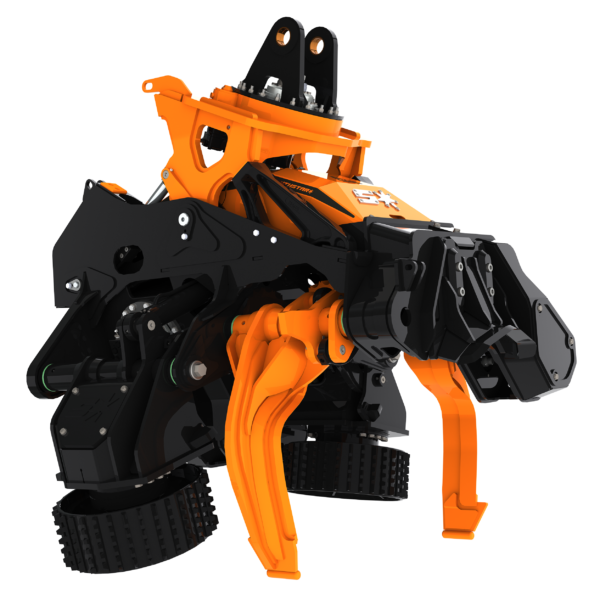

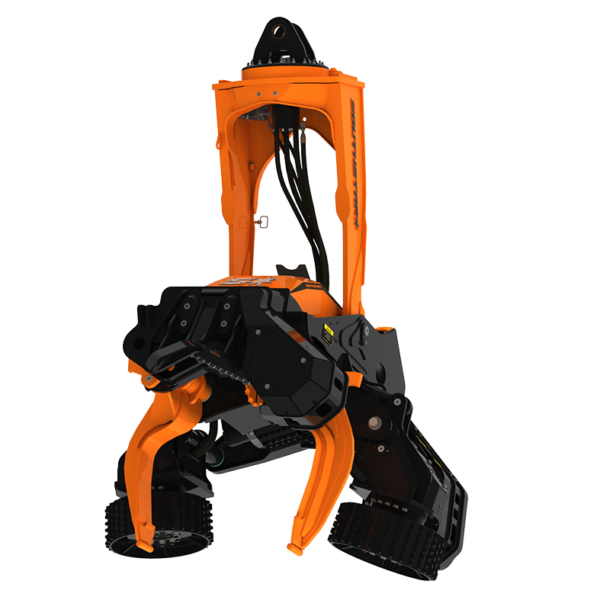

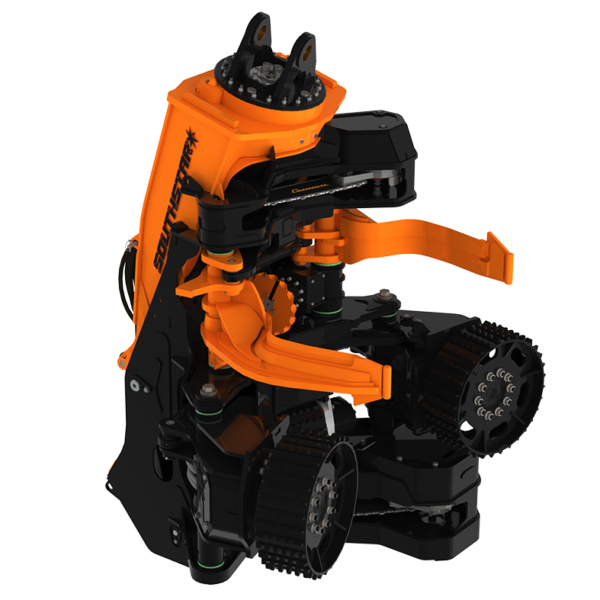

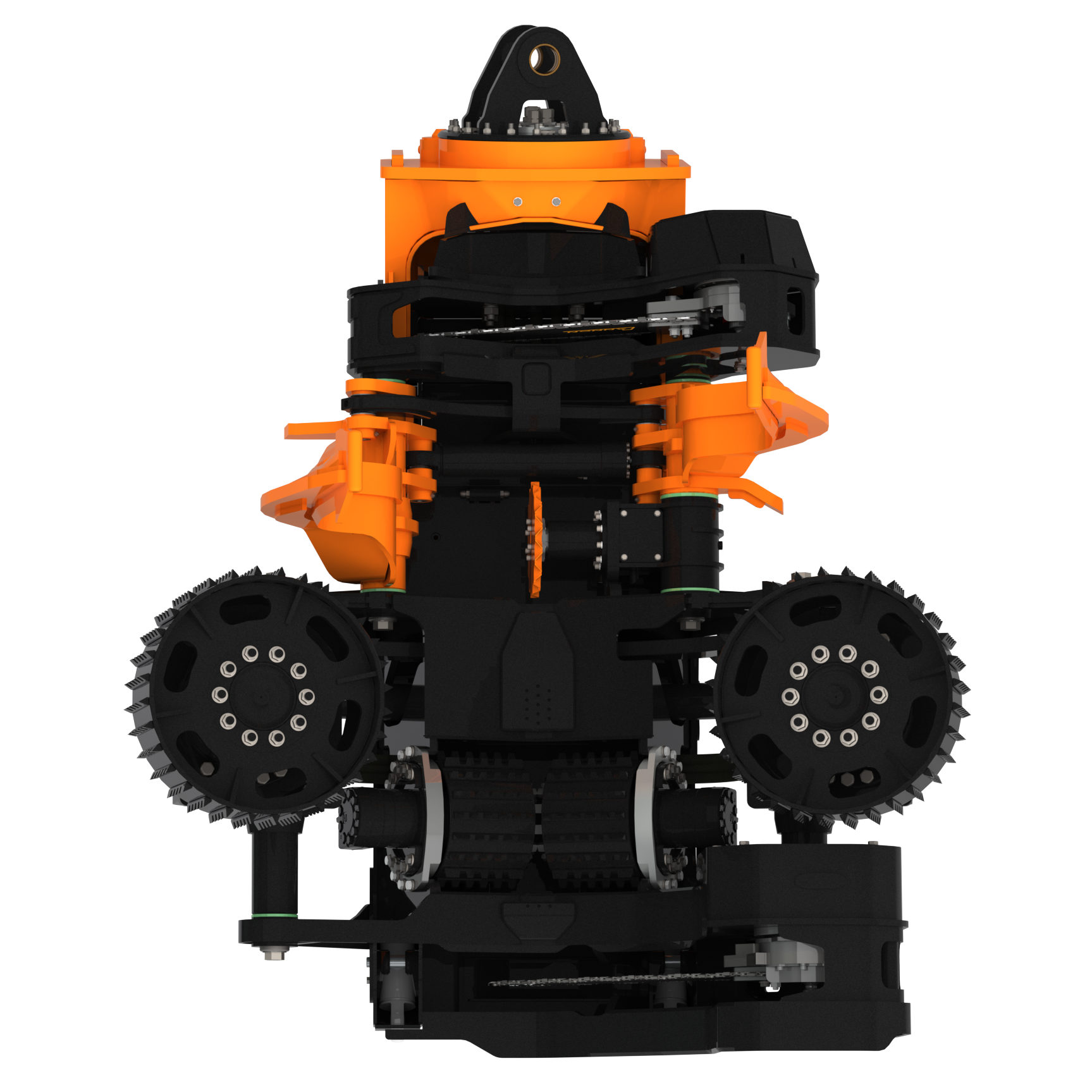

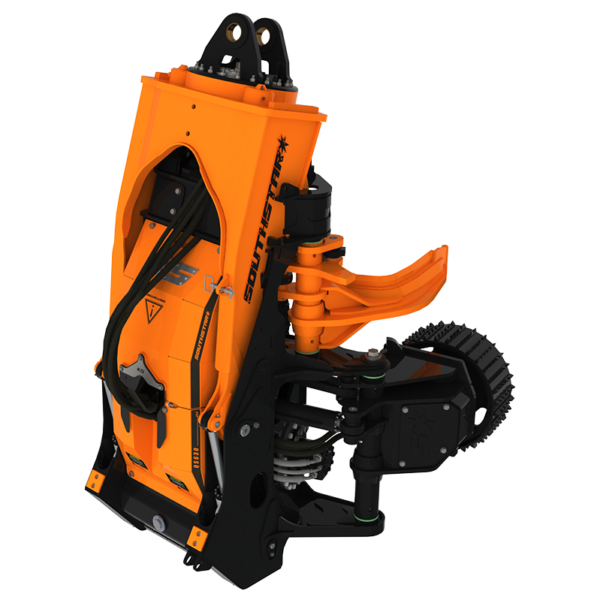

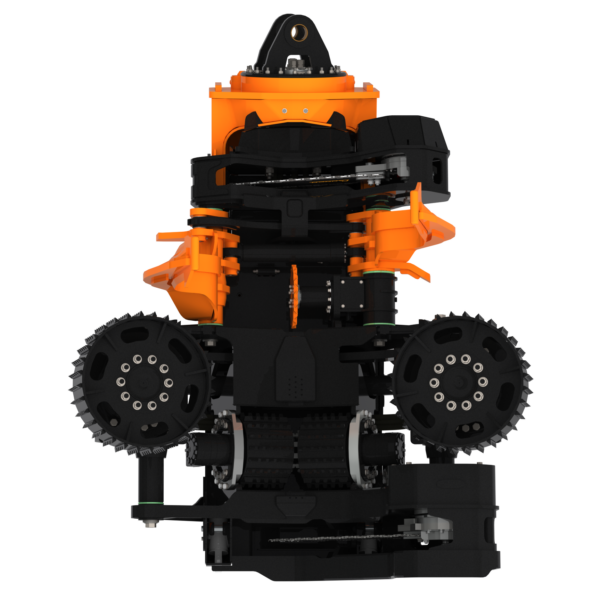

With an optimum operating size of 24 – 32″” in diameter, the QS630 is designed for the toughest harvesting environments and the largest sized stems. This heavy duty processor has not compromised speed and is packed full of design features that set it apart from the competition.
|
|
|
|
Standard Configuration |
Metric |
Imperial |
|
|---|---|---|---|
|
|
|||
| Weights & Dims. | Weight (Including Rotator Top & Link) | 4,390 kg | 9,678 lbs |
| Height (In Harvesting Position) | 3,315 mm | 130.5" | |
| Maximum Width (With Head Open) | 2,013 mm | 83" | |
| Degree of Rotation | Continuous 360° | ||
|
|
|||
| Drive Section | Number of Drive Rollers | 4 | |
| Motor Size (Drive Arm) | 1,395 cc | ||
| Motor Size (Fixed Center Drive) | 800 cc | ||
| Maximum Drive Roller Opening (Diameter) | 1,085 mm | 42.5" | |
| Maximum Drive Roller Closing (Diameter) | 80 mm | 3.1" | |
| Feed Speed | 4.4 – 5.3 mps | 14.4 – 17.4 fps | |
|
|
|||
| Delimb | Maximum Delimb Opening (Diameter) | 813 mm | 32" |
| Minimum Delimb Closing (Diameter) | 80 mm | 3.1" | |
| 2 Stem Processing +/- 1" Accuracy | N/A | ||
| 3 Stem Processing +/- 1" Accuracy | N/A | ||
|
|
|||
| Butt Saw | Saw Type | SS 3/4 | SS 3/4 |
| Bar Size | 1,016 mm | 40" | |
| Chain Pitch | 19.05 mm | 3/4" | |
| Chain Auto Tension | Standard | ||
| Laser Find End | Standard | ||
|
|
|||
| Top Saw | Bar Size | 810 mm | 32" |
| Chain Pitch | 19.05 mm | 3/4" | |
|
|
|||
| Carrier Reqs. | Carrier Size (Tracked) | 30,000 – 35,000 kg | 25 – 30 ton |
| Maximum Pressure | 35 mpa | 5,076 psi | |
| Optimum Flow @ Pressure | 300 – 360 lpm @ 15 mpa | 79 – 95 gpm @ 2,175 psi | |
