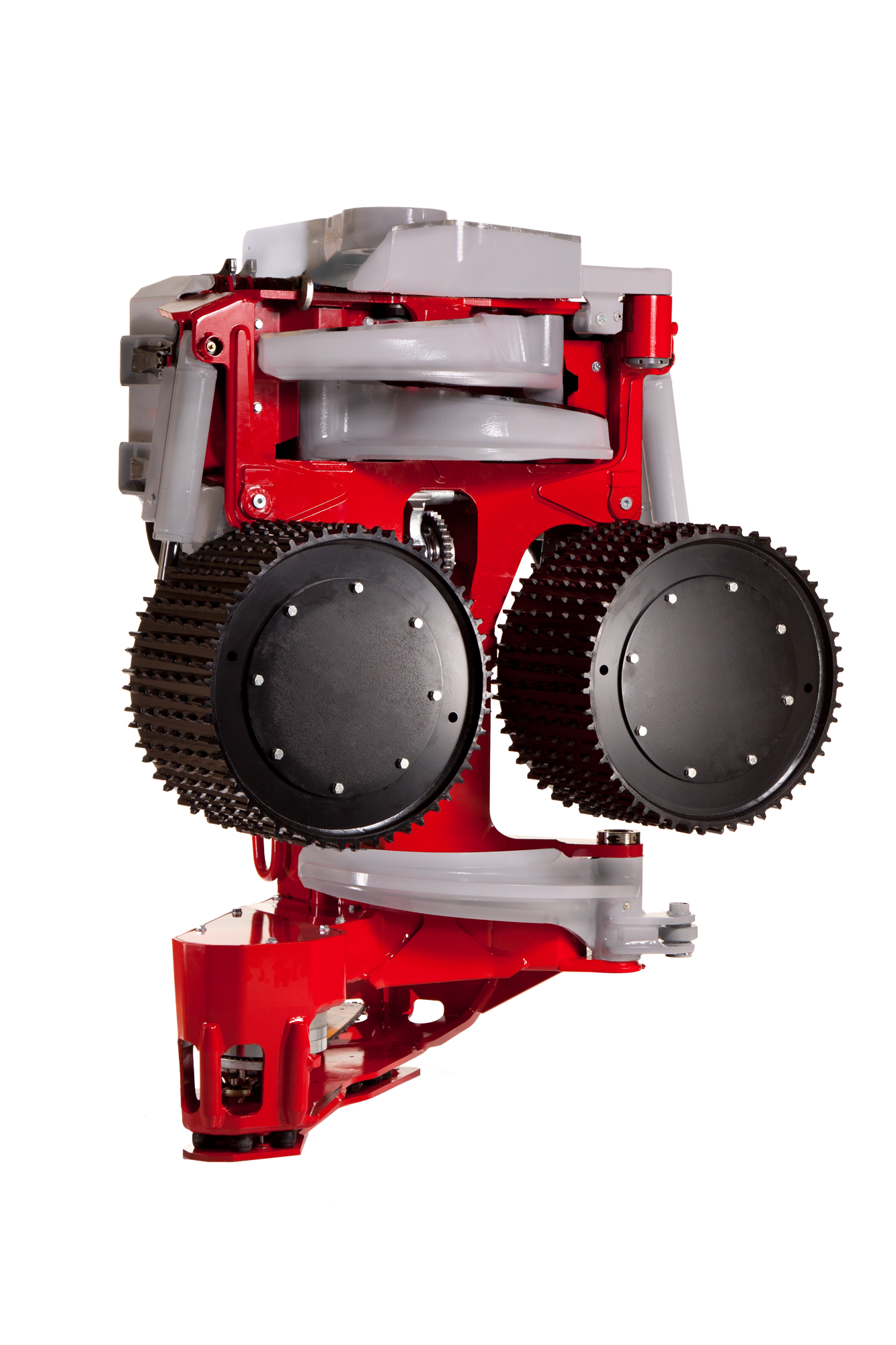

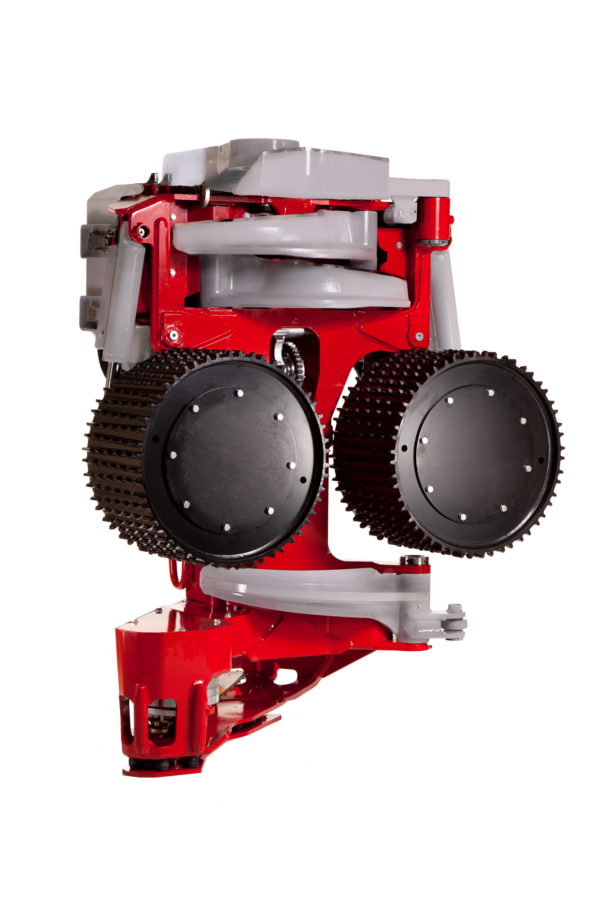

The Log Max 7000C harvesting head is built on a tough frame and combines high drive power and high speed. This head performs very well on heavy and branchy trunks.
|
|
|
| STANDARD CONFIGURATION | METRIC | IMPERIAL |
|---|---|---|
WEIGHTS & DIMENSIONS | ||
Weight (Including Rotator Top & Link) | 1,627 kg | 3,586 lbs |
Height (Without Rotator & Link) | 174 cm | 68.5"" |
Maximum Width (With Head Open) | 193.7 cm | 76.25"" |
Maximum Width (With Head Closed) | 131.5 cm | 51.8"" |
Degree of Rotation | Optional Continuous 360° | |
DRIVE SECTION | ||
Number of Drive Rollers | 2 | |
Motor Size (Drive Arm) | 1,147 cc | 69.99 in³ |
Motor Size (Variable Displacement) | 660 - 1,320 cc | 40.2 - 80.55 in³ |
Maximum Drive Roller Opening (Diameter) | 713 mm | 28.07"" |
Maximum Drive Roller Closing (Diameter) | 13 mm | 0.5"" |
Feed Speed | 5.2 mps | 17 fps |
DELIMB SECTION | ||
Number of Delimb Arms | 3 | |
Maximum Delimb Opening | 772 mm | 30.4"" |
Maximum Delimb Full Coverage | 560 mm | 22"" |
Minimum Delimb Closing (Diameter) | 40 mm | 1.6"" |
BUTT SAW | ||
Saw Type | 98XL | |
Maximum Cut (Diameter) | 65 cm | 72 cm | 75 cm | 25.6"" | 28.4"" | 29.5"" |
Bar Size | 75 cm | 82 cm | 90 cm | 29.5"" | 32.3"" | 35.5"" |
Chain Pitch | 0.404 mm | 0.016"" |
Motor Size | 19 cc | 1.16 in³ |
Chain Auto Tension | No | |
Oil Tank Capacity | 36 L | 9.5 gal |
CARRIER REQUIREMENTS | ||
Carrier Size (Tracked) | 21 - 25 ton | |
Carrier Size (Wheeled) | 18 - 25 ton | |
Maximum Pressure | 300 bar | 4,351 psi |
CONTROL SYSTEM | ||
Model | Log Mate 510 | |
Optional Additions | Yes | |
Full Optimization | Optional | |
Electronic Calipers (For Electronic Calibrations) | Optional | |
Degree of Rotation | Continuous 360° |
