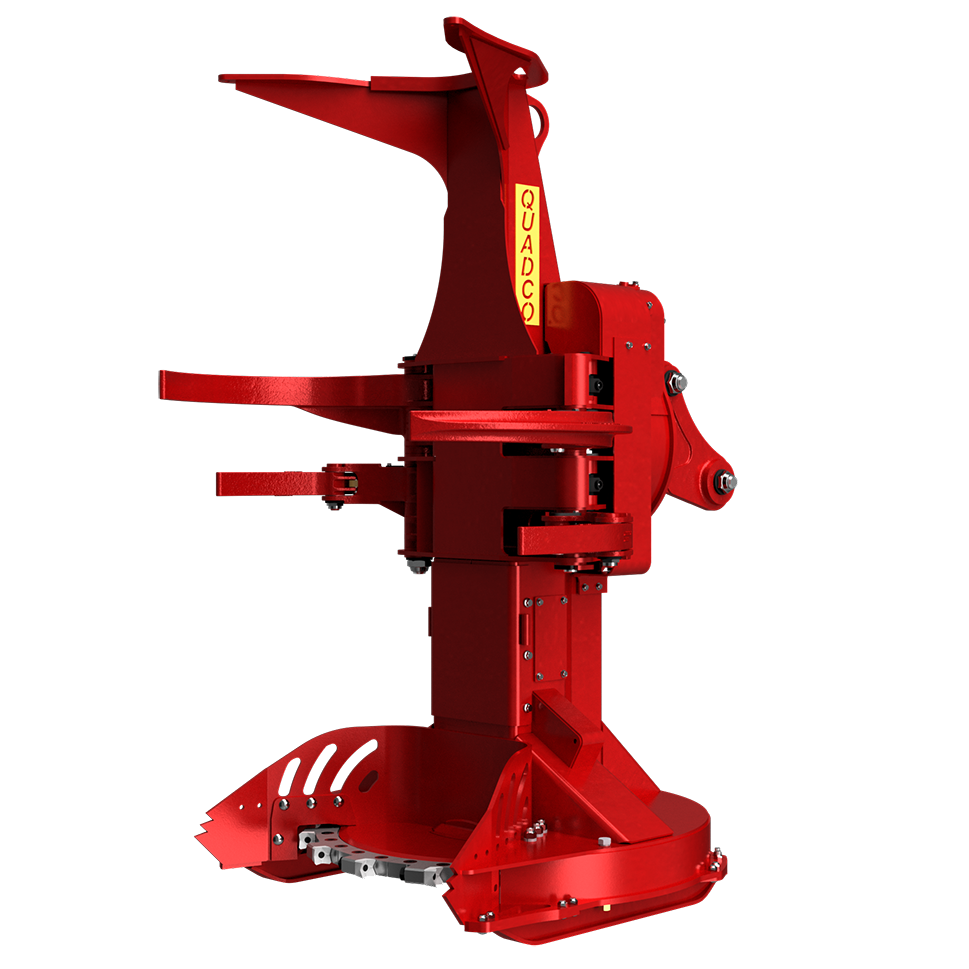

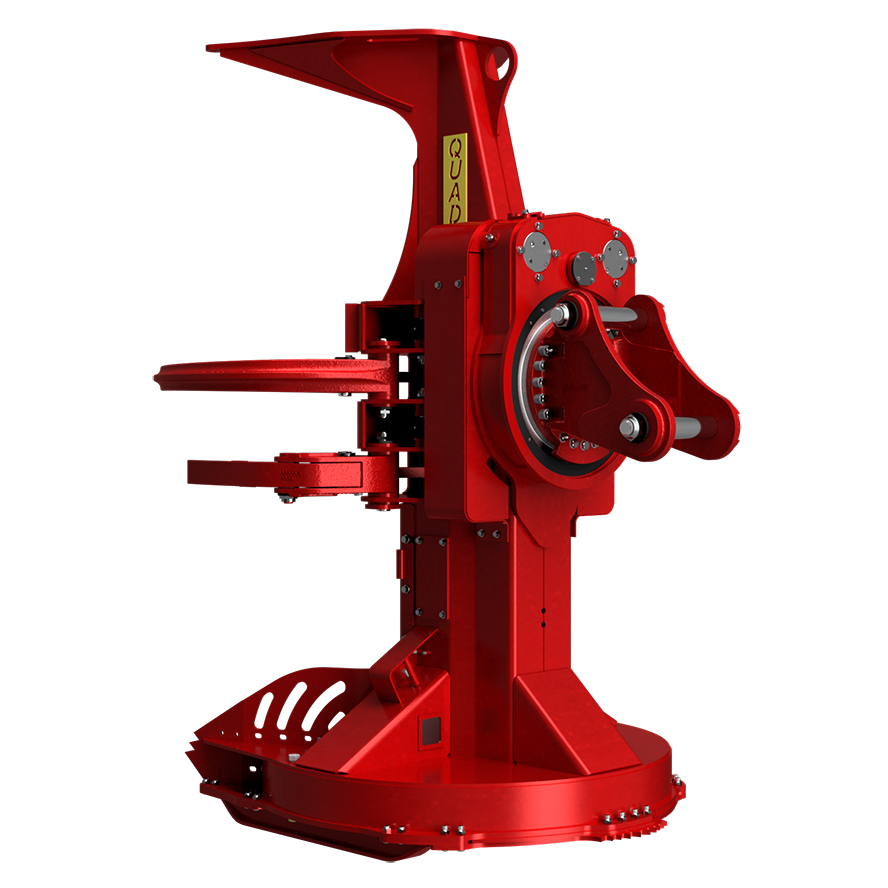

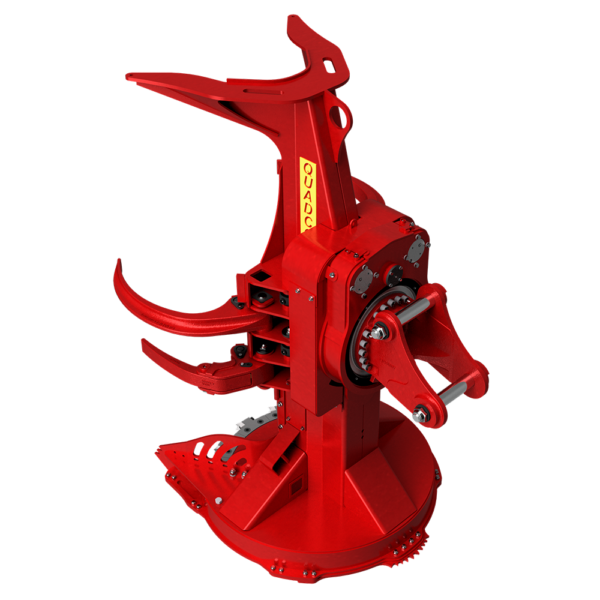

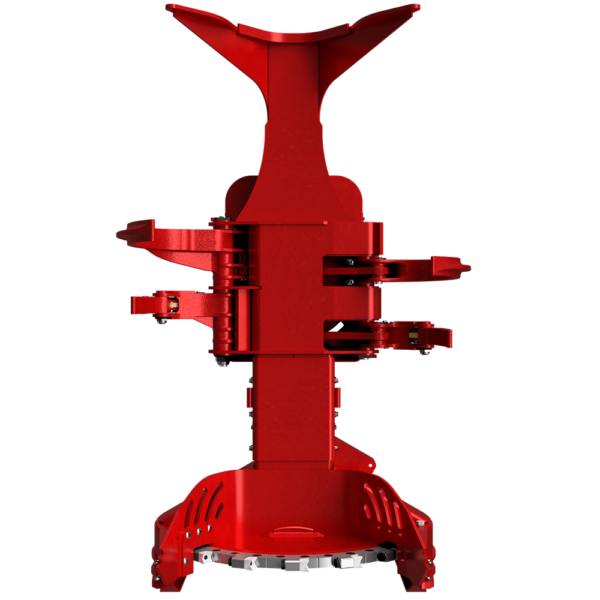

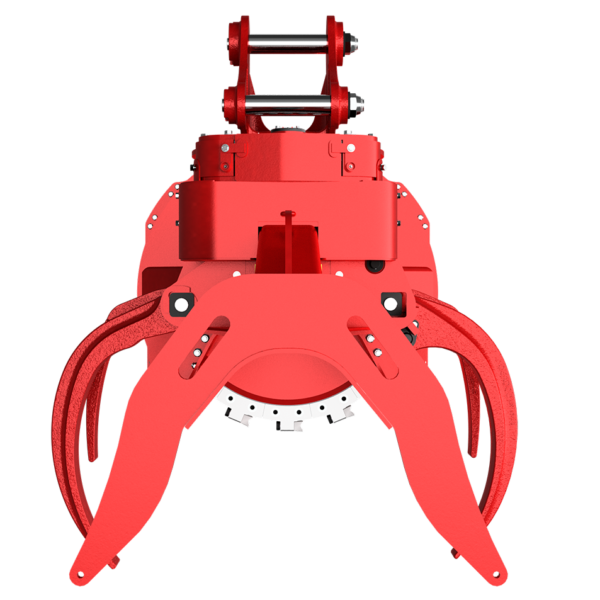

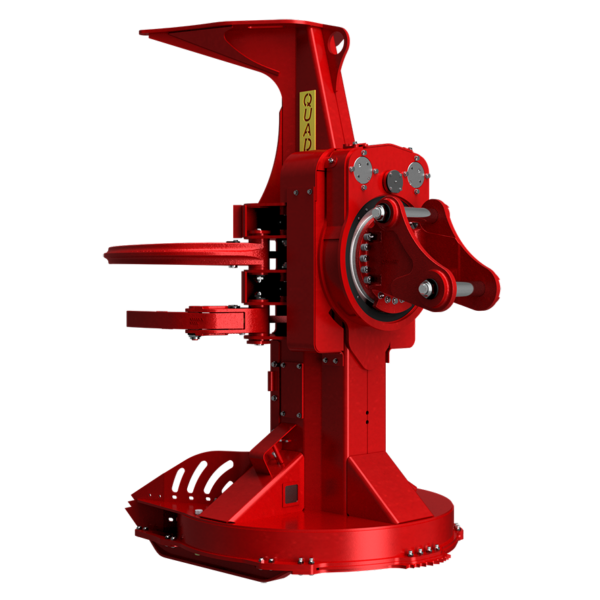

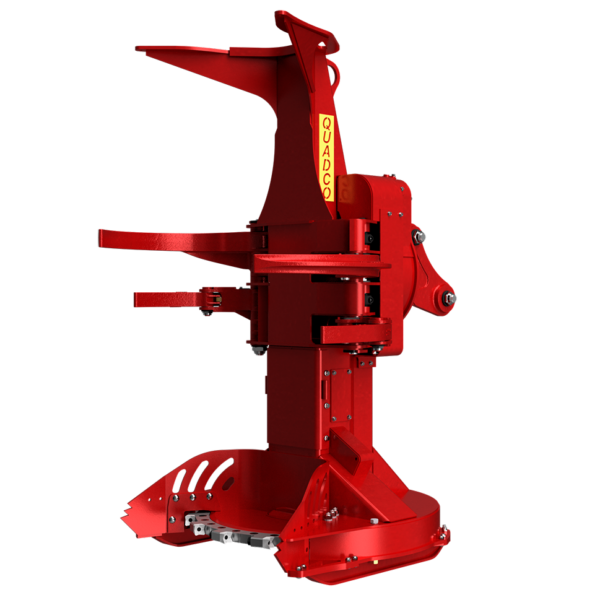

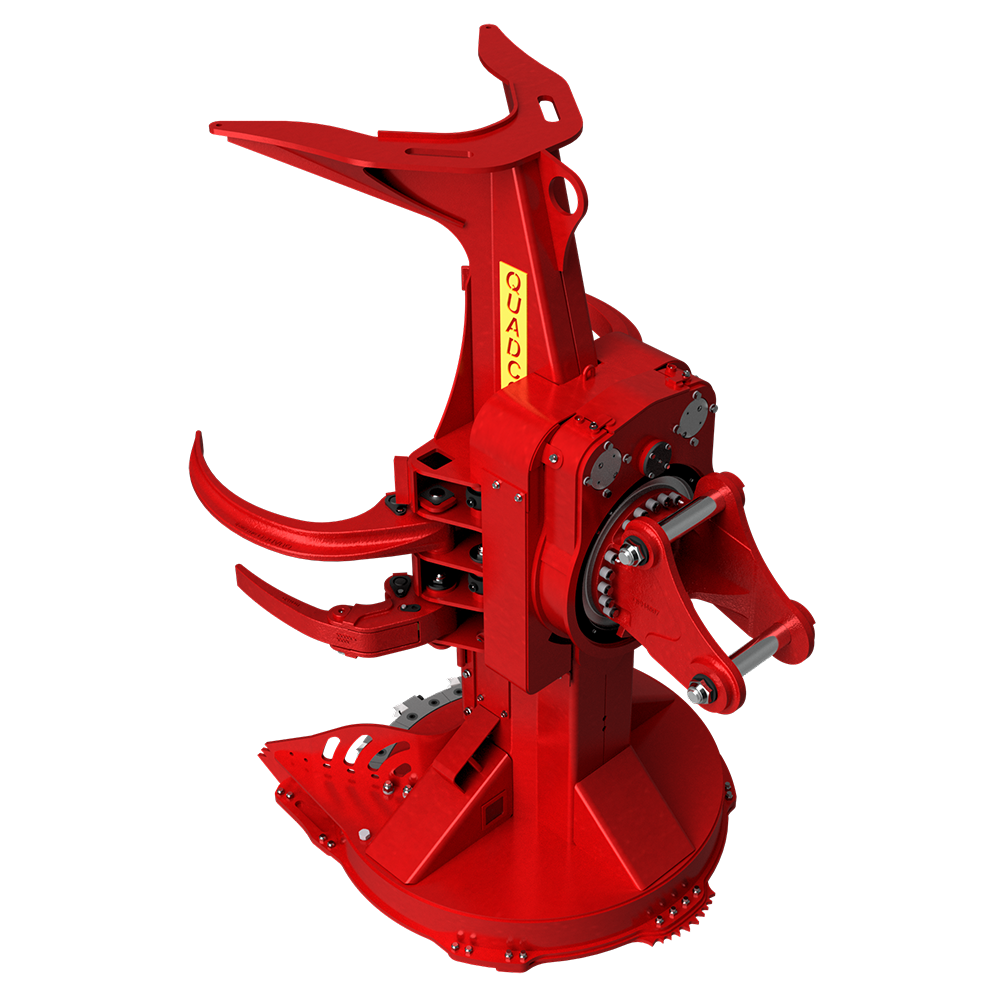

High Speed Saw

2972 mm | 117"

Height

1448 mm | 57"

Tip-to-Tip Diameter

559 mm | 22"

Cutting Capacity

1,295 mm | 51"

Maximum Opening Diameter

C Models enable better leverage when handling tall timber with extended tower and faster accumulation. They feature stronger, more durable cast arms contoured for maximum support when accumulating as well as an ultra-reliable disc drive with easily adjustable bearings.

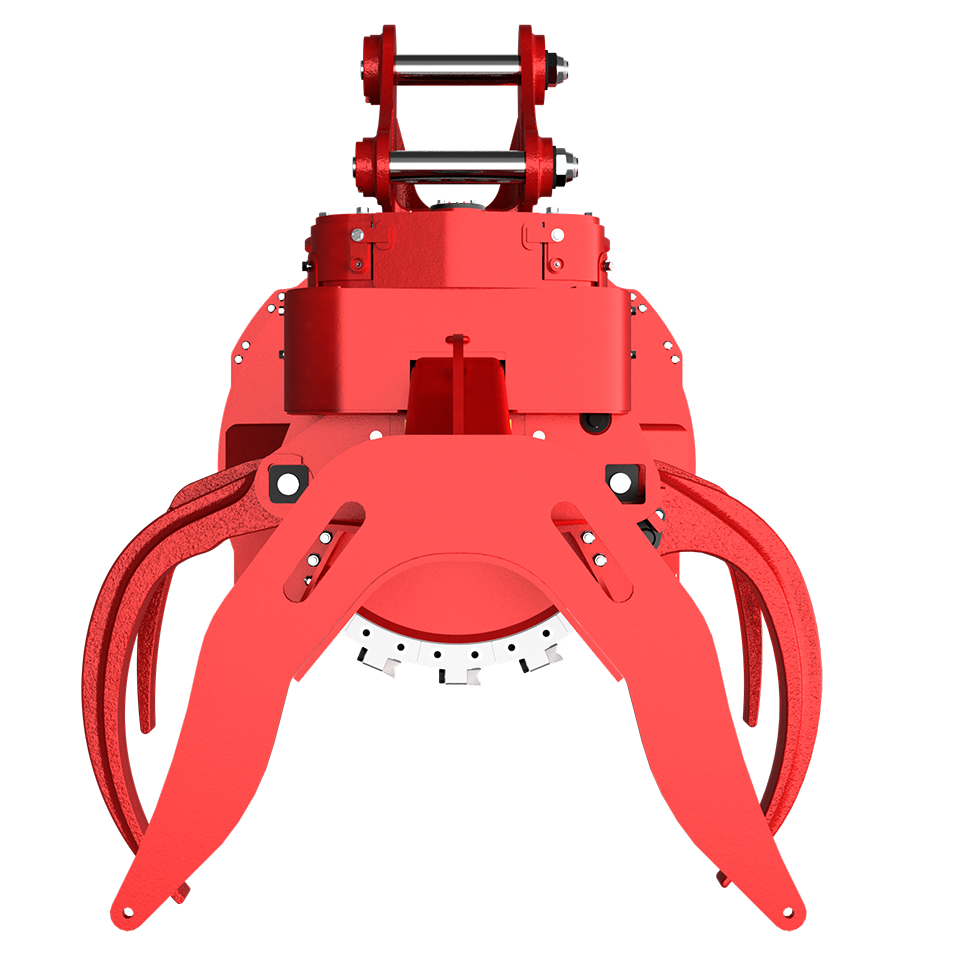

22C

$159.00

Standard Configuration
Metric
Imperial

Rotation 40° (Medium Torque)
Rotation 40° (High Torque) 2,942 kg 6,485 Ibs
Rotation 360° (Medium Torque)
Rotation 360°(High Torque) 3,152 kg 7,065 Ibs
Height 2,972 mm 117″
Width 1,626 mm 64″
Depth 1,702 mm 67″
Maximum Throat Opening 1,295 mm 51″
Maximum Throat Opening @ Teeth 1,041 mm 41″
Accumulation Area (Over Blade) 0.45 m2 4.8 ft2

Cutting Capacity 559 mm 22″
Tip-to-Tip Diameter 1,448 mm 57″
Rated Saw Speed 1,150 rpm
Number of Teeth 16
Saw Kerf 59 mm 2 5/16″
Weight (Holders & Teeth | Varies Depending on Disc) 381 kg 840 Ibs
Style (One Piece or Segmented) Both

Motor Rexroth
Motor Size 170 cc

Grab Arms 1 Cylinder
Accumulating Arms 1 Cylinder
Weight 3300 kg
Dimensions 30 × 30 × 40 cm

Reviews

There are no reviews yet.

Add a review

it’s all in the details

As a true visionary and pioneer in the forestry industry, we embrace quality craftsmanship

C Models

Quadco’s C Models make accumulating easy with the “Four Arms Up” design and extended tower for the best leverage when you’re handling tall timber. Designed with faster accumulation in mind, C Models feature one cylinder per set of arms and a heavy-duty timing bar.

Cast arms are contoured and durable for maximum accumulation support and leverage.

C Models feature extremely reliable disc drives with easily adjustable bearings, plus Quad Tooth® style options for every project.

C MODELS 18C 20SC 22C 22CP 22SC 24C 24CP 27SC
Cutting Capacity 18″ 20″ 22″ 22″ 22.7″ 24″ 24″ 27″
