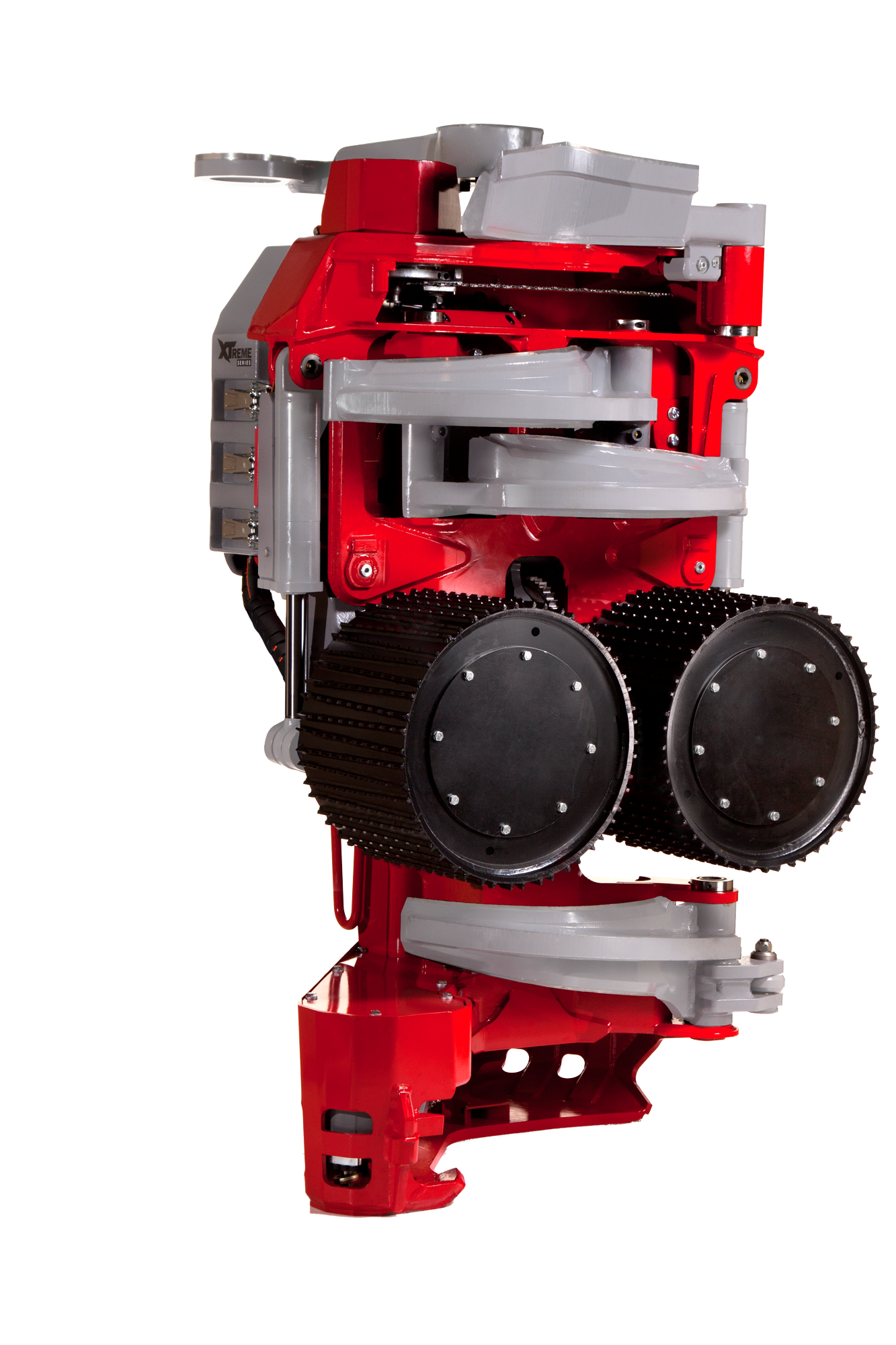

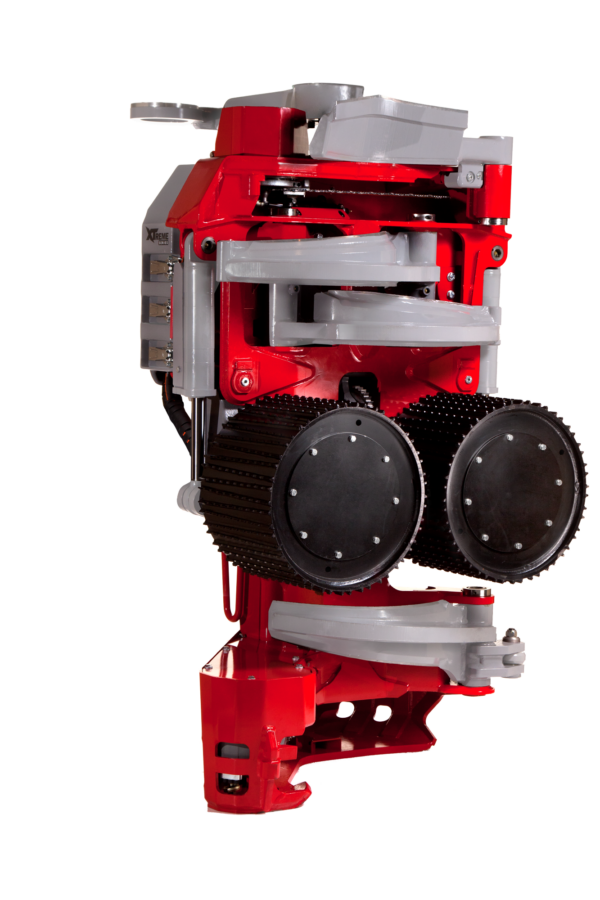

The Log Max 12000XT is the extreme duty head for big tree production, multi-stem processing of smaller softwoods or processing crooked hardwoods.
|
|
|
|
Standard Configuration |
Metric |
Imperial |
|
|---|---|---|---|
|
|
|||
| Weights & Dims. | Weight | 4,266 kg | 9,404 lbs |
| Height (In Harvesting Position) | 2,563 mm | 100.9" | |
| Height (Without Rotator & Link) | 248.2 cm | 77.7" | |
| Maximum Width (With Head Open) | 233.5 cm | 91.9" | |
| Maximum Width (With Head Closed) | 156.3 cm | 61.54" | |
| Degree of Rotation | Optional Continuous 360° | ||
|
|
|||
| Drive Section | Number of Drive Rollers | 2 | |
| Motor Size (Drive Arm) | 2,096 cc | 127.91 in3 | |
| Motor Size (Variable Displacement) | N/A | N/A | |
| Motor Size (Fixed Center Drive) | N/A | N/A | |
| Maximum Drive Roller Opening (Diameter) | 813 mm | 32" | |
| Maximum Drive Roller Closing (Diameter) | 254 mm | 10" | |
| Feed Speed | 3.2 mps | 10.5 fps | |
|
|
|||
| Delimb | Number of Delimb Arms | 3 | |
| Maximum Delimb Opening | 995 mm | 39.2" | |
| Maximum Delimb Full Coverage | 71.0 cm | 27.95" | |
| Minimum Delimb Closing (Diameter) | 67 mm | 2.6" | |
|
|
|||
| Butt Saw | Saw Type | 411XL | |
| Maximum Cut (Diameter) | 81 cm | 90 cm | 31.9" | 35.4" | |
| Bar Size | 91 cm | 101 cm | 35.82" | 39.76" | |
| Chain Pitch | 3/4" | ||
| Motor Size | 60 cc | 3.66 in3 | |
| Chain Auto Tension | No | ||
| Oil Tank Capacity | 70 L | 18.5 gal | |
|
|
|||
| Top Saw | Saw Type | 98XL | |
| Maximum Cut (Diameter) | 60 cm | 23.6" | |
| Bar Size | 75 cm | 29.5" | |
| Chain Pitch | 0.404 mm | ||
| Motor Size | 19 cc | 1.16 in3 | |
|
|
|||
| Carrier Reqs. | Carrier Size (Tracked) | 33 – 40 ton | |
| Carrier Size (Wheeled) | N/A | ||
| Maximum Pressure | 320 bar | 4,641 psi | |
|
|
|||
 |
Model | Log Mate 510 | |
| Optional Additions | Yes | ||
| Full Optimization | Optional | ||
| Electronic Calipers (For Electronic Calibrations) | Optional | ||
| Degree of Rotation | Continuous 360° | ||
