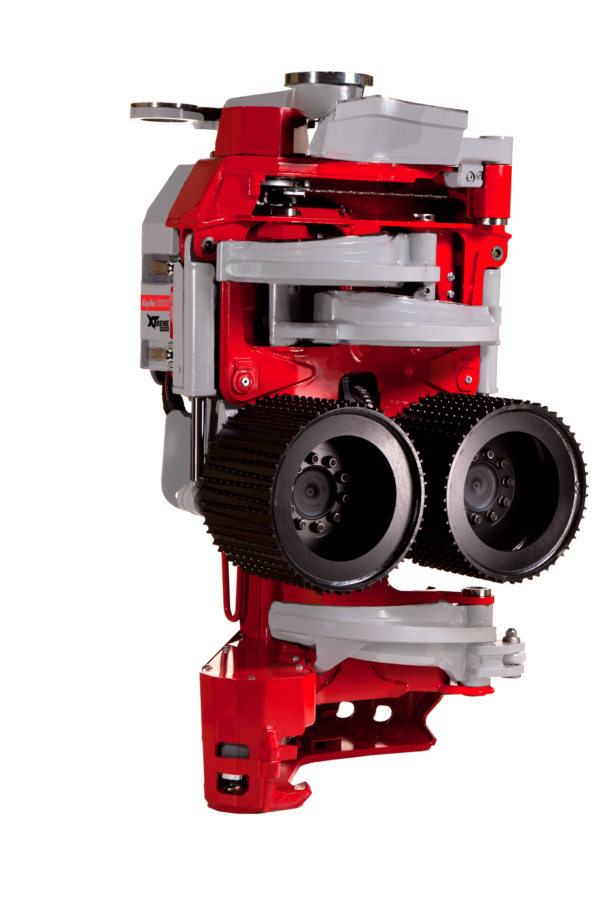

With incredible drive power and precision delimbing quality the Log Max 10000XT is a highly productive harvesting head. Whether you’re working at a landing, or felling and processing at the stump.
|
|
|
|
Standard Configuration |
Metric |
Imperial |
|
|---|---|---|---|
|
|
|||
| Weights & Dims. | Weight | 2,878 kg | 6,344 lbs |
| Height (In Harvesting Position) | N/A | N/A | |
| Height (Without Rotator & Link) | 233.9 cm | 92" | |
| Maximum Width (With Head Open) | 207.3 cm | 81.6" | |
| Maximum Width (With Head Closed) | 138.6 cm | 54.6" | |
| Degree of Rotation | Optional Continuous 360° | ||
|
|
|||
| Drive Section | Number of Drive Rollers | 2 | |
| Motor Size (Drive Arm) | 1,404 cc | 85.68 in3 | |
| Motor Size (Variable Displacement) | N/A | N/A | |
| Motor Size (Fixed Center Drive) | N/A | N/A | |
| Maximum Drive Roller Opening (Diameter) | 813 mm | 32" | |
| Maximum Drive Roller Closing (Diameter) | 55 mm | 2.1" | |
| Feed Speed | 4.1 mps | 13.45 fps | |
|
|
|||
| Delimb | Number of Delimb Arms | 3 | |
| Maximum Delimb Opening | 890 mm | 35" | |
| Maximum Delimb Full Coverage | 58.0 cm | 22.8" | |
| Minimum Delimb Closing (Diameter) | 55 mm | 2.2" | |
|
|
|||
| Butt Saw | Saw Type | 418H | |
| Maximum Cut (Diameter) | 72.5 cm | 80 cm | 28.5" | 31.5" | |
| Bar Size | 82 cm | 90 cm | 32.3" | 35.5" | |
| Chain Pitch | 0.404 mm | ||
| Motor Size | 30 cc | 1.83 in3 | |
| Chain Auto Tension | No | ||
| Oil Tank Capacity | 55 L | 14.5 gal | |
|
|
|||
| Top Saw | Saw Type | 98XL | |
| Maximum Cut (Diameter) | 53 cm | 20.9" | |
| Bar Size | 67 cm | 26.4" | |
| Chain Pitch | 0.404 mm | ||
| Motor Size | 19 cc | 1.16 in3 | |
|
|
|||
| Carrier Reqs. | Carrier Size (Tracked) | 25 – 35 ton | |
| Carrier Size (Wheeled) | N/A | ||
| Maximum Pressure | 320 bar | 4,641 psi | |
|
|
|||
 |
Model | Log Mate 510 | |
| Optional Additions | Yes | ||
| Full Optimization | Optional | ||
| Electronic Calipers (For Electronic Calibrations) | Optional | ||
| Degree of Rotation | Continuous 360° | ||
