SKU: 56-QM.

DRUM MOWERS

1488 kg | 3875 lbs

Weight (Excluding Boom Adapter & Pins)

260 bar | 3771 psi

Rotator Pressure

1422 mm | 56"

Cutting Swath

2200 rpm

Speed

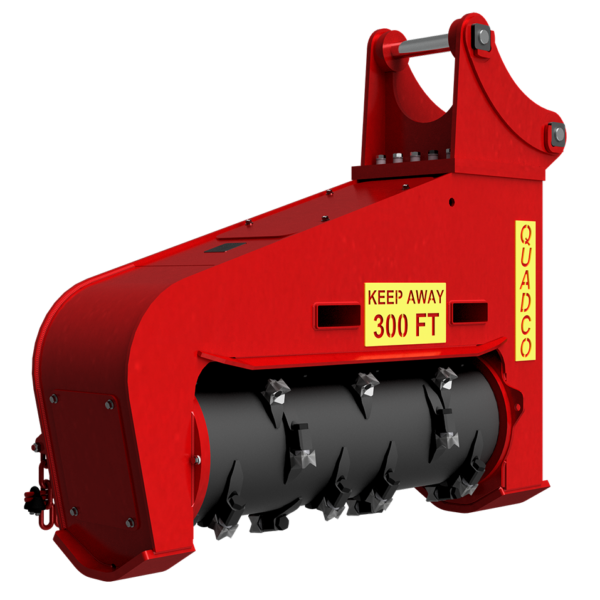

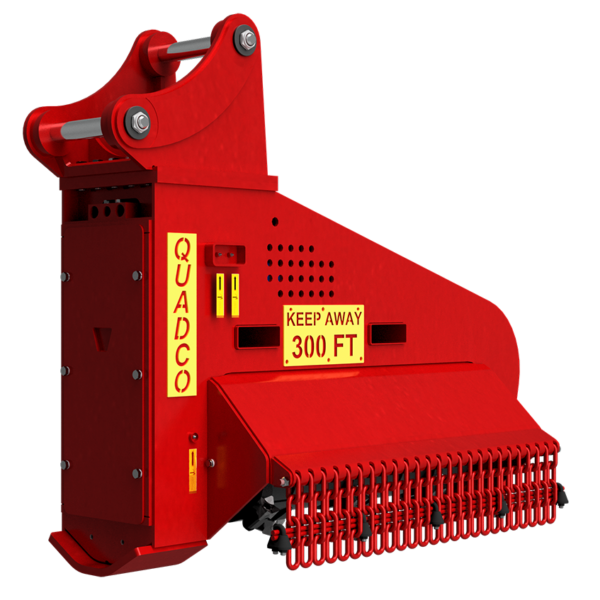

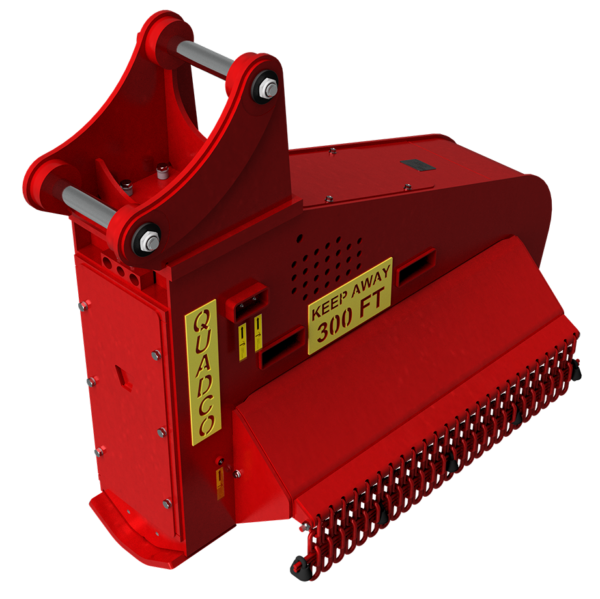

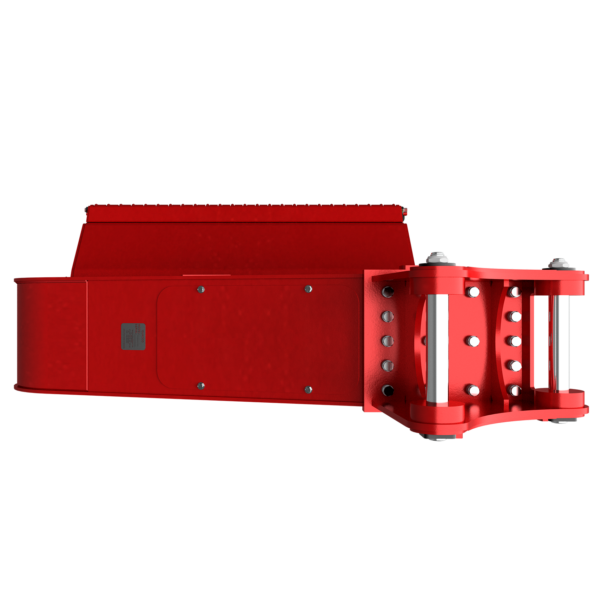

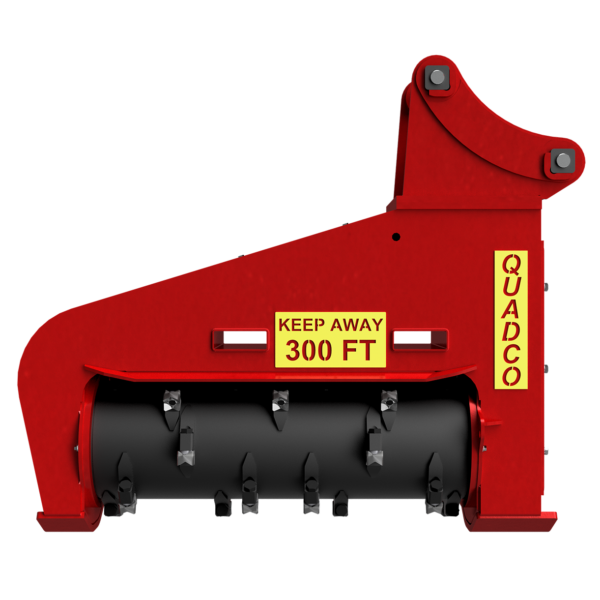

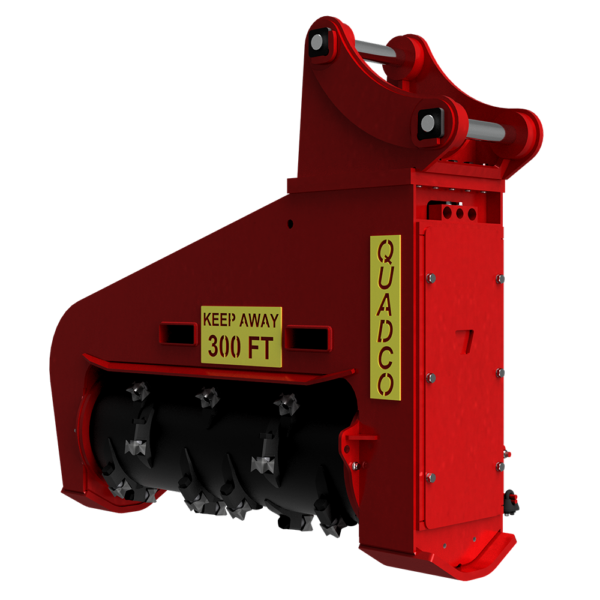

Drum Mower Attachment Heads are extremely heavy-duty drum mowers. When paired with Quadco Mower Teeth, they provide a complete mulching system. They are capable of mulching vegetation into fine material and they have an optional boom adapter with matching pins or quick attach available for most carriers.

56QDM

$159.00

Standard Configuration
Metric
Imperial

Weight 3,300 kg 6,820 lbs
Height 2,692 mm 106″
Depth 2,478 mm 97″
Width (Arms Closed) 2,045 mm 80″
Width (Arms Open) 2,191 mm 86″
Rotate Motors 3 x MCR05
Degree of Rotation Continuous 360°

Minimum Closing Diameter 170 mm 6.6″
Maxiumum Opening Diameter 1,400 mm 55″

Cutting Capacity 1,000 mm 39″
Bar Length 1,270 mm 50″
Saw Motor F12-60 F12-60
Motor Size 60 cc 3.66 in3
Chain Size 19.05 mm 3/4″
Saw Bar Rotation 225° 225°

Pressure 300 bar 4,350 psi
Maximum Flow 250 lpm 66 gpm
Valve Bank M4-15 M4-15

Carrier Size
30 – 35 ton
Weight 3300 kg
Dimensions 30 × 30 × 40 cm

Reviews

There are no reviews yet.

Add a review

it’s all in the details

As a true visionary and pioneer in the forestry industry, we embrace quality craftsmanship.

DRUM MOWERS

The low-maintenance and easy-to-operate Quadco Mower Mulchers grind vegetation into a fine material.

Capable of performing extensive operations–from light brushing and clearing to full tree mulching–they’re ideal for keeping operating costs down while achieving maximum efficiency in land clearing.

DRUM MOWER 45-QDM 56-QDM
Cutting Capacity 45″ 56″
