1266 kg | 2780 lbs Weight (Excluding Boom Adapter & Pins) |
 |
260 bar | 3771 psi Rotator Pressure |
 |
1143 mm | 45" Cutting Swath |
 |
2000 rpm Speed |

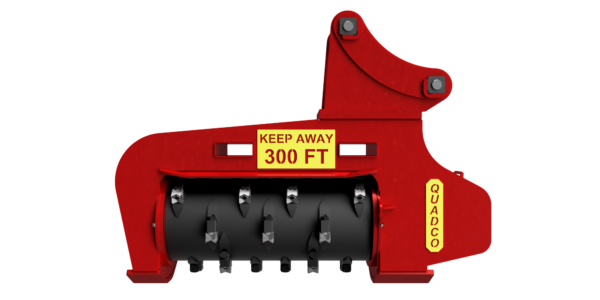

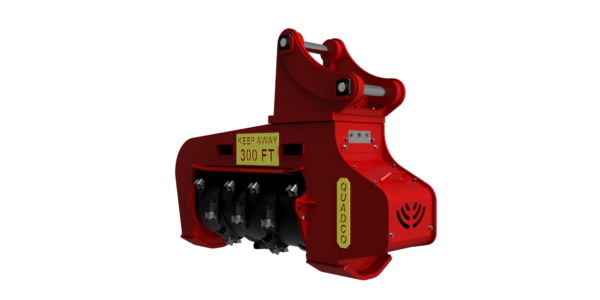

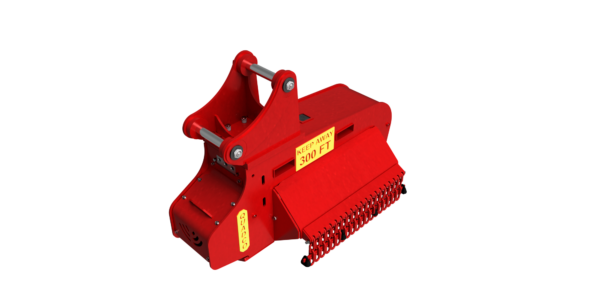

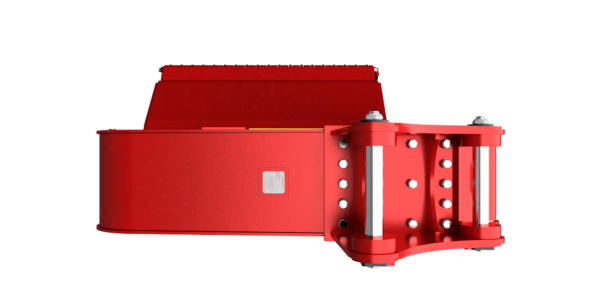

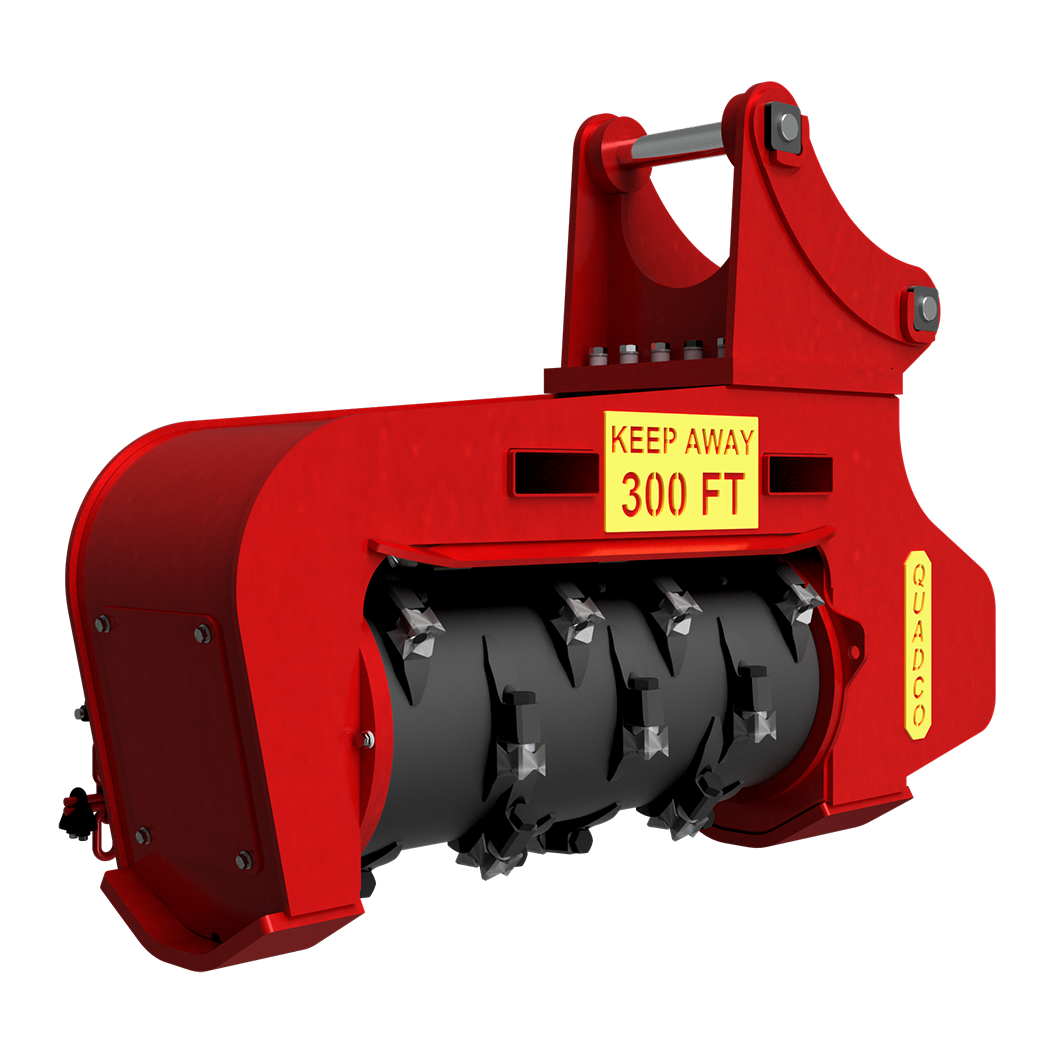

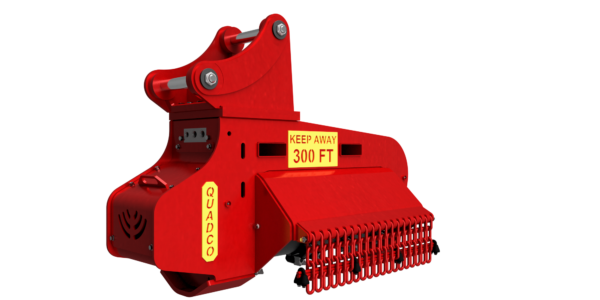

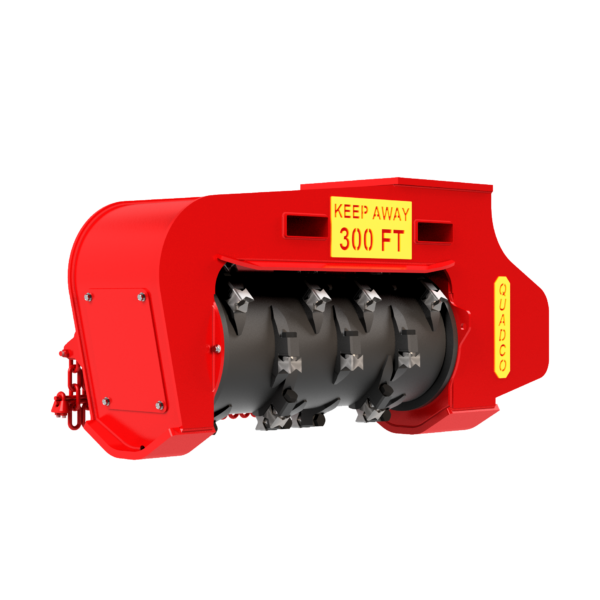

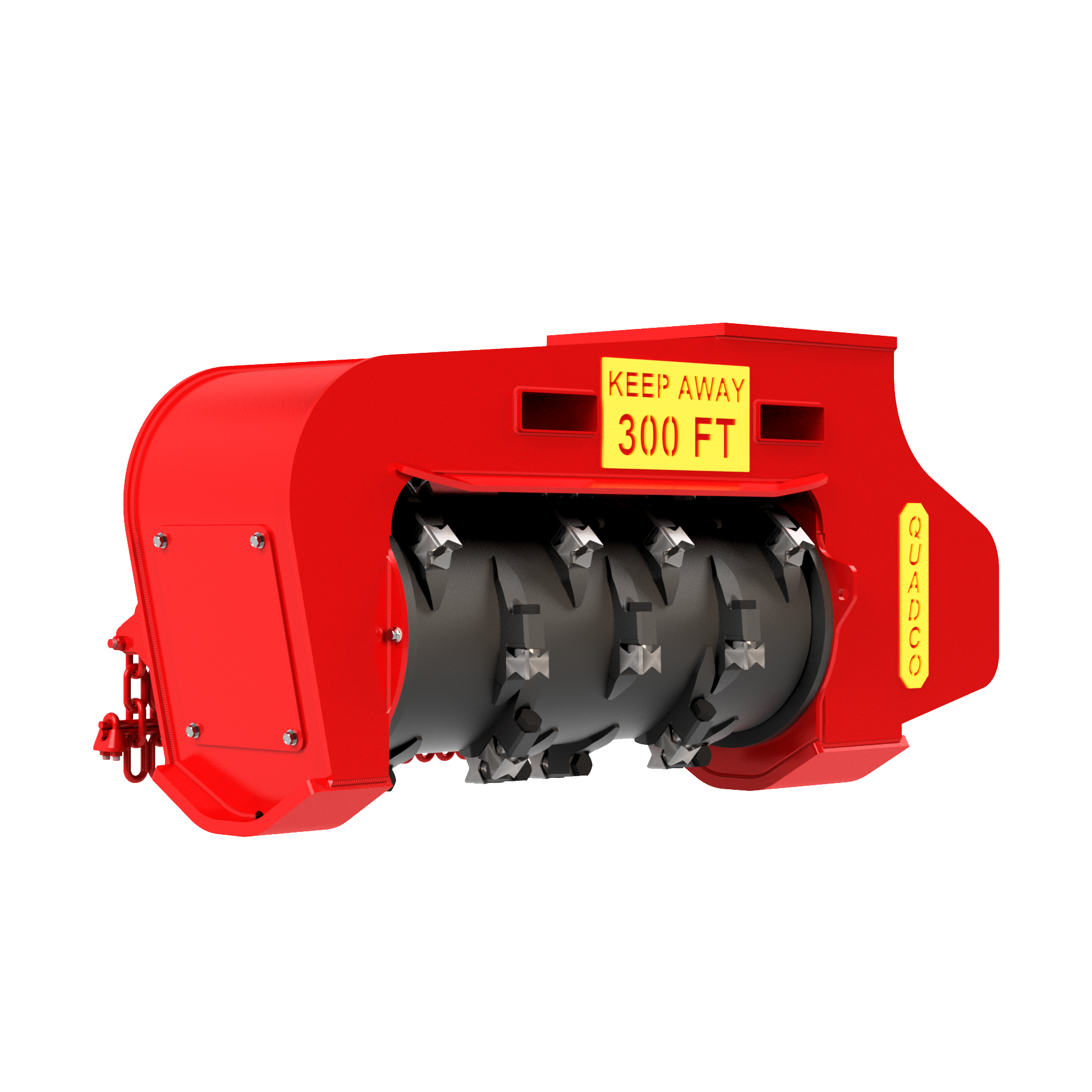

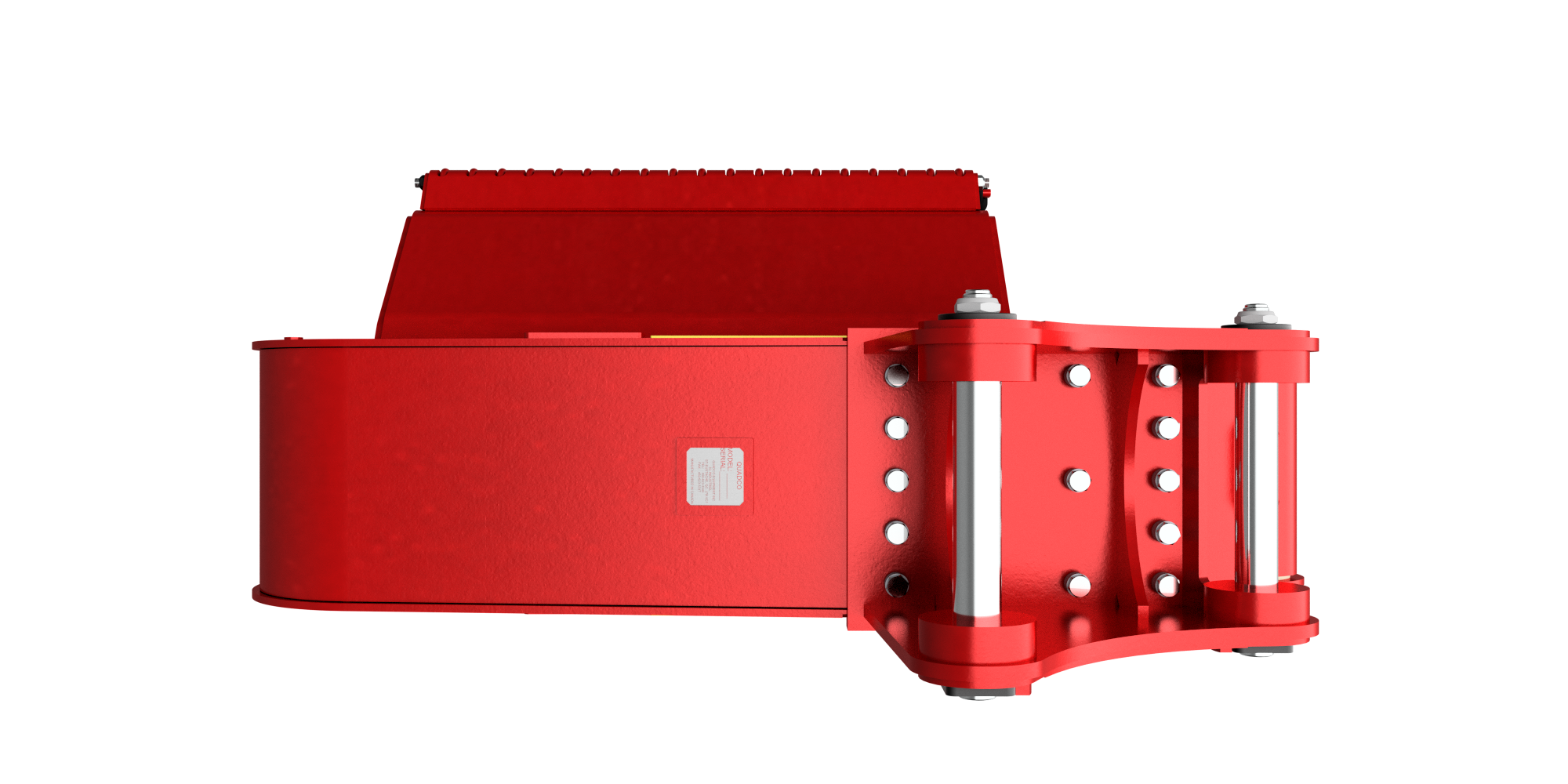

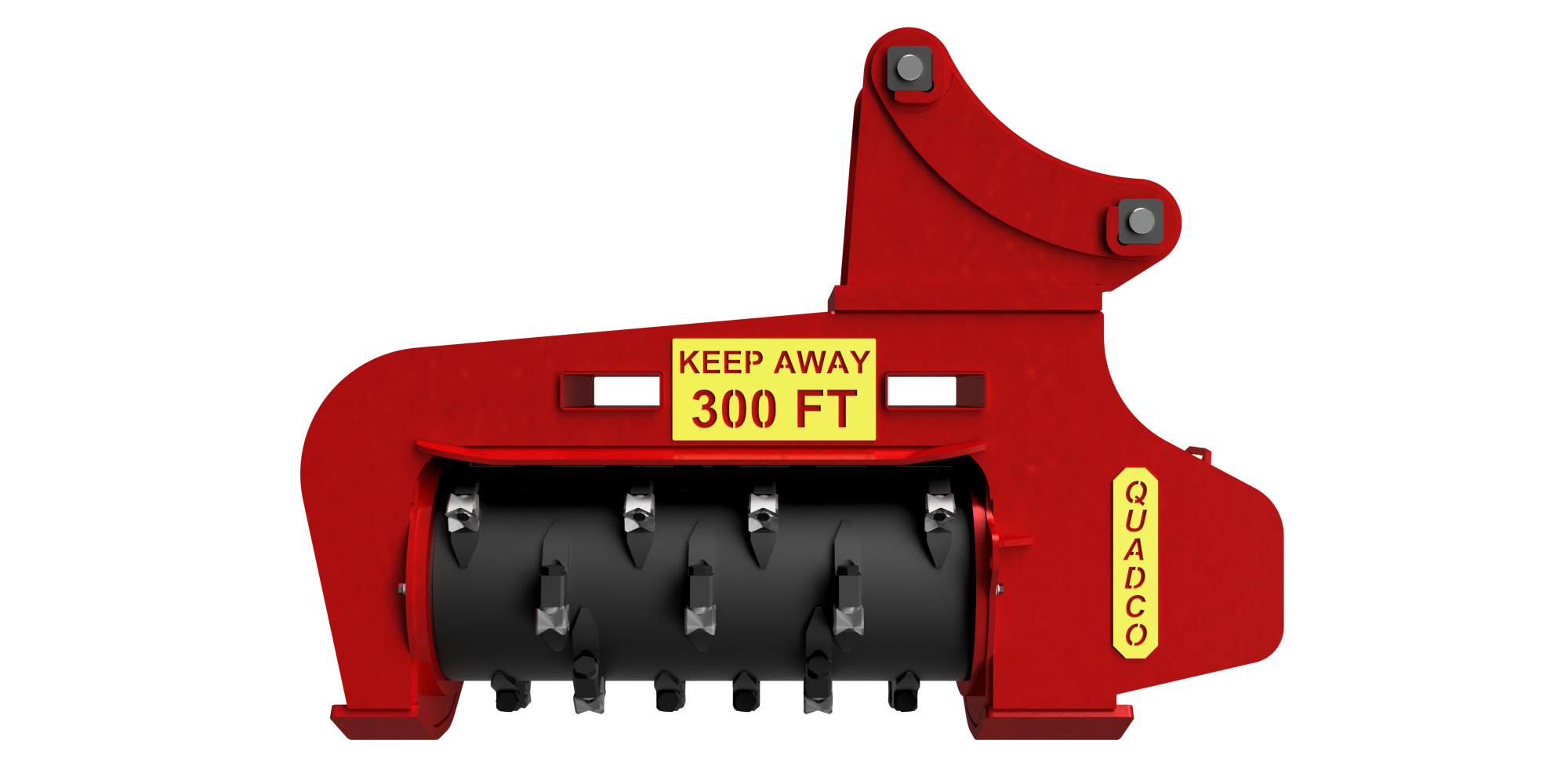

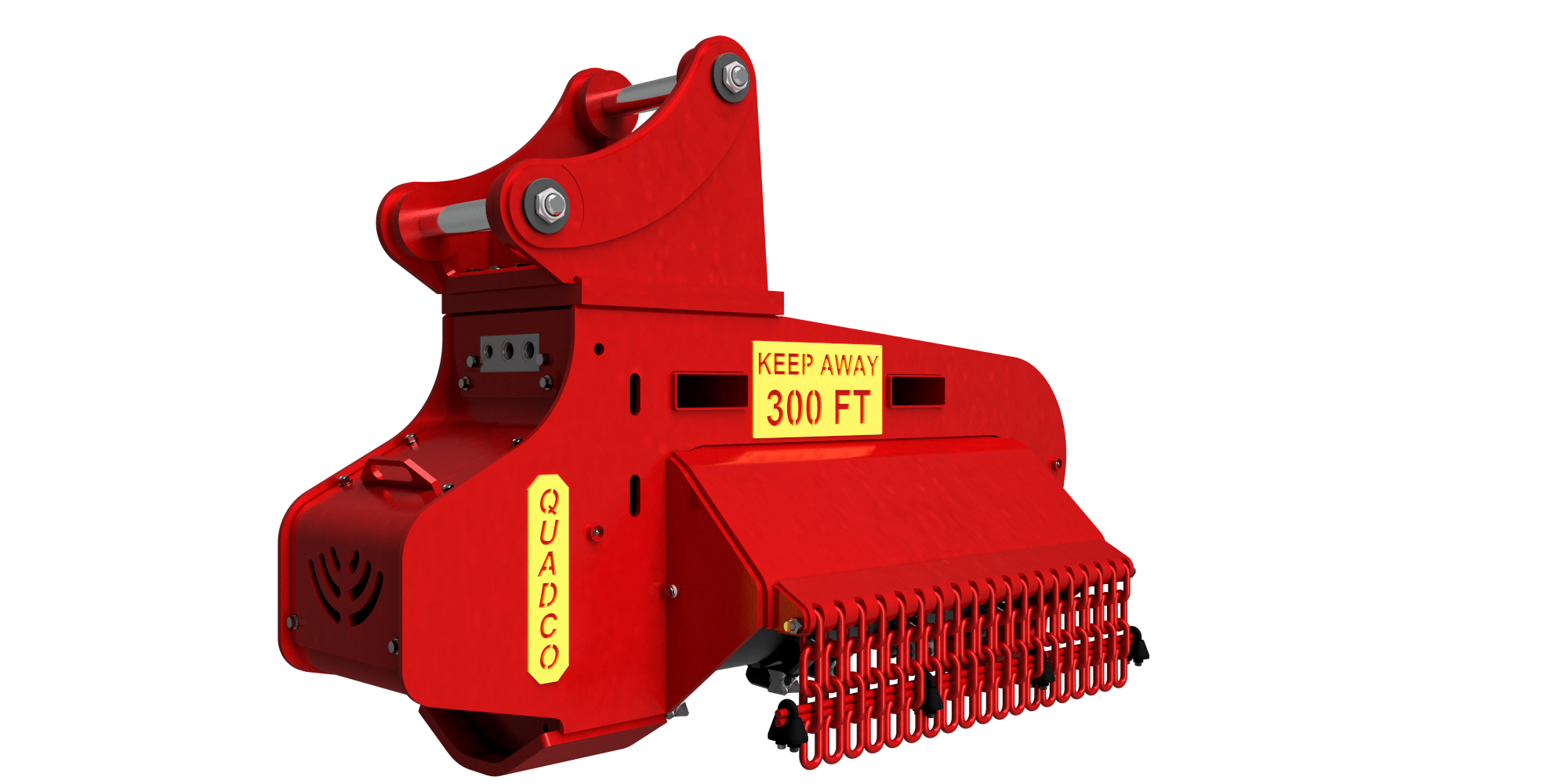

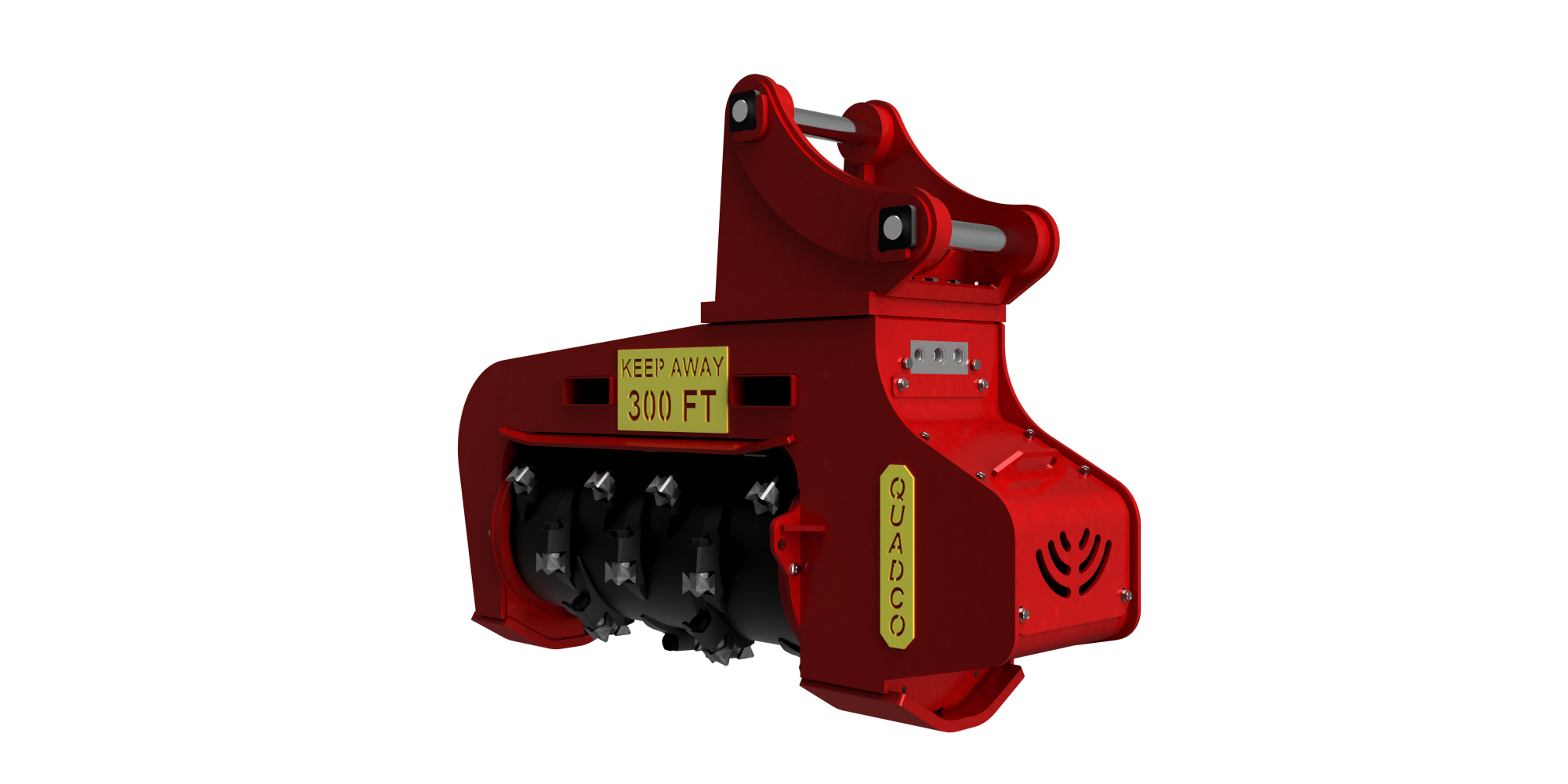

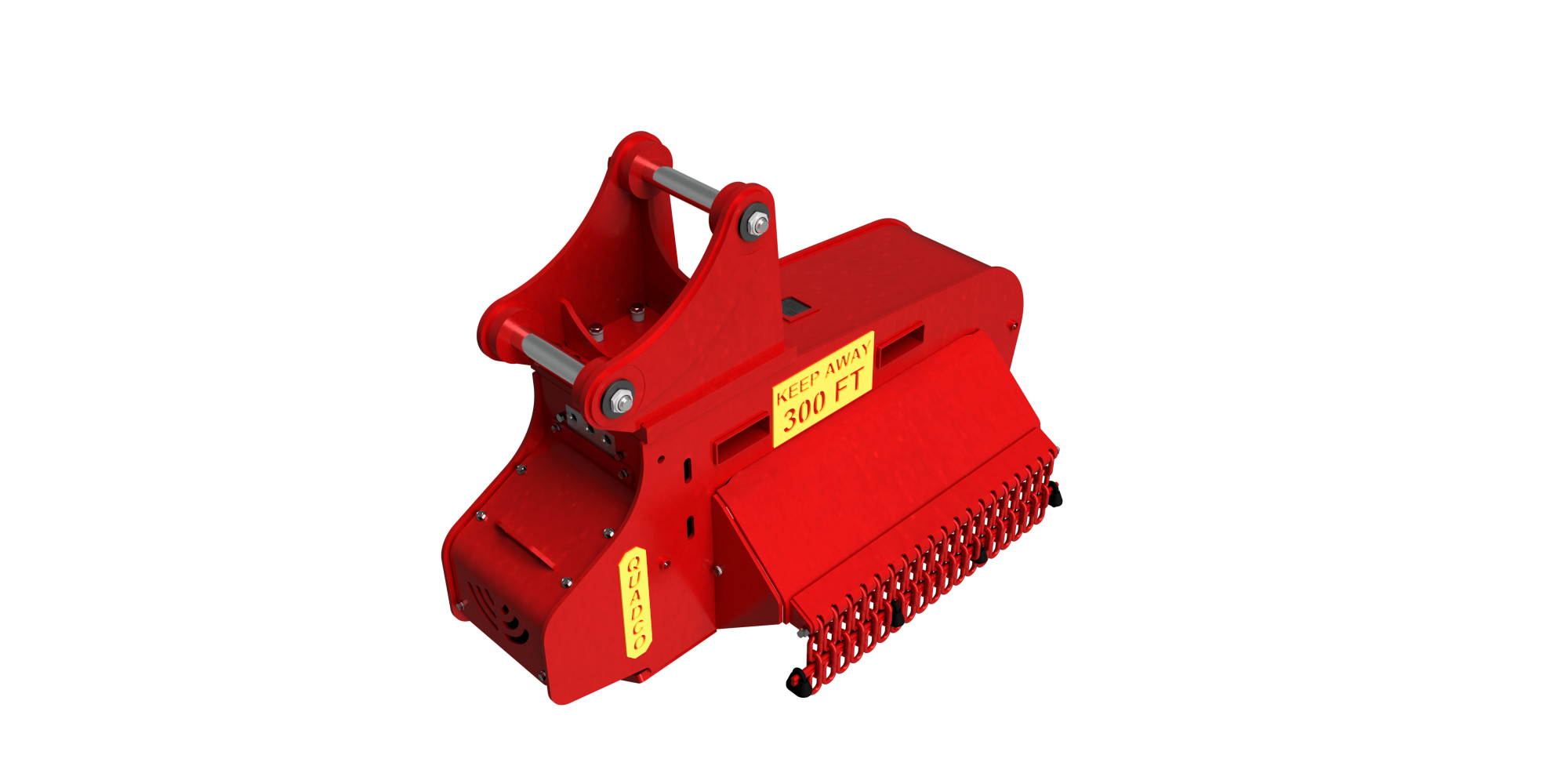

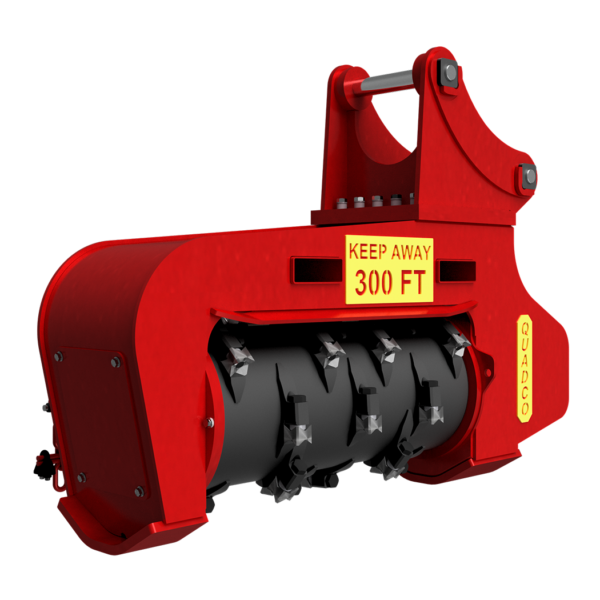

Drum Mower Attachment Heads are extremely heavy-duty drum mowers. When paired with Quadco Mower Teeth, they provide a complete mulching system. They are capable of mulching vegetation into fine material, and they have an optional boom adapter with matching pins or quick attach available for most carriers.
Standard Configuration |
Metric |
Imperial |
|
|---|---|---|---|
|
|
|||
 |
Weight | 1,266 kg | 2,780 lbs |
| Height | 940 mm | 37″ | |
| Width | 787 mm | 31″ | |
| Length | 1,854 mm | 73″ | |
|
|
|||
 |
Cutting Swath | 1,143 mm | 45″ |
| Number of Teeth | 26 | ||
| Speed | 2,200 rpm | ||
|
|
|||
 |
Motor | Rexroth | |
| Motor Size | 170 cc | ||
| Minimum Flow | 170 lpm | 45 gpm | |
| Pressure | 260 bar | 3,771 psi | |
| Weight | 3300 kg |
|---|---|
| Dimensions | 30 × 30 × 40 cm |
As a true visionary and pioneer in the forestry industry, we embrace quality craftsmanship.
The low-maintenance and easy-to-operate Quadco Mower Mulchers grind vegetation into a fine material.
Capable of performing extensive operations–from light brushing and clearing to full tree mulching–they’re ideal for keeping operating costs down while achieving maximum efficiency in land clearing.
