.67 m2 | 7.2 ft2 Accumulation Area |
|
57-76 lpm | 15-20 gpm Rotor 360 degree |
|
114-132 lpm | 30-35 gpm Arm Cylinders |
|
3,764.8 kg | 8,300 lbs Cutting Capacity (Optional 40-deg) |

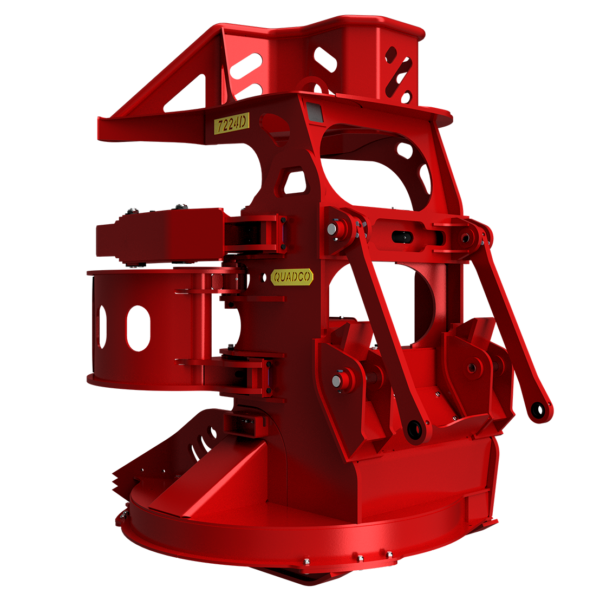

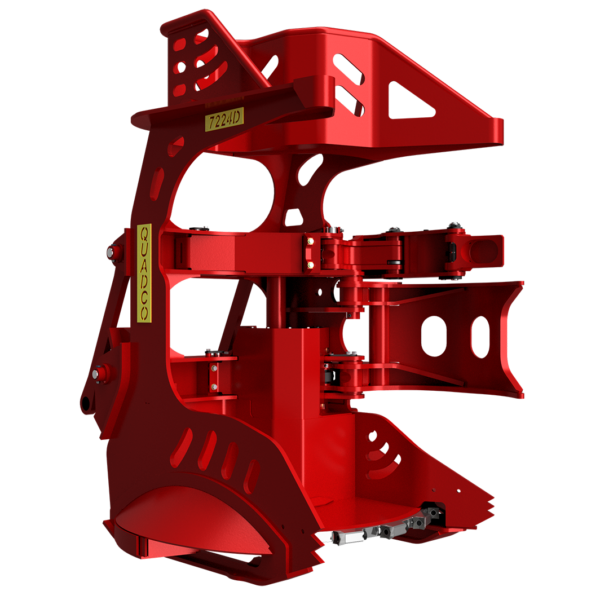

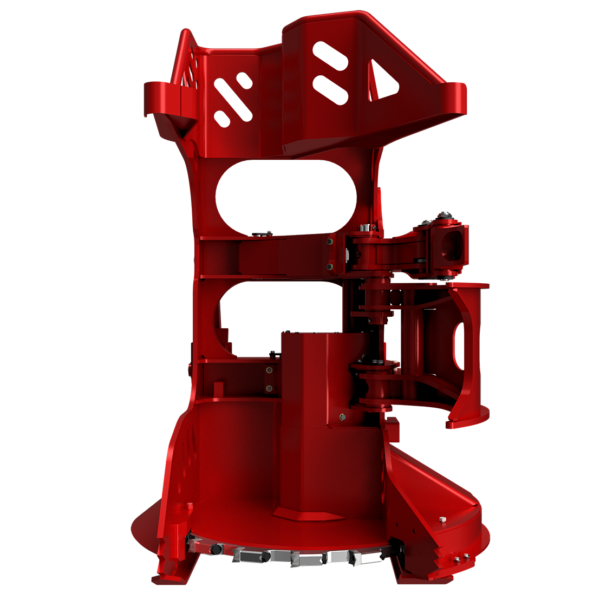

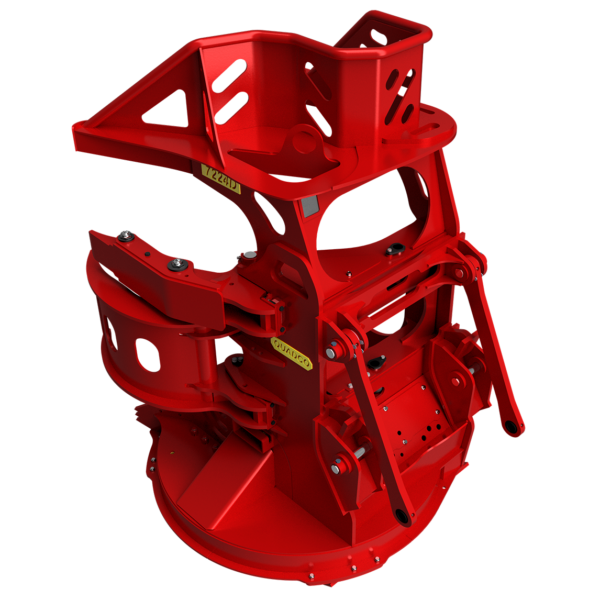

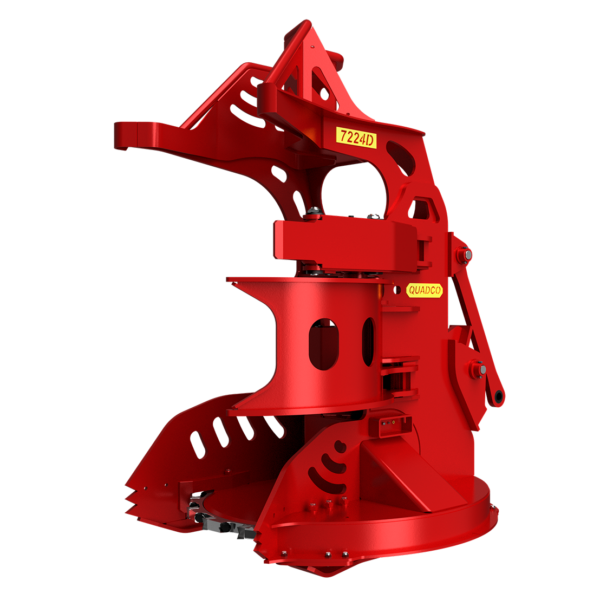

This high capacity bunching saw head brings efficiency and innovation to your operation. Its versatility allows for 24” cuts while its patent-pending multi-junction accumulating arm design with full arms visibility makes for easier accumulating. Agility is never compromised with the 7224’s compact design and bolt-on, long and wide chip exit chute for easy maintenance. This model can be used with a one piece or segmented disc, and is designed to work seamlessly with both a rubber tire and boom mount.
Standard Configuration |
Metric |
Imperial |
|
---|---|---|---|
|
|||
Height | 2,718 mm | 107″ | |
Width | 1,829 mm | 72″ | |
Depth | |||
Depth (Closed, Main Frame) | |||
Depth (Open, Outside Guard) | |||
Depth (Drive-To-Tree Model) | 1,854 mm | 73″ | |
Depth (Boom Mount Model) | 2,210 mm | 87″ | |
Opening | 1,156 mm | 45.5″ | |
Opening at Teeth | 1,016 mm | 40″ | |
Boom Mount Model | |||
Accumulation Area | .67 m2 | 7.2 ft2 | |
Arm Cylinder Diameter | 89 mm | 3.5″ | |
Shear Knives Thickness | |||
Shear / Sweep Arm Closing Time | |||
|
|||
Hydraulic Flow | 95-159 lpm | 25-42 gpm | |
Arm Cylinders | 114-132 lpm | 30-35 gpm | |
Disc Saw Motor | 95-159 lpm | 25-42 gpm | |
Rotor 360 degree | 57-76 lpm | 15-20 gpm | |
Hydraulic Pressure Recommended | |||
Accumlator Arm Cylinder Diameter | 89 mm | 3.5″ | |
|
|||
Optional 40-deg | 3,764.8 kg | 8,300 lbs | |
Optional 360-deg | 3,833 kg | 8,405 lbs | |
Drive-to-Tree (DT) | 3,443 kg | 7,590 lbs | |
Optional Valve and Guards | 150 kg | 330 lbs | |
|
|||
Tip to Tip Diameter | 1,549 mm | 61″ | |
Rated Saw Speed | 1,075 RPM | ||
Number of Teeth | 18 | ||
Saw Kerf | 59 mm | 2 5/16″ | |
Weight Holders and Teeth | 434 kg | 956 lbs | |
Style (One-Piece and Segmented) | Both |
Weight | 3300 kg |
---|---|
Dimensions | 30 × 30 × 40 cm |
