it’s all in the details
As a true visionary and pioneer in the forestry industry, we embrace quality craftsmanship.
Bunching Head
 |
0.68 m2 | 7.3 ft2 Accumulation Area |
 |
57-67 lpm | 15-20 gpm Rotor 360 degree |
 |
303 lpm | 80 gpm Arm Cylinders |
 |
3,628.74 kg | 8,000 lbs Cutting Capacity (Optional 40-deg) |

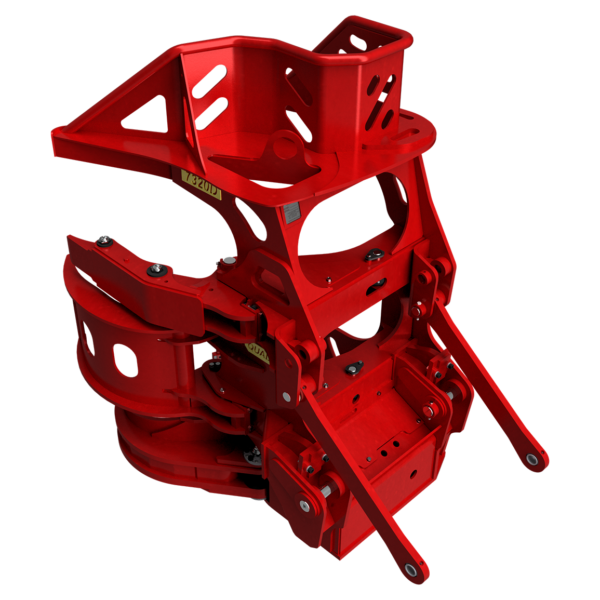

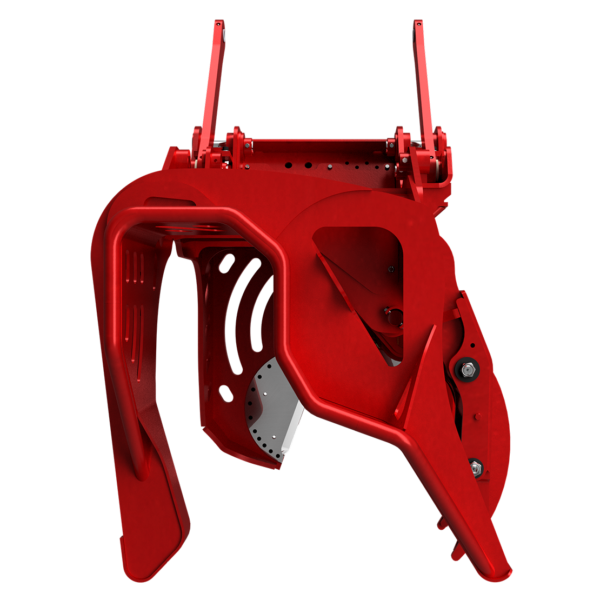

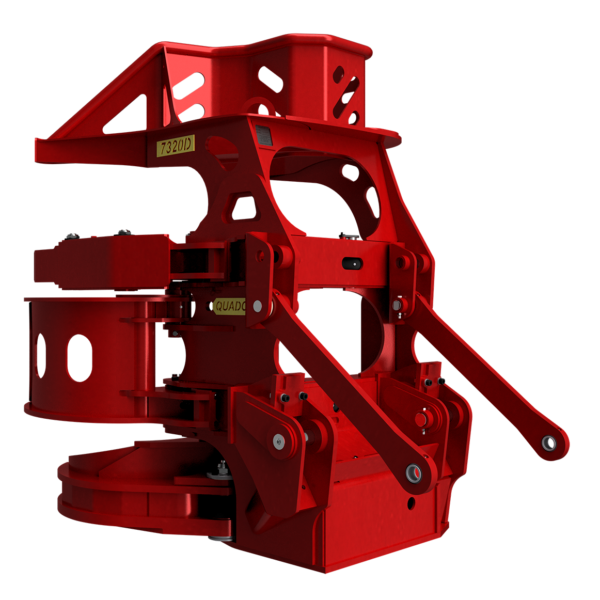

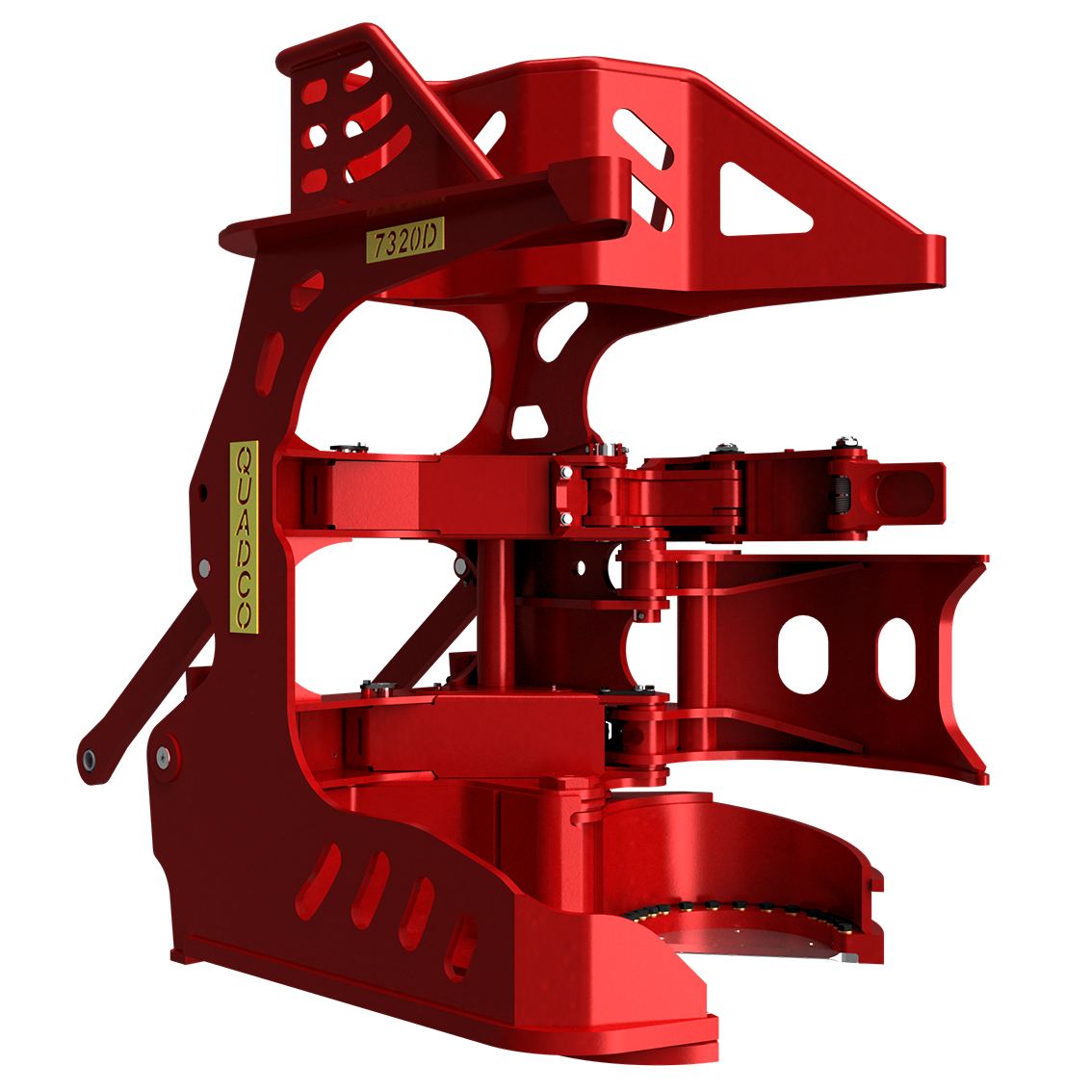

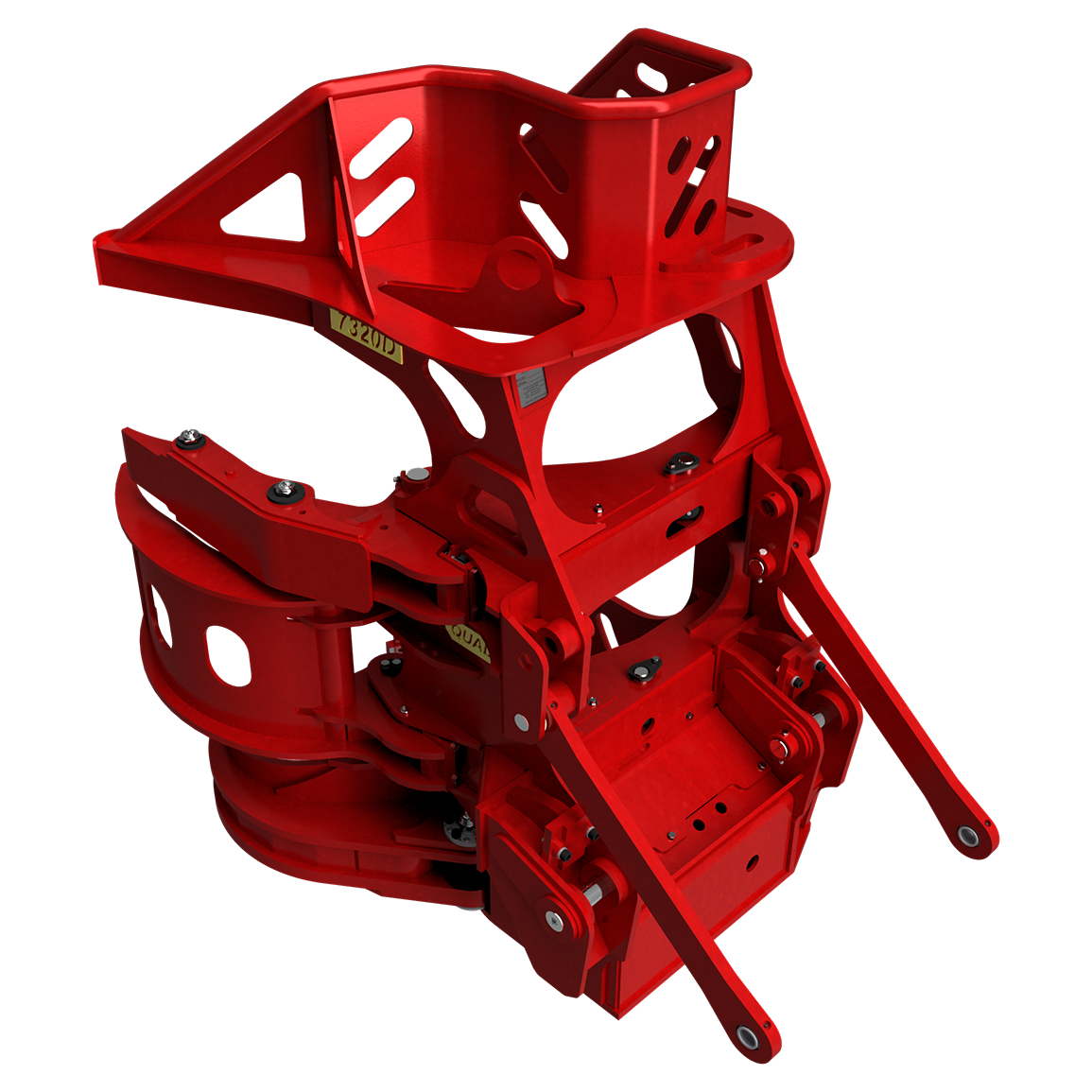

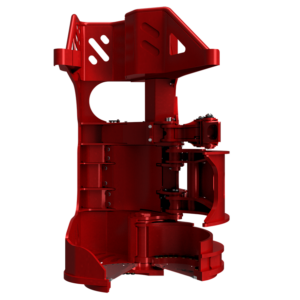

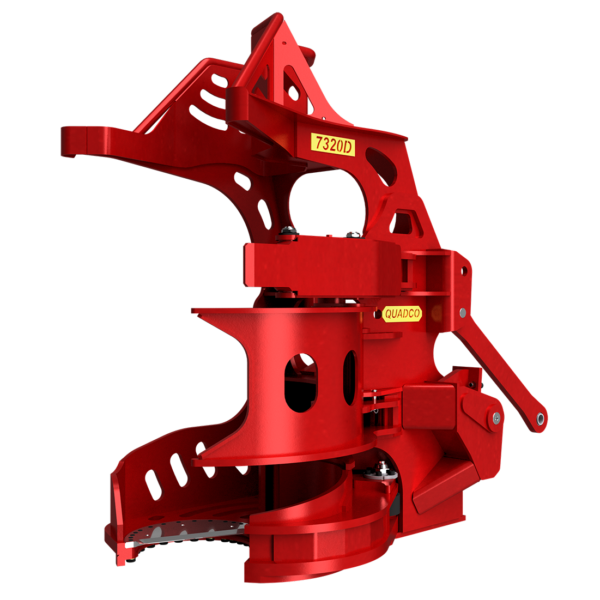

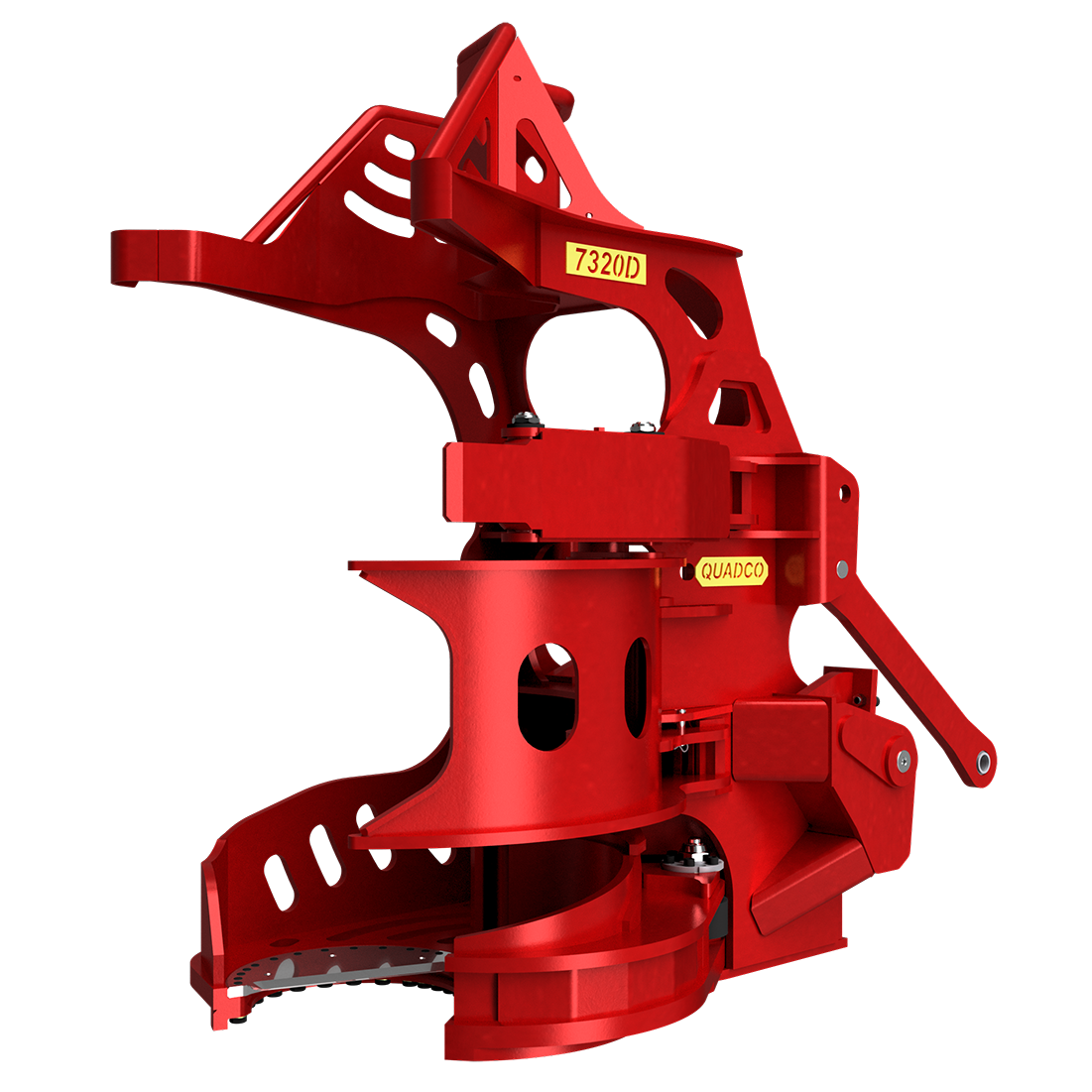

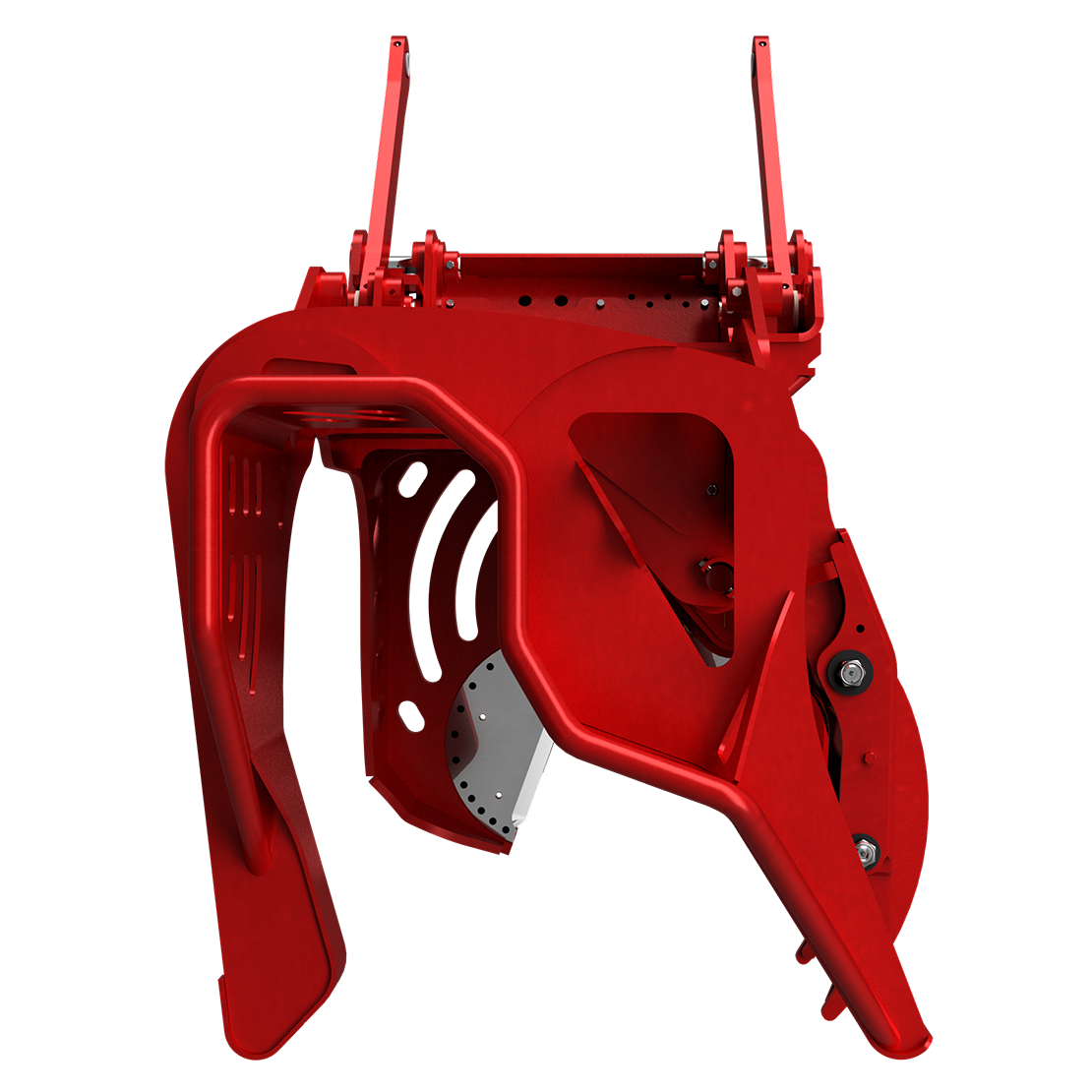

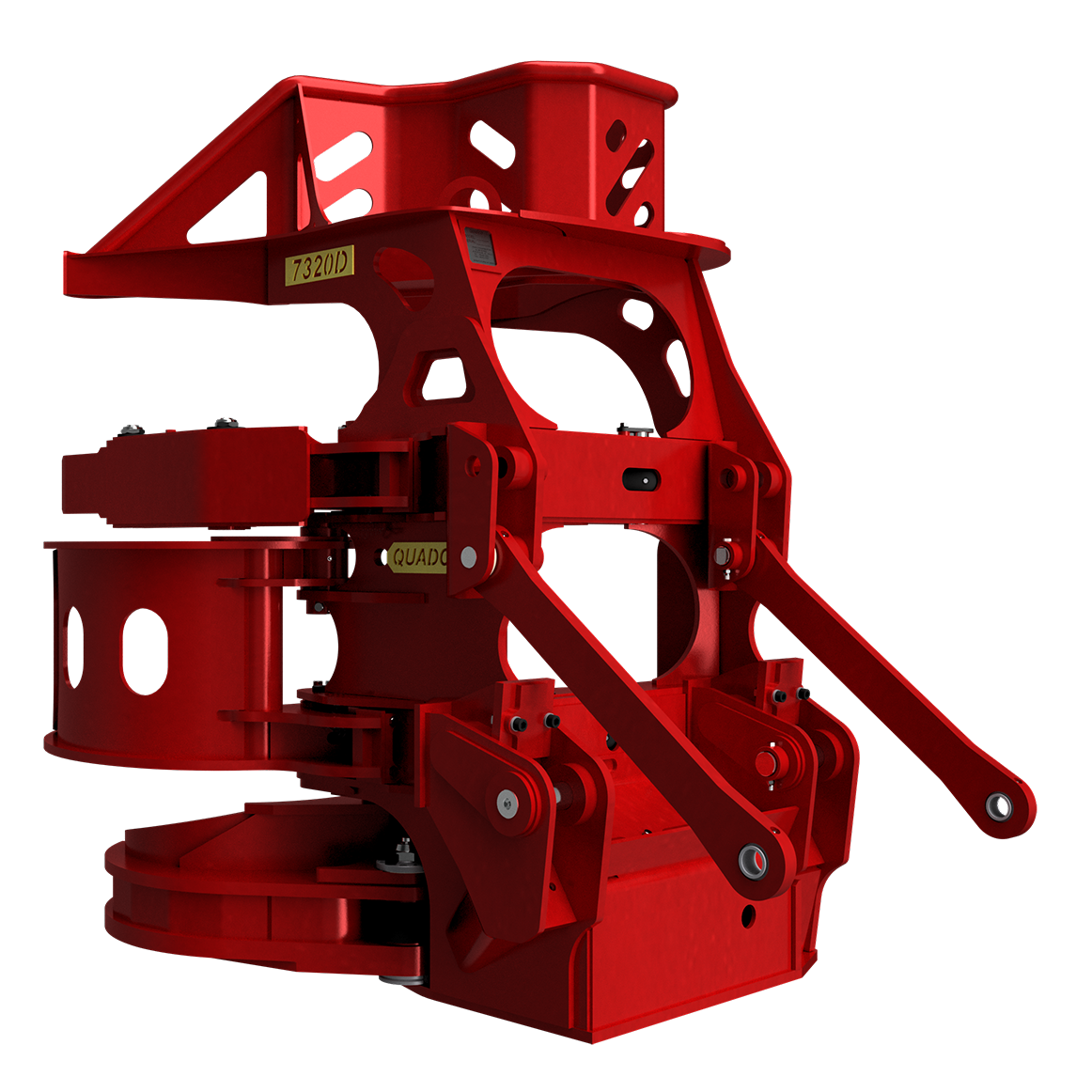

The Quadco 7320 High Capacity Shear Head will optimize your operation with an innovative design that boasts features like patent-pending multi-junction accumulating arms and customizable knife thickness. A compact build makes for better maneuverability while a centered bundle load greatly reduces twisting stress. With 20” soft wood cuts and 16” hard wood cuts, this redesigned model is made for smooth operating.

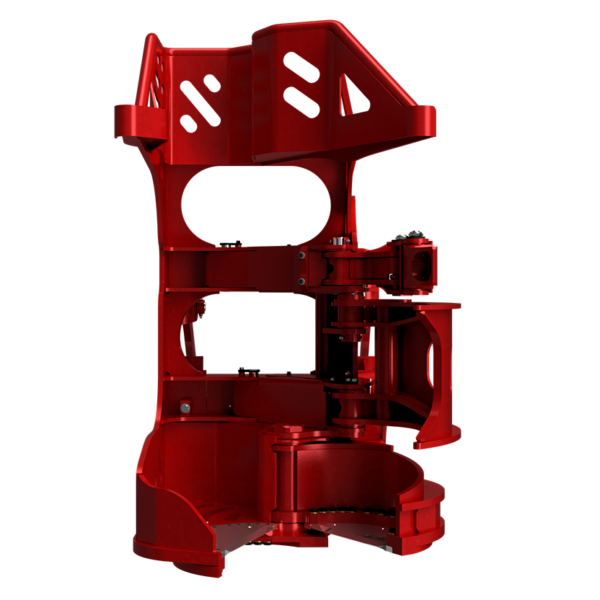

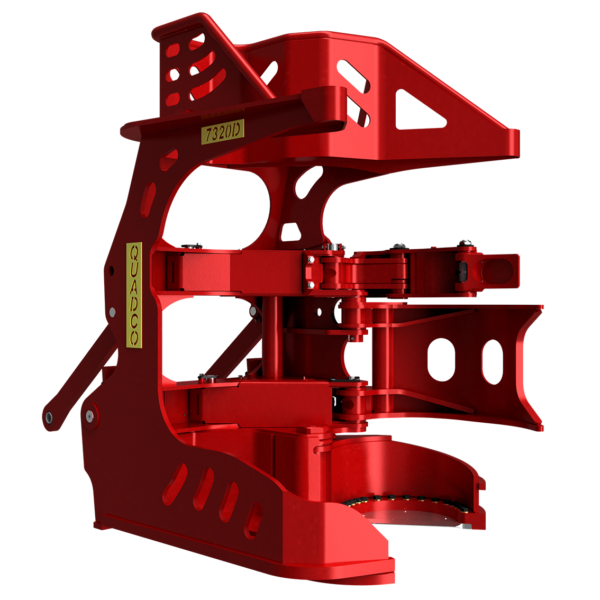

7320-DT
Standard Configuration |
Metric |
Imperial |
|
|---|---|---|---|
|
|
|||
 |
Height | 2,489 mm | 98″ |
| Width | |||
| Depth | |||
| Depth (Closed, Main Frame) | 1,308 mm | 51.5″ | |
| Depth (Open, Outside Guard) | 1,499 mm | 59″ | |
| Depth (Drive-To-Tree Model) | |||
| Depth (Boom Mount Model) | |||
| Opening | |||
| Opening at Teeth | |||
| Boom Mount Model | 1,803 mm | 71″ | |
| Accumulation Area | 0.68 m2 | 7.3 ft2 | |
| Arm Cylinder Diameter | |||
| Shear Knives Thickness | 25 mm | 1″ | |
| Shear / Sweep Arm Closing Time | 76 mm | 3″ | |
|
|
|||
 |
Hydraulic Flow | 303 lpm | 80 gpm |
| Arm Cylinders | 303 lpm | 80 gpm | |
| Disc Saw Motor | |||
| Rotor 360 degree | 57-67 lpm | 15-20 gpm | |
| Hydraulic Pressure Recommended | 252 bar | 3,650 psi | |
| Accumlator Arm Cylinder Diameter | |||
|
|
|||
 |
Optional 40-deg | 3,628.74 kg | 8,000 lbs |
| Optional 360-deg | 3,633 kg | 8,009 lbs | |
| Drive-to-Tree (DT) | 227 kg | 500 lbs | |
| Optional Valve and Guards | |||
| Weight | 3300 kg |
|---|---|
| Dimensions | 30 × 30 × 40 cm |
