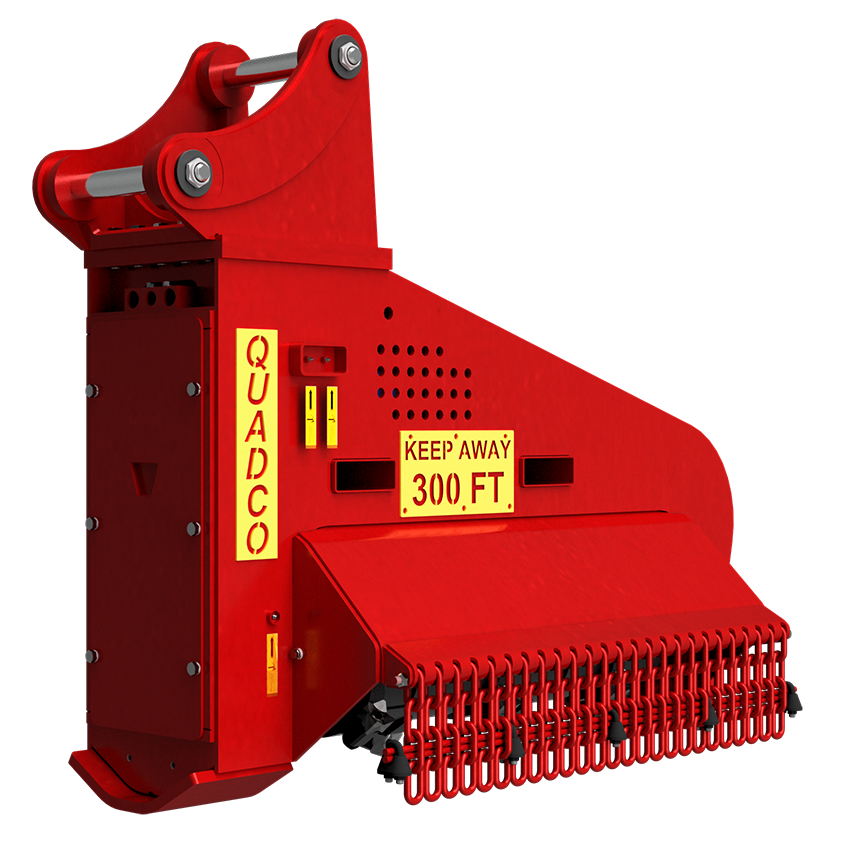

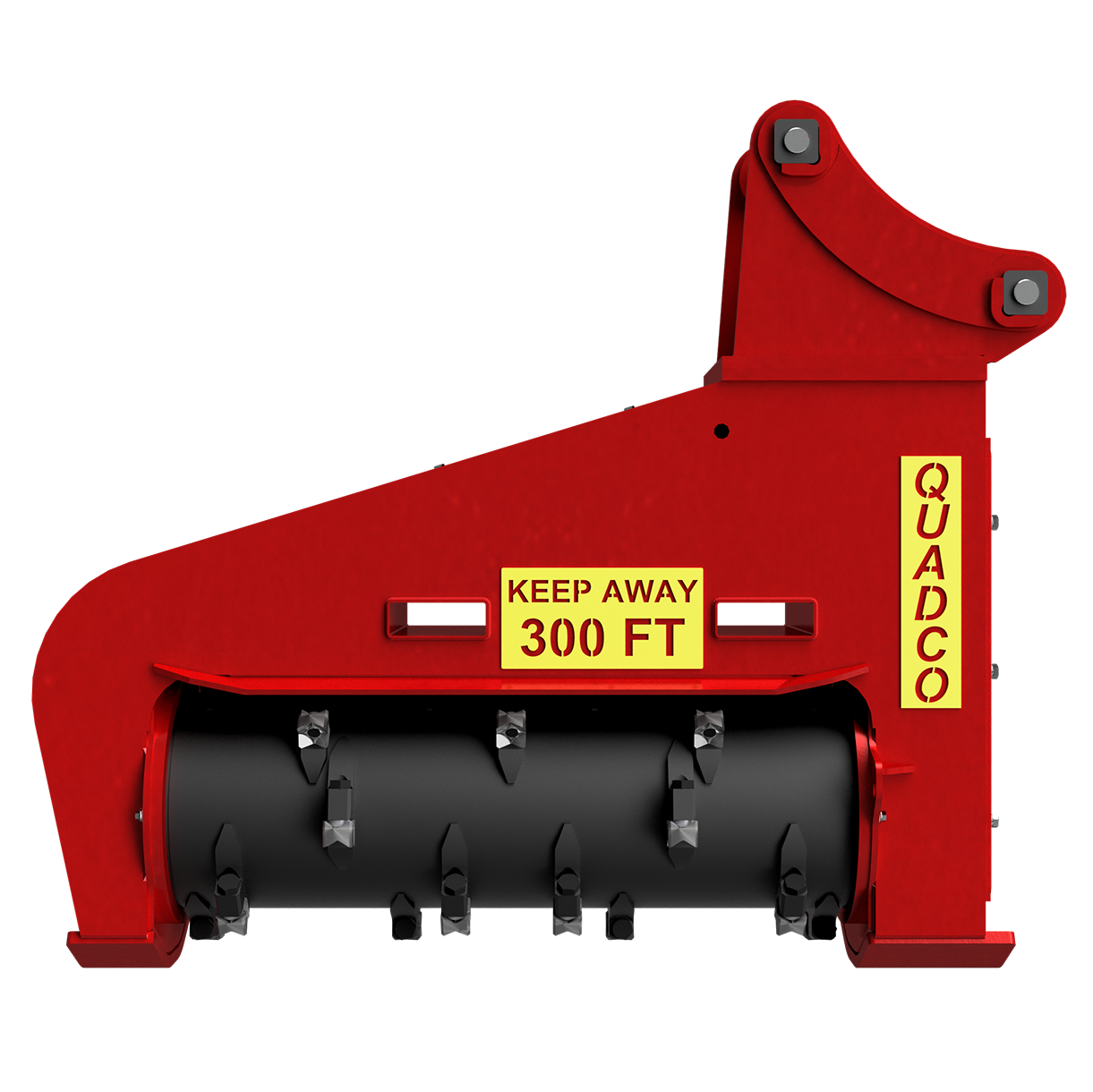

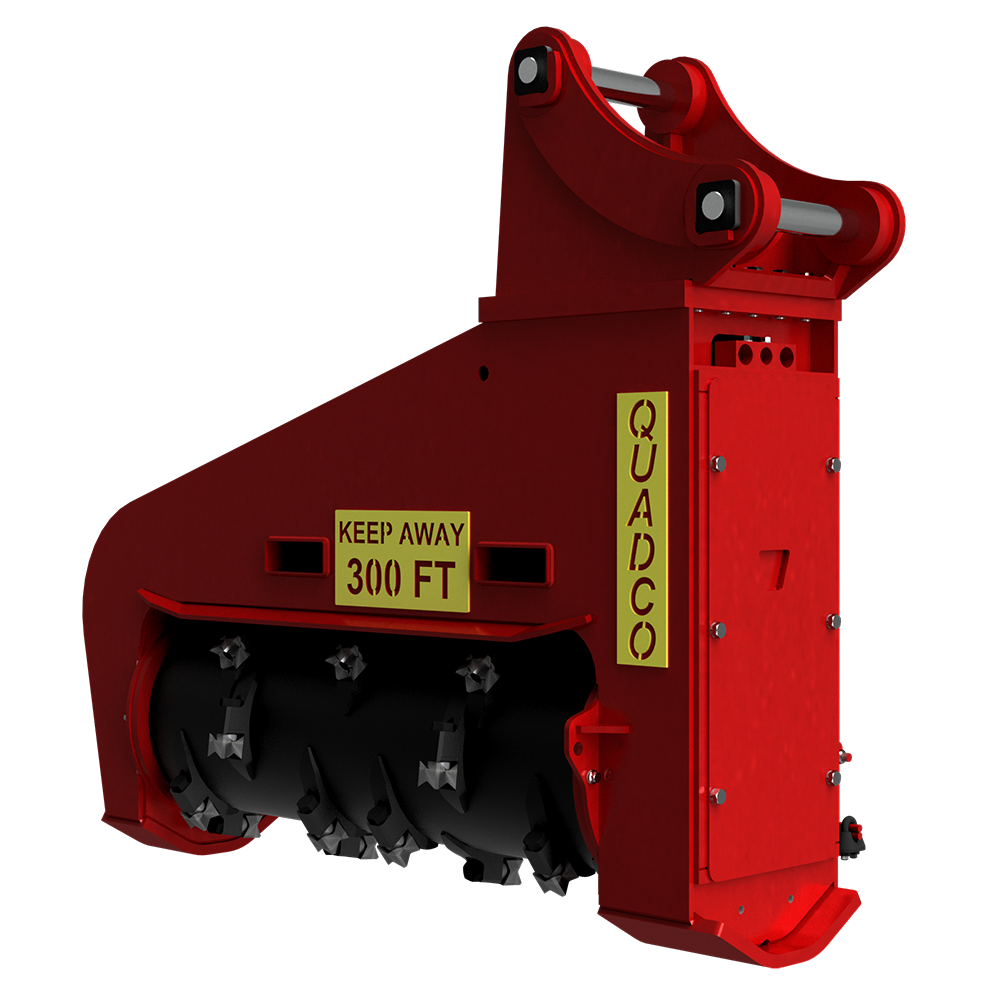

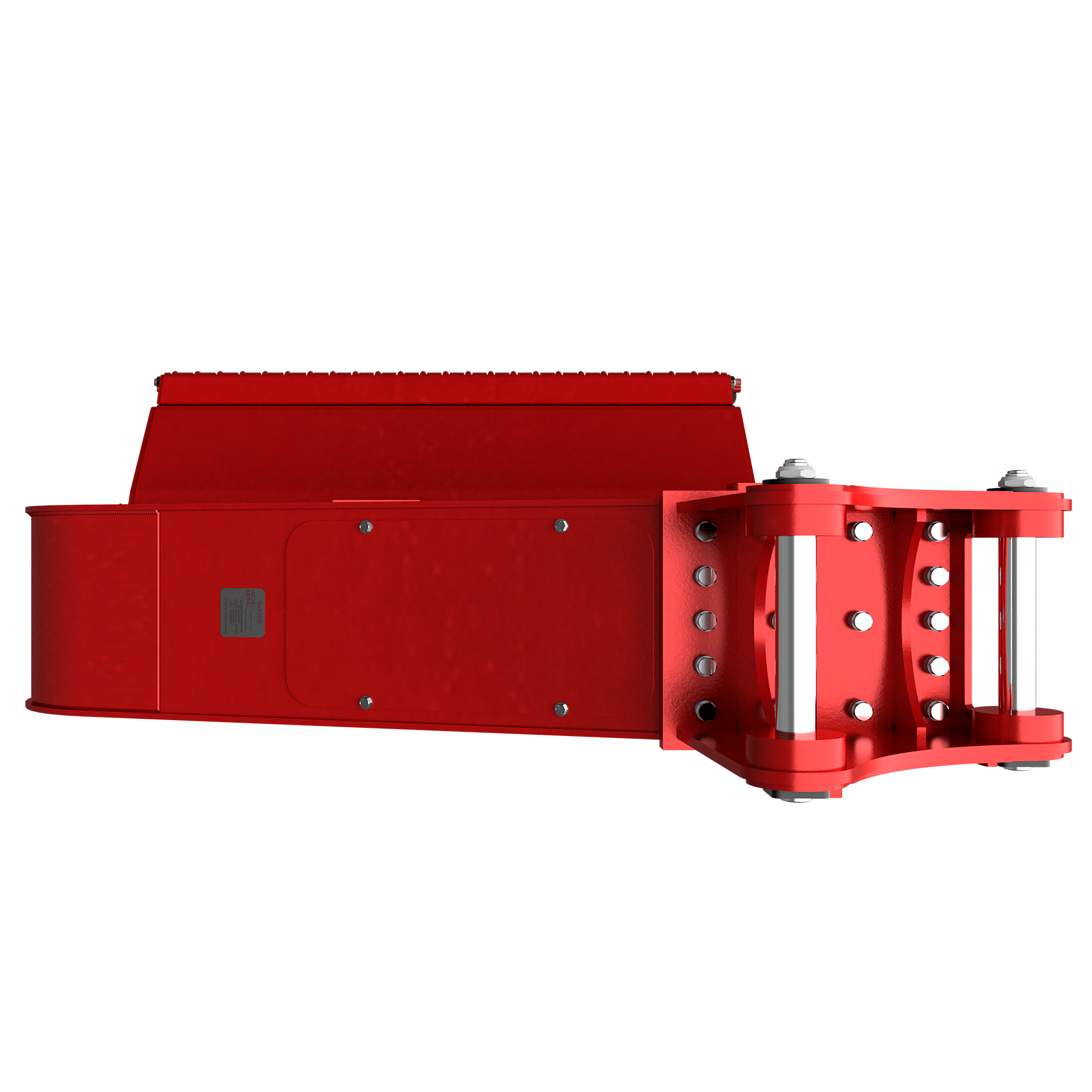

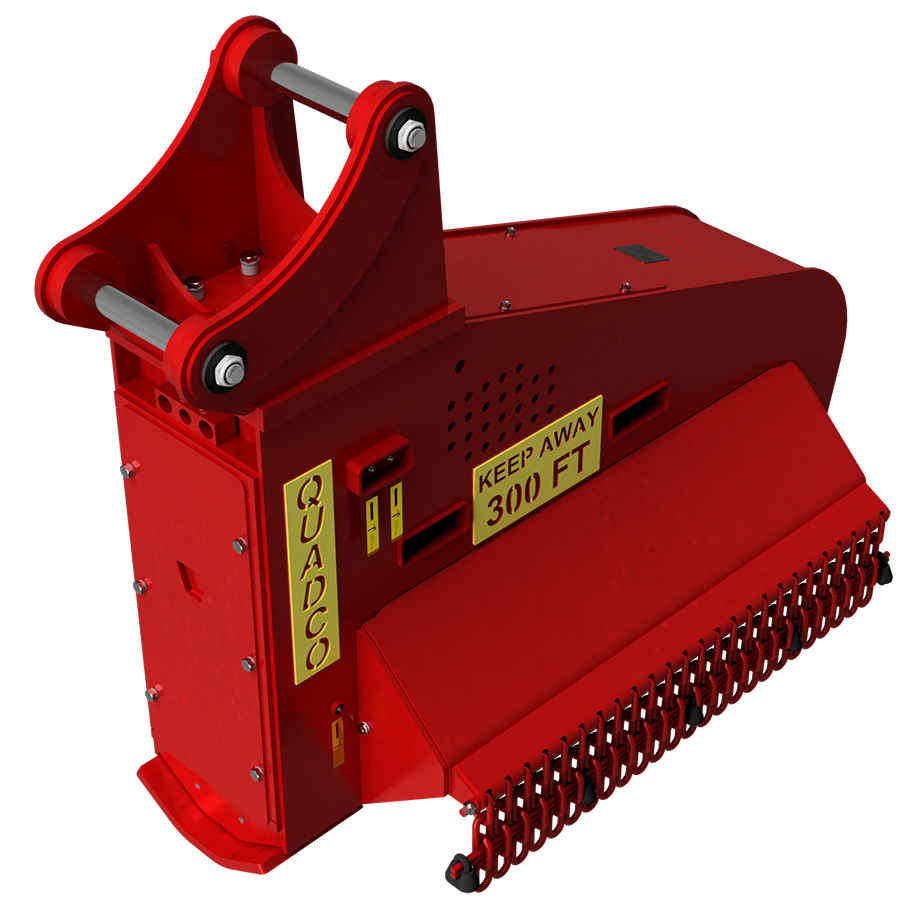

Drum Mulcher Attachment Heads are extremely heavy-duty drum mulchers. When paired with Quadco Mulching Teeth, they provide a complete mulching system. They are capable of mulching vegetation into fine material and they have an optional boom adapter with matching pins or quick attach available for most carriers.
|
|
|
|
| STANDARD CONFIGURATION | METRIC | IMPERIAL |
|---|---|---|
WEIGHTS & DIMENSIONS | ||
Weight (Excluding Boom Adapter & Pins) | 1,488 kg | 3,875 lbs |
Height | 1,245 mm | 49"" |
Width | 813 mm | 32"" |
Length | 1,803 mm | 76"" |
DRUM | ||
Cutting Swath | 1,422 mm | 56"" |
Number of Teeth | 26 | |
Speed | 2,000 rpm | |
HYDRAULICS | ||
Motor Size | 170 cc | |
Minimum Flow | 170 lpm | 45 gpm |
Pressure | 260 bar | 3,771 psi |
