SKU: 24B.
Categories: , .

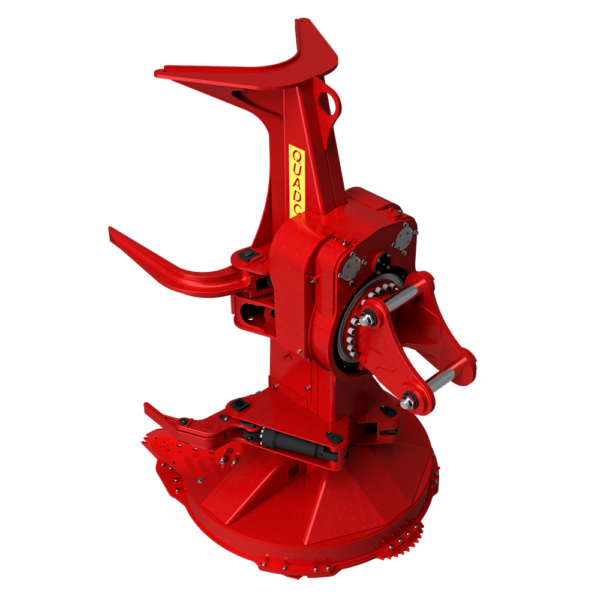

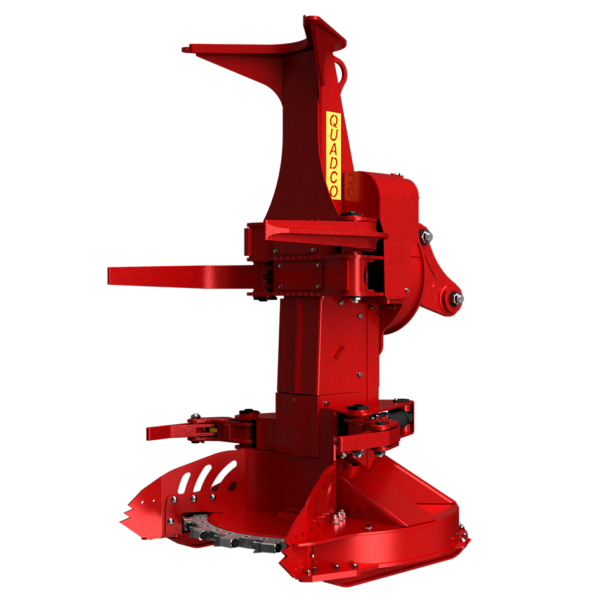

High Speed Saw

3130 kg | 6900 lbs

Rotation 40° (High Torque)

18

Number Of Teeth

610 mm | 24"

Cutting Capacity

1321 mm | 43"

Maximum Throat Opening

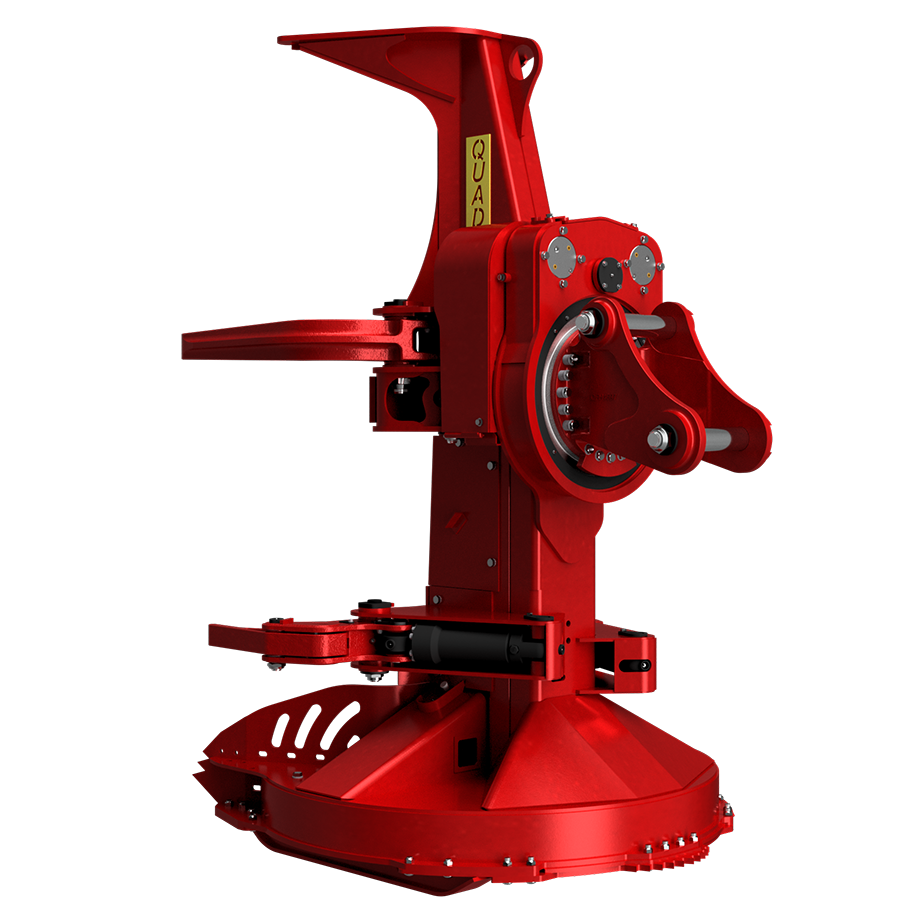

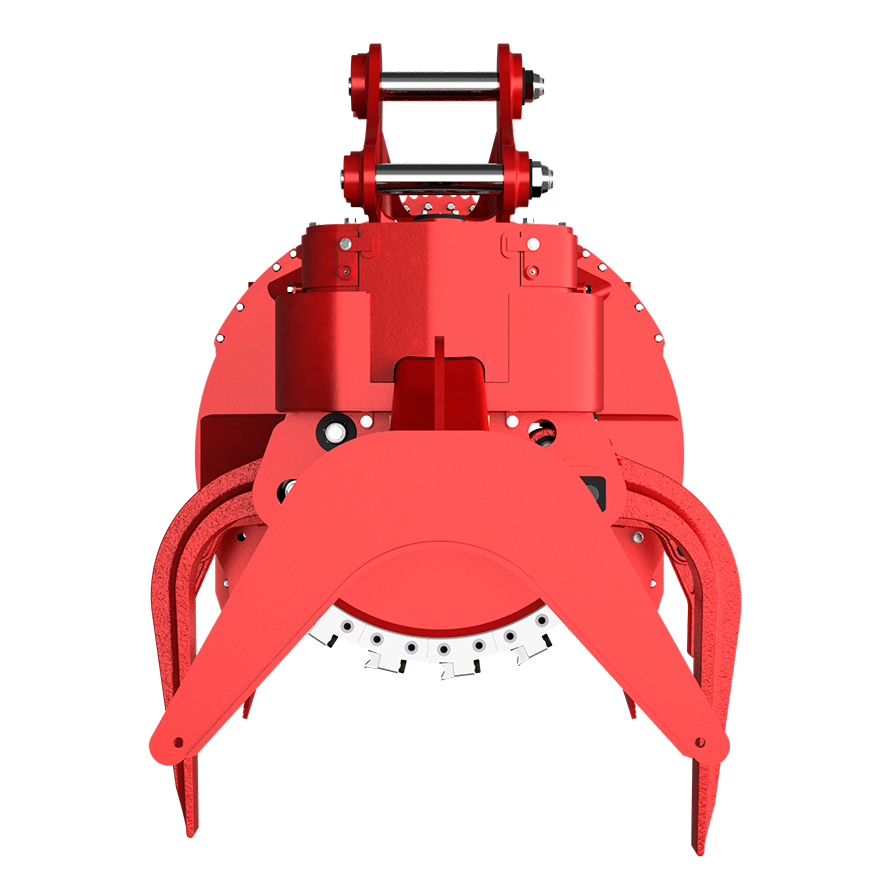

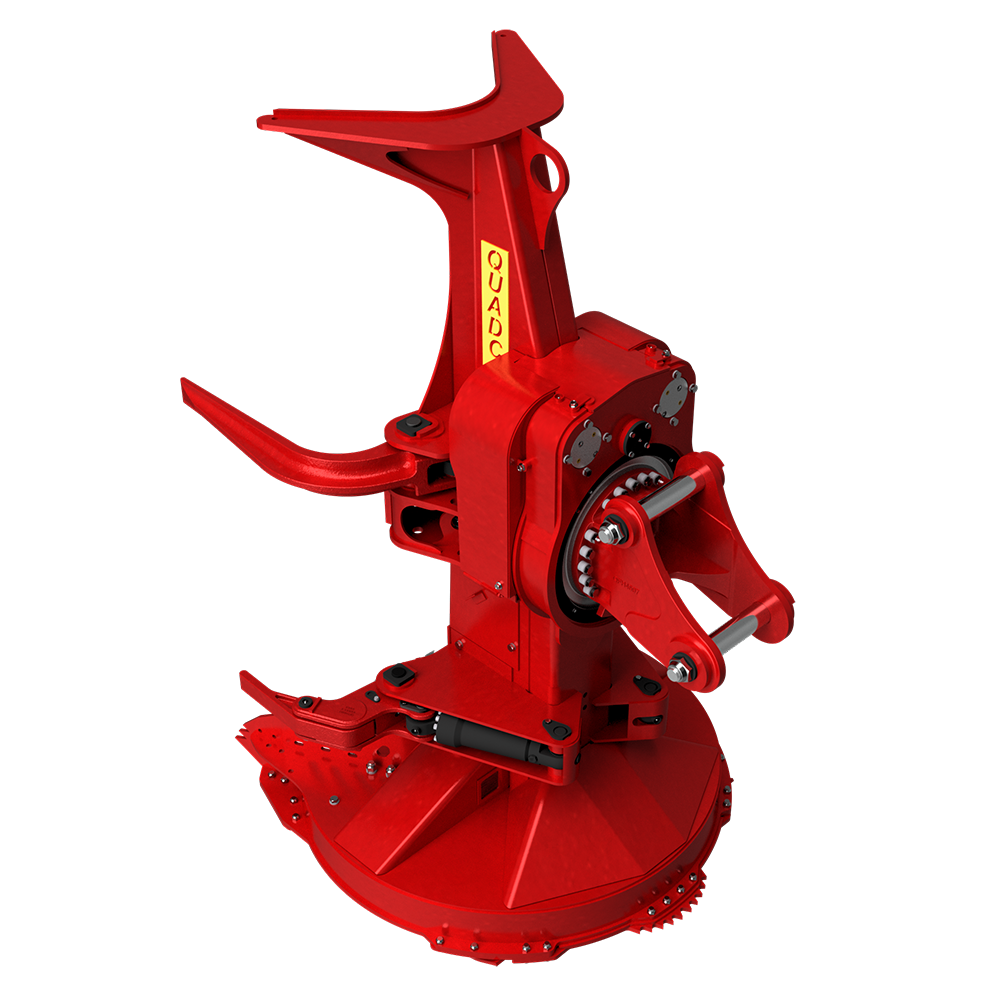

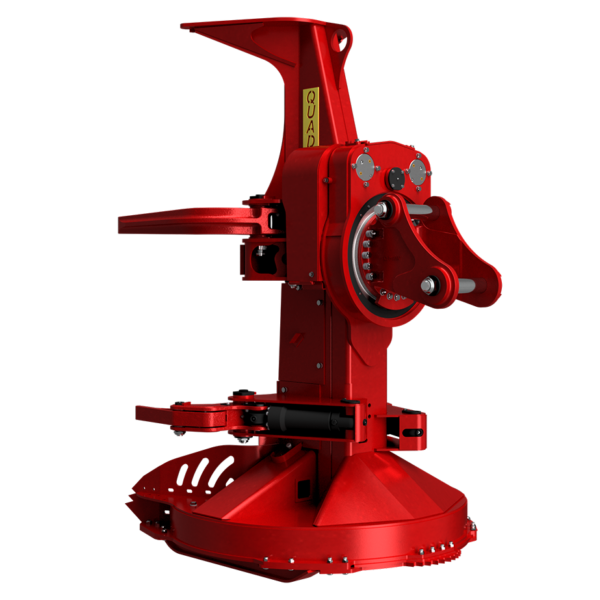

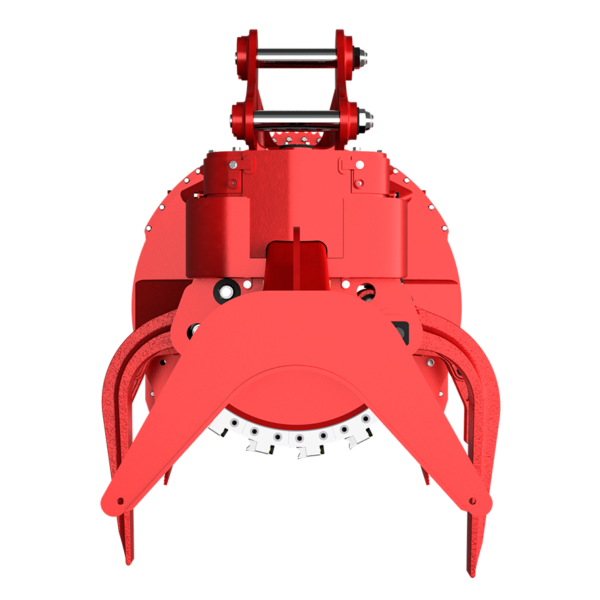

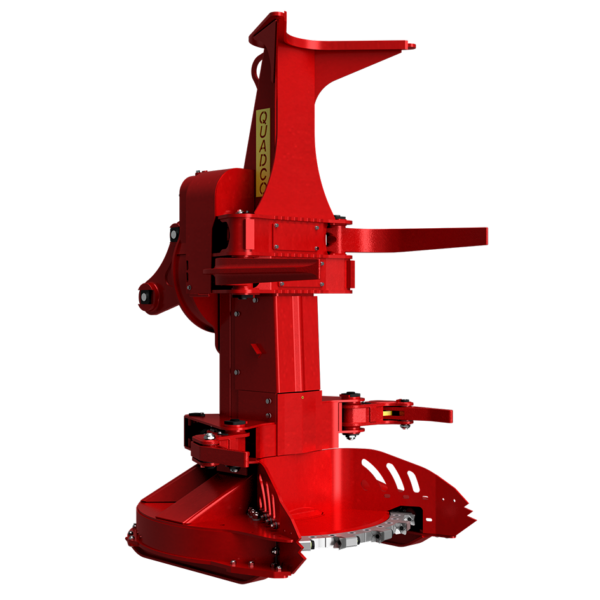

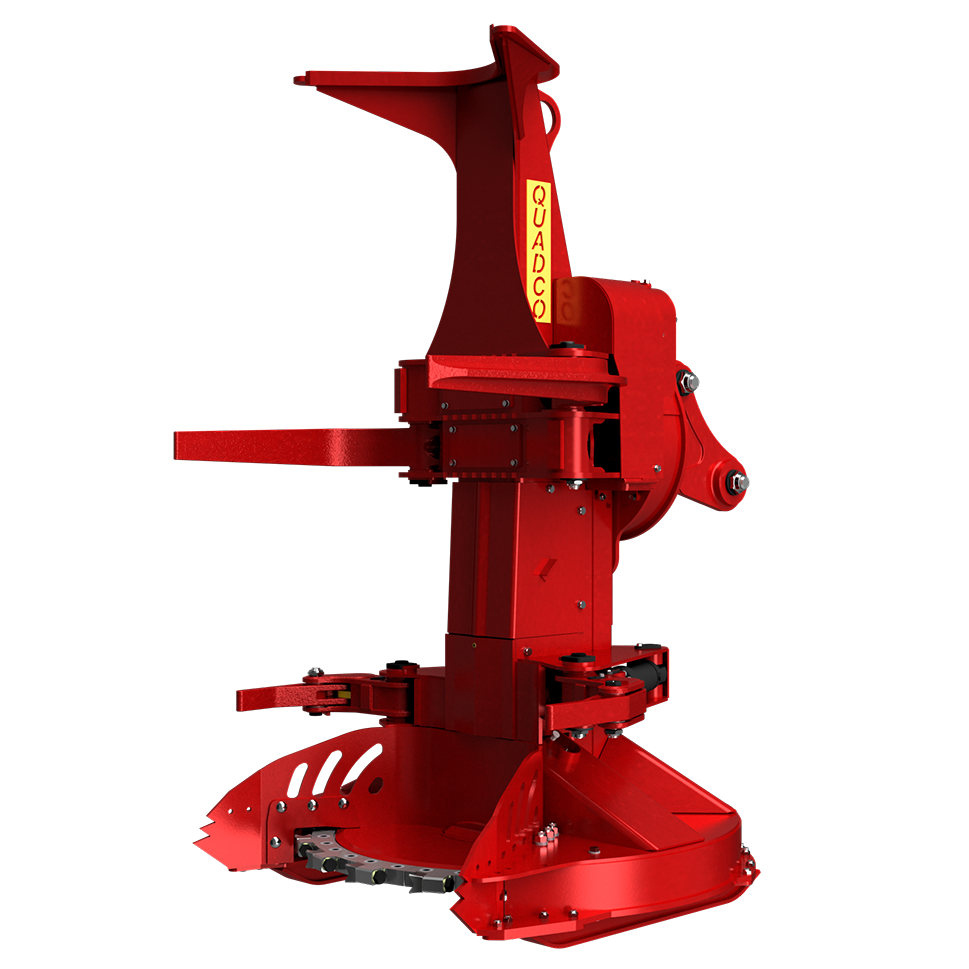

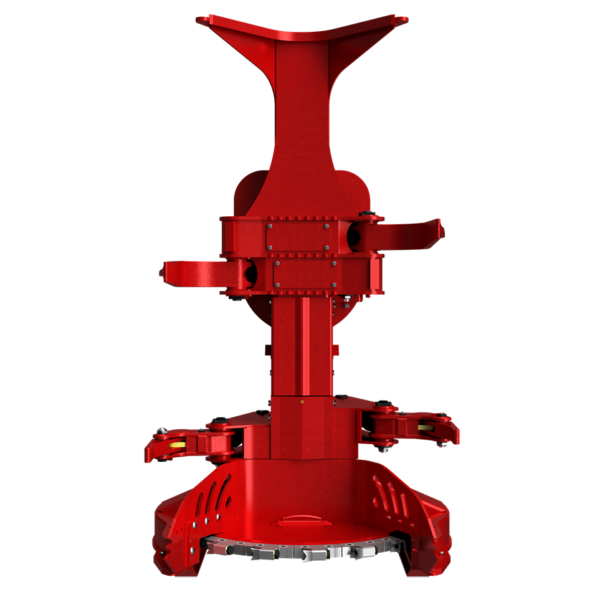

B Models enable better leverage of big and tall timber with extended tower and “arms down” design. They feature durable cast grab and accumulator arms, each operated independently, and an ultra-reliable disc drive with easily adjustable bearings.

24B

Standard Configuration
Metric
Imperial

Rotation 40° (High Torque) 3,130 kg 6,900 Ibs
Rotation 360° HT 3,266 kg 7,530 Ibs
Height 2,972 mm 117″
Width 1,778 mm 70″
Depth 1,803 mm 71″
Maximum Throat Opening 1,321 mm 52″
Maximum Throat Opening @ Teeth 1,092 mm 43″
Accumulation Area 0.54 m2 5.8 ft2

Cutting Capacity 610 mm 24″
Tip-to-Tip Diameter 1,549 mm 61″
Rated Saw Speed
Number of Teeth 18
Saw Kerf 59 mm 2 5/16″
Weight (Holders & Teeth | Varies Depending on Disc) 434 kg 956 Ibs
Style (One Piece or Segmented) Both

Motor “Rexroth 71 Series”

Cylinders (Diameter) 3″ | 3.5″
Grab Arms 2 Cylinders
Accumulating Arms 2 Cylinders
Weight 3300 kg
Dimensions 30 × 30 × 40 cm

Reviews

There are no reviews yet.

Add a review

it’s all in the details

As a true visionary and pioneer in the forestry industry, we embrace quality craftsmanship.

B Models

Our B Models are ready for your heaviest and tallest timber. Four independent arms operate with an “arms down” feature for maximum holding power and increased leverage.

Rather than the standard one cylinder, B model attachments boast two cylinders per set of arms, resulting in unbeatable holding power.

Don’t miss the optional patented 360-degree wrist system using Quadco’s field-proven double reduction gear box and two motors for the best in feller buncher versatility.

B MODELS 22B 24B 27B
Cutting Capacity 22″ 24″ 27″
