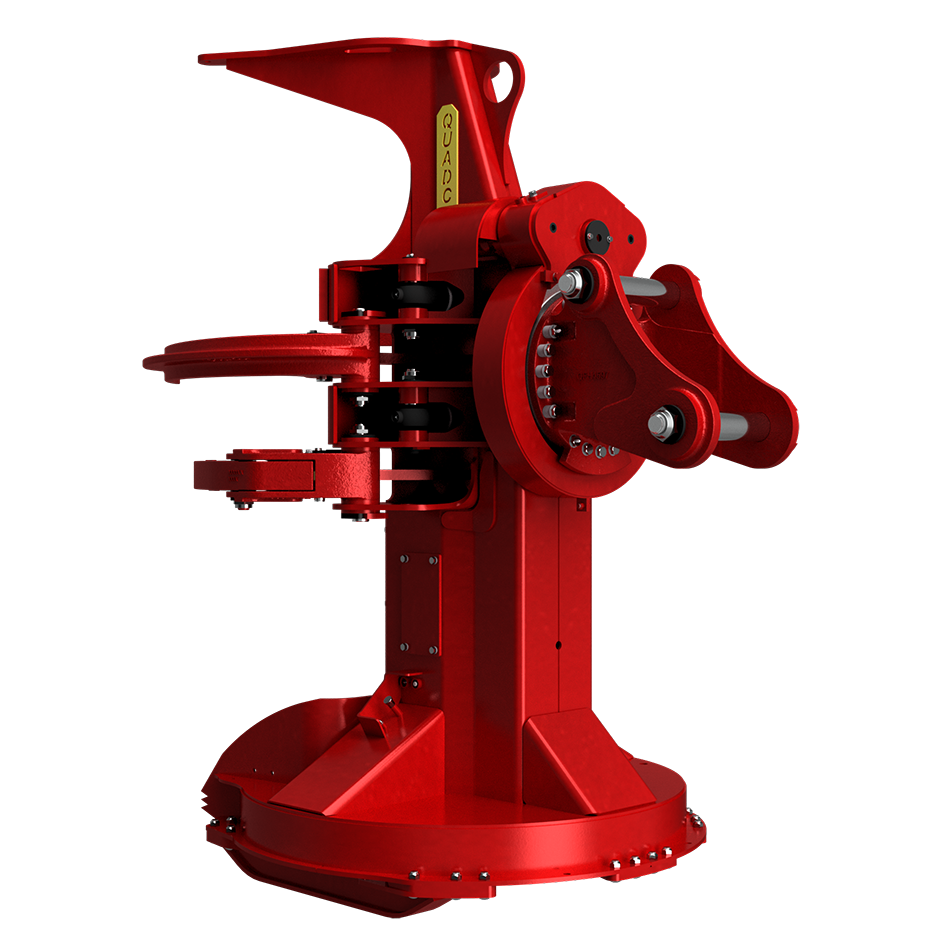

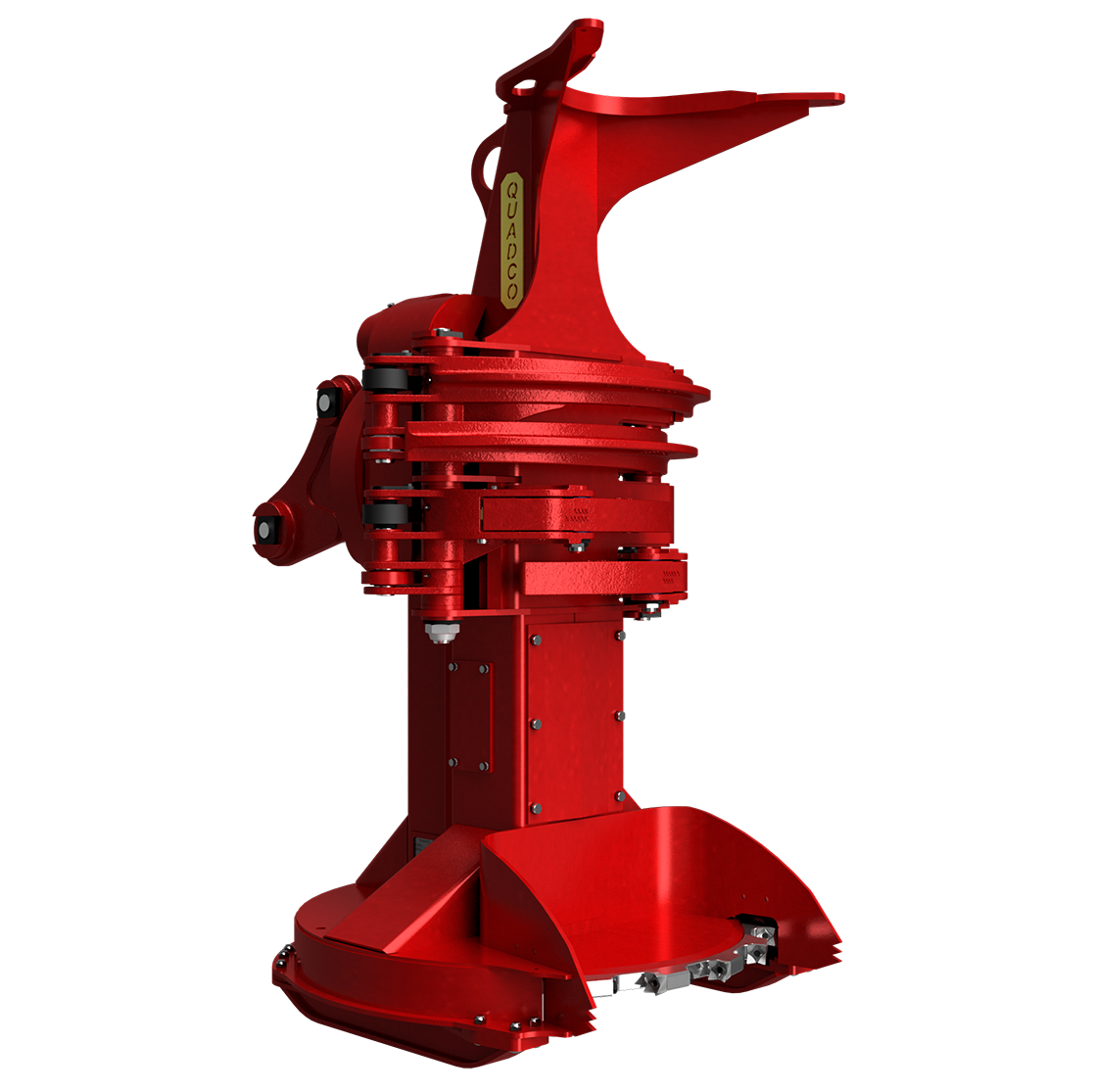

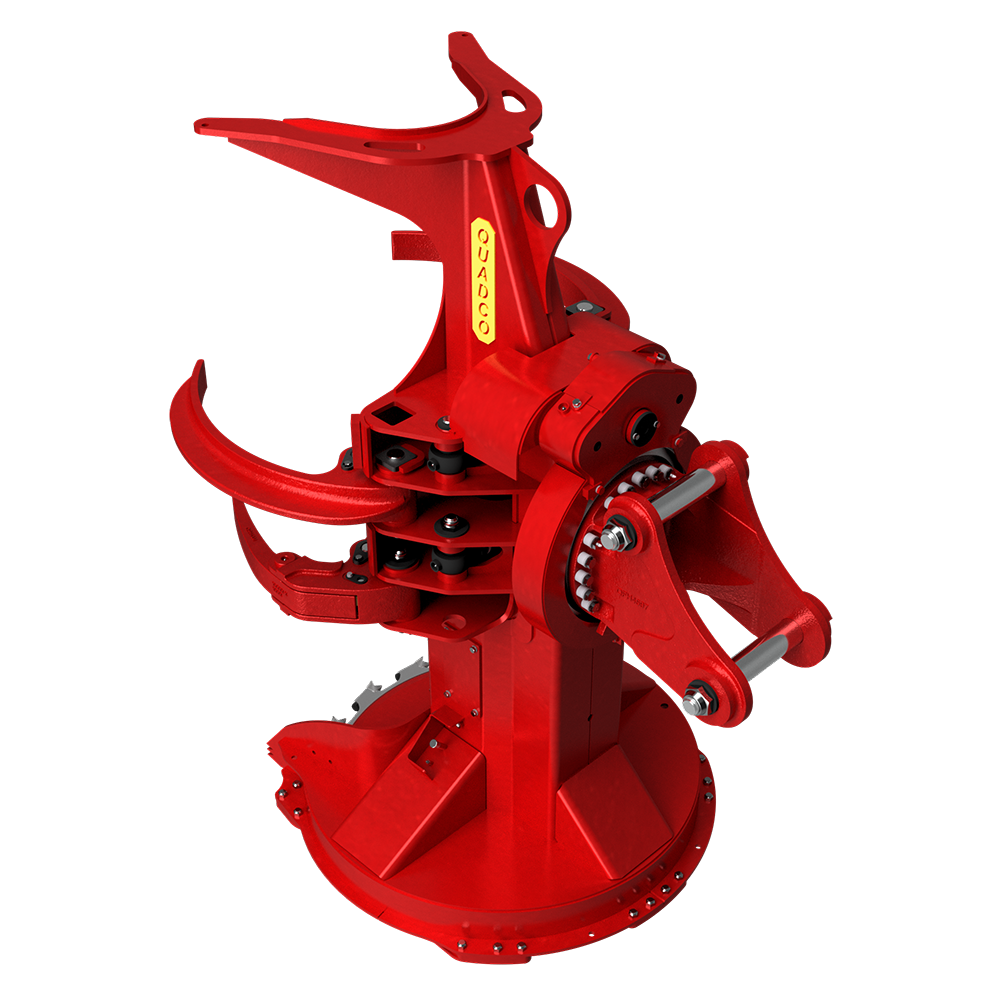

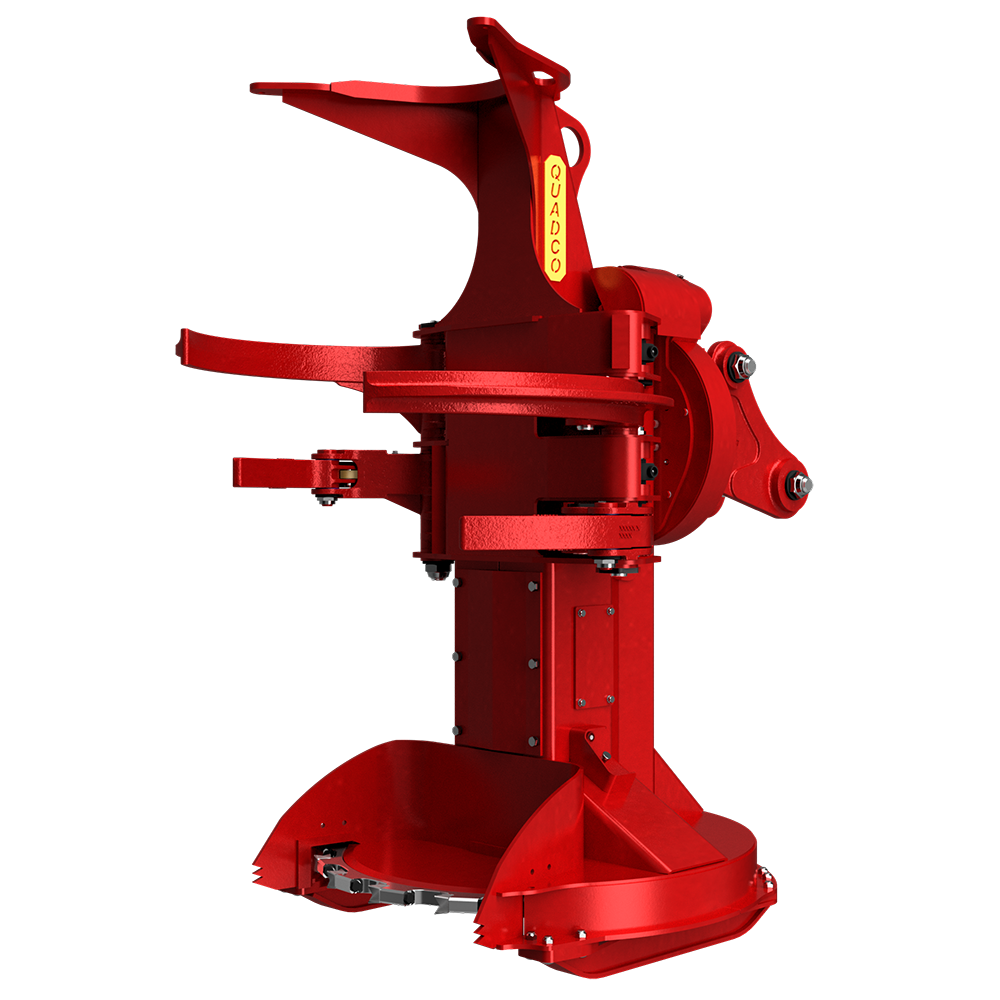

Quadco’s SC Models are designed with timber variety in mind. The 22SC’s high accumulation capacity is perfect for eastern logs. The SC Models are made for efficient accumulation with the “Four Arms Up” design and extended tower for superior leverage when handling tall timber. Faster accumulation is easy with one cylinder per set of arms and a heavy-duty timing bar.
|
|
|
|
| STANDARD CONFIGURATION | METRIC | IMPERIAL |
|---|---|---|
WEIGHTS & DIMENSIONS | ||
Rotation 360° (Medium Torque) | 2,540 kg | 5,520 lbs |
Height | 2,565 mm | 101"" |
Width | 1,435 mm | 56.5"" |
Depth | 1,346 mm | 53"" |
Maximum Throat Opening | 940 mm | 37"" |
Maximum Throat Opening @ Teeth | 889 mm | 35"" |
Accumulation Area (Over Blade) | 0.40 m² | 4.3 ft² |
DISC | ||
Cutting Capacity | 508 mm | 20"" |
Tip-to-Tip Diameter | 1,321 mm | 52"" |
Rated Saw Speed | 1,250 rpm | |
Number of Teeth | 18 | |
Saw Kerf | 51 mm | 2"" |
Weight (Holders & Teeth | Varies Depending on Disc) | 261 kg | 575 lbs |
Style (One Piece or Segmented) | Both | |
SAW DRIVE | ||
Motor | Rexroth | |
HYDRAULICS | ||
Grab Arms | 1 Cylinder | |
Accumulating Arms | 1 Cylinder |
