QG1314

/ /

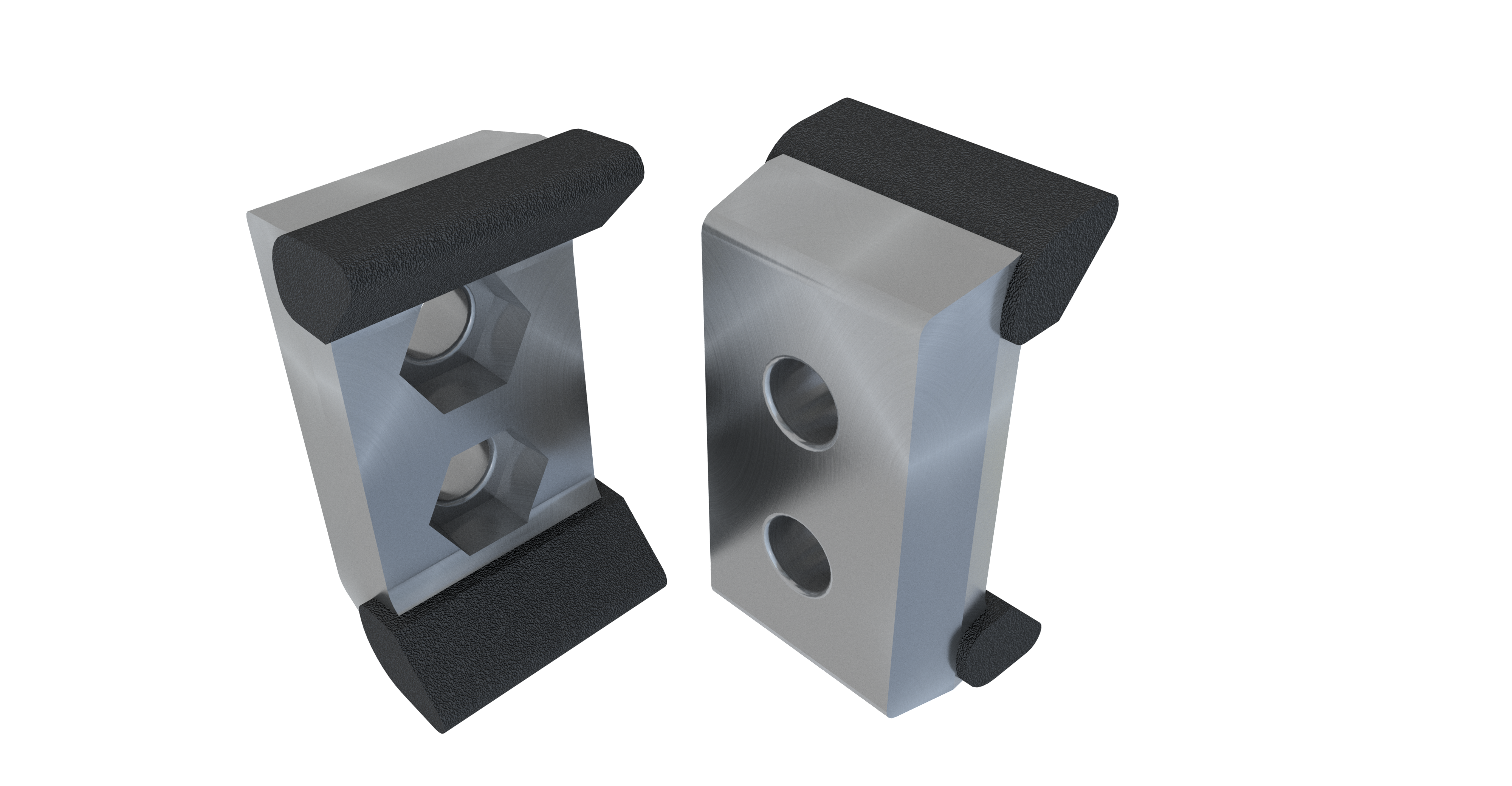

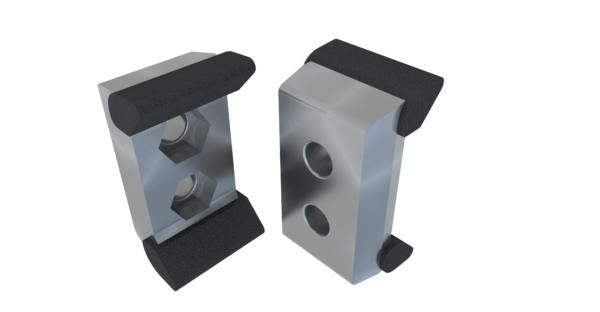

Optimum wear protection with additional carbide weld material along the sides to help protect the hammer as well as provide superior wear. Designed for grinding Green Waste, Forestry Slash, C&D Materials and Re-Grind

QG1314

QG1314

Material

Alloy Steel Forged Tip with Unique Carbide Grit Welded Overlay

Product Features

Custom Forged bit with a unique formulation of fine and coarse carbide grit, with a deep weld penetraion process. Superior wear resistance, featuring carbide side welds with additional corner button overlay.

Used on

Morbark, Peterson, and Vermeer

OEM Model

Morbark 1200, 1200XL, 1250, 1300, 2400, 3000, 3400, 3800, 4600XL, 6400, Peterson 1700, 1710, 2700, 2710, 4700, 4710, 4750, 5700, 5710, Vermeer 400, 525, TG7000

Imperial

METRIC

Style

Carbide Tip Overlay

Kerf

3 in
76.2 mm

Width

Width at Base

Height at Ends

2.14 in
54.36 mm

Back Length

4.25 in
107.95 mm

Back Width

2.5 in
63.5 mm

Center to Center Bolt Hole

1.7 in
43.18 mm

Bolt Size

3/4″ UNF
