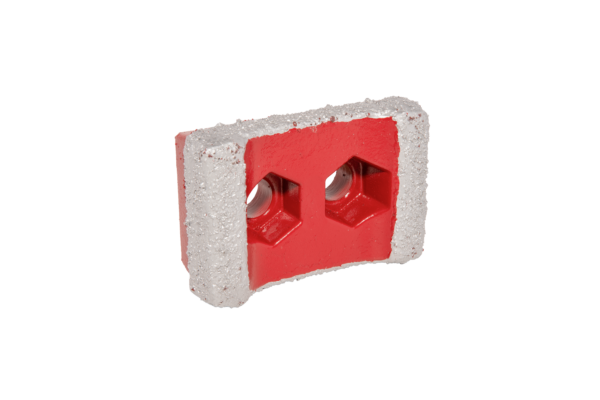

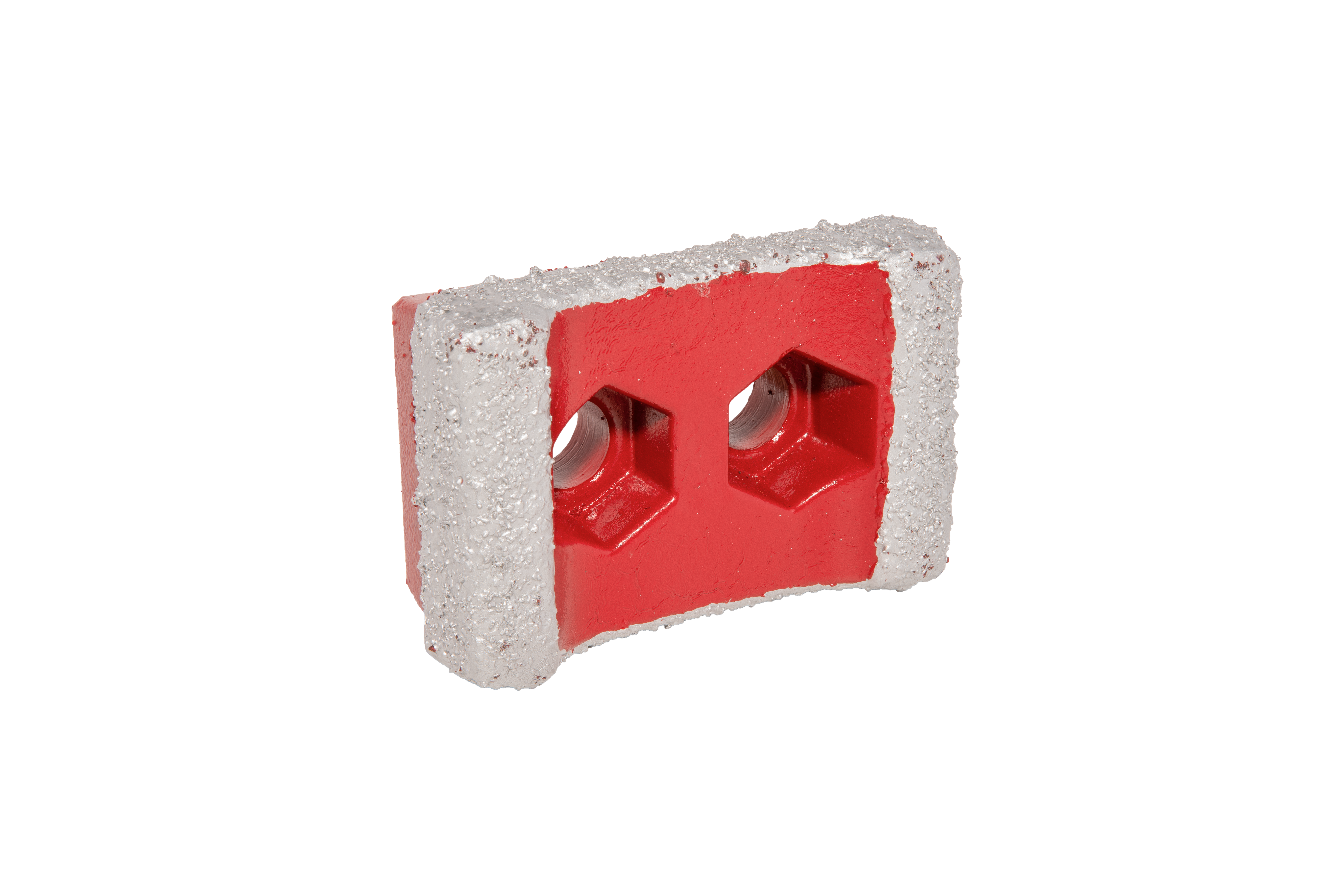

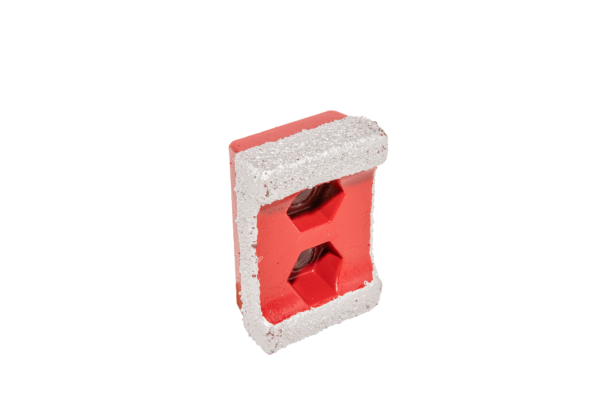

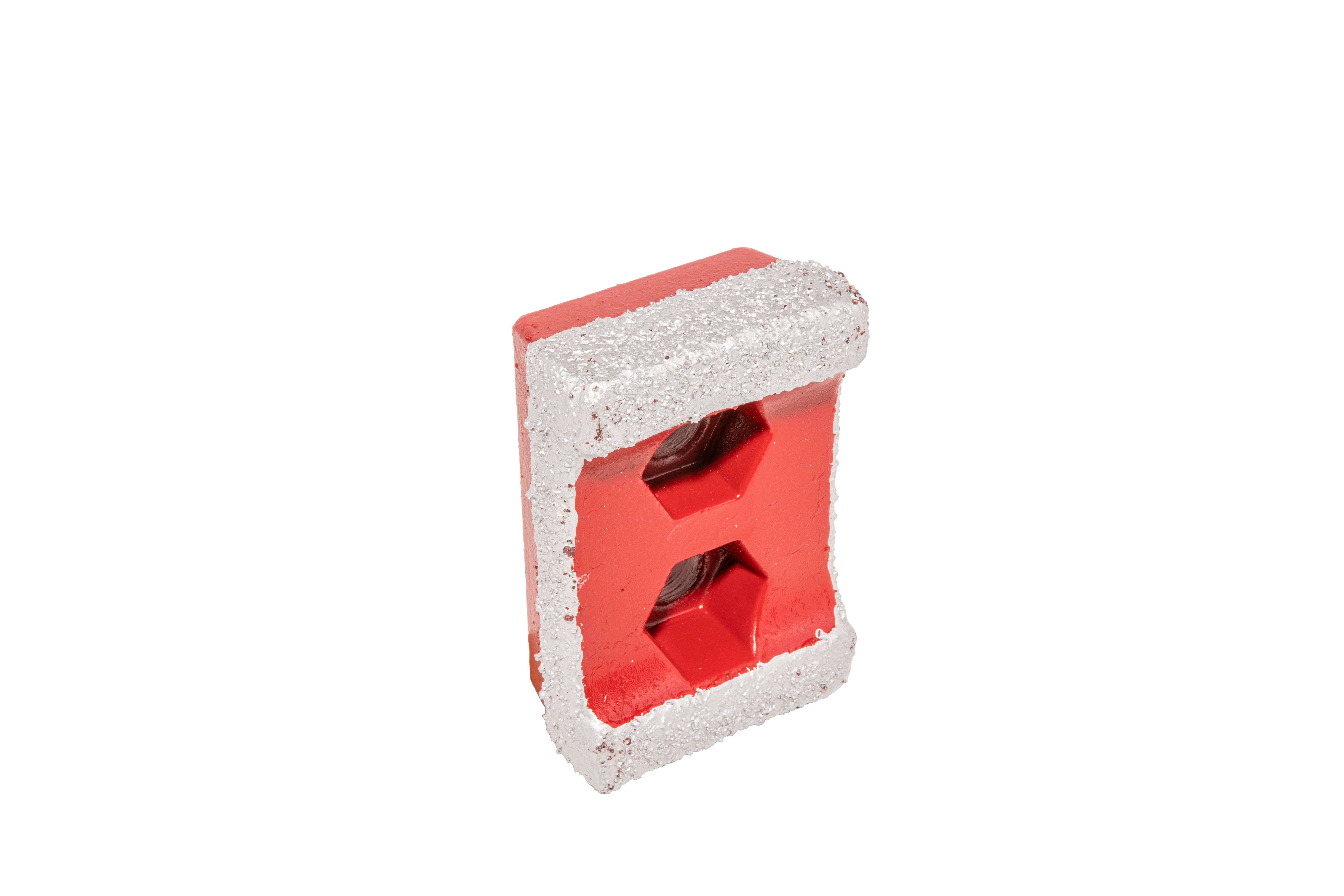

QG1106

Mower Mulcher tooth

Economical solution with additional carbide weld material on the most severe wear areas. Designed for grinding Green Waste, Forestry Slash, Whole Logs, Scrap Wood, C&D Materials and Re-Grind

QG1106

Material

Alloy Steel Forged Tip with Unique Carbide Grit Welded Overlay

Product Features

Custom Forged Tip with unique carbide formulation of fine and coarse carbide grit with a deep weld penetration process for longer life

Used on

Diamond Z, Hogzilla Models, Duretech, Peterson, and Vermeer

OEM Part Numbers​

Diamond Z Models 1036, 1048, 1136, 1248, 1260, 1352, 1460, 1463, 3000-8000, Hogzilla Model 1354, 1462, 1464, 1564, 6250, Duretech 9564, Peterson 4700, 4710, 4750, 7400, 7410, Vermeer 1000, 4000, 6000, 6800, 7000, 9000

Imperial

METRIC

Style

Carbide Tip Overlay

Kerf

3 1/2 in
88.9 mm

Width

Width at Base

Height at Ends

2 in
50.8 mm

Back Length

5 in
127 mm

Back Width

3 in
76.2 mm

Center to Center Bolt Hole

2 in
50.8 mm

Bolt Size

7/8″ UNC

Weight

3.569 lb
1.62 kg
