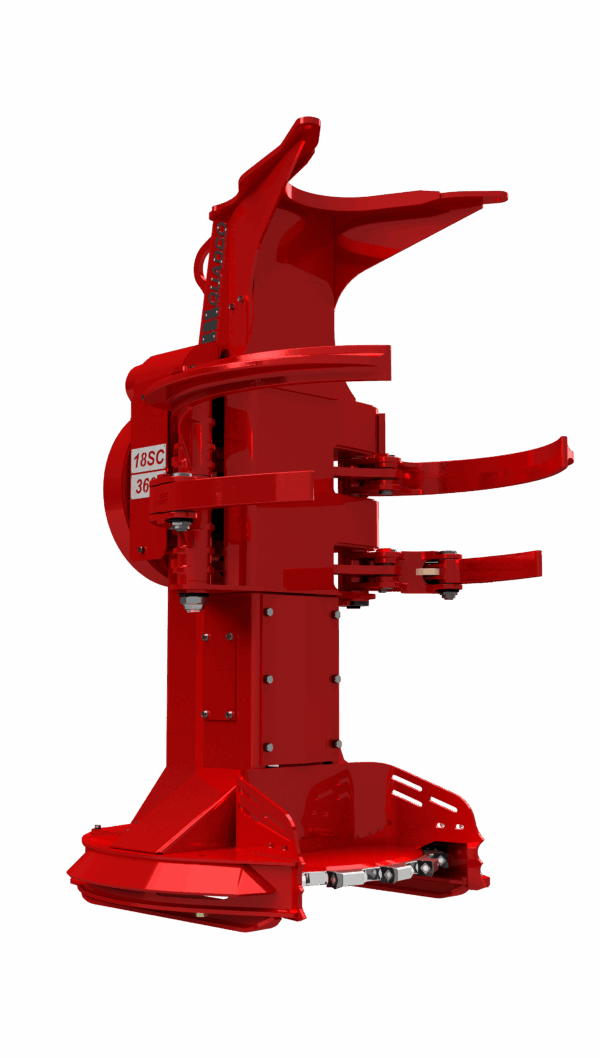

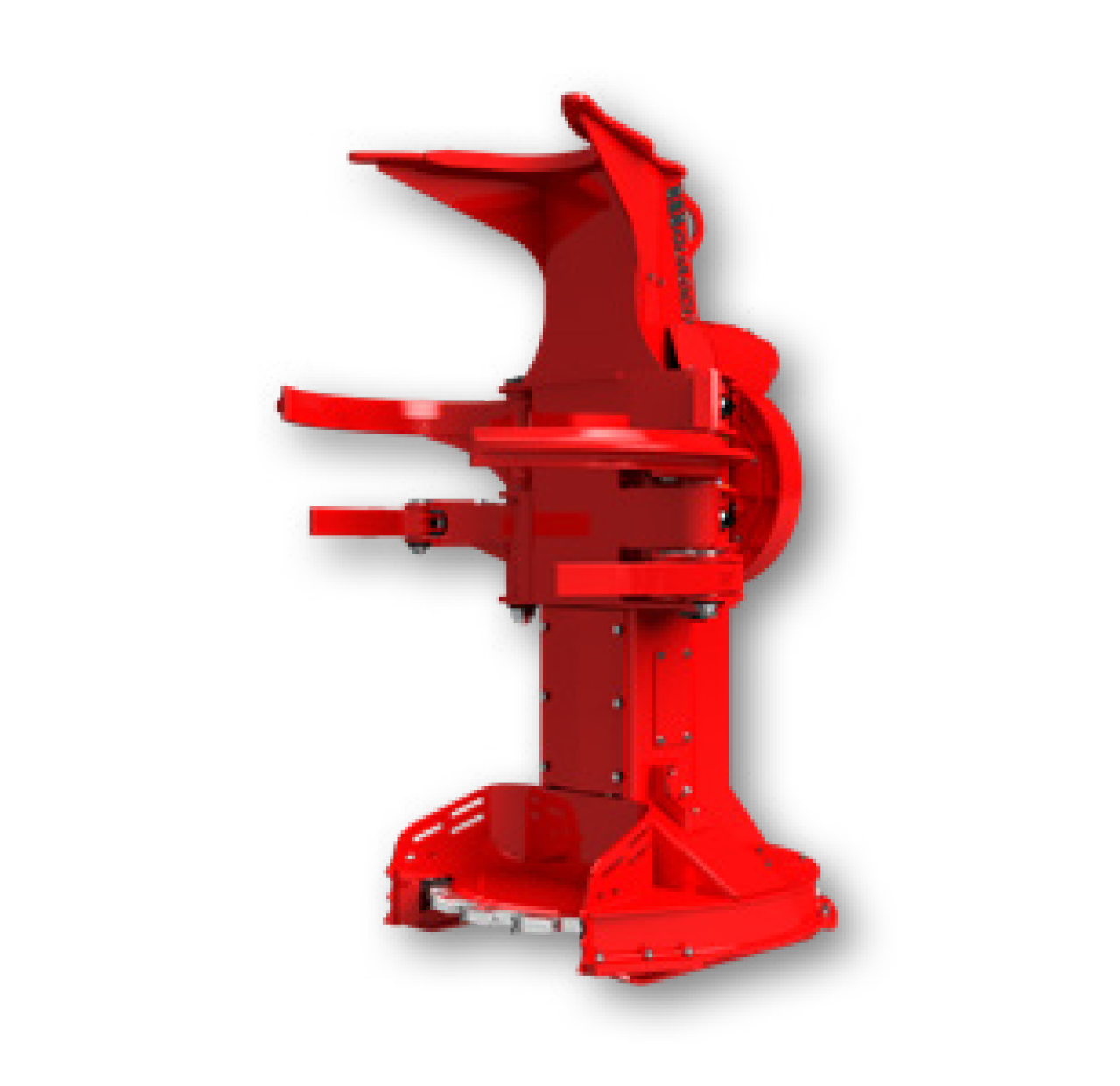

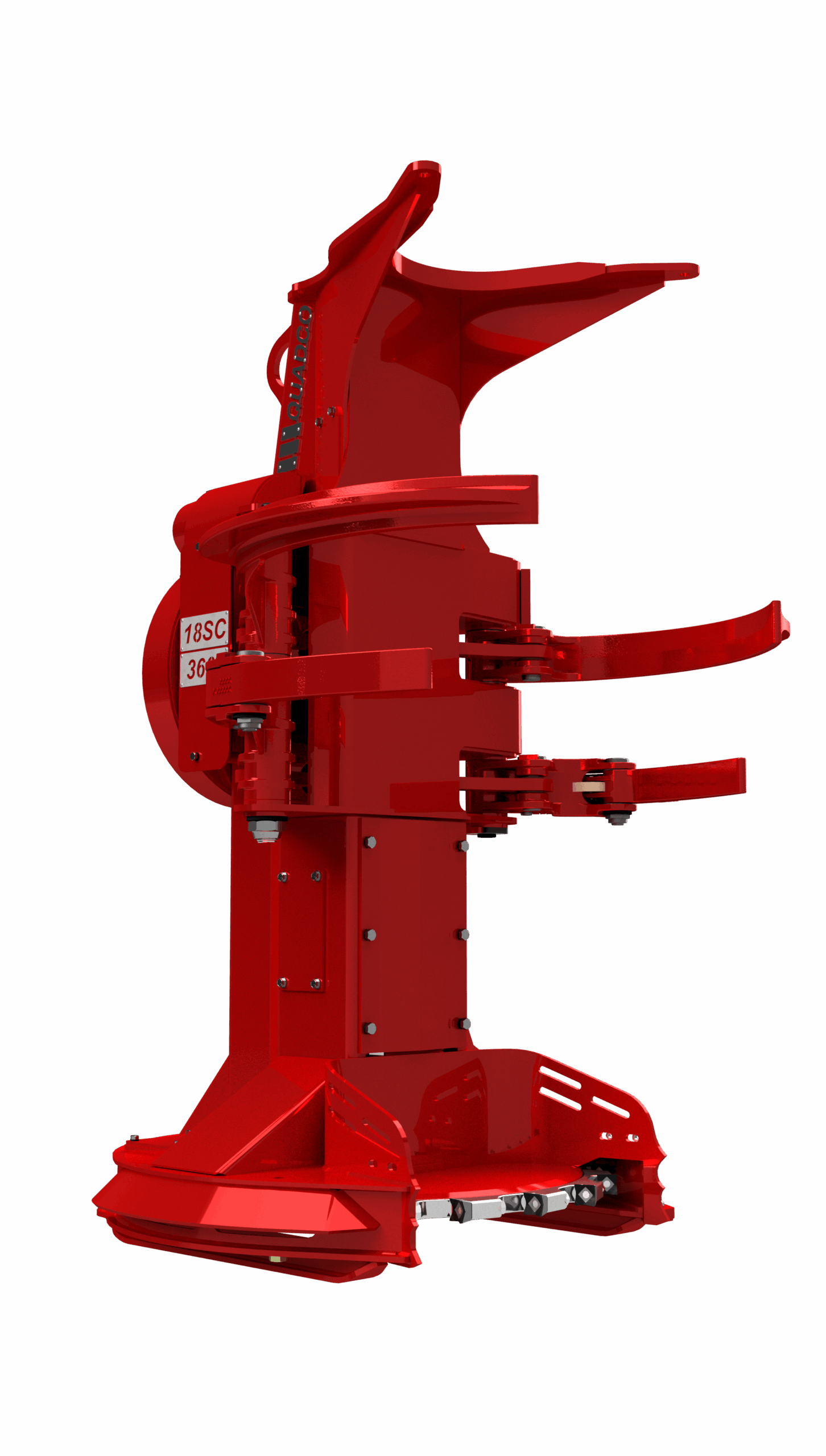

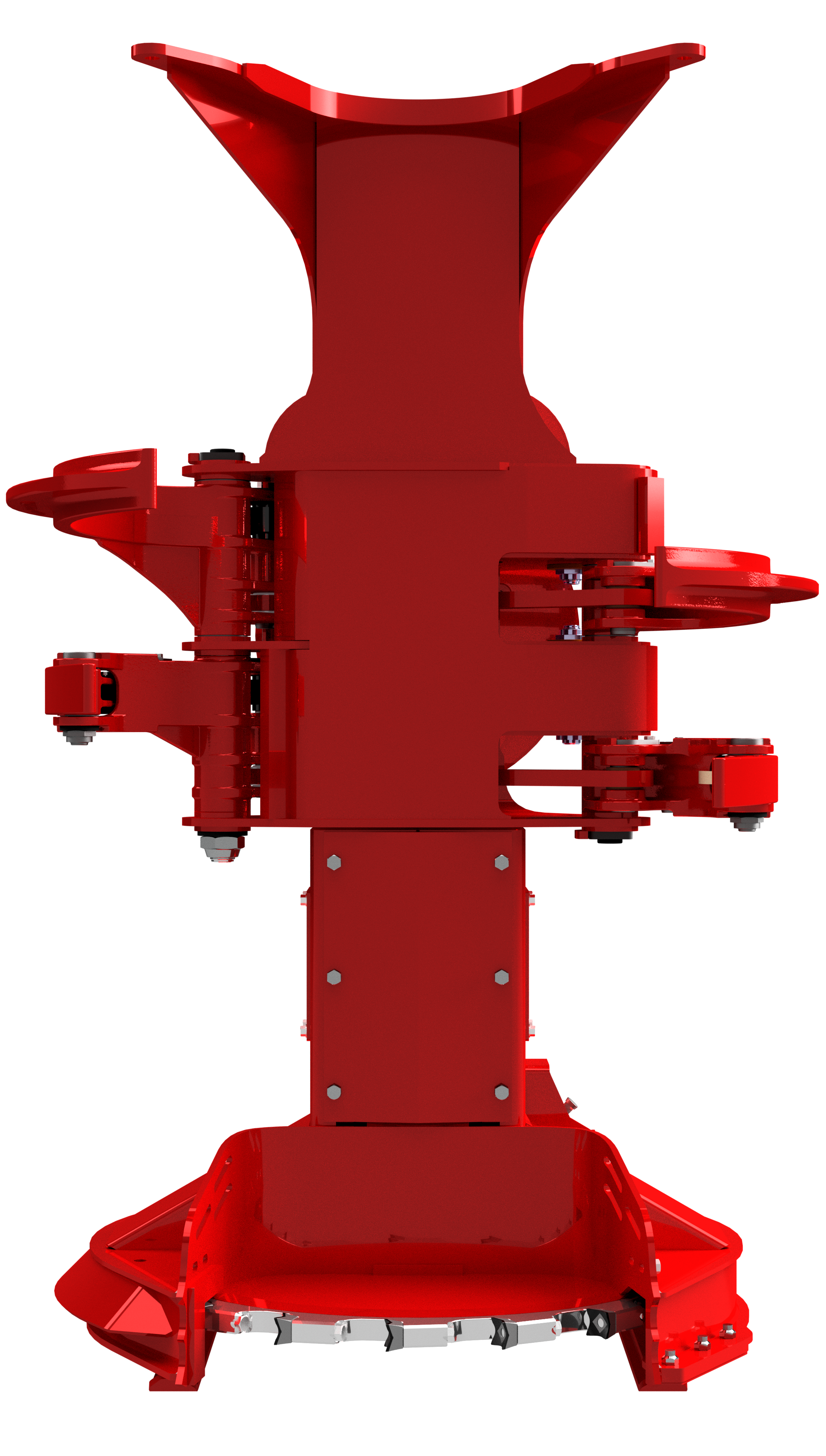

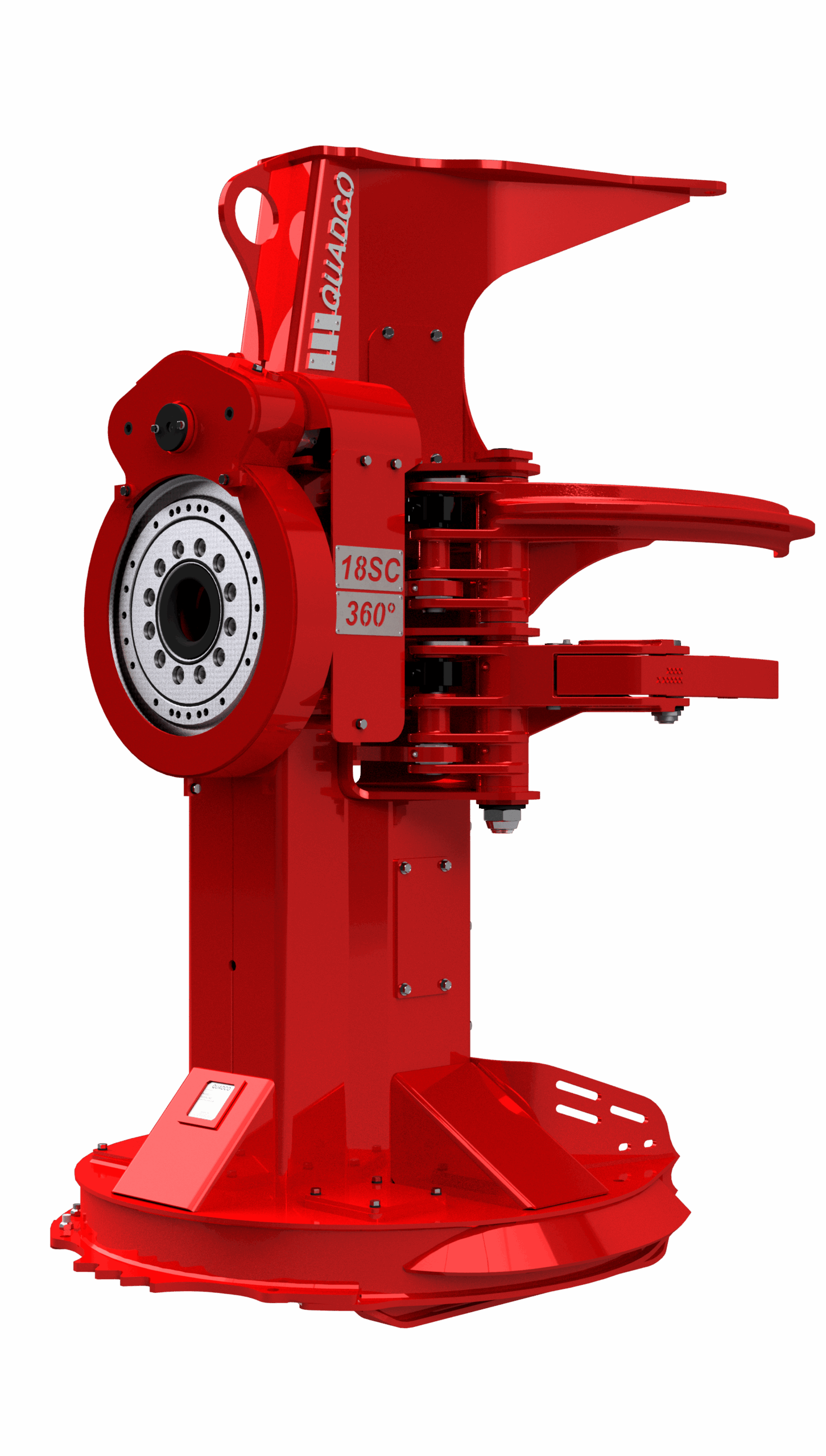

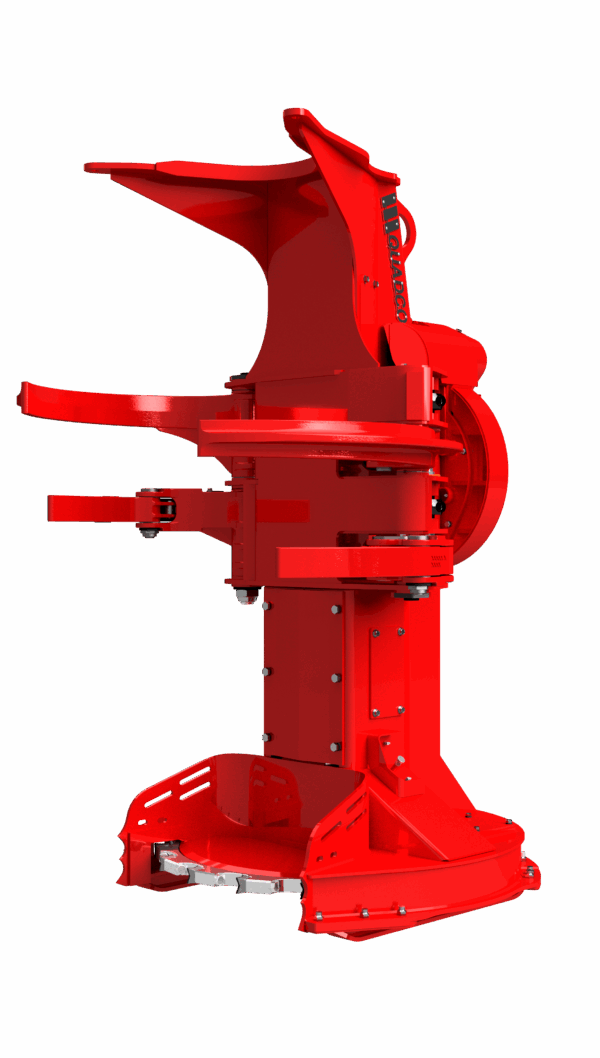

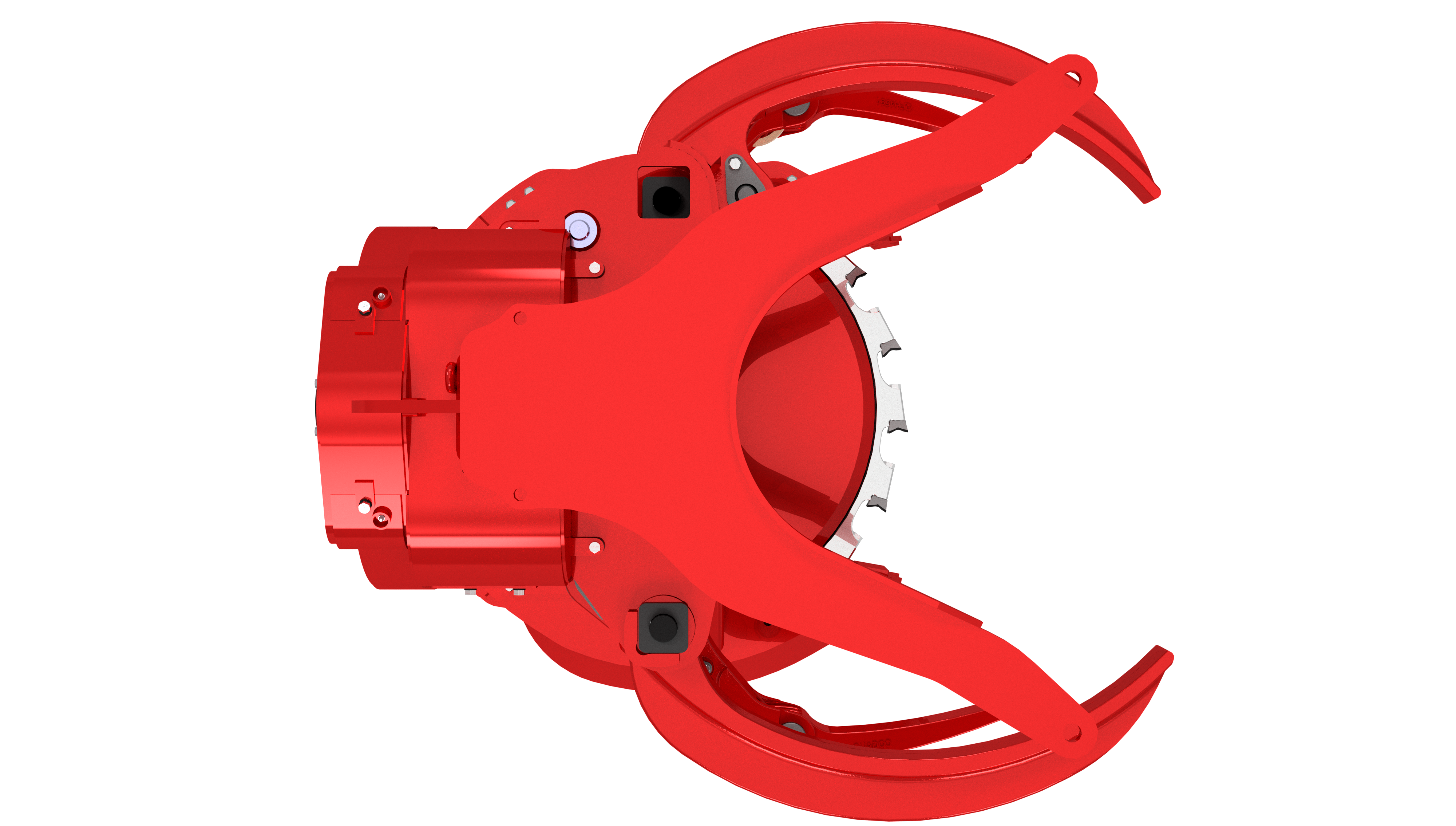

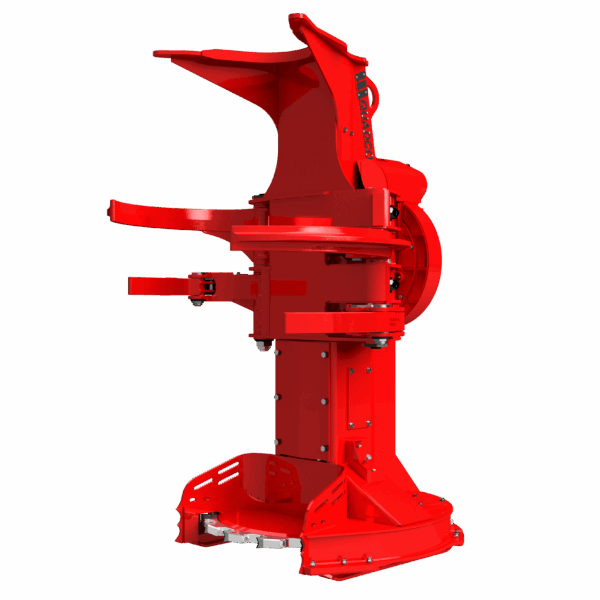

SC18v

High Speed Saw

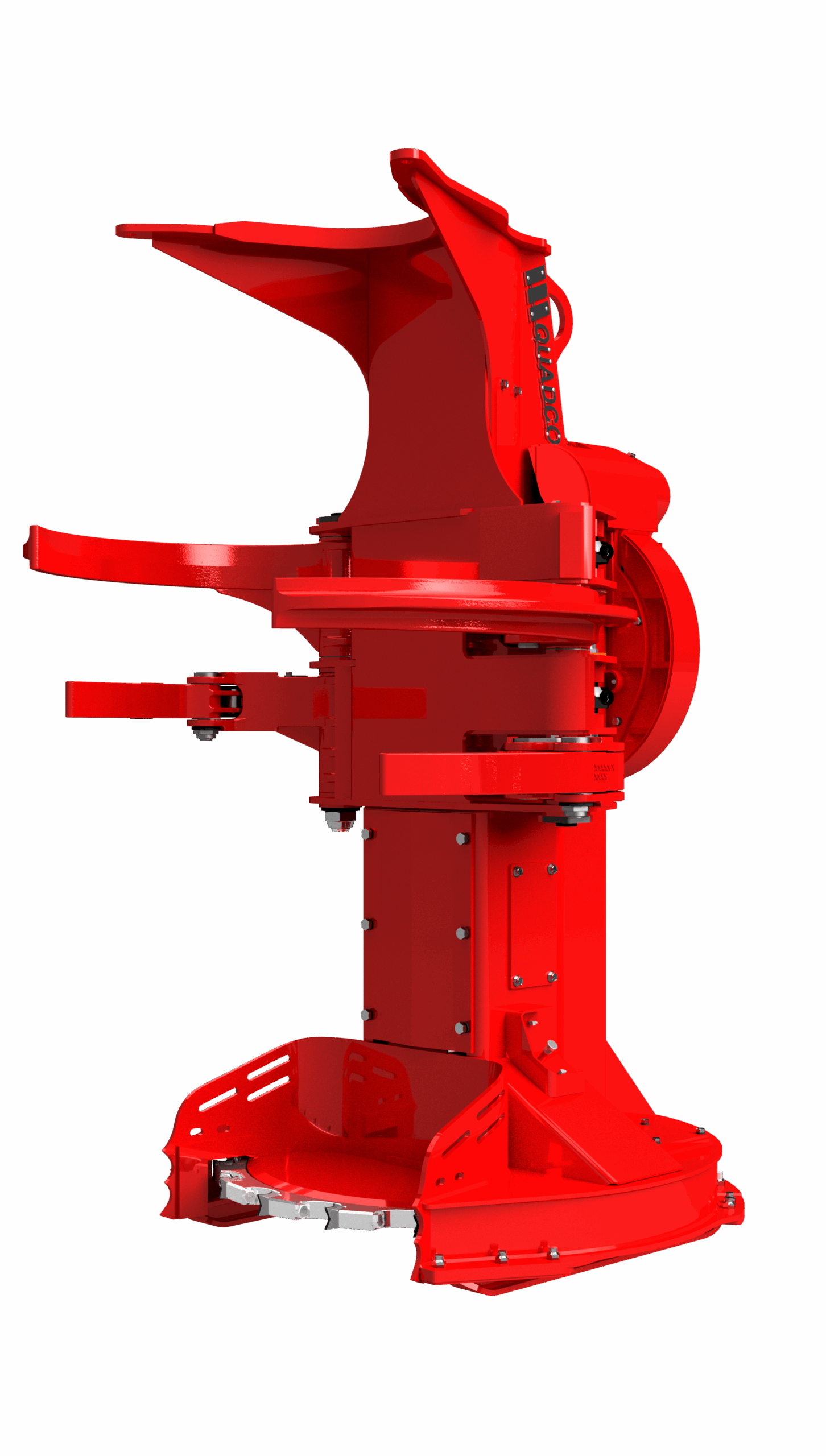

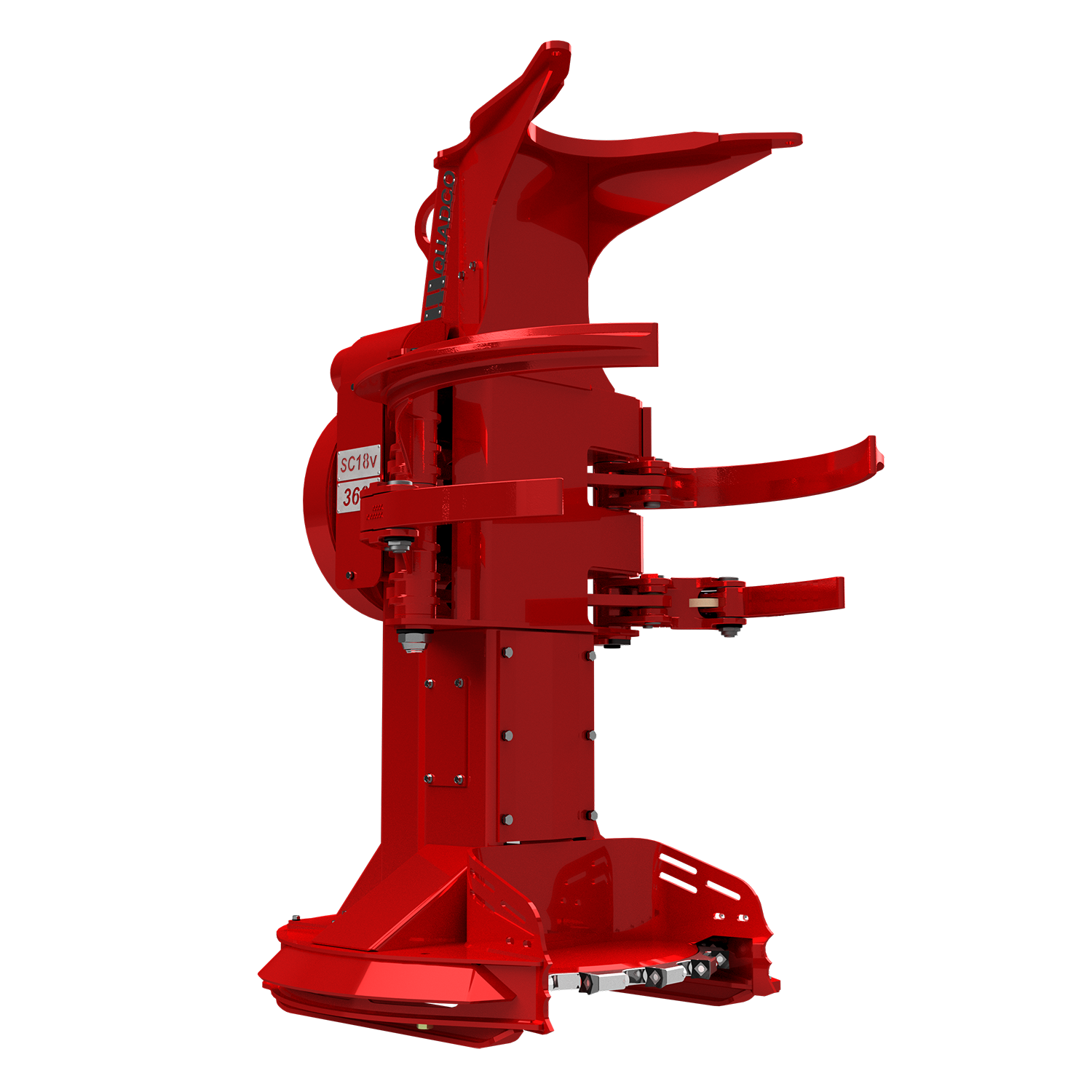

Quadco SC models offer a larger accumulation area. This larger accumulation is highly beneficial when working in stands containing smaller stems limiting dump cycles. The two sets of arms are each moved by a single cylinder and are connected by an equalizer bar. The cast arms are contoured for maximum durability and support when accumulating. A new integrated valve is housed directly in the head, reducing the number of hoses down the boom and through the head. This design simplifies installation, even on non-dedicated forestry machines, boosting overall uptime. The ultra-reliable disc drive and Quadco disc give fast and precise cuts, with numerous tooth options available from Quadco Cutting Tools!

SC18v

457 mm

|

18″
Cutting Capacity
227 – 240 kg

|

500 – 530 lbs
Weight
838 mm

|

33″
Max Throat Opening
0.32 m²

|

3.4 ft²
Accumulation Area over the Blade
Loading



Steel – QPS
Flared Series
2 1/16″ Kerf-
Longer Wear Life

Carbide – QPS
Flared Series
2″ Kerf – High Abrasion
Low Impact

Steel – Concave
2″ Kerf – Med Impact
Rocky Soil

Steel – Beaver
2″ Kerf – Light Impact

[tablefield field-name="table_section_1" table-class="my-table"]
[tablefield field-name="table_section_2" table-class="my-table"]
