M24.a

2-Row Mounder

The Bracke M24.a is a light mounder for attachment on a mid-sized base machine. This makes it suitable for smaller sites where high manoeuvrability is prioritised.

M24.a

Design

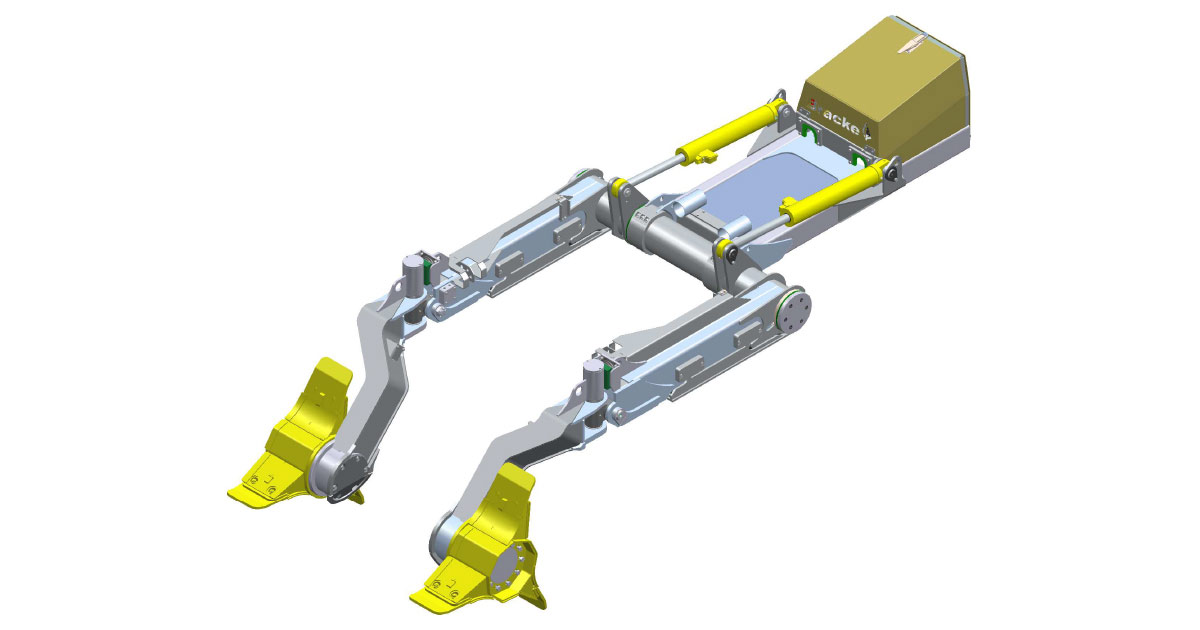

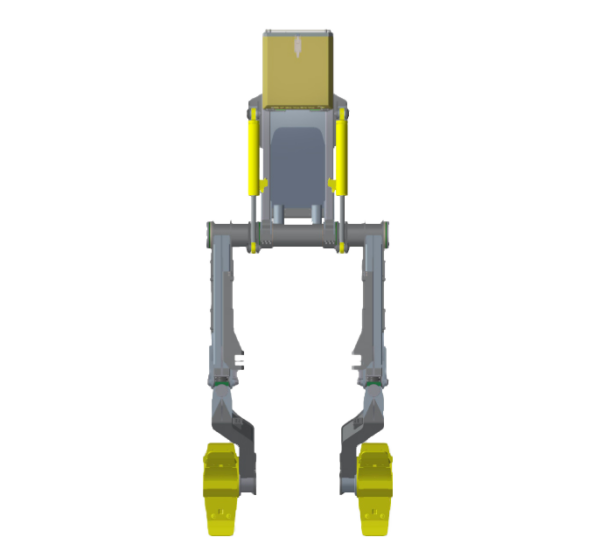

On the Bracke M24.a, the arms are articulated laterally to move aside for obstacles and create planting spots to one side. The design of the lift arm hinges provides a good lift height, and the arms could be lifted separately. The Bracke M24.a comes with both three-and four-pointed Mattock wheels (MW3 & MW4) to suit different market requirements. The hydraulics are load sensing.

Machine control

The Bracke M24.a has its own control system, which means it can easily be installed on forwarders, regardless of make. The display makes the system very user-friendly, and its functions are easy to understand. The mounder is fitted with sensors that send information to the operator, e.g., base machine speed and the rate of rotation of the mattock wheels. The control system has eight programmable operating profiles. The display is used to make settings in the control system and read information from the scarifier. The control system keeps track of the number of mounds of individual sites and in total, and the number of hours worked.
Loading



Scarification

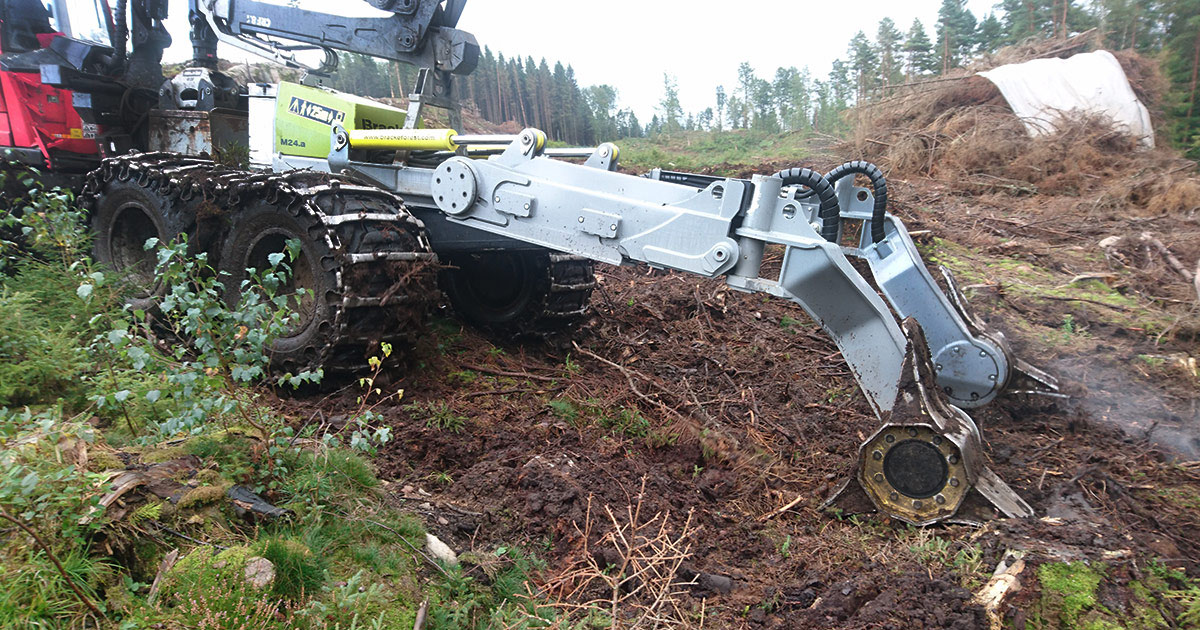

The operator controls the Bracke M24.a from the cab. Any one of the eight preset operating profiles is selected at the press of a couple of buttons to adapt the unit’s working method to achieve the best planting spots for the site concerned. The mattock wheels are hydraulically controlled and their rate of rotation is proportional to machine speed and adapted to the selected operating profile. The control system allows the operator to set up the Bracke M24.a to make mounds or scarify patches of varying length, depending on prevailing requirements.

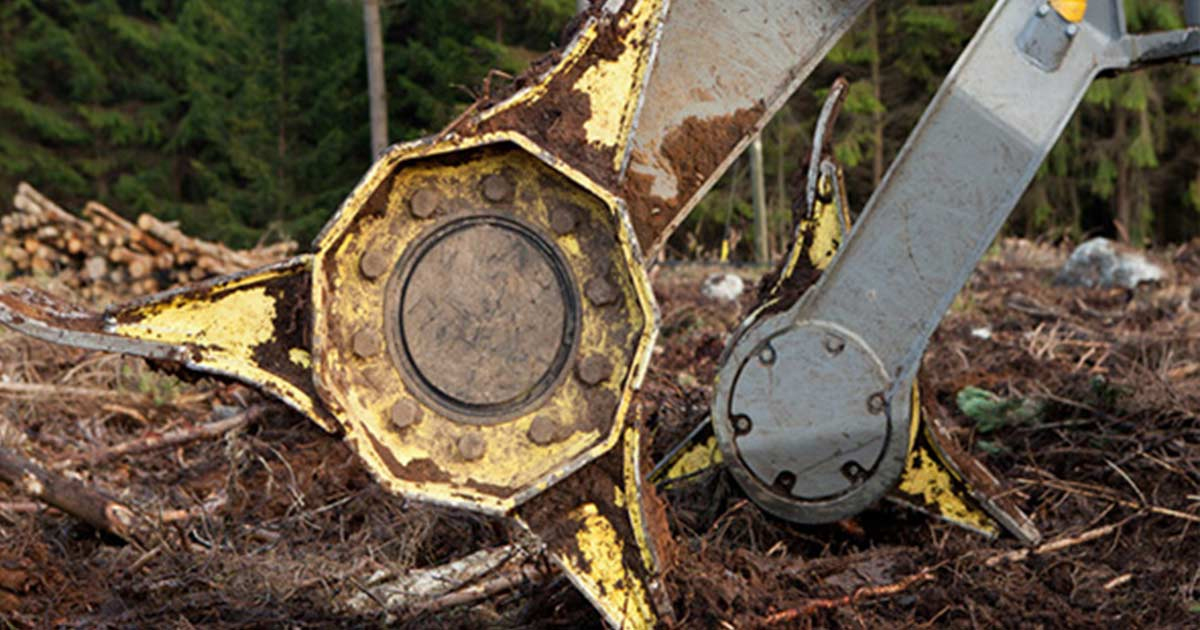

Mattock wheel

The Mattock wheel’s tooth plates make good planting spots with mineral soil coverage. The mounds can be compacted and soil impact is minimal. The design of the tooth plate allows its edge to maintain sharpness and results on the mounds are kept optimal throughout the life of the plate. Replacing the tooth plates is safe and simple.
