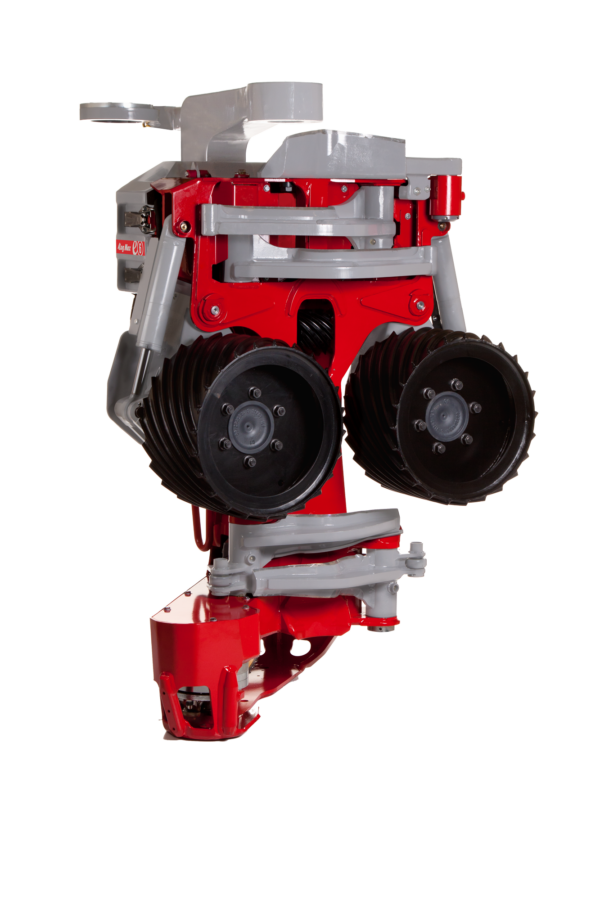

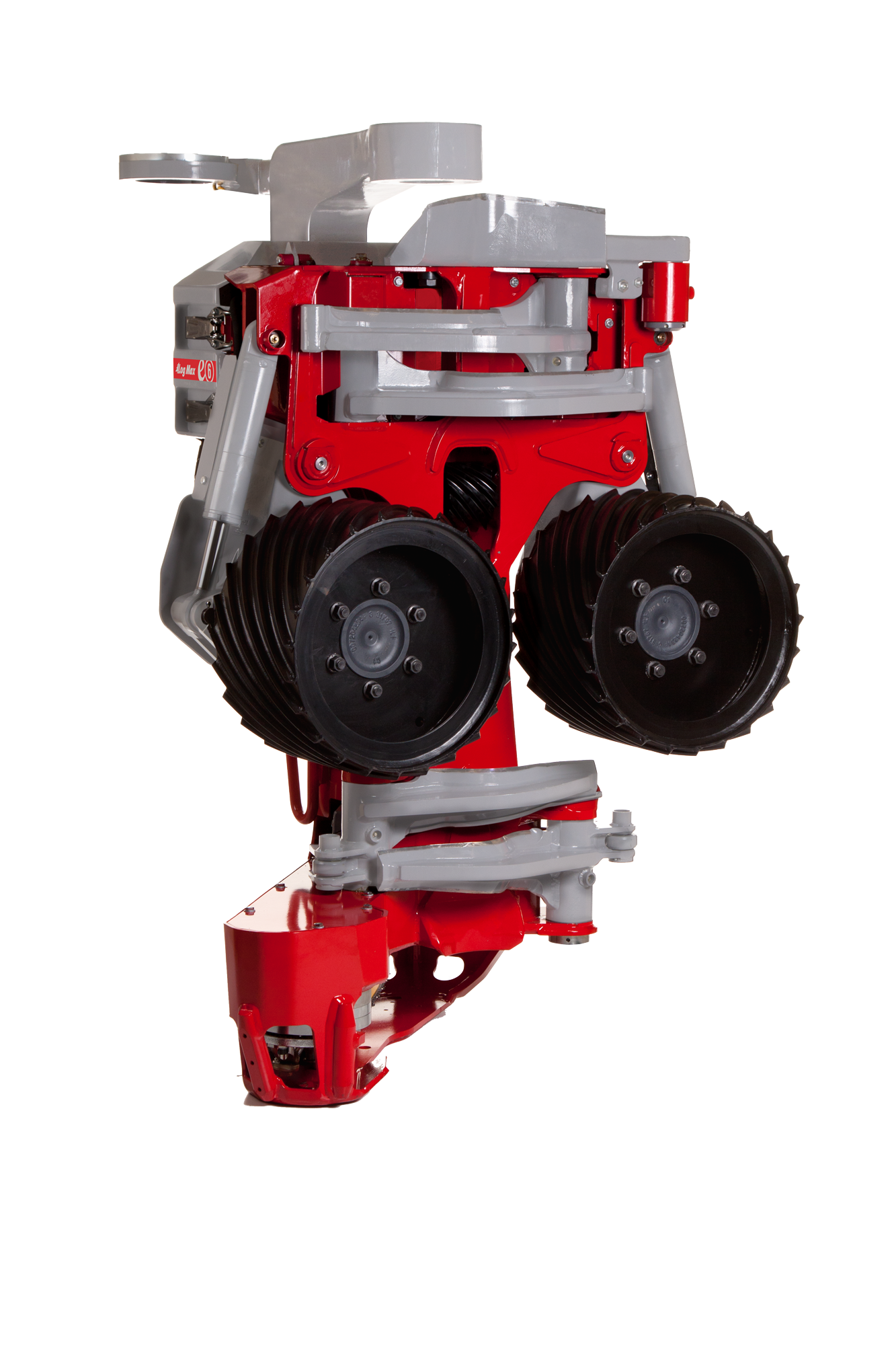

The Log Max E6 head is the result of team work and Log Max experience. This head has been developed to meet the demands of eucalyptus harvesting using five delimbing knives to debark the log.
|
|
|
Standard Configuration |
Metric |
Imperial |
|
|---|---|---|---|
|
|
|||
| Weights & Dims. | Weight | 1,569 kg | 3,459 lbs |
| Height | 192.7 cm | 75.9" | |
| Maximum Width (With Head Open) | 170.4 cm | 67.1" | |
| Maximum Width (With Head Closed) | 127.8 cm | 50.3" | |
| Degree of Rotation | N/A | ||
|
|
|||
| Drive Section | Number of Drive Rollers | 2 | |
| Motor Size (Drive Arm) | 627 cc | 38.26 in3 | |
| Motor Size (Variable Displacement) | N/A | N/A | |
| Motor Size (Fixed Center Drive) | N/A | N/A | |
| Maximum Drive Roller Opening (Diameter) | 630 mm | 24.8" | |
| Maximum Drive Roller Closing (Diameter) | 23 mm | 0.9" | |
| Feed Speed | 5.9 mps | 19.4 fps | |
|
|
|||
| Delimb | Number of Delimb Arms | 4 | |
| Maximum Delimb Opening | 611 mm | 24.1" | |
| Maximum Delimb Full Coverage | 260 mm | 10.2" | |
| Minimum Delimb Closing (Diameter) | 20 mm | 0.8" | |
|
|
|||
| Butt Saw | Saw Type | 98XL | |
| Maximum Cut (Diameter) | 43 cm | 61.5 cm | 16.9" | 24.2" | |
| Bar Size | 64 cm | 75 cm | 25.2" | 29.5" | |
| Chain Pitch | 0.404 mm | ||
| Motor Size | 19 cc | 1.16 in3 | |
| Chain Auto Tension | No | ||
| Oil Tank Capacity | 36 L | 9.5 gal | |
|
|
|||
| Top Saw | Carrier Size (Tracked) | 21 – 25 ton | |
| Carrier Size (Wheeled) | 18 – 25 ton | ||
| Maximum Pressure | 300 bar | 4,351 psi | |
|
|
|||
| Carrier Reqs. | Model | Log Mate 510 | |
| Optional Additions | Yes | ||
| Full Optimization | Optional | ||
| Electronic Calipers (For Electronic Calibrations) | Optional | ||
| Degree of Rotation | N/A | ||
