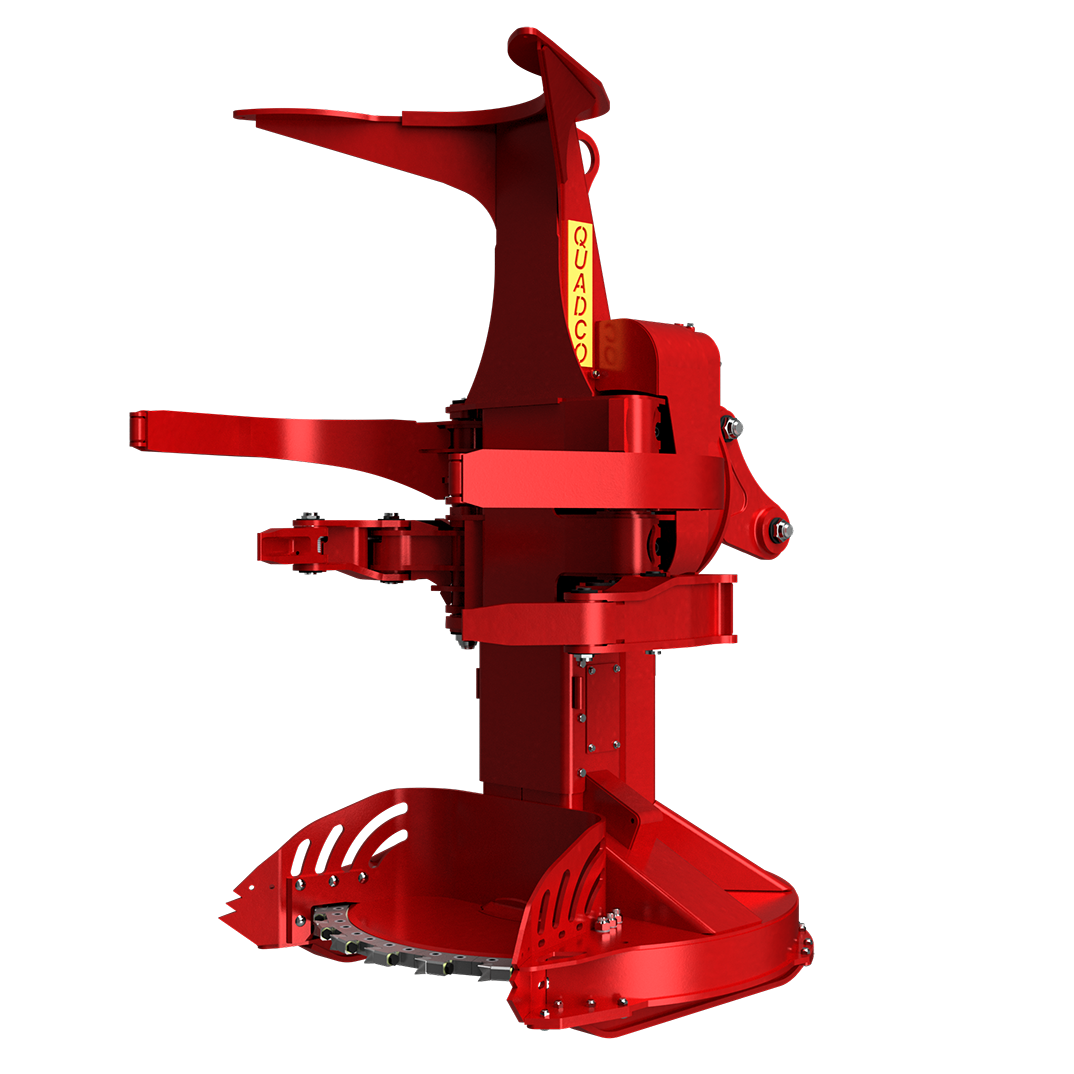

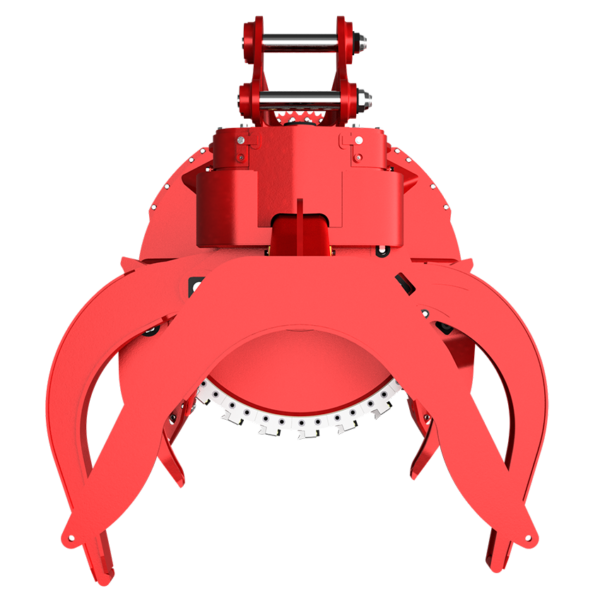

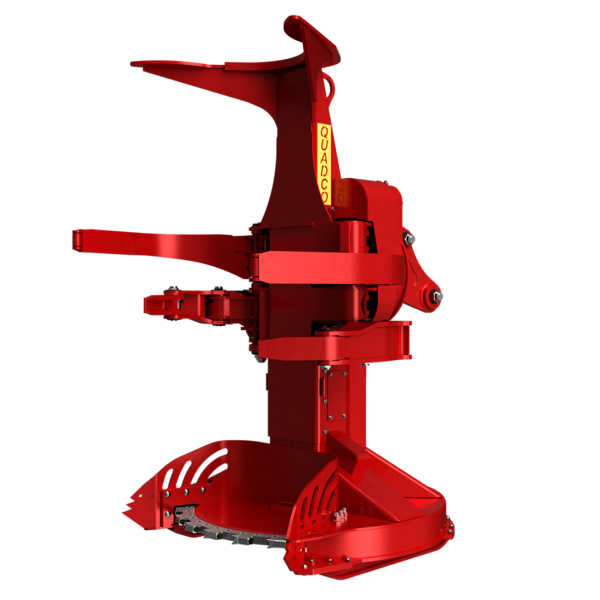

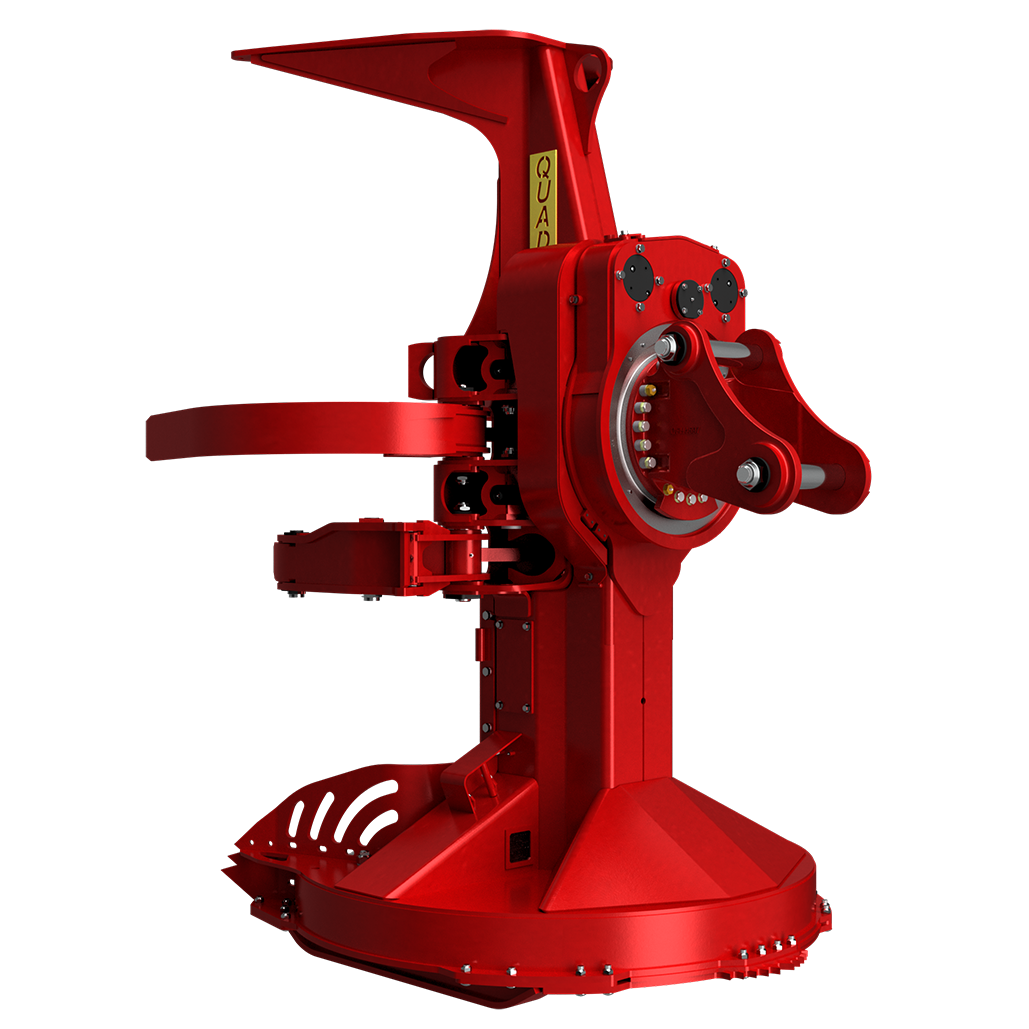

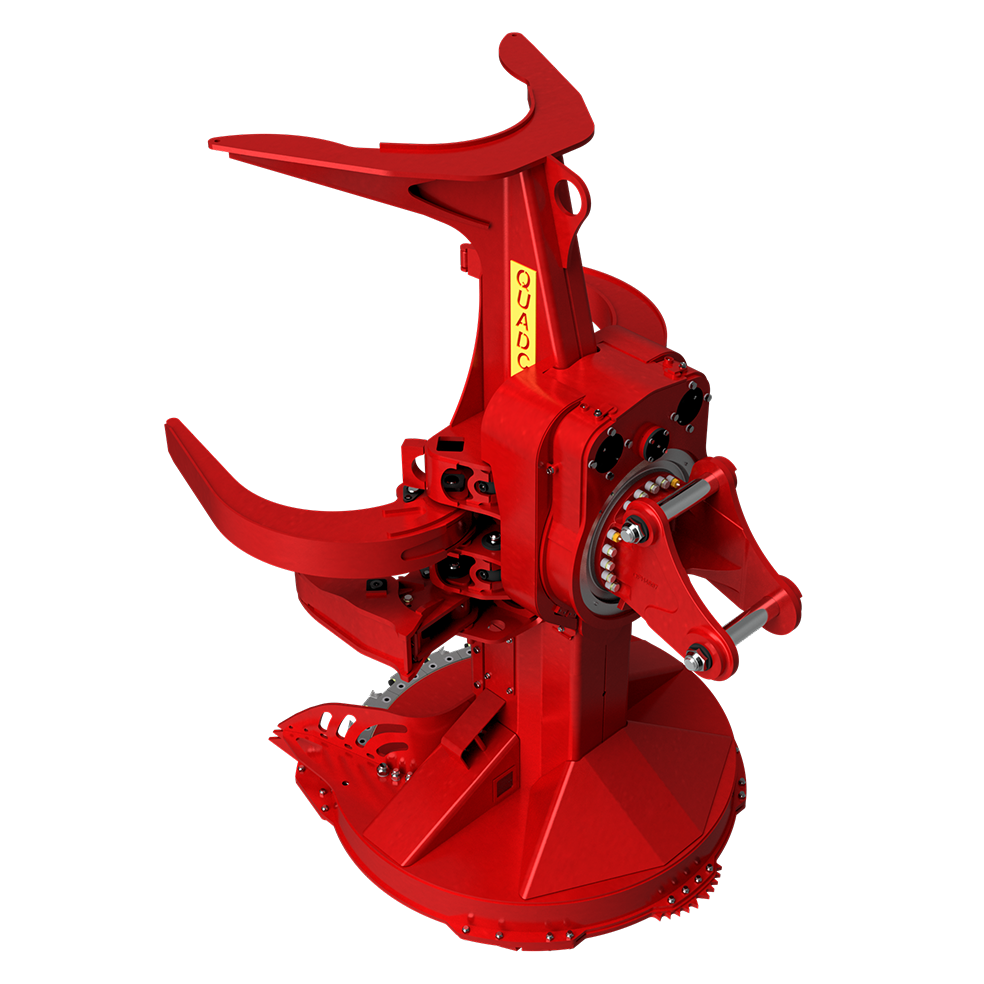

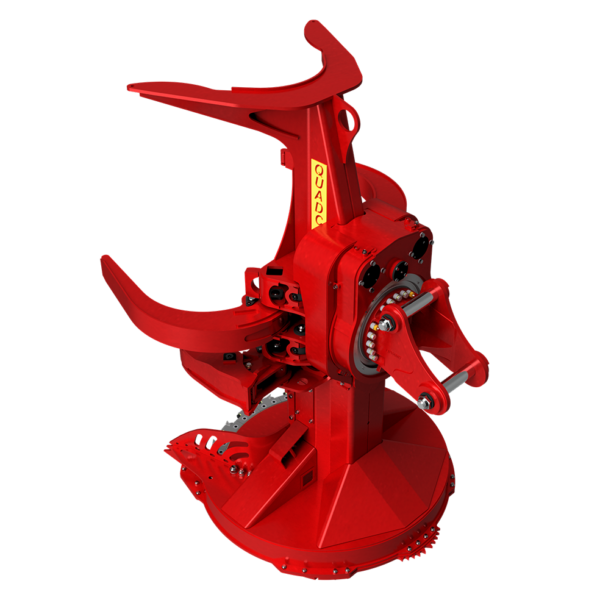

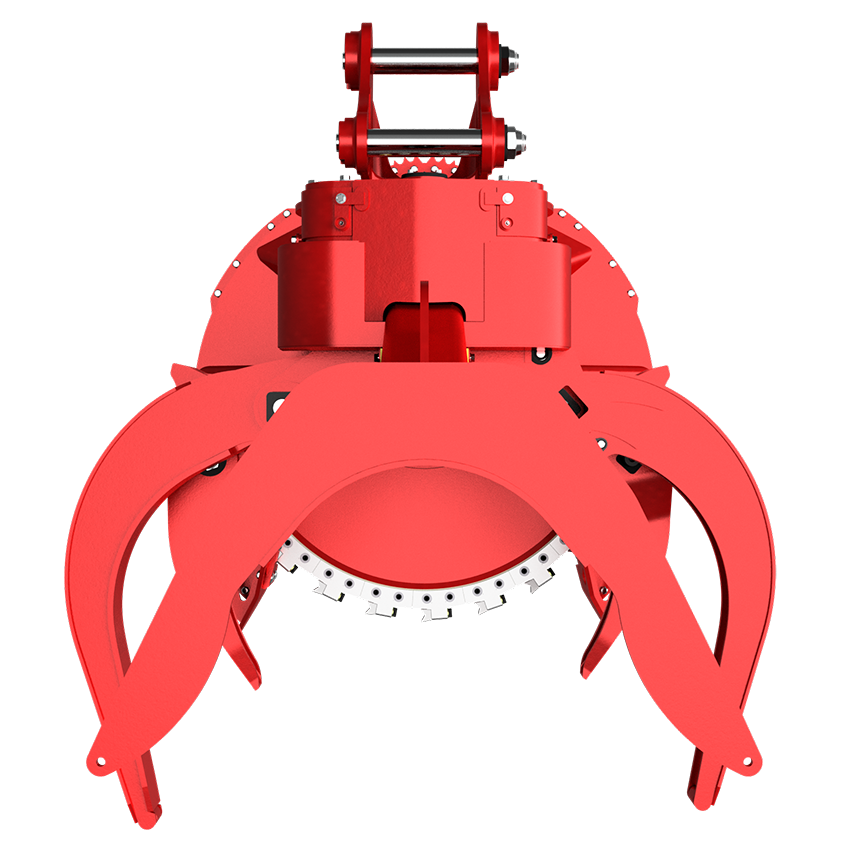

Quadco’s SC Models are designed with timber variety in mind. The 27SC’s high accumulation capacity is perfect for eastern logs. The SC Models are made for efficient accumulation with the “Four Arms Up” design and extended tower for superior leverage when handling tall timber. Faster accumulation is easy with one cylinder per set of arms and a heavy-duty timing bar.
|
|
|
|
| STANDARD CONFIGURATION | METRIC | IMPERIAL |
|---|---|---|
WEIGHTS & DIMENSIONS | ||
Rotation 40° (High Torque) | 3,493 kg | 7,700 lbs |
Rotation 360° | 3,674 kg | 8,100 lbs |
Number of Motors (360) | 2 | |
Height | 3,035 mm | 119.5"" |
Width | 1,778 mm | 70"" |
Depth | 1,867 mm | 73.5"" |
Maximum Throat Opening | 1,442 mm | 56.75"" |
Maximum Throat Opening @ Teeth | 1,143 mm | 45"" |
Accumulation Area (Over Blade) | 2.1 m² | 7.0 ft² |
Accumulation Area (Over Tree Support Plate Only) | 1.5 m² | 5.0 ft² |
Bunching Trees (15 cm | 6") | 24 | |
DISC | ||
Cutting Capacity | 686 mm | 27"" |
Tip-to-Tip Diameter | 1,651 mm | 65"" |
Rated Saw Speed | 1,000 rpm | |
Number of Teeth | 18 | |
Saw Kerf | 61.91 mm | 2 1/2"" |
Weight (Holders & Teeth | Varies Depending on Disc) | 499 kg | 1,100 Ibs |
Style (One Piece or Segmented) | Both | |
HYDRAULICS | ||
Cylinders (Diameter) | 102 mm | 4"" |
Grab Arms | 1 Cylinder | |
Accumulating Arms | 1 Cylinder | |
CARRIER REQUIREMENTS | ||
PSI Working Pressure | 3,650 – 4,200 psi |
