High Speed Saw

2972 mm | 117"

Height

1549 mm | 61"

Tip-to-Tip Diameter

610 mm | 24"

Cutting Capacity

1321 mm | 52"

Maximum Throat Opening

C Models enable better leverage when handling tall timber with extended tower and faster accumulation. They feature stronger, more durable cast arms contoured for maximum support when accumulating as well as an ultra-reliable disc drive with easily adjustable bearings.

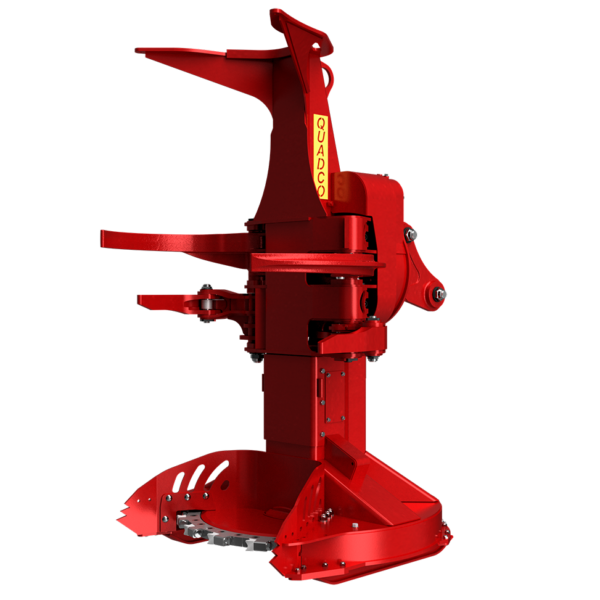

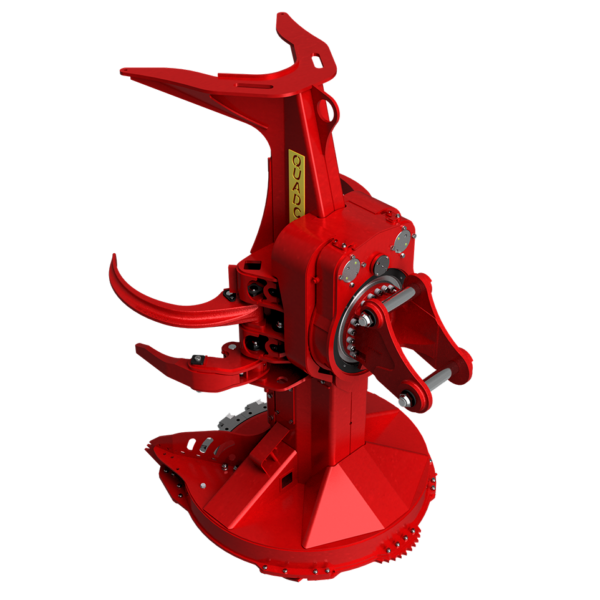

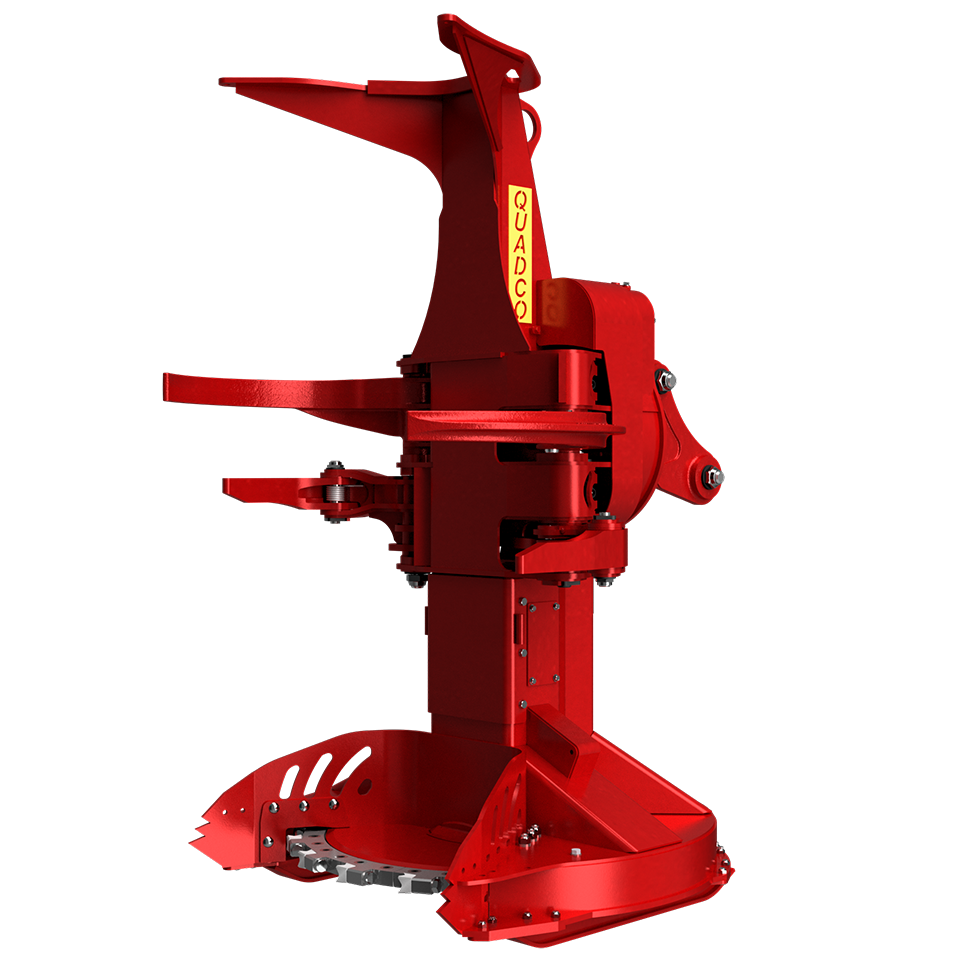

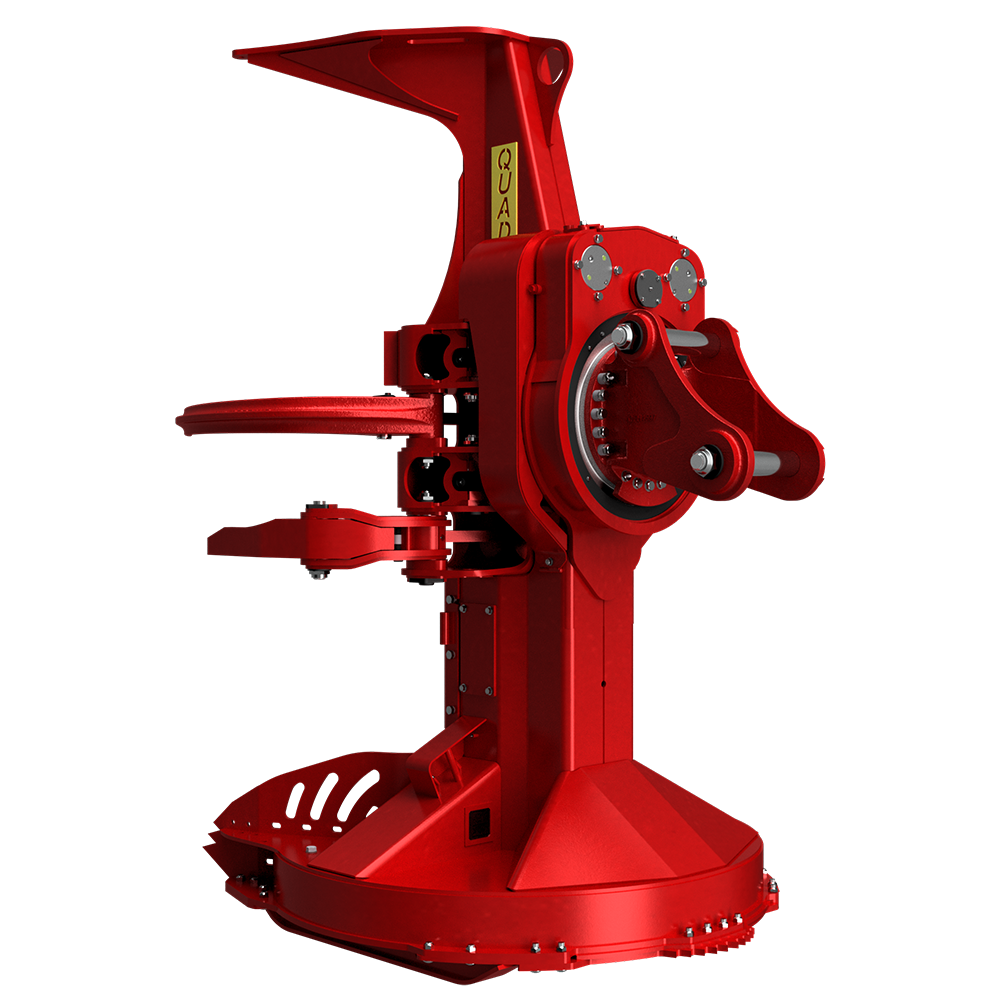

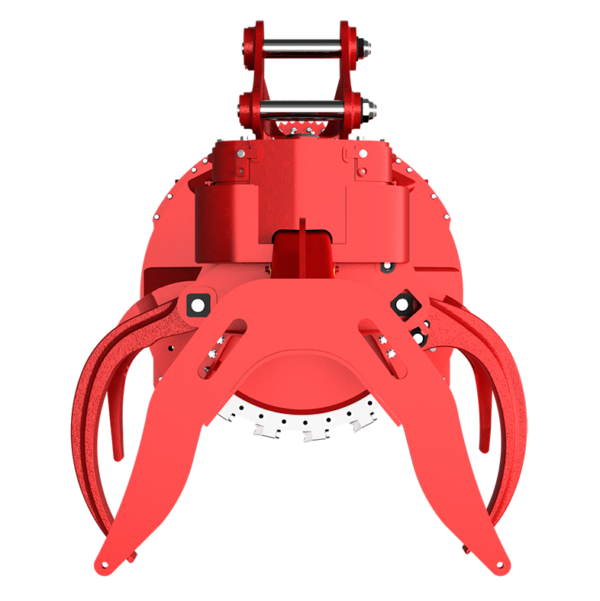

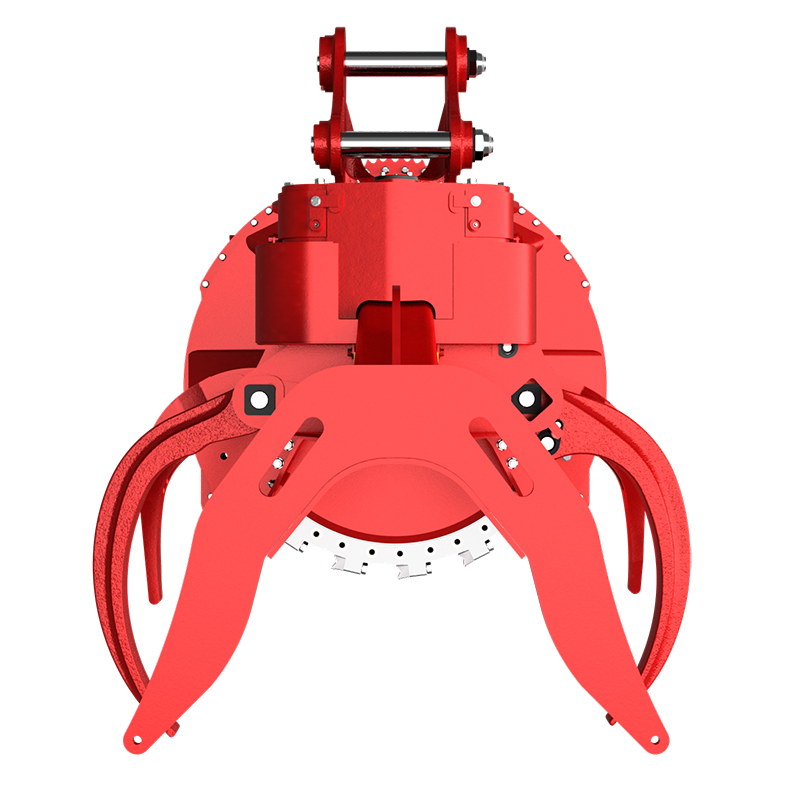

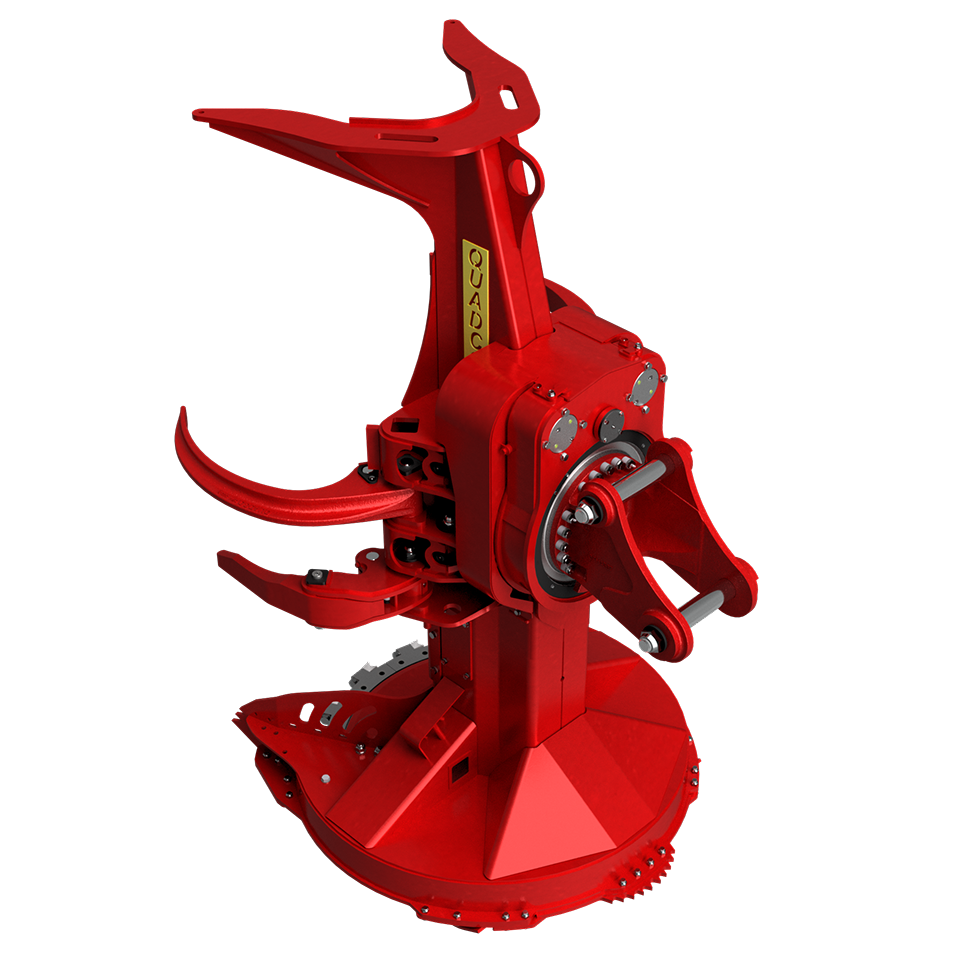

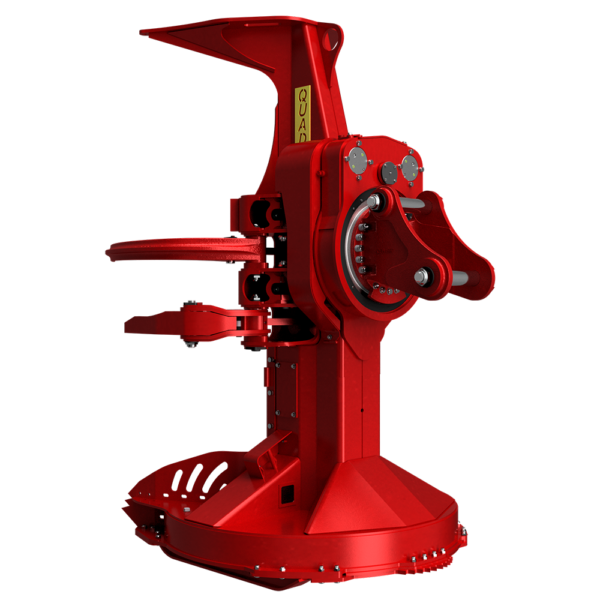

24C

Standard Configuration
Metric
Imperial

Rotation 40° (Medium Torque)
Rotation 40° (High Torque) 3,044 kg 6,710 Ibs
Rotation 360° (Medium Torque)
Rotation 360°(High Torque) 3,255 kg 7,660 Ibs
Height 2,972 mm 117″
Width 1,778 mm 70″
Depth 1,854 mm 73″
Maximum Throat Opening 1,321 mm 52″
Maximum Throat Opening @ Teeth 1,092 mm 43″
Accumulation Area (Over Blade) 0.54 m2 5.8 ft2

Cutting Capacity 610 mm 24″
Tip-to-Tip Diameter 1,549 mm 61″
Rated Saw Speed 1,075 rpm
Number of Teeth 18
Saw Kerf 59 mm 2 5/16″
Weight (Holders & Teeth | Varies Depending on Disc) 434 kg 956 Ibs
Style (One Piece or Segmented) Both

Motor Rexroth
Motor Size 170 cc

Grab Arms 1 Cylinder
Accumulating Arms 1 Cylinder
Weight 3300 kg
Dimensions 30 × 30 × 40 cm

it’s all in the details

As a true visionary and pioneer in the forestry industry, we embrace quality craftsmanship.

C Models

Quadco’s C Models make accumulating easy with the “Four Arms Up” design and extended tower for the best leverage when you’re handling tall timber. Designed with faster accumulation in mind, C Models feature one cylinder per set of arms and a heavy-duty timing bar.

Cast arms are contoured and durable for maximum accumulation support and leverage.

C Models feature extremely reliable disc drives with easily adjustable bearings, plus Quad Tooth® style options for every project.

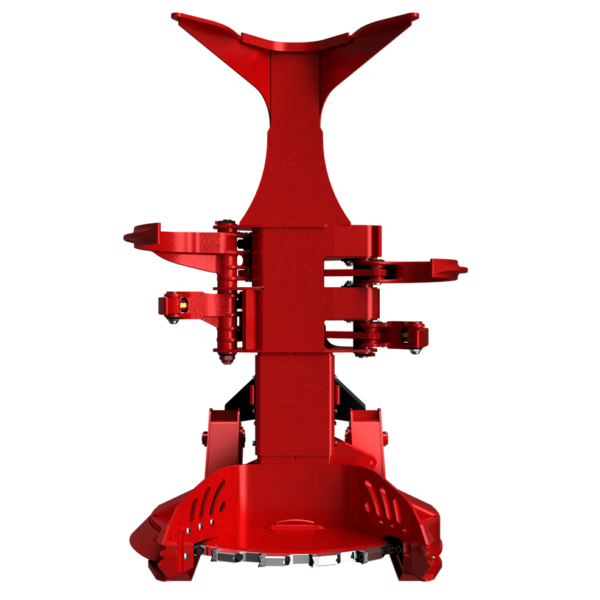

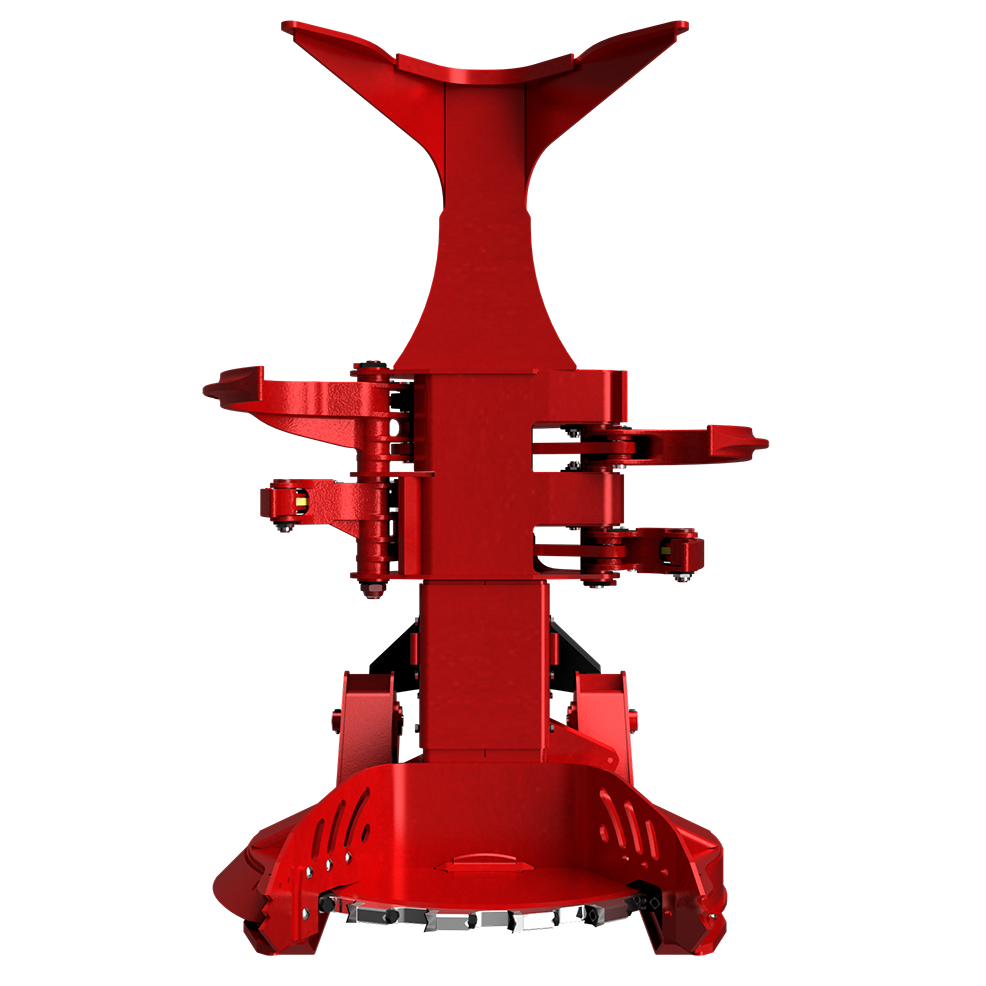

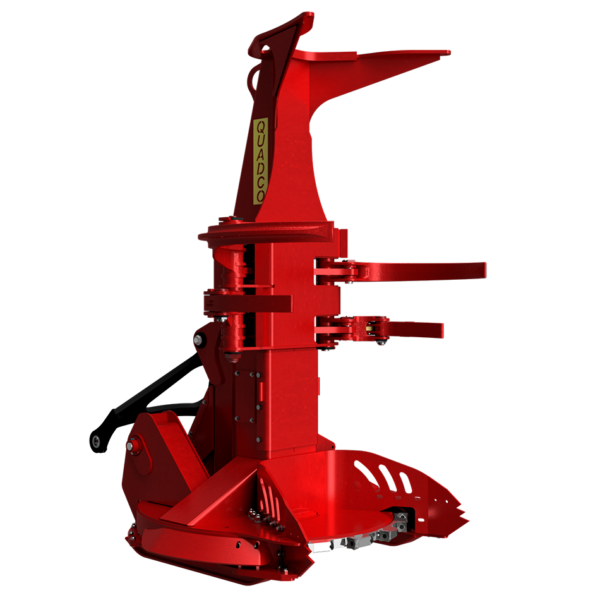

C MODELS 18C 20SC 22C 22CP 22SC 24C 24CP 27SC
Cutting Capacity 18″ 20″ 22″ 22″ 22.7″ 24″ 24″ 27″
