High Speed Saw

2565 mm | 101"

Height

1321 mm | 52"

Tip-to-Tip Diameter

508 mm | 20"

Cutting Capacity

940 mm | 37"

Maximum Throat Opening

Quadco’s SC Models are designed with timber variety in mind. The 22SC’s high accumulation capacity is perfect for eastern logs. The SC Models are made for efficient accumulation with the “Four Arms Up” design and extended tower for superior leverage when handling tall timber. Faster accumulation is easy with one cylinder per set of arms and a heavy-duty timing bar.

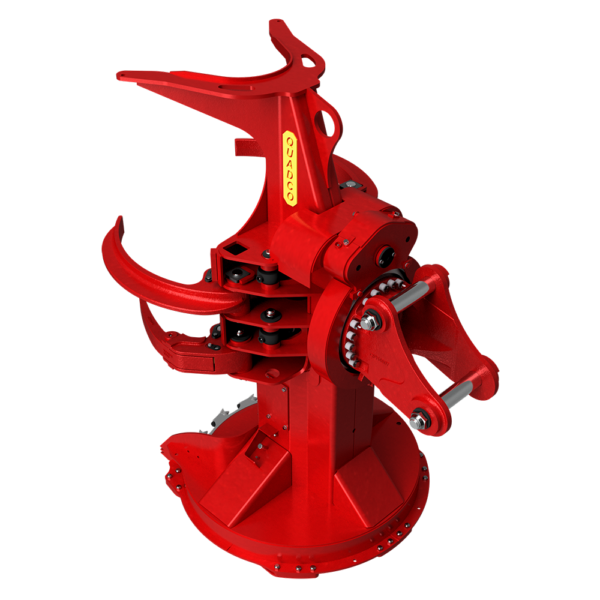

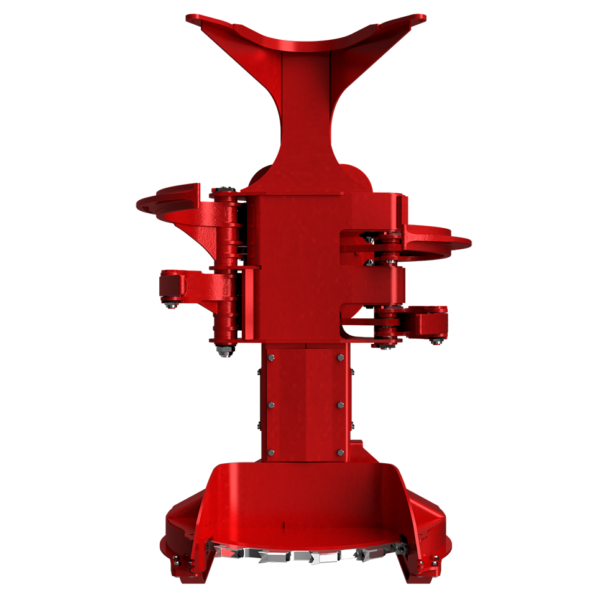

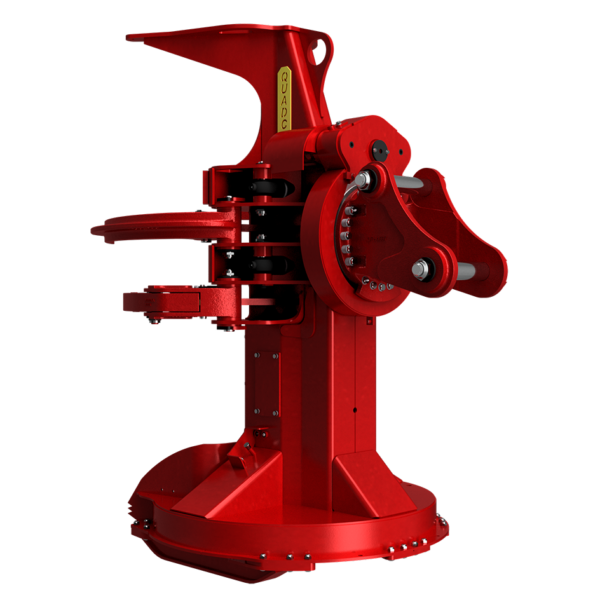

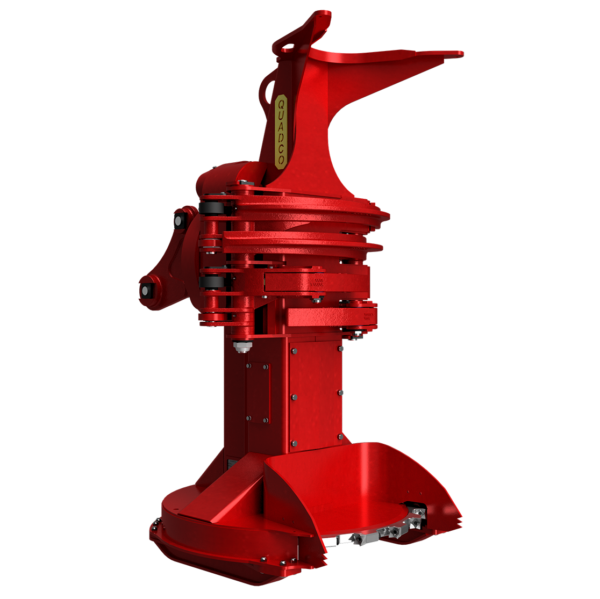

20SC

Standard Configuration
Metric
Imperial

Rotation 40° (Medium Torque)
Rotation 40° (High Torque)
Rotation 360° (Medium Torque) 2,540 kg 5,520 lbs
Rotation 360°(High Torque)
Rotation 360°(Quadco High Torque 2 @ 60,000 lbs x ft)
Number of Motors (360)
Height 2,565 mm 101″
Width 1,435 mm 56.5″
Depth 1,346 mm 53″
Maximum Throat Opening 940 mm 37″
Maximum Throat Opening @ Teeth 889 mm 35″
Accumulation Area (Over Blade) 0.40 m2 4.3 ft2
Accumulation Area (Over Tree Support Plate Only)
Bunching Trees (15 cm | 6″)

Cutting Capacity 508 mm 20″
Tip-to-Tip Diameter 1,321 mm 52″
Rated Saw Speed 1,250 rpm
Number of Teeth 18
Saw Kerf 51 mm 2″
Weight (Holders & Teeth | Varies Depending on Disc) 261 kg 575 lbs
Style (One Piece or Segmented) Both

Motor Rexroth
Motor Size 170 cc

Cylinders (Diameter)
Grab Arms 1 Cylinder
Accumulating Arms 1 Cylinder

Carrier Size
PSI Working Pressure
Low Flow Valves for Arms & Rotator
Weight 3300 kg
Dimensions 30 × 30 × 40 cm

it’s all in the details

As a true visionary and pioneer in the forestry industry, we embrace quality craftsmanship

SC Models

Quadco’s SC Models are designed with timber variety in mind. While the twin pinion design of the 20SC is made to tackle West Coast timber, the 22SC’s high accumulation capacity is perfect for eastern logs.

The SC Models are made for efficient accumulation with the “Four Arms Up” design and extended tower for superior leverage when handling tall timber. Faster accumulation is easy with one cylinder per set of arms and a heavy-duty timing bar.

C MODELS 18C 20SC 22C 22CP 22SC 24C 24CP 27SC
Cutting Capacity 18″ 20″ 22″ 22″ 22.7″ 24″ 24″ 27″
