3,152 kg | 7,300 lbs Weight (Without Rotator, Link, or Multi-Tree Handling) |
![]() |
610 mm | 24 in Cutting Capacity |
![]() |
51 mm - 559 mm | 2" - 22" Delimb Diameter Capacity |

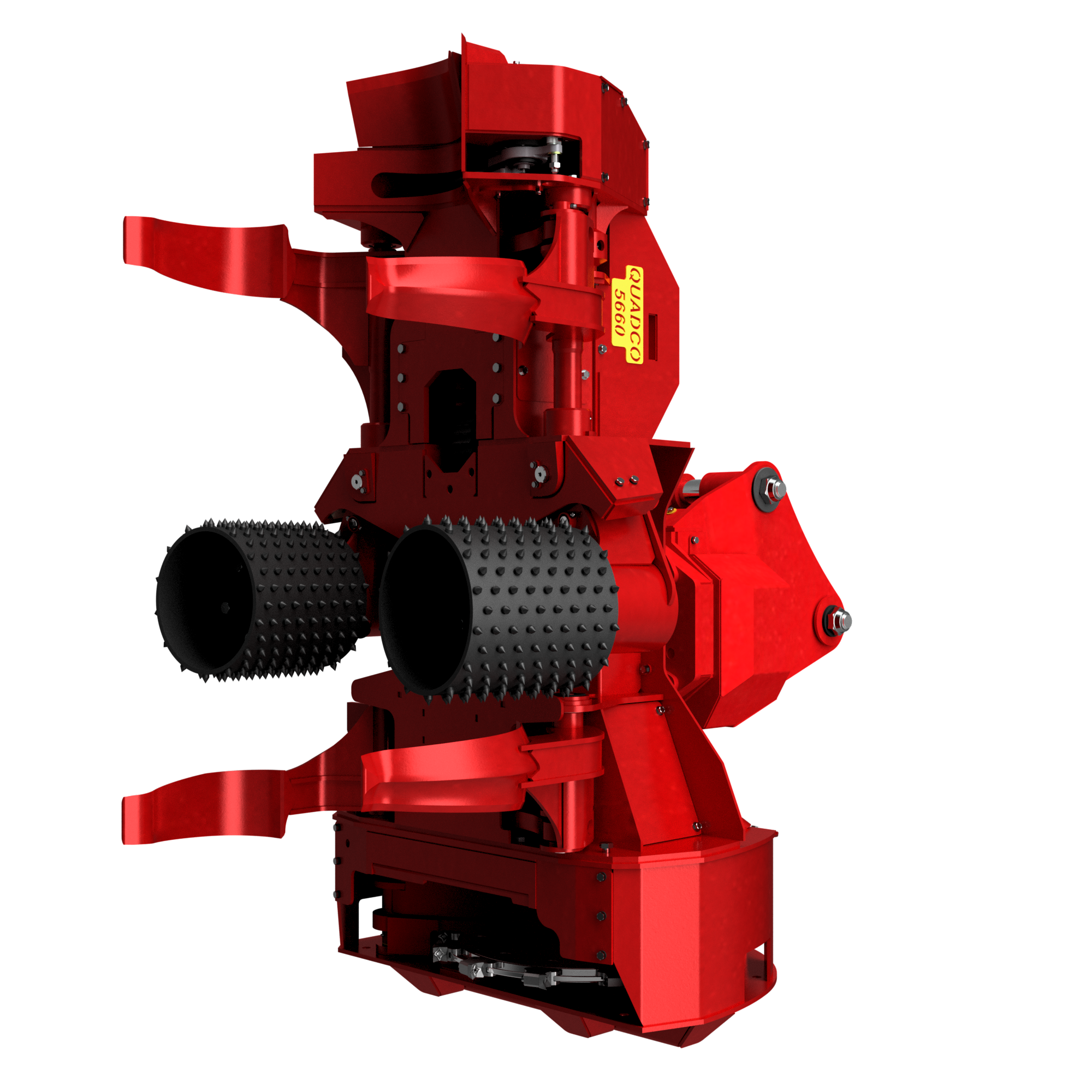

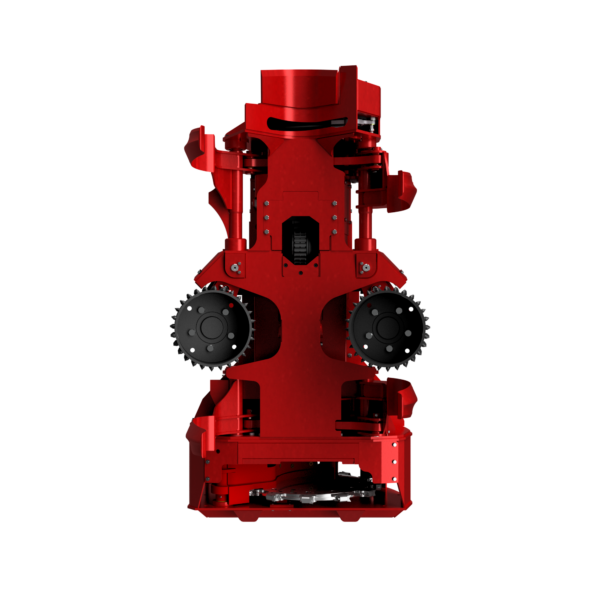

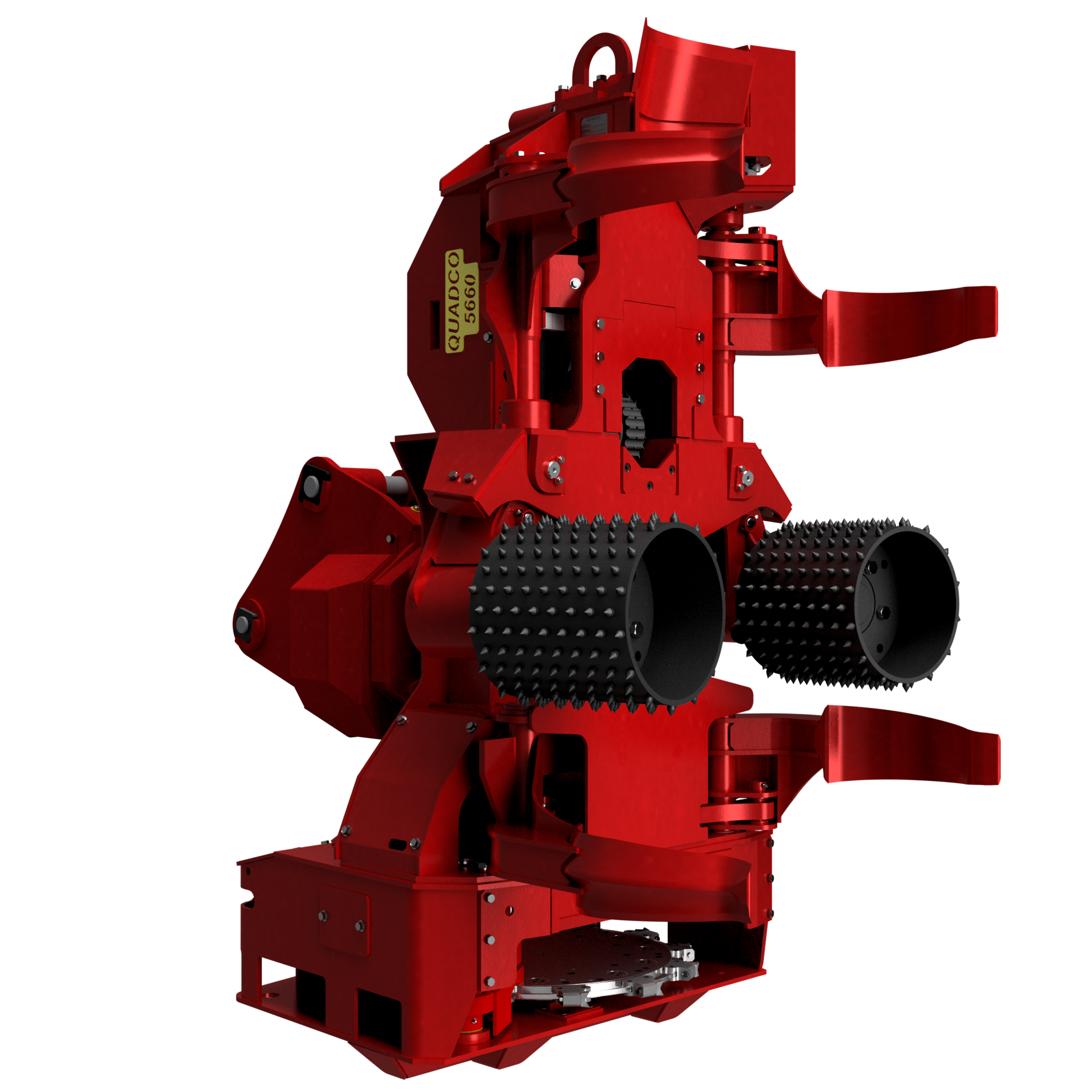

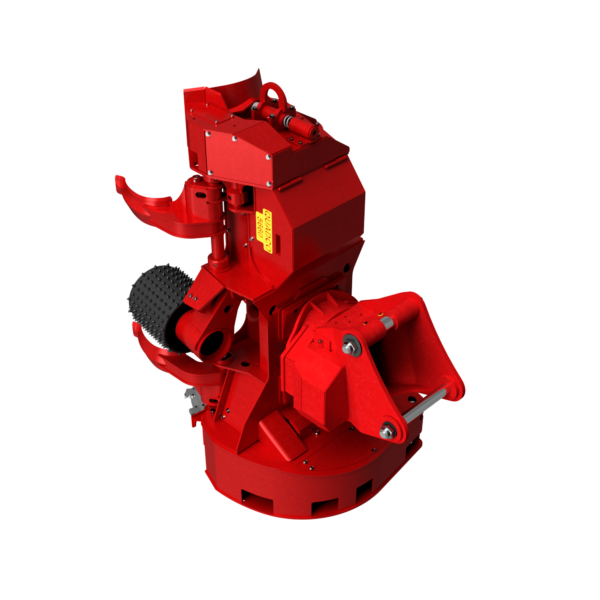

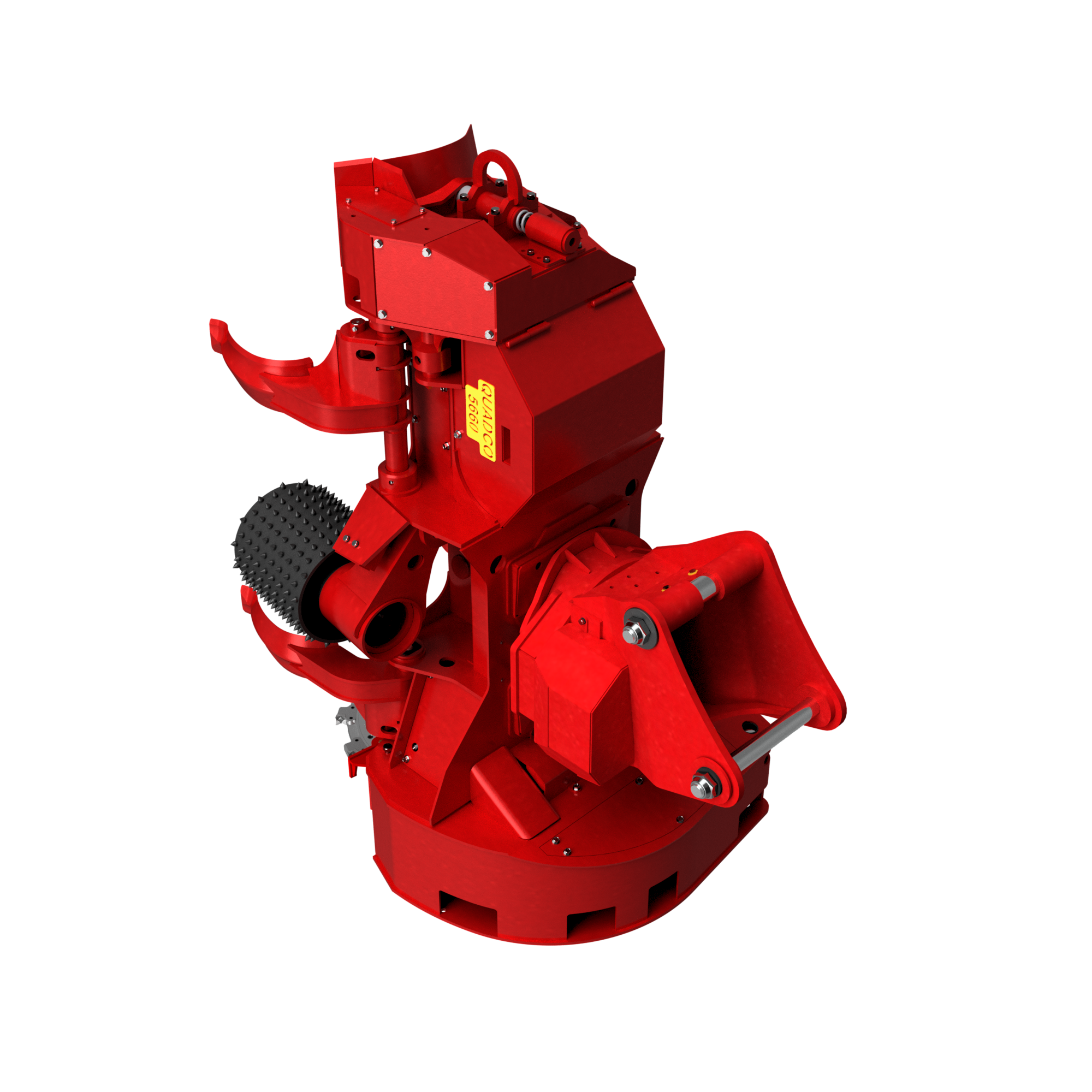

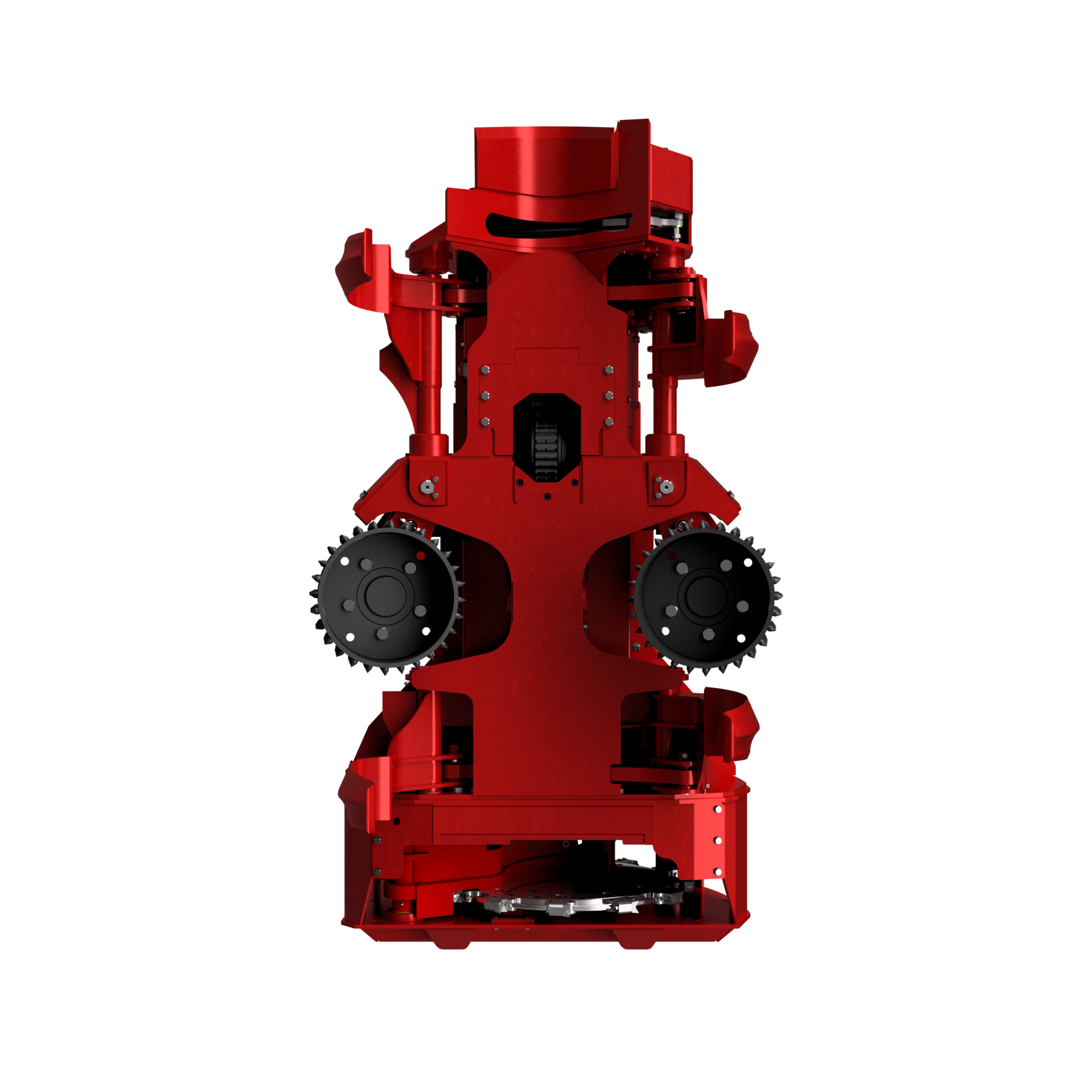

The Quadco 5660-QU Harvesting Head is a whole lot of power packed into a durable, high efficiency machine. With a standard 0.404" top saw and a 12-tooth swing out saw disc for a high-speed, 24" quality cut, this harvesting head is built to maximize productivity. Its controlled fixed mount adapter allows the head to float during processing mode, while the high-performance disc saw combines speed and reliability to lower your operating costs. Plus, this model has seen over 25 improvement updates in recent years, ensuring that you’re getting the latest technology to maximize your uptime.
Standard Configuration |
Metric |
Imperial |
|
---|---|---|---|
|
|||
Height | |||
Weight | 3,152 kg | 7,300 lbs | |
|
|||
Top Saw | 305 mm | 12″ | |
|
|||
Cutting Capacity | 610 mm | 24″ | |
Delimb Diameter Capacity | 51 mm – 559 mm | 2″ – 22″ | |
Tip-to-Tip Diameter | 894 mm | 35.2″ | |
Rated Saw Speed | 760 rpm | ||
Number of Teeth | 12 | ||
Saw Kerf | 41 mm | 1 5/8″ | |
Weight (Holders & Teeth) | 136 kg | 300 lbs | |
Style (One Piece or Segmented) | Segmented | ||
|
|||
Carrier Size | 22 ton class plus | ||
PSI Working Pressure | 4000 psi | 276 bar | |
Valve Section Saw Circuit | 85 gpm | 322 lpm |
Weight | 3300 kg |
---|---|
Dimensions | 30 × 30 × 40 cm |
