32QDM – Tradeshow Tablet Edition

DRUM MULCHER

770 kg | 1700 lbs

Weight (Incl lateral tilt, heel, typical bolt-on sleeves & pins)

340 bar | 5000 psi

Maximum Pressure

813 mm | 32"

Cutting Swath

2800 rpm

Speed

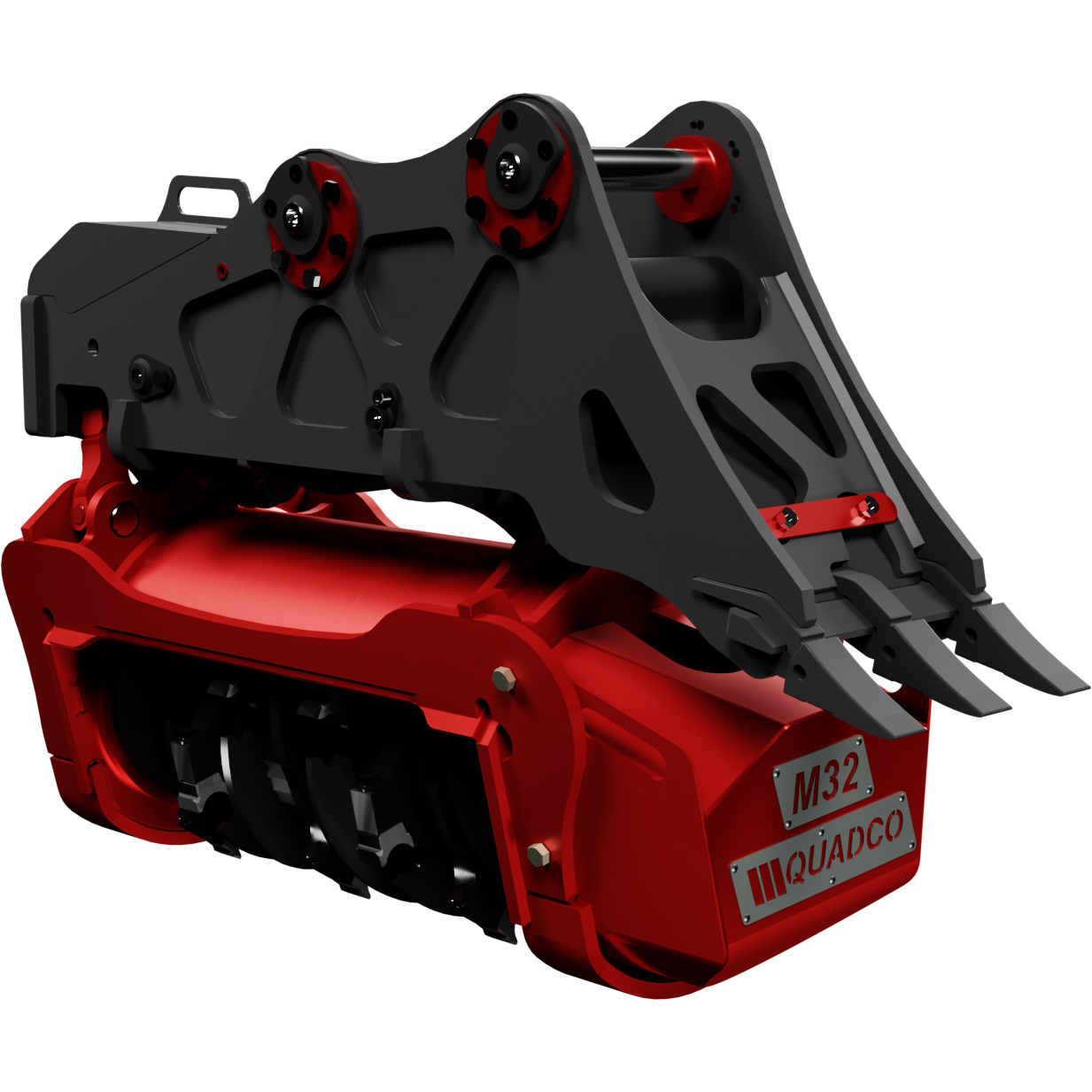

Quadco’s new 32-inch drum mulcher is the latest addition to a current lineup of tough, reliable and cost-efficient forestry mulching attachments. It is a versatile head, compact in dimensions but heavyduty, best suited to 8-15 ton excavators.

32QDM – Tradeshow Tablet Edition

Standard Configuration
Metric
Imperial

Weight 770 kg 1,700 lbs
Height 1,041 mm 41″
Width 787 mm 31″
Length 1,854 mm 73″

Cutting Swath 813 mm 32″
Number of Teeth 18
Speed 2,800 rpm

Motor Rexroth
Motor Size 170 cc
Minimum Flow 170 lpm 45 gpm
Pressure 340 bar 5,000 psi
Weight 3300 kg
Dimensions 30 × 30 × 40 cm

it’s all in the details

As a true visionary and pioneer in the forestry industry, we embrace quality craftsmanship.

qr-32qdmv2

Scan the QR Code for the Product Sheet

DRUM Mulchers

To improve productivity and handling of ground material, a 100-degree lateral tilt is offered as standard equipment as well as a fixed heel equipped withreplaceable bucket teeth. The drum is available with a variety of Quadco teeth, all-steel or carbide, to suit any application.

The head will outproduce and outlive many other mass-produced brands, often built too light for professional contractors. Built-in universal boom adapter provides equipment dealers, particularly rental fleets, flexibility and quick turnarounds to meet the demands of their client’s businesses – pins and sleeves only can be swapped when a change of carriers is required.
